P3D v2 T-346A

Discussion in 'Showroom' started by SixGhost, 19 Aug 2014.

  1. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy
    I've been working on this one for a lifetime it seems to me. I started it a few years back but due to a chronic lack of decent material and that damn thing called life always getting in the way, this is where my little project is at right now.

    Some shots of the pit in construction:

    One of the seats

    [​IMG]

    The front panel assembly

    [​IMG]

    Here's the latest stage of development

    [​IMG]

    And finally a couple of old shots of the external. It will be heavily reworked because of some inaccuracies and the need to fit the pit which is based on actual drawings, unlike the external.

    [​IMG]
    [​IMG]

    What did I learn? Never ever start a plane that is still in a prototype stage!:banghead: And never trust your eyes when most of your reference material is made of pics taken with a widish angle lens. I literally had to redo some parts tens of times. Getting curves right was a mini challenge in its own way. :)
    It's also to be said that I'm really picky though.:p

    Luca

    lionheart, g_120a, antaris and 4 others like this.
  2. hairyspin

    hairyspin Resource contributor

    Joined:
    8 May 2010
    Messages:
    2,791
    Country:
    unitedkingdom
    Well, you're in good company Luca. Keep picking!

  3. mskhan1991

    mskhan1991 Resource contributor

    Joined:
    27 Jun 2007
    Messages:
    785
    Country:
    pakistan
    lovely!

  4. lazaro

    lazaro

    Joined:
    24 Jan 2009
    Messages:
    137
    Country:
    germany
    That's some superb modelling. I'm excited to see this progress over the next months/years! :)

    UnitedExpress4180 likes this.
  5. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy
    Thanks guys, much appreciated. Work still continues, I'll have something to show by the end of the week all going well.:wave:

  6. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy

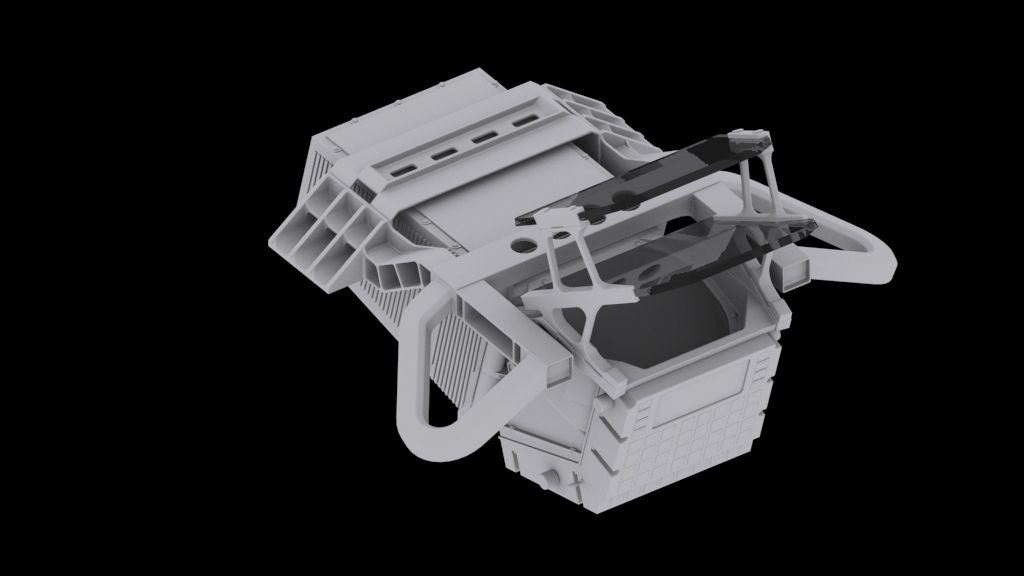

    The hand grip assembly is complete. I managed not to split it into chunks and it's just one smoothing group. I now really hate the 1mm welding threshold though!:D

    [​IMG]

    lionheart and antaris like this.
  7. capt_x

    capt_x

    Joined:
    2 Feb 2009
    Messages:
    587
    Country:
    germany
    That looks superb, but you are pushing the limits polycount-wise...

  8. lazaro

    lazaro

    Joined:
    24 Jan 2009
    Messages:
    137
    Country:
    germany
    Oh my go* this is some next level stuff. amazing.

  9. NSAdonis

    NSAdonis

    Joined:
    2 Mar 2014
    Messages:
    61
    Country:
    yugoslavia
    The gridding on the side is really too much of an overkill.

  10. UnitedExpress4180

    UnitedExpress4180

    Joined:
    7 Jul 2012
    Messages:
    210
    Country:
    us-colorado
    Out of curiosity, what's the poly count up to?

  11. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy
    UE, the polycount so far for internal + external is 220k tris.
    Yes I know, I'm going beyond the "reasonable" amount of detail, but it's been done like that for a number of reasons and with a plan.
    You may see a lot of rounded edges for example, when in fact, they're not. I add edge loops to "confine" the creasing you would have between two perpendicular faces with the same smoothing group, much like you would do in high poly modeling before applying a turbosmooth modifier.
    This allows me to:
    - fake a chamfered edge with less polys
    - easily apply a turbosmooth modifier if I need since most of the sensible parts of the mesh are quads
    - effortlessy reduce the amount of polys by a lot retaining all the basic geometry once the textures are baked, just by erasing all unnecessary fake chamfers
    It's a slow process, at least for me, but it gives me the freedom to go sensibly up or down in resolution.
    Of course, the gridding won't be seen and it will have to go, but it's a nice touch and the less poly heavy part in there :D:D

  12. NSAdonis

    NSAdonis

    Joined:
    2 Mar 2014
    Messages:
    61
    Country:
    yugoslavia
    If you go by that route, my suggestion would be to mesh out the whole thing like a CGI one, and then bake the normals onto a low poly variant. The so far 220k is a lot of polies for an in-game mesh.

    When you do meshes meant for realtime rendering, you want your poly and texture count as low as humanly possible, or you get extreme hardware demands on running it when you add the whole finished product together, that's the main trait of a good gaming 3D artist.

    jacklyon likes this.
  13. hairyspin

    hairyspin Resource contributor

    Joined:
    8 May 2010
    Messages:
    2,791
    Country:
    unitedkingdom
    I can think of some modellers who would say "Chickenfeed!" to those poly counts. FSX and P3D can handle that and the solid chamfers with low smoothing counts make it easier for the sim to deal with.

  14. NSAdonis

    NSAdonis

    Joined:
    2 Mar 2014
    Messages:
    61
    Country:
    yugoslavia
    Sorry, but a 9 year old 32bit game is done for a really specific set of limitations that if you don't abide by, you just cause problems for. Some games just reject a mesh that's outside it's set limits, some make it prone to errors and instability, some can crash. Plus you can never be sure what the entire polycount of stuff shown at a specific moment in a scenery on a particular persons PC can be.

  15. hairyspin

    hairyspin Resource contributor

    Joined:
    8 May 2010
    Messages:
    2,791
    Country:
    unitedkingdom
    I understand where you're coming from NSA, it's just that other modellers have found the limits for FSX are higher than Luca's position at present. P3D raises the bar still higher since it offloads the rendering burden to the GPU.
    I don't know what the actual limits for FSX on today's hardware are, but I do know there are models on the market which easily exceed 250,000 polys without the sim protesting. I know of no limits being hit with P3D to date but would like to hear if there are.

    jacklyon likes this.
  16. NSAdonis

    NSAdonis

    Joined:
    2 Mar 2014
    Messages:
    61
    Country:
    yugoslavia
    The limits aren't hardware dependent mind you, but on the forced limitations of the engine itself, hardware just make it's realtime rendering more efficient within it's own constrains. That's why modern engines like the one Star Citizen is made on can have scenery with polies in the millions (so, ships, character models, scenery assets combined), the engine that is being written for the game I'm in the dev team of was stressed up to 2 million by us without any negative effects. I'm not so sure with FSX tho, especially with todays addons. And that's just the poly counts, if we add in animations and textures it just goes downhill from there on rapidly.

  17. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy
    NSA, baking a high poly mesh over a low one sure is one way of doing things (for organic shapes). I personally don't like it for non organic meshes because once things are in motion and specular kicks in, your beautiful textures are ruined by hard edges and the illusion goes to the bin, like your vertex count.
    May I suggest you read this article?

    http://blogs.technet.com/b/torgo3000/archive/2007/06/19/performance-art-3-polygons-don-t-matter.aspx

    Chances are that the hand grip assembly above, if mapped correctly, will be way more efficient than a significantly lower poly one with different smoothing groups. And it will also look nicer!;)

    hairyspin likes this.
  18. JB3DG

    JB3DG Resource contributor

    Joined:
    24 Jun 2010
    Messages:
    1,102
    Country:
    southafrica
    Indeed. As someone who spends quite a bit of time writing HLSL shaders, its much easier for the video card to handle a couple hundred thousand or even a million polygons than something like nearly 50 million pixels in textures.

    hairyspin likes this.
  19. NSAdonis

    NSAdonis

    Joined:
    2 Mar 2014
    Messages:
    61
    Country:
    yugoslavia
    No, you misunderstand. Make the whole thing like up to 100k polies, and stuff you cannot do through normals do with modelling. That's how I do it with my own stuff.

    The article basically says that when you map something your vertex count goes up, depending on the way the mesh itself was mapped. That's why I said that when you add up the textures your problems get bigger fast. No matter how you approach doing the mapping, the poly count still gives you the bare minimum of verts you are working with.

    Last edited: 23 Aug 2014
  20. SixGhost

    SixGhost Resource contributor

    Joined:
    18 Aug 2014
    Messages:
    99
    Country:
    italy
    I perfectly understood what you meant there mate. I stand by my own words though. I just don't like normal baking for non organic meshes. Simply put, given the level of detail I want to achieve, If I had to choose between adding normal maps for most of the pieces or 100k efficient polys, I'd go for the latter.

    You're right when you say that polycount gives you the bare minimum of verts, but in my case, reducing the polycount means erasing hard chamfers and erasing hard chamfers means I can't use just 1 smoothing group and I lose my fake roundness. So basically by reducing polys, visual quality and verts, i add other verts because I now have lots of hard edges. At that point, the difference between the number of verts of the high and low poly meshes (same shape, same uvmapping) is considerably smaller than you might think. Once you add a normal map are you still so sure you would gain performance?

    But hey! To each his own workflow, there's always something to learn and that doesn't mean that in my next project I won't completely change mine!:stirthepo

    Cheers,
    Luca
