ADE crashes with new MSFSF2020 update

rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
4,642
Country
us-wisconsin
I have not had this problem because decades of programming, file usage and working with simulator development has taught me to not include spaces in filenames or directories. I am surprised this is occurring in the community because I assumed everyone knows not to do this. SO here is the solution:

GET RID OF THE SPACES! Never include spaces in filenames or directories. If you need a separator, use an underscore '_' instead. Or a dash '-'.


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
I have not had this problem because decades of programming, file usage and working with simulator development has taught me to not include spaces in filenames or directories. I am surprised this is occurring in the community because I assumed everyone knows not to do this. SO here is the solution:

GET RID OF THE SPACES! Never include spaces in filenames or directories. If you need a separator, use an underscore '_' instead. Or a dash '-'.

ADE does not get rid of spaces but it puts quotes around all paths to deal with them in the build process. This is why I am a bit confused about what is happening. If the user has spaces in the path to the project xml then ADE quotes it and always has


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
This is an example of the arguments that ADE sends to the FS Package Tool

"E:\Projects_Alpha_19\egcw-3\egcw-3.xml" -outputdir "E:\Projects_Alpha_19\egcw-3\." -tempdir "E:\Projects_Alpha_19\egcw-3\_PackageInt" -rebuild

I don't see why this could fail. It doesn't for me. So are we looking at a different issue?

OK - as you can see I have no spaces in the paths here since I follow Dicks rule as an old programmer. I have to go out now but will do some more tests later


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
4,642
Country
us-wisconsin

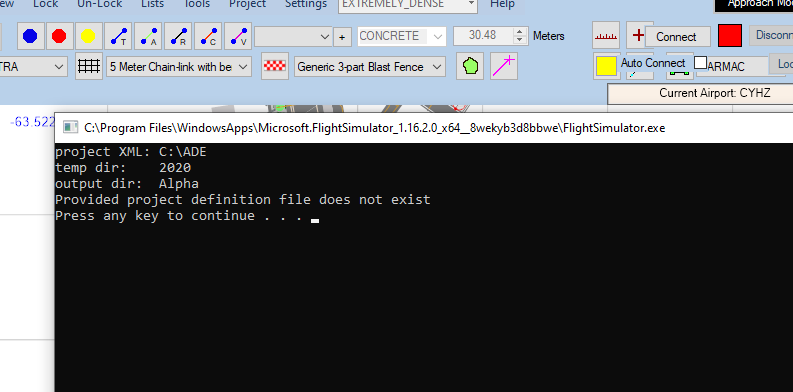

I am at a loss to explain it Jon. I'm assuming end-users are somehow altering the output of ADE. There are several developers having this problem, and not just ADE users. As I stated, I never had the problem with MSFS, because I learned my lesson years ago to get rid of the spaces!

Messages
54
Country
us-northcarolina
I had used the default folder name (C:\MSFS SDK) which has always worked until the 27th of this month after the 25th update. I took these steps to try to correct the problem:
1) From MSFS turned on developer mode and downloaded SDK 13.
2) Uninstalled the SDK 12 in Windows Applications.
3) Installed SDK 13 overriding the path to G:\MSFS_SDK.
4) From MSFS checked that SDK 13 was in fact installed.
5) Exited MSFS and started ADE without the hot fix.
6) Corrected the SDK path.
7) Loaded my project and selected Build.
8) The build failed as before indicated at the beginning of this thread.
9) Replaced ADE exe with the hot fix and tried Build again.
10) The build still fails as before

It seems that none of the proposed fixes work. In all of my fifty years as a software engineer have I never seen a company produce update after update having catastrophic bugs and stay in business for long. Only Micro$oft could be so lucky.

*** FINALLY ***
After changing the ADE folder name from "ADE 2020 Alpha" to "ADE_2020_Alpha" I got a good build. You just have to be sure to change the folder name in ADE. Also I had a problem with the Images and had to use the find to get those folder names changed.

In the end you still get an error for the missing MarketplaceData file but that is OK because the build actually succeeded!

Last edited:

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
I had used the default folder name (C:\MSFS SDK) which has always worked until the 27th of this month after the 25th update. I took these steps to try to correct the problem:
1) From MSFS turned on developer mode and downloaded SDK 13.
2) Uninstalled the SDK 12 in Windows Applications.
3) Installed SDK 13 overriding the path to G:\MSFS_SDK.
4) From MSFS checked that SDK 13 was in fact installed.
5) Exited MSFS and started ADE without the hot fix.
6) Corrected the SDK path.
7) Loaded my project and selected Build.
8) The build failed as before indicated at the beginning of this thread.
9) Replaced ADE exe with the hot fix and tried Build again.
10) The build still fails as before

It seems that none of the proposed fixes work. In all of my fifty years as a software engineer have I never seen a company produce update after update having catastrophic bugs and stay in business for long. Only Micro$oft could be so lucky.
What is the exact path to the project xml file for the project you are trying to build?

Messages
54
Country
us-northcarolina
See the addition I made in #47 above!
Now to return to my testing of all the files that were in the community folder because the update broke something there as well. I thought I was going to be through with all this when I retired. I just want to play games, modify airports and fly. :p


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
I had used the default folder name (C:\MSFS SDK) which has always worked until the 27th of this month after the 25th update. I took these steps to try to correct the problem:
1) From MSFS turned on developer mode and downloaded SDK 13.
2) Uninstalled the SDK 12 in Windows Applications.
3) Installed SDK 13 overriding the path to G:\MSFS_SDK.
4) From MSFS checked that SDK 13 was in fact installed.
5) Exited MSFS and started ADE without the hot fix.
6) Corrected the SDK path.
7) Loaded my project and selected Build.
8) The build failed as before indicated at the beginning of this thread.
9) Replaced ADE exe with the hot fix and tried Build again.
10) The build still fails as before

It seems that none of the proposed fixes work. In all of my fifty years as a software engineer have I never seen a company produce update after update having catastrophic bugs and stay in business for long. Only Micro$oft could be so lucky.

*** FINALLY ***
After changing the ADE folder name from "ADE 2020 Alpha" to "ADE_2020_Alpha" I got a good build. You just have to be sure to change the folder name in ADE. Also I had a problem with the Images and had to use the find to get those folder names changed.

In the end you still get an error for the missing MarketplaceData file but that is OK because the build actually succeeded!
View attachment 73706
Well I guess then that you are storing your projects inside the ADE folder structure?


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
I carried out a further test and this time used a root projects folder with spaces in it. This resulted in the following aruments

"E:\Alpha 19 Projects\egcw-3\egcw-3.xml" -outputdir "E:\Alpha 19 Projects\egcw-3\." -tempdir "E:\Alpha 19 Projects\egcw-3\_PackageInt" -rebuild

HOWEVER in my case this continues to build correctly with the spaces in the paths (because ADE is quoting them ) Thus this is still not completely understood by me

The fix is probably not relevant since that is quoting the path to the package tool and I am calling that which calls the sim

Messages
6,528
Country
us-illinois
This is an example of the arguments that ADE sends to the FS Package Tool

"E:\Projects_Alpha_19\egcw-3\egcw-3.xml" -outputdir "E:\Projects_Alpha_19\egcw-3\." -tempdir "E:\Projects_Alpha_19\egcw-3\_PackageInt" -rebuild

I don't see why this could fail. It doesn't for me. So are we looking at a different issue?

OK - as you can see I have no spaces in the paths here since I follow Dicks rule as an old programmer. I have to go out now but will do some more tests later

I am at a loss to explain it Jon. I'm assuming end-users are somehow altering the output of ADE. There are several developers having this problem, and not just ADE users. As I stated, I never had the problem with MSFS, because I learned my lesson years ago to get rid of the spaces!

I carried out a further test and this time used a root projects folder with spaces in it. This resulted in the following aruments

"E:\Alpha 19 Projects\egcw-3\egcw-3.xml" -outputdir "E:\Alpha 19 Projects\egcw-3\." -tempdir "E:\Alpha 19 Projects\egcw-3\_PackageInt" -rebuild

HOWEVER in my case this continues to build correctly with the spaces in the paths (because ADE is quoting them ) Thus this is still not completely understood by me

The fix is probably not relevant since that is quoting the path to the package tool and I am calling that which calls the sim

Bearing in mind the MSFS SDK "strict rules" linked / cited here:

https://www.fsdeveloper.com/forum/t...sing-patch-1-16-2-0-solved.452642/post-883097

...one may wonder if Asobo attempts to use file paths as sequential ASCII input strings, and blank spaces or quotes confuse their input engine ? :scratchch

If one treats input strings as sequential ASCII, depending on the parsing engine used for processing input, quotes may appear as "quote delimiters" to some input processing algorithms and be interpreted as "quote, comma, space delimited" sequential ASCII input in a CSV context, although WKT formats would normally utilize "double quotes" as such delimiters.

https://en.wikipedia.org/wiki/Comma-separated_values

But, perhaps our best clues might be from the MSFS-2020 SDK docs referencing command line switches for the fspackagetool.exe itself:


[MSFS_SDK_0_13_0_0_Install_Path]\Documentation\html\Additional_Information\Package_Tool\Package_Tool.htm

"
THE PACKAGE TOOL

The fspackagetool.exe can be invoked with various parameters following this syntax:

fspackagetool <path to project .xml> [-outputdir <output directory>] [-tempdir <temp directory>] [-rebuild] [-nomirroring] [-forcesteam]

The parameters available are:
  • -outputdir <output directory>: Specify parent of directory containing output packages (default is the parent directory of the project .xml file).
  • -tempdir <temp directory>: Specify parent of directory containing temporary build artifacts (default is the parent directory of the project .xml file)
  • -rebuild: Force redoing all file conversions
  • -nomirroring: Disable mirroring. Files in the output directory that do not match a compiled target will not be deleted
  • -forcesteam: Force using the Steam version of the game to build the package. This is only necessary to specify if you have both the Microsoft Store and Steam versions installed on your computer. If that is the case and you don't use this option, the Microsoft Store version will be used.
Notice as is often done with CMD mode / DOS custom syntax, a "-" character defines input switch field 'positions' of input strings in sequence. :eek:

Of course, other delimiter options are also fraught with potential risk of misuse or misinterpretation: "[ ]" (blank space) or "/" (slash) characters. :banghead:

There has to be a better way to make this fspackagetool.exe input mechanism work (...to minimize vulnerability to MSFS-2020 SDK user errors). :coffee:




GaryGB

Last edited:
Messages
54
Country
us-northcarolina
I carried out a further test and this time used a root projects folder with spaces in it. This resulted in the following aruments

"E:\Alpha 19 Projects\egcw-3\egcw-3.xml" -outputdir "E:\Alpha 19 Projects\egcw-3\." -tempdir "E:\Alpha 19 Projects\egcw-3\_PackageInt" -rebuild

HOWEVER in my case this continues to build correctly with the spaces in the paths (because ADE is quoting them ) Thus this is still not completely understood by me

The fix is probably not relevant since that is quoting the path to the package tool and I am calling that which calls the sim
I understand your dilemma. In the end it seems that changing the ADE path fixed the problem but I am currently running the hot fix version.


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
The hot fix should make no difference. Can you go back to the older executable (I assume you saved it before adding the new one?


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
OK this is my final test and I have run out of ways to force spaces into the package tool arguments

"E:\Projects_Alpha_19\egcw test\egcw test.xml" -outputdir "E:\Projects_Alpha_19\egcw test\." -tempdir "E:\Projects_Alpha_19\egcw test\_PackageInt" -rebuild

This build fine. So I am satisfied that ADE is not involved and that is correctly quotes paths with spaces in. However the final recommendation goes back to Dick

DO NOT INCLUDE SPACES IN ANY FOLDER OR PROJECT OR PACKAGE NAME


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,809
Country
unitedkingdom
Messages
54
Country
us-northcarolina
and Make Sure Not to Include the <> in the name. I have lost count of the number of posts about failing to create a project and they show a project name of <EGCW>-<Welshpool> and wonder why it doesn't work
Absolutely! I never use anything but underscore.

Messages
6,528
Country
us-illinois
and Make Sure Not to Include the <> in the name. I have lost count of the number of posts about failing to create a project and they show a project name of <EGCW>-<Welshpool> and wonder why it doesn't work

Indeed, Asobo must also put that additional CAVEAT into the MSFS SDK docs for v13 ...when the "revised edition" is finally posted online. :)

GaryGB

Last edited:
