Blender and Asobo exporter help

R

rarewings

Messages
23
Country
unitedstates
I have Blender 3.1 LTS installed
I have followed the instruction on installing the Asobo Exporter.
The "glTF-Blender-IO-MSFS-main" folder shows up under the Blender/scripts.

I can find the add-on anywhere to enable it, searched for Microsoft, MSFS. I can't find it anywhere.

I have un-installed Blender and cleaned out all files and re-installed Blender and the Asobo Tool but no luck.

Any Ideas

Download from https://github.com/AsoboStudio/glTF-Blender-IO-MSFS

The version 1.3.x is only compatible with Blender 3.3.x LTS. Other versions are not supported.

The extension should be installed to Blender Foundation/Blender 3.1/3.1/scripts/addons/ as a folder called "io_scene_gltf2_msfs"

It appears in the Preferences - Add-ons as Import-Export: Microsoft Flight Simulator glTF Extension.

if you have a folder called "glTF-Blender-IO-MSFS-main" in the Blender/scripts then you've stuffed something up.

Here are the install instructions:
github.com

glTF-Blender-IO-MSFS/ at main · AsoboStudio/glTF-Blender-IO-MSFS

Contribute to AsoboStudio/glTF-Blender-IO-MSFS development by creating an account on GitHub.
github.com github.com

The exporter is found in the SDK in the Tools folder.

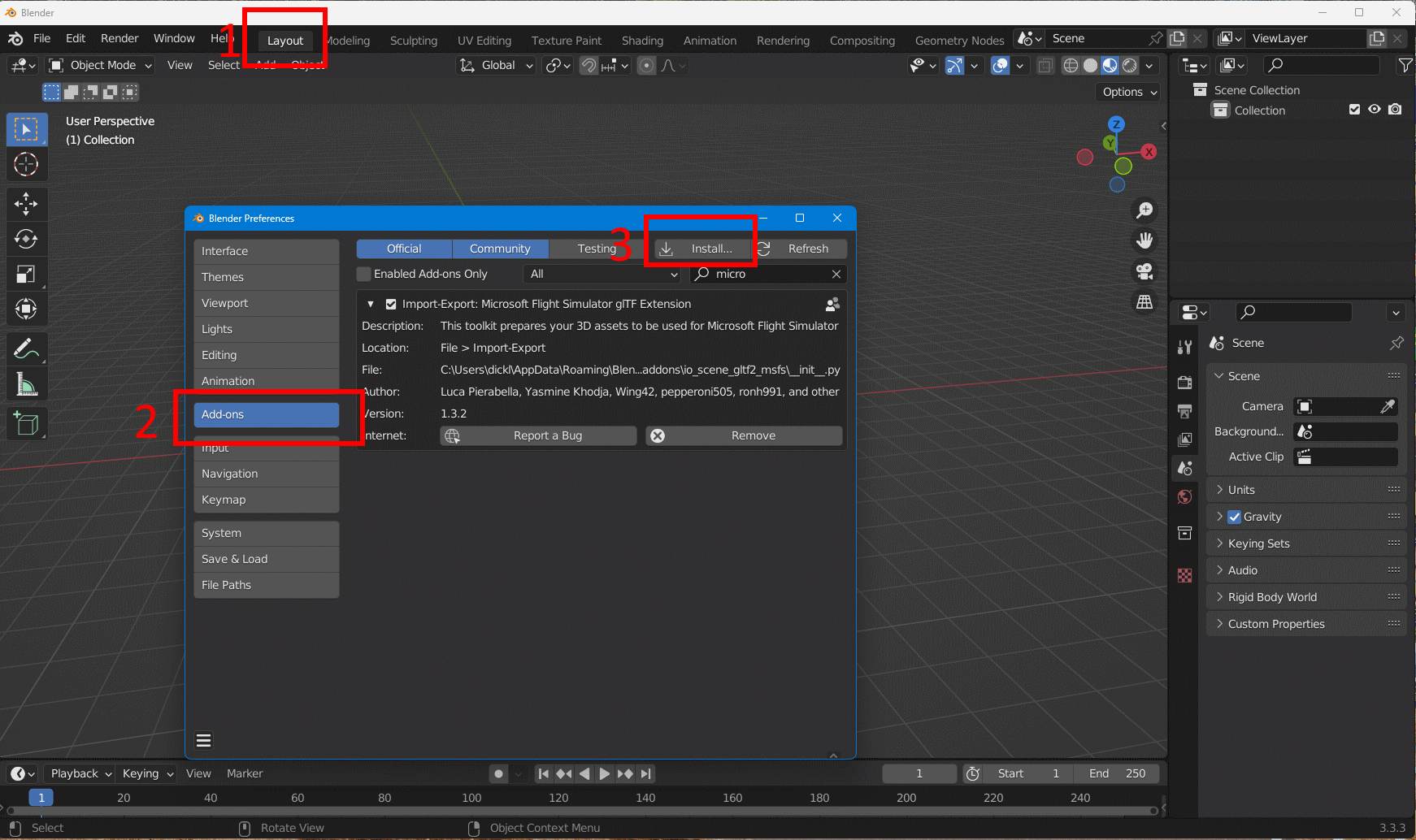

In Blender:


After installation, The keyboard "n" can reveal the addon's export options panel.
The Materials window shows the MSFS-specific material options. Vanilla gltf (non-MSFS) displays just fine in the sim. The Addon controls the special materials used in only the sim.

Thanks for the Help.
I re-installed Blender 3.6 and placed it on my D drive where the User folders are, that might have been the issue.
Download the Exporter again.
Got the Exporter to install (YEA!!!)

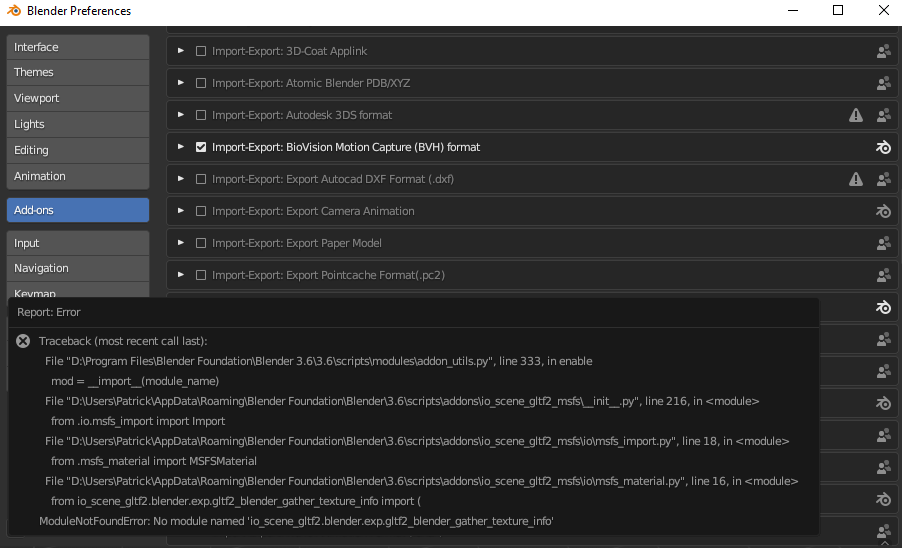

But when I try and enable it this is the error report
