Broken Compiler

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
Hey all,

I've been learning how to use ADE and I spent my afternoon adding in a fictional ramp for my VA. Now when I go to compile I get this error that pops up -

Compiler Errors Found. These were not identified by the Issue Manager. Please let us know
what the compiler error is so that we can improve the Issue Manager.

The compiler message is shown below

ScruffyDuck Scenery Design Engine Compiling
Using BglComp....


Parsing document: G:\Ryan\ADE\!AdeTempWorkOnly\CYXR_ADEX_RCG.xml

ERROR C2106: Improper value string for a library object name! ({7f38bfbc-e295-4a40-845c-3f3c872cfa82})
ERROR C2031: Failed element parse <LibraryObject>
ERROR C2032: XML Parse Error! Element tree follows:

ERROR: <FSData
ERROR: version = 9.0
ERROR: >
ERROR: <SceneryObject
ERROR: lat = 47.6963512971997
ERROR: lon = -79.8572726547718
ERROR: alt = 0.0M
ERROR: altitudeIsAgl = TRUE
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 181.845703125
ERROR: imageComplexity = VERY_SPARSE
ERROR: >
ERROR: <LibraryObject
ERROR: name = {7f38bfbc-e295-4a40-845c-3f3c872cfa82}
ERROR: scale = 1.00
ERROR: >
ERROR:
ERROR C2309: RandomAttach is NOT a valid token!
ERROR C2016: Invalid element found <RandomAttach>, skipping!
ERROR C2032: XML Parse Error! Element tree follows:

ERROR: <FSData
ERROR: version = 9.0
ERROR: >
ERROR: <SceneryObject
ERROR: lat = 47.6963512971997
ERROR: lon = -79.8572726547718
ERROR: alt = 0.0M
ERROR: altitudeIsAgl = TRUE
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 181.845703125
ERROR: imageComplexity = VERY_SPARSE
ERROR: >
ERROR: <AttachedObject
ERROR: attachpointName = attachpt_beacon
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 0
ERROR: >
ERROR:
ERROR C2309: RandomAttach is NOT a valid token!
ERROR C2023: Improper ending element <RandomAttach>. Stopping!
ERROR C2034: XML Parse Fatal Error (line, column, error)

ERROR: 75, 29, Unspecified error

ERROR C2470: Unrecoverable error parsing XML!
ERROR C2006: Parse failed (0x80004005)
ERROR C2003: Failed to process file: G:\Ryan\ADE\!AdeTempWorkOnly\CYXR_ADEX_RCG.xml

I can't figure out what's wrong with the compiler but does anyone have any ideas? I'm using the p3d BGLComp because the FSX Steam Edition sdk's are not all there. I know that it works though because it was working correctly with SBuilderX.

Thanks in advance -
Ryan

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
Pyscen said:
Which SDK was used to compile?

For FSX STEAM, you should be using the SDK for P3D SDK v1.4 only.
Click to expand...
Installed the p3d sdk v1.4 and switched the directories and all that but then I got this error. It might be the same one -

Compiler Errors Found. These were not identified by the Issue Manager. Please let us know
what the compiler error is so that we can improve the Issue Manager.

The compiler message is shown below

ScruffyDuck Scenery Design Engine Compiling
Using BglComp....


Parsing document: G:\Ryan\ADE\!AdeTempWorkOnly\CYXR_ADEX_RCG.xml

ERROR C2106: Improper value string for a library object name! ({7f38bfbc-e295-4a40-845c-3f3c872cfa82})
ERROR C2031: Failed element parse <LibraryObject>
ERROR C2032: XML Parse Error! Element tree follows:

ERROR: <FSData
ERROR: version = 9.0
ERROR: >
ERROR: <SceneryObject
ERROR: lat = 47.6963512971997
ERROR: lon = -79.8572726547718
ERROR: alt = 0.0M
ERROR: altitudeIsAgl = TRUE
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 181.845703125
ERROR: imageComplexity = VERY_SPARSE
ERROR: >
ERROR: <LibraryObject
ERROR: name = {7f38bfbc-e295-4a40-845c-3f3c872cfa82}
ERROR: scale = 1.00
ERROR: >
ERROR:
ERROR C2309: RandomAttach is NOT a valid token!
ERROR C2016: Invalid element found <RandomAttach>, skipping!
ERROR C2032: XML Parse Error! Element tree follows:

ERROR: <FSData
ERROR: version = 9.0
ERROR: >
ERROR: <SceneryObject
ERROR: lat = 47.6963512971997
ERROR: lon = -79.8572726547718
ERROR: alt = 0.0M
ERROR: altitudeIsAgl = TRUE
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 181.845703125
ERROR: imageComplexity = VERY_SPARSE
ERROR: >
ERROR: <AttachedObject
ERROR: attachpointName = attachpt_beacon
ERROR: pitch = 0
ERROR: bank = 0
ERROR: heading = 0
ERROR: >
ERROR:
ERROR C2309: RandomAttach is NOT a valid token!
ERROR C2023: Improper ending element <RandomAttach>. Stopping!
ERROR C2034: XML Parse Fatal Error (line, column, error)

ERROR: 75, 29, Unspecified error

ERROR C2470: Unrecoverable error parsing XML!
ERROR C2006: Parse failed (0x80004005)
ERROR C2003: Failed to process file: G:\Ryan\ADE\!AdeTempWorkOnly\CYXR_ADEX_RCG.xml


I can add the files for the airport but the added stuff is fictional. I'm adding onto the orbix one from there freeware global airports pack. Thanks for your help so far :D

Pyscen

Pyscen

Resource contributor
Messages
2,854
Country
us-texas
The scenery object is the problem. Where did you get this object? How was it created?

If you created it using another SDK, other than v1.4, then you will need to re compile it using v1.4.

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
Pyscen said:
The scenery object is the problem. Where did you get this object? How was it created?

If you created it using another SDK, other than v1.4, then you will need to re compile it using v1.4.
Click to expand...
the object was already there when I opened the BGL file that was in the orbix directory in the main fsx folder. I deleted it and replaced the old tower with the stock one but no luck still. I'll put the file in here if you want to try it :) Make sure to scan it with virus total just to be sure some malware wasn't put in it or anything that's what I do 👍
https://www.dropbox.com/sh/w1cd9wv7oq5fgfu/AABaQ8I7cpdn-z78TdRryB_7a?dl=0

scruffyduck

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,725
Country
unitedkingdom
OK - it looks like the object(s) you are trying to use have random attach points. Seems the compiler does not like them

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
scruffyduck said:
OK - it looks like the object(s) you are trying to use have random attach points. Seems the compiler does not like them
Click to expand...
I'm not to sure on how to fix the random attach points issue. It's my first time using the software and it's super user friendly. Any ideas? Thankyou for your help so far :)

scruffyduck

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,725
Country
unitedkingdom
This is a project for FSX? Can you please post the project (.ad4 extension) that is giving the error (attach it to a post in this thread)

EDIT
I got it from your link above

scruffyduck

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,725
Country
unitedkingdom
OK then there is something odd here since I can compile the .ad4 project you posted with ADE and no errors. I see an object with an attached object



And it compiles without error. I have to go out for a while but will look again when I get back

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
scruffyduck said:

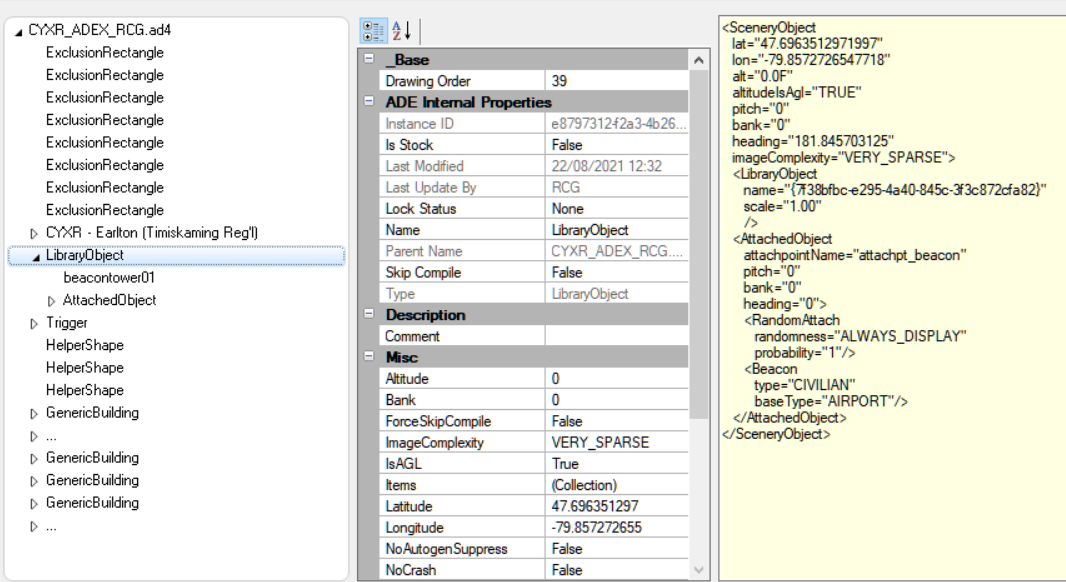

OK then there is something odd here since I can compile the .ad4 project you posted with ADE and no errors. I see an object with an attached object

View attachment 76296

And it compiles without error. I have to go out for a while but will look again when I get back
Click to expand...
Could it possibly be the new parking areas I added? I'm not super sure that they are suppost to be attached to the apron links. That might be the problem maybe

Edit -
I deleted the beacon and then the compiler said there was an issue with the generic buildings so I deleted those and that created a lot of errors in the compiler lol

scruffyduck

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,725
Country
unitedkingdom
No - the error is clearly shown in the compiler output and says that the attached object source is not recognized. This error usually appears when the compiler does not recognize something due to version mismatch between the compiler and sim version. It could also be an error with the source code generator in ADE. Where did the base file you are modifying come from? Was it stock, a third party bgl file or an ade project (.ad4)

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
scruffyduck said:
No - the error is clearly shown in the compiler output and says that the attached object source is not recognized. This error usually appears when the compiler does not recognize something due to version mismatch between the compiler and sim version. It could also be an error with the source code generator in ADE. Where did the base file you are modifying come from? Was it stock, a third party bgl file or an ade project (.ad4)
Click to expand...
It was a third party BGL file. it was from the ORBX freeware global airports pack - https://orbxdirect.com/product/ftx-global-airport-pack
It's freeware but they did a fantastic job on a lot of airports 👍

Last edited:
Pyscen

Pyscen

Resource contributor
Messages
2,854
Country
us-texas
It may be free, but the objects may be locked/ protected. Which could mean, you can't use any of the objects anywhere else and if that is the case, I would like to do that with libraries.

Poutine_Operator

Poutine_Operator

Messages
57
Country
ca-ontario
Pyscen said:
It may be free, but the objects may be locked/ protected. Which could mean, you can't use any of the objects anywhere else and if that is the case, I would like to do that with libraries.
Click to expand...
ah ok I see. I might just redo the entire airport just so I can get that fictional ramp. Thank you for your help :)
