MSFS Coding xml SIDs/STARs/Approaches - A small tutorial

Messages
109
Country
france
Hello,

I found little help online and struggled to make those compile and actually run without CTD so I thought I'd might share how I did to get working procedures in MSFS2020.
First, since these features of MSFS are directly inherited from FSX all xml elements and attributes information found here are still 100% valid.
Also, all the xml stuff described below is to be included inside the <Airport/> element.

1. Terminal waypoints and navaids.

All can be declared inside the Airport element, even those already included in the stock scenery. This example is from a new, non-stock airport I'm working (ZGNN Nanning) on and thus I didn't use at all the DeleteNavigation element at all, from what I've read here and there it seems wise to refrain from using it even upgrading a stock airport.

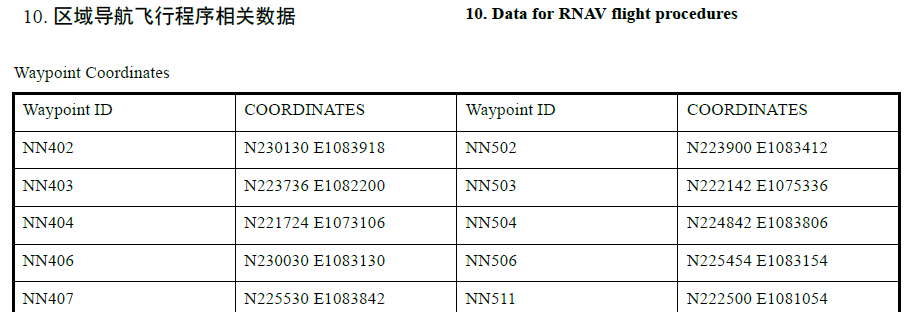

The data was sourced from the AIP:


Turns into this in xml format:
XML:
        <Waypoint lat="23.025" lon="108.655" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN402"/>
        <Waypoint lat="22.62667" lon="108.3667" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN403"/>
        <Waypoint lat="22.29" lon="107.5183" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN404"/>
        <Waypoint lat="23.00833" lon="108.525" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN406"/>
        <Waypoint lat="22.925" lon="108.645" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN407"/>
        <Waypoint lat="22.75333" lon="108.5067" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN408"/>
        <Waypoint lat="22.76167" lon="109.005" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="NN411"/>

VORs and NAMED waypoints already in stock scenery were added aswell:
XML:
        <Waypoint lat="21.58667" lon="109.4317" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="BHY"/>
        <Waypoint lat="23.89167" lon="106.645" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="BSE"/>
        <Waypoint lat="23.07" lon="112.4867" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="GYA"/>
        <Waypoint lat="23.76333" lon="109.1467" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="LBN"/>
        <Waypoint lat="22.35667" lon="106.8683" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="LON"/>
        <Waypoint lat="22.585" lon="108.1483" magvar="1.7" waypointType="VOR" waypointRegion="ZG" waypointIdent="WUY"/>
        <Waypoint lat="22.42667" lon="109.04" magvar="1.7" waypointType="RNAV" waypointRegion="ZG" waypointIdent="P1"/>
        <Waypoint lat="21.85" lon="109.095" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="ALEKI"/>
        <Waypoint lat="22.11667" lon="108.7517" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="NIKUK"/>
        <Waypoint lat="22.855" lon="110.5533" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="OSIKA"/>
        <Waypoint lat="23.24667" lon="108.7067" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="SARUG"/>
        <Waypoint lat="22.03" lon="107.6417" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="UVUNO"/>
        <Waypoint lat="22.695" lon="109.1217" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="VAPNA"/>
        <Waypoint lat="22.42667" lon="107.255" magvar="1.7" waypointType="NAMED" waypointRegion="ZG" waypointIdent="XEREN"/>


2. STARs

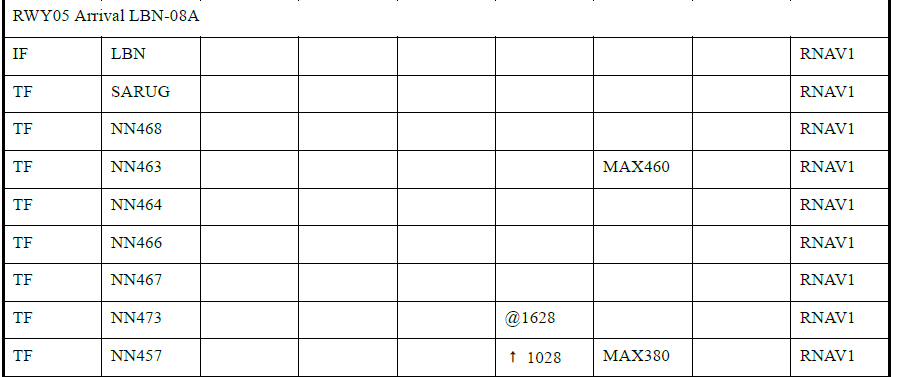

Now lets' code this arrival:

into this (with all transistions, not only LBN):
XML:
        <Arrival name="08A">
            <EnrouteTransitions>
                <EnrouteTransitionLegs>
                    <Leg type="IF" fixType="VOR" fixRegion="ZG" fixIdent="LBN"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="SARUG" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN468" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN463" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN464" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN466" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN467" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN473" magneticCourse="0.0" altitudeDescriptor="A" altitude1="1628M"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN457" magneticCourse="0.0" altitudeDescriptor="+" altitude1="1028M"/>
                </EnrouteTransitionLegs>
                <EnrouteTransitionLegs>
                    <Leg type="IF" fixType="VOR" fixRegion="ZG" fixIdent="BHY"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="ALEKI" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="P1" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN412" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN463" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN464" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN466" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN467" magneticCourse="0.0"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN473" magneticCourse="0.0" altitudeDescriptor="A" altitude1="1628M"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN457" magneticCourse="0.0" altitudeDescriptor="+" altitude1="1028M"/>
                </EnrouteTransitionLegs>
            </EnrouteTransitions>
            <CommonRouteLegs/>
            <RunwayTransitions/>
        </Arrival>
fixType should allways TERMINAL_WAYPOINT unless it's a VOR or NDB. That way the compiler will look for those into the waypoint list I coded above.
Notice that I didn't provide the magneticCourse information although this attribute is mandatory. Also, I didn't make any use of the CommonRouteLegs section. And the RunwayTransitions section MUST be empty, those transitions will actually be in the Approach elements.

Once compiled this looks just fine on the world map, without any CTD when selecting IFR:



3. Approaches.

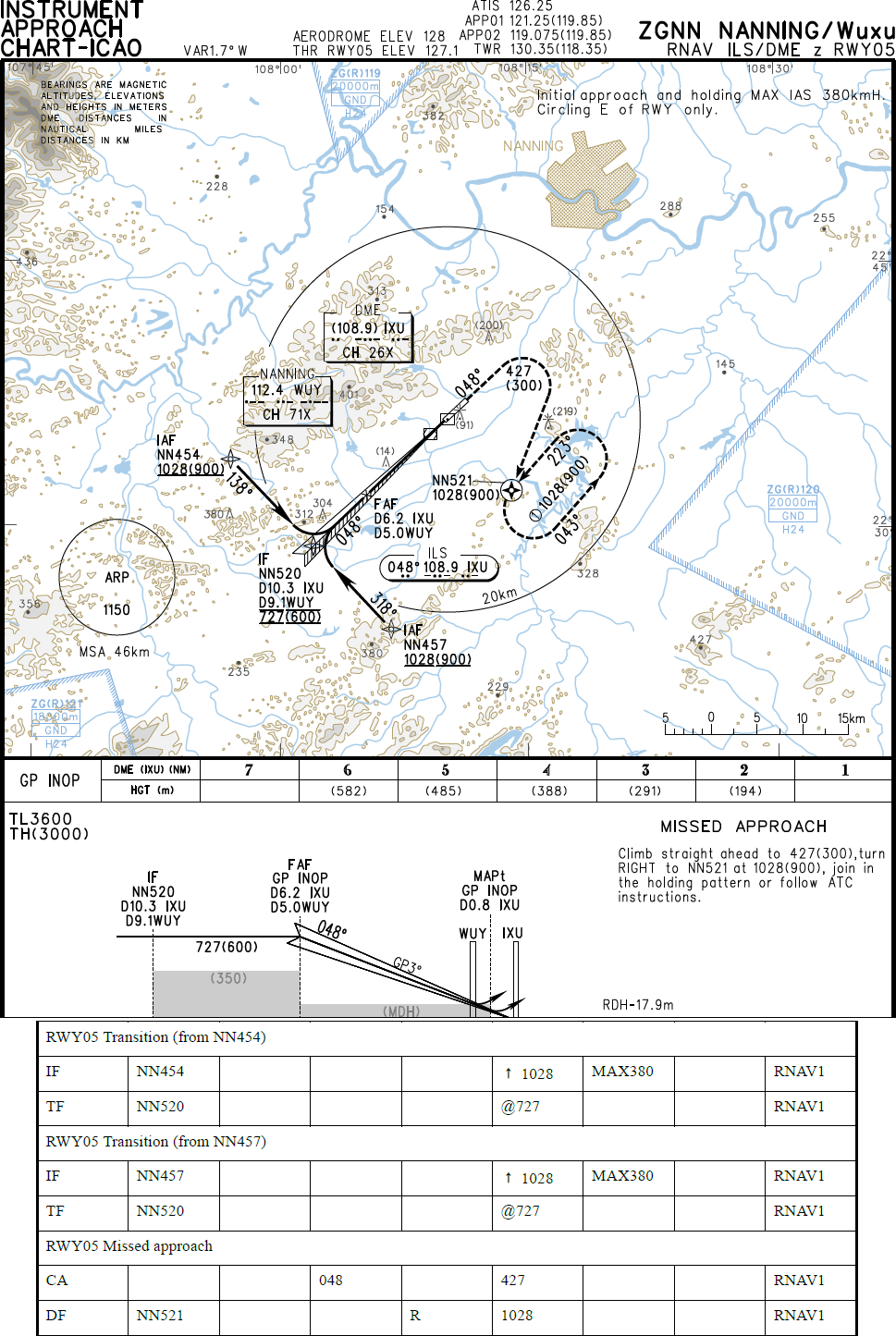

Here's an ILS approach with RNAV transitions, following the above STAR:


And how it's coded:
XML:
<Approach type="ILS" runway="05" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="FF005" altitude="727M" heading="048" missedAltitude="1028M">
            <ApproachLegs>
                <Leg type="IF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN520" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="12.0N" altitudeDescriptor="I" altitude1="727M" altitude2="727M"/>
                <Leg type="CF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="FF005" flyOver="FALSE" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="7.9N" magneticCourse="48" distance="4.1N" altitudeDescriptor="A" altitude1="727M"/>
                <Leg type="CF" fixType="RUNWAY" fixRegion="ZG" fixIdent="RW05" flyOver="TRUE" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="1.7N" magneticCourse="48" distance="6.0N" altitudeDescriptor="A" altitude1="127.1M"/>
            </ApproachLegs>
            <MissedApproachLegs>
                <Leg type="CA" magneticCourse="48.0" altitudeDescriptor="+" altitude1="427M"/>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN521" flyOver="TRUE" turnDirection="R" altitudeDescriptor="A" altitude1="1028M"/>
                <Leg type="HM" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN521" turnDirection="L" magneticCourse="223" time="1.0" altitudeDescriptor="A" altitude1="1028M"/>
            </MissedApproachLegs>
            <Transition transitionType="FULL" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN457" altitude="1028M">
                <TransitionLegs>
                    <Leg type="IF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN457" altitudeDescriptor="+" altitude1="1028M"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN520" flyOver="FALSE" magneticCourse="318" altitudeDescriptor="A" altitude1="727M"/>
                </TransitionLegs>
            </Transition>
            <Transition transitionType="FULL" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN454" altitude="1028M">
                <TransitionLegs>
                    <Leg type="IF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN454" altitudeDescriptor="+" altitude1="1028M"/>
                    <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN520" flyOver="FALSE" magneticCourse="138" altitudeDescriptor="A" altitude1="727M"/>
                </TransitionLegs>
            </Transition>
        </Approach>

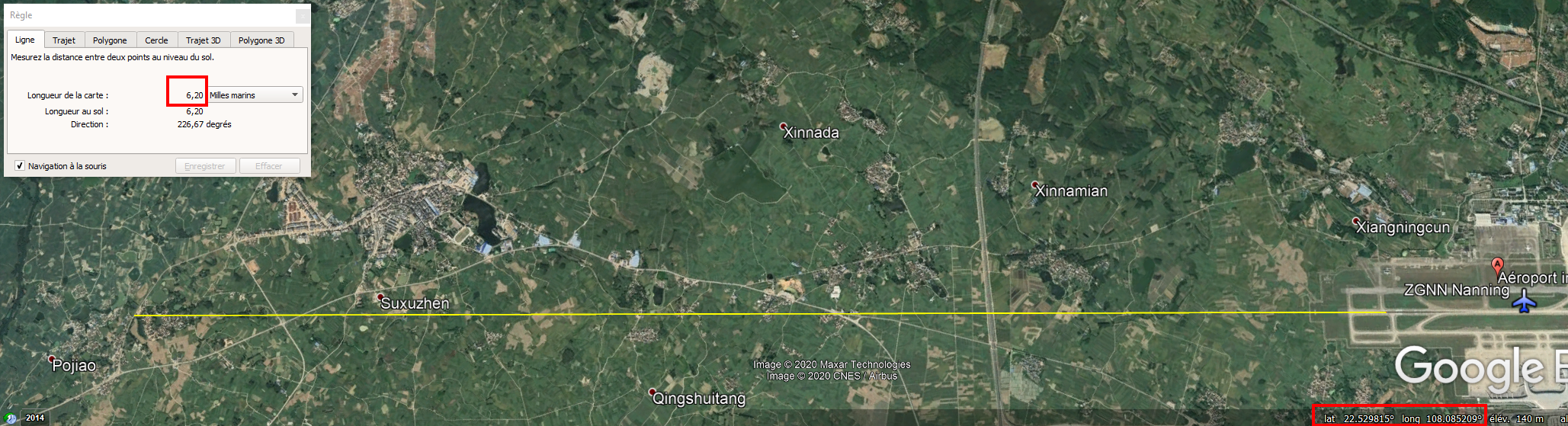

It's almost straightforward except the FAF (that I called FF005) that is not part yet of all our Terminal waypoints. I had to find it's exact coordinates with Google Earth Viewer, drawing a line to a point 6.2NM from the glideslope (where the DME is colocated) along the extended runway centerline. The coordinates of our FAF in then picked in the lower right corner:


Then I added that FAF and also the one for the opposite runway in my waypoint list:
XML:
        <Waypoint lat="22.529811" lon="108.085062" magvar="1.7" waypointType="FAF" waypointRegion="ZG" waypointIdent="FF005"/>
        <Waypoint lat="22.687552" lon="108.266258" magvar="1.7" waypointType="FAF" waypointRegion="ZG" waypointIdent="FF023"/>

The approach legs themselves have a few attributes that need clarification:
XML:
<ApproachLegs>
    <Leg type="IF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN520" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="12.0N" altitudeDescriptor="I" altitude1="727M" altitude2="727M"/>
    <Leg type="CF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="FF005" flyOver="FALSE" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="7.9N" magneticCourse="48" distance="4.1N" altitudeDescriptor="A" altitude1="727M"/>
    <Leg type="CF" fixType="RUNWAY" fixRegion="ZG" fixIdent="RW05" flyOver="TRUE" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="1.7N" magneticCourse="48" distance="6.0N" altitudeDescriptor="A" altitude1="127.1M"/>
</ApproachLegs>

recommendedIdent: identifier of the ILS, usually a 3 or 4 letter string beginning with 'I'. Here it's IXU.
NB: for reference here is also the xml adding the ILS 'IXU' to the airport:
XML:
<Ils lat="22.620295" lon="108.189016" alt="127.1M" heading="48.5" frequency="108.9" magvar="1.7" ident="IXU" width="5.0" name="ILS05">
    <GlideSlope lat="22.599874" lon="108.167316" alt="127.1M" pitch="3" range="27N"/>
    <Dme lat="22.599874" lon="108.167316" alt="127.1M" range="27N"/>
</Ils>

theta: it's a bearing, in degrees, from the recommendedIdent navaid or fix. Initial Fix NN520 is 228° from LOCALIZER IXU (reversed from the final approach course). Not 100% sure about it but I'd say it's a magnetic bearing.
rho: it's a distance from the recommendedIdent navaid or fix. Could be either in meters (default) or in nautical miles (N). Initial fix NN520 is 12.0NM from the LOCALIZER IXU (10.3 NM from DME from the charts + 1.7NM on the field between DME and LOCALIZER measured in Google Earth Viewer).
In next CF legs (Course to Fix), an additionnal distance attribute is required. It's the lenght of the leg. If the first CF leg, distance between NN520 and FF005 is 7.9NM. Then the final leg is 6.0NM between FAF and runway 05 threshold.

Again, I'm not sure all these attributes are actually used in a way or another by the sim despite some of them being mandatory for compilation. I've seen the AI being assigned and performing well those ILS approaches at ZGNN before I had sorted all this properly.

NB: Some extra remarks about magnetic variation: Opposite to the wiki definition, MSFS magvar is positive for declinations to the west and negative for declinations to the east.
Then you get the following formula: Magnetic Heading = True Heading + magvar.
For ZGNN rwy 05: true heading = 46.8° (from the way I placed the runway over aerial imagery). Magvar= 1.7°W (from AIP) converted to +1.7 in xml files and SDK airport properties
==> Magnetic heading = 46.8 + 1.7 = 48.5°
This magnetic heading is reported in the ILS xml definition along with the Magvar. Those two parameters have to be consistent to get the ILS beam to actually follow the runway extended centerline.


4. SIDs.

Let's code SID 19D from the AIP:


XML:
        <Departure name="19D">
            <RunwayTransitions>
                <RunwayTransitionLegs number="23" designator="NONE">
                <Leg type="CA" magneticCourse="228.0" altitudeDescriptor="A" altitude1="428M"/>
                </RunwayTransitionLegs>
            </RunwayTransitions>
            <CommonRouteLegs/>
            <EnrouteTransitions>
                <EnrouteTransitionLegs>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN422" flyOver="FALSE"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN501" magneticCourse="122.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN502" magneticCourse="48.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN458" magneticCourse="32.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="SARUG" magneticCourse="348.0"/>
                <Leg type="TF" fixType="VOR" fixRegion="ZG" fixIdent="LBN" magneticCourse="39.0"/>
                </EnrouteTransitionLegs>
                <EnrouteTransitionLegs>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN422" flyOver="FALSE"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN501" magneticCourse="122.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN502" magneticCourse="48.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="VAPNA" magneticCourse="87.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN413" magneticCourse="85.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="OSIKA" magneticCourse="85.0"/>
                <Leg type="TF" fixType="VOR" fixRegion="ZG" fixIdent="GYA" magneticCourse="85.0"/>
                </EnrouteTransitionLegs>
                <EnrouteTransitionLegs>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN422" flyOver="FALSE"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN501" magneticCourse="122.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NIKUK" magneticCourse="124.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="ALEKI" magneticCourse="132.0"/>
                <Leg type="TF" fixType="VOR" fixRegion="ZG" fixIdent="BHY" magneticCourse="132.0"/>
                </EnrouteTransitionLegs>
                <EnrouteTransitionLegs>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN503" flyOver="FALSE"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN404" magneticCourse="260.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="XEREN" magneticCourse="301.0"/>
                <Leg type="TF" fixType="VOR" fixRegion="ZG" fixIdent="LON" magneticCourse="261.0"/>
                </EnrouteTransitionLegs>
                <EnrouteTransitionLegs>
                <Leg type="DF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN454" flyOver="FALSE"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="NN452" magneticCourse="318.0"/>
                <Leg type="TF" fixType="TERMINAL_WAYPOINT" fixRegion="ZG" fixIdent="UVUNO" magneticCourse="350.0"/>
                <Leg type="TF" fixType="VOR" fixRegion="ZG" fixIdent="BSE" magneticCourse="315.0"/>
                </EnrouteTransitionLegs>
            </EnrouteTransitions>
        </Departure>

First DF (direct to fix) legs need the flyOver attribute to load and compile properly, it took me a while to figure this. Here I put all magneticCourses but again I'm not sure whether it's actually used by the sim or not, still this attribute is required for compilation. Again, allways use TERMINAL_WAYPOINT instead of WAYPOINT.

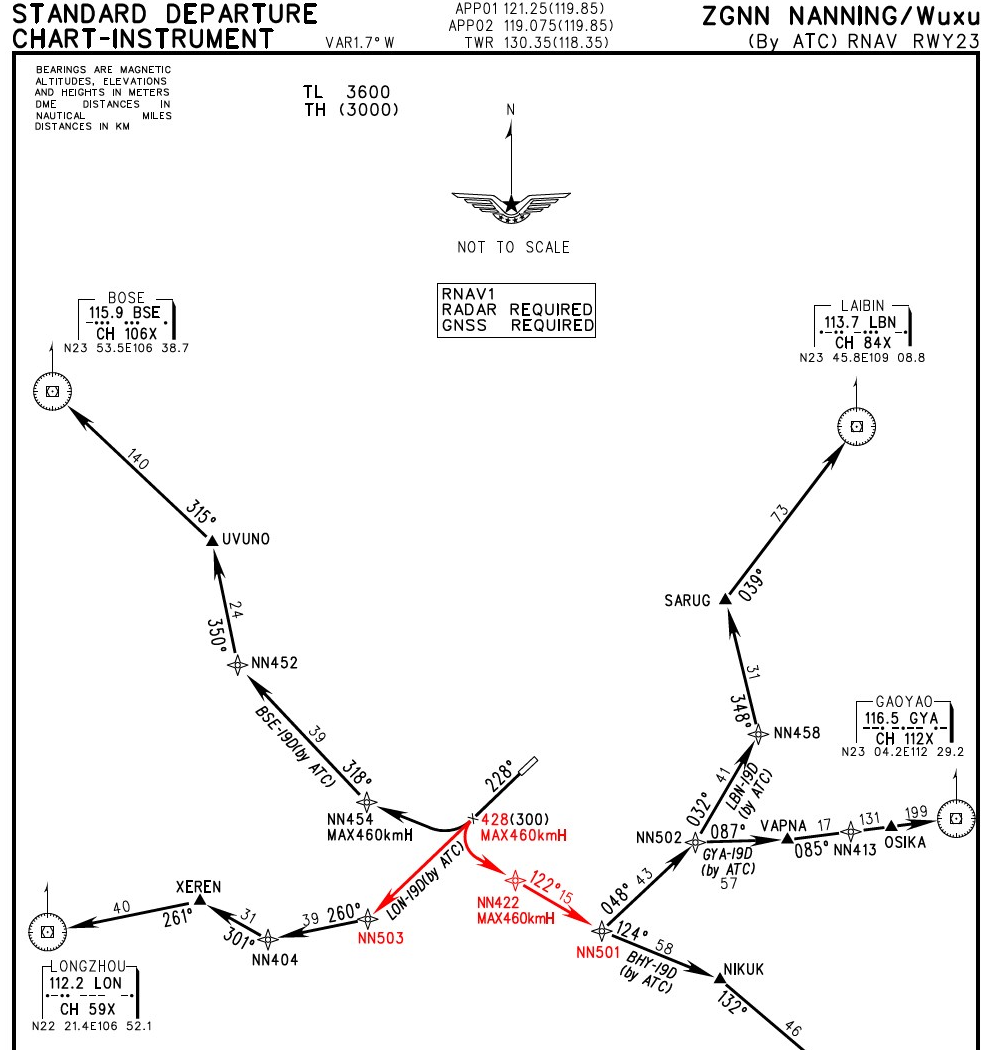

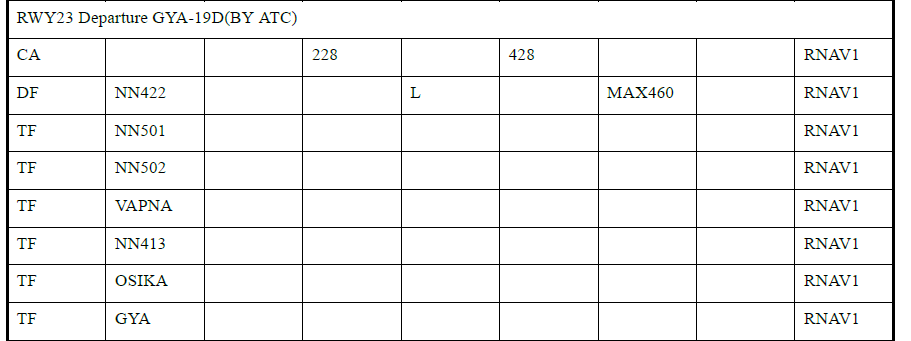

SID Chart:

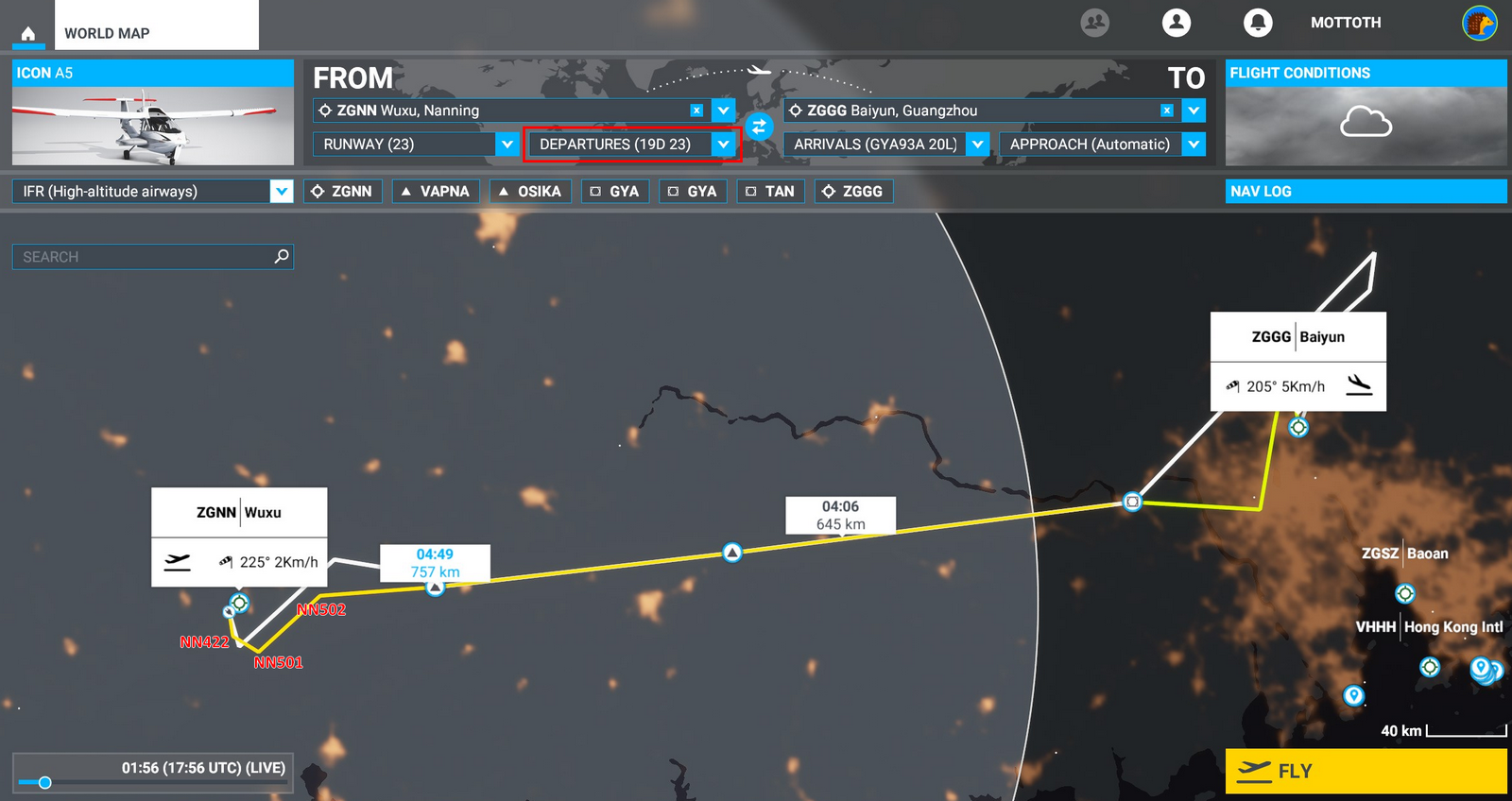

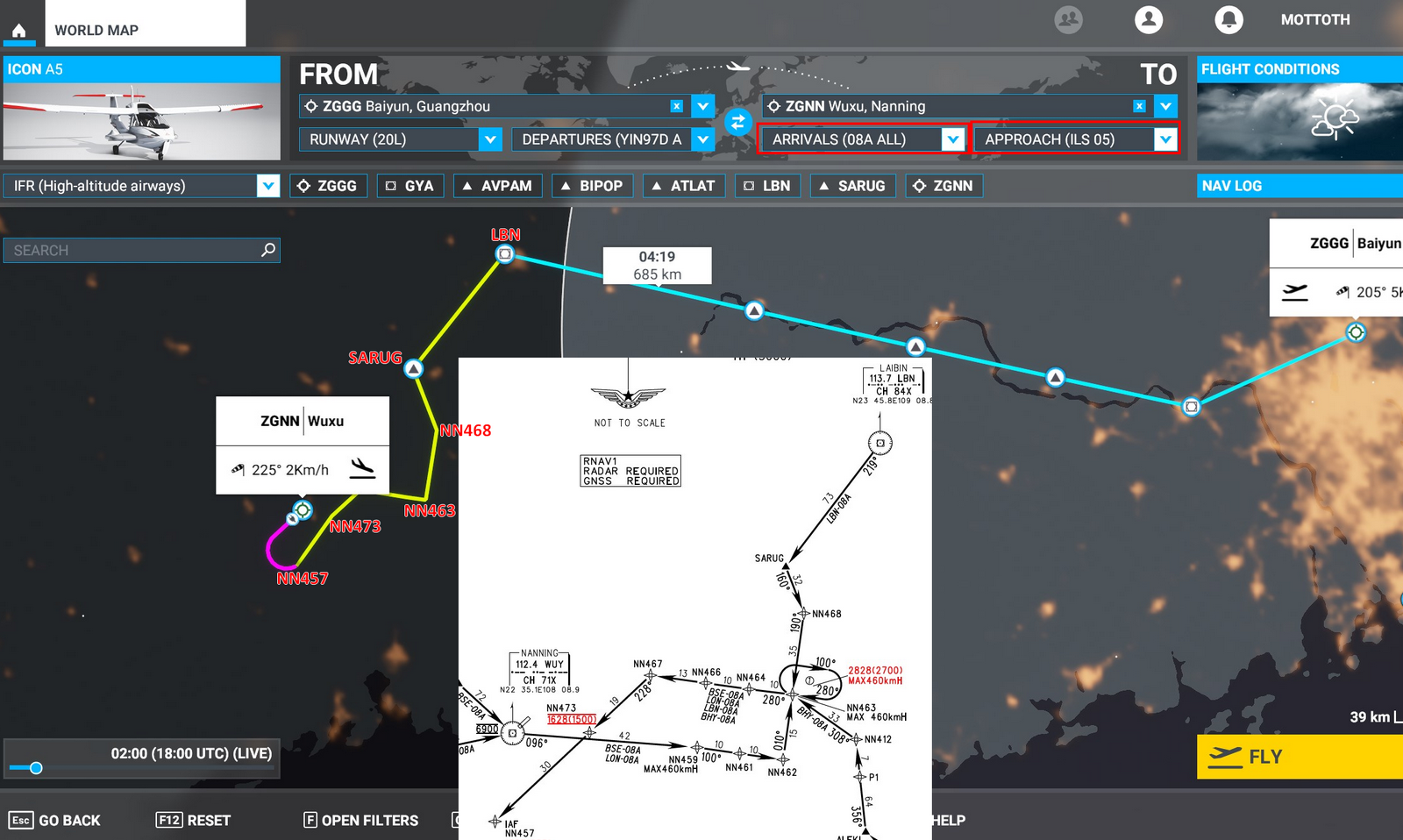

And it's rendition in the world map:



I lost a lot of time tweaking the xml code before coming to something that both compile and don't crash the sim when selected in the world map, so I hope that these tips will save you some time. I haven't coded anything else that ILS approaches so this little tutorial is by no way complete. Also, I haven't bothered yet with Arc-DME procedures (ZGNN has some), my goal was to get at least one set of procedures enabling ILS to user and AI.


EDIT1: added extra stuff to the ILS approach part.
EDIT2: added nota bene about the use of magvar and ILS xml definition.

Last edited:
Messages
231
Country
unitedstates
For quick debugging, you can import your approaches (I don't know about SID's and STARS) into ADE for FSX. It's great for visualizing the data, and it does some debugging for you as well, it'll flag some mistakes. The leg creation forms don't support ALL the different leg types, but you can build most of it with the tools, and then add the legs it doesn't support by hand.

Open the airport in question, delete any associated approaches, and read yours in if you've already got them, or, use the tools in the application for building them. When you're done, export the xml (Tools/Export for X), and put it in your airport section of your project xml.

For those who don't know, you can download the cifp (Coded Instrument Flight Procedures) with the airspace data, for the US anyway, from https://www.faa.gov/air_traffic/flight_info/aeronav/digital_products/cifp/download/
It's a text file, just search for your airport and you'll find the approaches. With a little study, you can figure out the various information discussed here.

Messages
109
Country
france
Sure ADE is the best way to deal with these things. But I only own MSFS and I doubt ADE for FSX will ever run without detecting an FSX install (I once was very familiar with ADE when I had FS9, but this ended 7 years ago !).
Can't wait for a MSFS ADE, I hope the guys are doing a good job on beta-testing.
Btw, I edited the OP with my latest findings, and will probably do it again as I dig deeper into it and learn new stuff.

Messages
231
Country
unitedstates
Perhaps your experience is different, but, what I found was that if I used anything but waypointType="NAMED" when defining waypoints, ATC asked me to fly the route at high level IFR routes, and I think it had a tendency to crash as well. I also did not, however, bother to create VOR waypoints. I assume they already exist for the software to see, and when I output xml of airports from ADE from FSX, they do not contain the VOR waypoints. The attached file is the procedures for KBOS from FSX as an example. It does have NDB waypoints, but, of course, they're almost all gone....

But also what I've noticed is that the already existant waypoints I added tend to flicker in the VFR Map.


Attachments

  • KBOS Procedures.zip
    5 KB · Views: 156
Messages
109
Country
france
Small question : do we can specify the ILS CAT ? (I, II, III) ?
No. No need to make several procedures for the same ILS approach when only the minimums differ. There's nowewhere in the xml code (ils elements or approch elements) where you would specifiy the CAT anyway.
The only things that differs ILS CATS in MSFS are scenery elements: you'd pick ALSF-2/Calvert II for CAT II or above approach light system, you'd add Touch Down Zone lights for CAT III, and you'd have extra ILS hold shorts painted lines and taxisigns for CAT II & III (although MSFS ATC will ignore them).

Messages
12
Country
switzerland
<Leg type="CF" fixType="RUNWAY" fixRegion="ZG" fixIdent="RW05" flyOver="TRUE" recommendedType="LOCALIZER" recommendedRegion="ZG" recommendedIdent="IXU" theta="228" rho="1.7N" magneticCourse="48" distance="6.0N" altitudeDescriptor="A" altitude1="127.1M"/>
Thanks for your very helpful post!
One question regarding the quoted line:
Does "RW05" (fixIdent) or "IXU" (recommendedIdent) have to be defined as waypoints too?

Messages
1
Country
france
Hello,
Thank you very much for this tutorial, it allowed me to move forward very quickly.
I have a quick question, regarding speed restrictions, do you know how to code them?
Thank you in advance.

Messages
110
Country
italy
Hello everyone, can I ask you for help to write an approach that does not exist on the charts for a runway?
The description could be this:
- starting from waypoint point D004K with an altitude of 2500 ft, with a nose for 176 ° up to 4.8 NM, I go to intercept the 51 ° outbound radial of the VOR BCS up to runway nr. 23 with a height of 4m above sea level. The region is "LI"
I tried to write it by doing type VOR and type RNAV but it doesn't work and sends the simulator to CTD.
I ask you experts if you can give me a tip about it.
I attach some photos for better understanding.
I thank you for the hospitality.


Attachments

  • 5.jpg
    161.6 KB · Views: 42
  • 4.jpg
    28.2 KB · Views: 44
  • 3.jpg
    98.5 KB · Views: 41
  • 2.jpg
    13.3 KB · Views: 40
  • 1.jpg
    55.2 KB · Views: 45
Messages
110
Country
italy
Hello everybody.
I kindly wanted to ask if you can create a dummy point like you could do for example in FSX with PMDG. Or:

FIX C163 COLOCATED PIS 163 28

Point C163 will automatically be placed 28 miles bow 163 from point PIS.

Is it possible to write it somehow in the xml of the fs2020 project?
Thanks again

Paolo

Messages
12
Country
switzerland
Hello everybody.
I kindly wanted to ask if you can create a dummy point like you could do for example in FSX with PMDG. Or:

FIX C163 COLOCATED PIS 163 28

Point C163 will automatically be placed 28 miles bow 163 from point PIS.

Is it possible to write it somehow in the xml of the fs2020 project?
Thanks again

Paolo
I have not found a way to accomplish such points by defining radial and distance form another position. I therefore built a helper Excelsheet, in which I could enter the data and which then calculated my target point.

Messages
109
Country
france
Hello everybody.
I kindly wanted to ask if you can create a dummy point like you could do for example in FSX with PMDG. Or:

FIX C163 COLOCATED PIS 163 28

Point C163 will automatically be placed 28 miles bow 163 from point PIS.

Is it possible to write it somehow in the xml of the fs2020 project?
You allways can use google earth viewer Ruler tool.
I assumed that PIS is Pisa VOR, so I found it and started a line from it:


I zoomed out and extended that line until the point which is looked at. Don't forget the MAGVAR which is 1°E or +1° at LIRP. True = Mag + Magvar, so I used 164°True bearing:


Then note down your fix coordinates at the bottom right, and report them to your <Waypoint> xml code.

Messages
110
Country
italy
You allways can use google earth viewer Ruler tool.

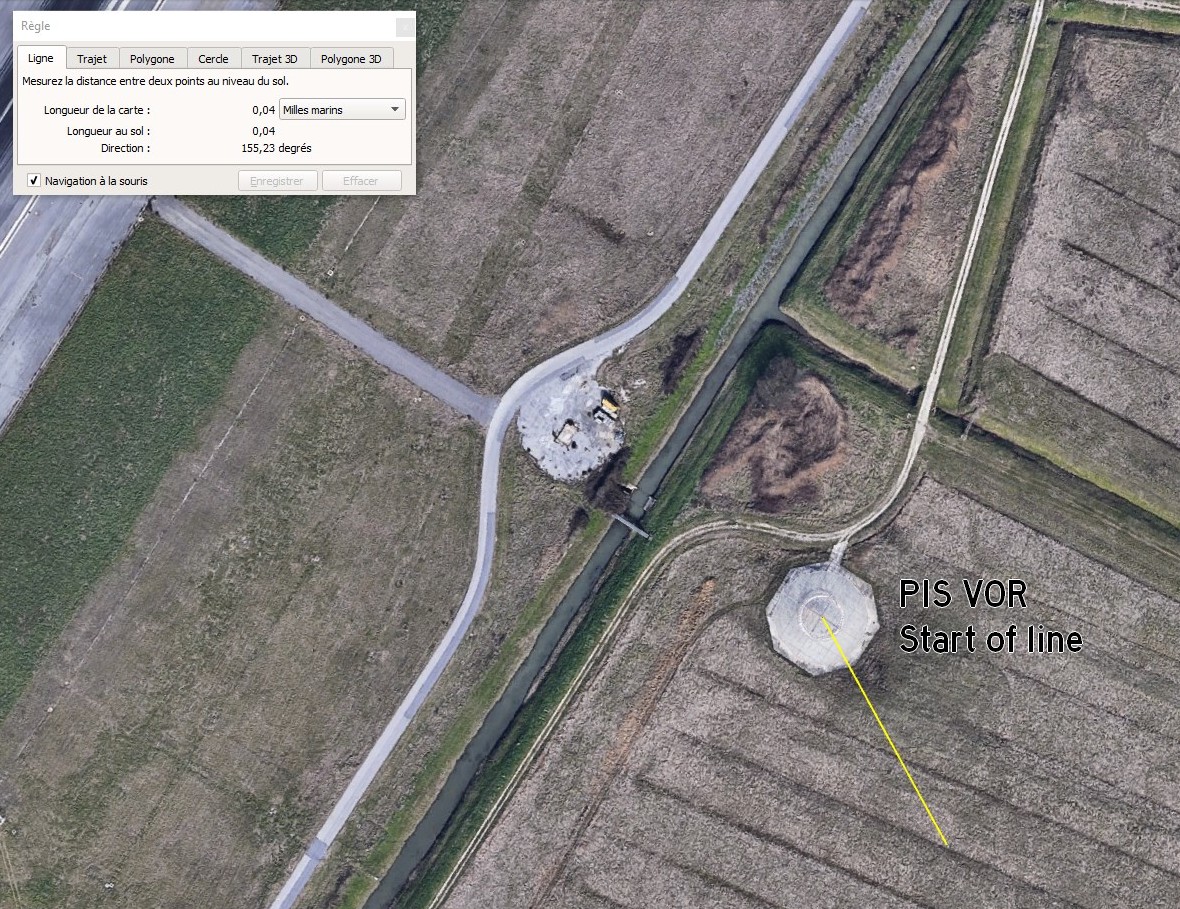

I assumed that PIS is Pisa VOR, so I found it and started a line from it:
View attachment 74034

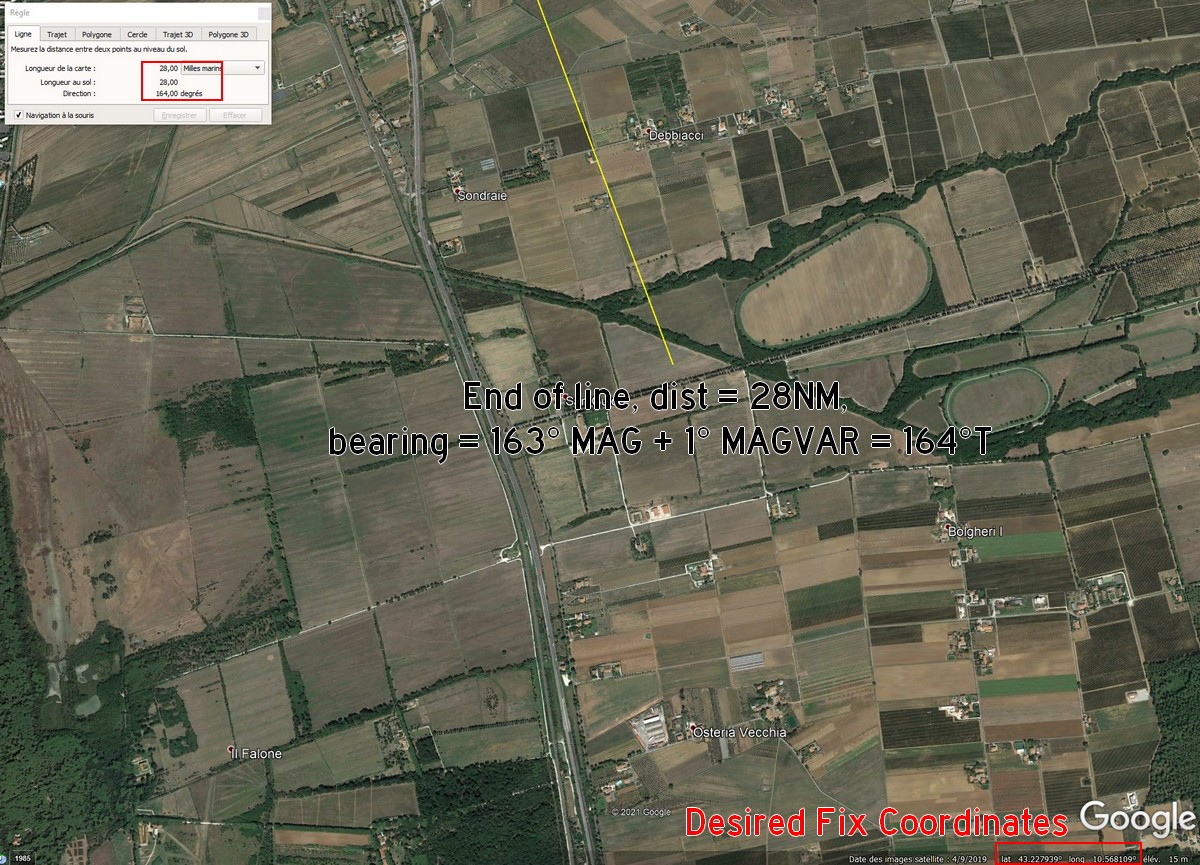

I zoomed out and extended that line until the point which is looked at. Don't forget the MAGVAR which is 1°E or +1° at LIRP. True = Mag + Magvar, so I used 164°True bearing:
View attachment 74035

Then note down your fix coordinates at the bottom right, and report them to your <Waypoint> xml code.
Thank you for your prompt reply, so a new waypoint is generated which I will insert with a name in my xml, right?
Originally, I did not want to create a new waypoint, but, if this was possible, give an instruction to an approach line that recognized that point, using the radial of a VOR X that crosses the distance and direction from another point Y.
Actually if I had the possibility to do the instruction:
FIX C163 COLOCATED PIS 163 28
it's like generating a new waypoint.
Thanks, it's very kind of you

Paolo

Messages
110
Country
italy
You allways can use google earth viewer Ruler tool.
I assumed that PIS is Pisa VOR, so I found it and started a line from it:
View attachment 74034

I zoomed out and extended that line until the point which is looked at. Don't forget the MAGVAR which is 1°E or +1° at LIRP. True = Mag + Magvar, so I used 164°True bearing:
View attachment 74035

Then note down your fix coordinates at the bottom right, and report them to your <Waypoint> xml code.
Hi, I wanted to ask you if an approach type ... must always contain the part of MissedApproachLegs starting / ending with its legs inside or can it be omitted?
of the type:
<MissedApproachLegs>
</MissedApproachLegs>
Thanks so much

Messages
3
Country
australia
Excellent tutorial, helped a lot! Is anyone able to help me with the following issue though. I am trying to code some altitude restrictions into a SID as below, but for some reason in the sim these restrictions at or above 8000 ft rather than at or below.

Code:
altitudeDescriptor="-" altitude1="8000.0F"

Thanks,
Michael

Messages
17
Country
armenia
Please help !! I add all SID and STAR and other procedures to my scene XML file. It works correct with sim default navdata, but then I install Navigraph navdata all my scene procedures are gone. Why does this happen?


Attachments

  • mysceneprocedures.txt
    111.9 KB · Views: 43
Messages
17
Country
armenia
I checked and found out that in Navigraph AIRAC 2107 no data for my airport. Maybe this is the reason of my issue?

Messages
19
Country
france
Please help !! I add all SID and STAR and other procedures to my scene XML file. It works correct with sim default navdata, but then I install Navigraph navdata all my scene procedures are gone. Why does this happen?
Try to go in your content.xml file (two folders above community folder) and put your scenery above navigraph-navdata. Navigraph seems to have a delete All Procedures option. So if the sim read navigraph package after your scenery, it will delete your procedures.

Hope this will help you

Messages
19
Country
france
Hi everyone, thanks for this tutorial that helped me a lot to start creatinng my own procedures when they does not exist for some airports.

By the way, I have a question: I was wondering how to add speed constraints. Sometimes when activating constraints in A320 we can see speeds written in purple next to some waypoints and the ATC will ask to maintain this speed or below. I know how to add altitude constraints but no options for speeds in any Leg elements.

Top
