MSFS Collision Material

Messages
207
Country
germany

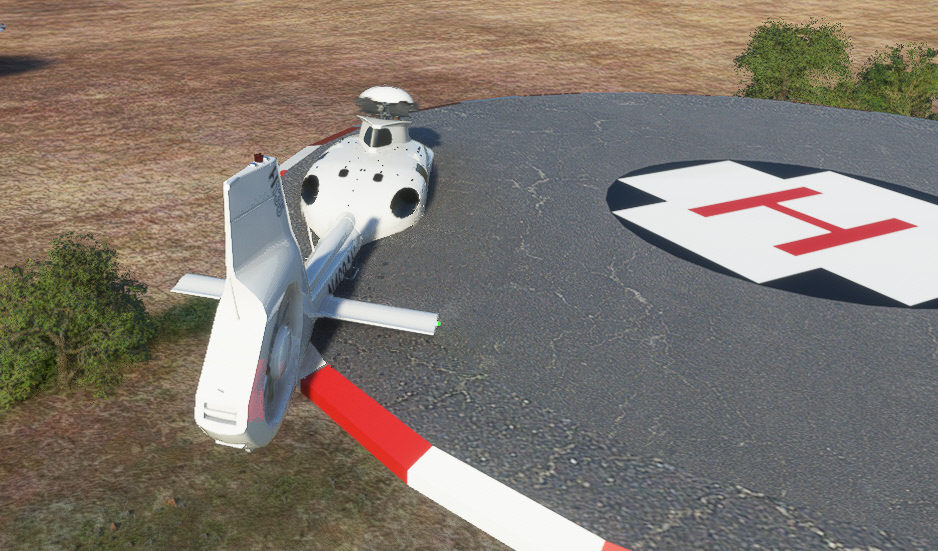

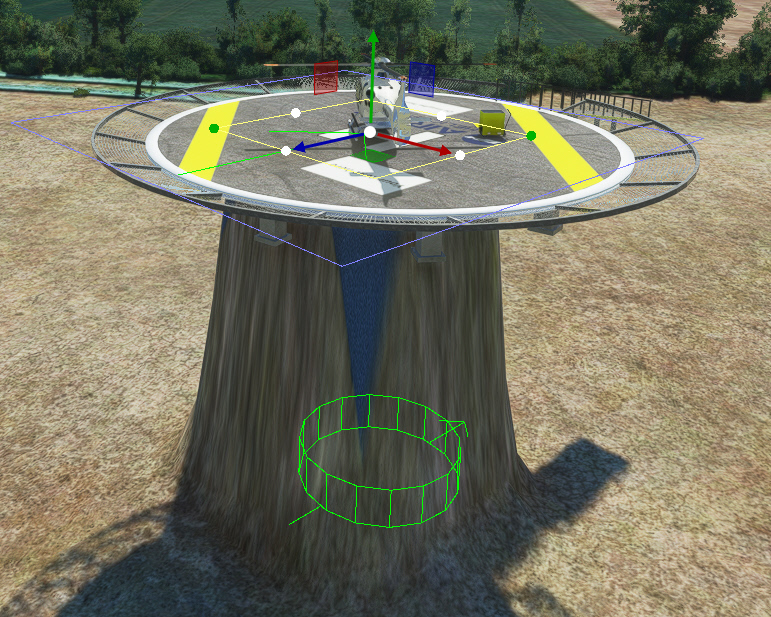

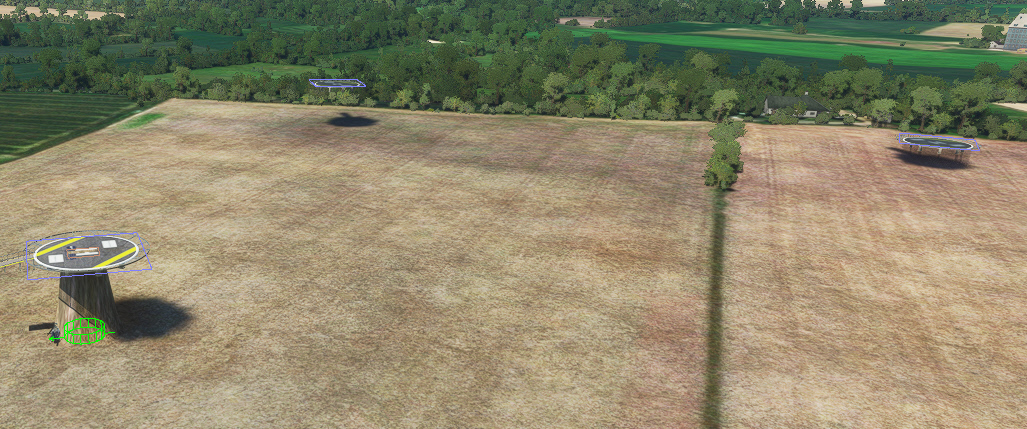

I already made the verification using 3DS but it was the same. Enabling a simobject to land on is not possible in MSFS. i.E. an aircraft carrier may only be used as a scenery object fixed o a defined position but it cannot move around. It works for the collision property itself but not for collision and road material at the same time. And you need the road material property to be able to i.e. land on it and not falling through it. They need to introduce a kind of second level of their ground property that's behind runways but without the animation of the ground deformation rising up to this level. The test_3.jpg shows the only way that I know how to get something to work 100% with all the sim features spawning on, landing on an not on ground level at present. All other kinds I testet on test.jpg are not having full features.


Attachments

  • Test_3.jpg
    365.9 KB · Views: 18
  • Test_1.jpg
    394.9 KB · Views: 17
  • Test_4.jpg
    320.3 KB · Views: 17
Messages
6
Country
japan
Yes. Just use a simple bounding box.

Not sure what you mean by that, as he actually said "My previous experiments with collision areas were all super simple, just plain boxes. They never worked properly and since the plugin hasn't changed since then I assume they still don't."

If you're saying it works, do you have a simple example blender file that demonstrates it that can be used in MSFS to verify it works?
