Coordinate Converter issue

Messages
67
Country
sweden
Hi!

Might just be me that is stupid. (That's probably the case) but either way.

I'm trying to make my first GP just as a test. But when I enter my coordinates from the .TXT file that SbuilderX generated into Coordinate converter in MCX nothing happens. The "Flat earth X and Y" and the "Geocentric X,Y and Z still remains at 0,000.

What am I missing?

A

Aviasim

Guest
You need to input a reference point Lat and Lon - is usually at the top of the co-ordinate converter window.
The "Secondary Point" is where you put the co-ordinates of each corner.
It's up to you what your reference point is, I usually use the co-ordinates of the center of the main runway.

Hope this helps

Messages
67
Country
sweden
You need to input a reference point Lat and Lon - is usually at the top of the co-ordinate converter window.
The "Secondary Point" is where you put the co-ordinates of each corner.
It's up to you what your reference point is, I usually use the co-ordinates of the center of the main runway.

Hope this helps
Well, I've got the reference points but not the coordinates for each corner. How can I get those in the easiest way?

A

Aviasim

Guest
If you downloaded from SBuilderX, it will leave you a txt file with the top, left, bottom and right co-ordinates. For the corners you just get the Top Latitude with the Left/West longitude .. then top lat with right/east lon etc.

Messages
67
Country
sweden
If you downloaded from SBuilderX, it will leave you a txt file with the top, left, bottom and right co-ordinates. For the corners you just get the Top Latitude with the Left/West longitude .. then top lat with right/east lon etc.

Isn't this what you meant? Because this is what I've tried before but still dosn't work. As you can see still 0,000 everywhere.


A

Aviasim

Guest
You are using the co-ordinates of the top left corner so it will return 0,0,0.
You are also using the bottom right corner as the secondary point.

Go on google to the area you are building and use the runway center point, right click (in google maps) and click "What's here" - it will display Lat/Lon... use this as a reference point and not your actual corners. It is ideal though to have the reference point in the absolute center.

Once you have set the reference point, work only in the "Secondary Point" for all corners.

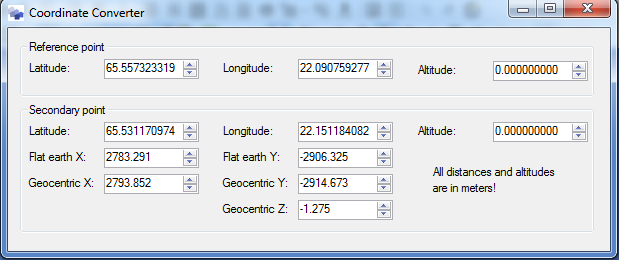

2018-09-18 17_44_44-ModelConverterX.png


It may also be the fact that your text file is using , instead of . As you can see, I inputted the same info as you and got results but I used a decimal point and not a comma.

If you want to get the absolute center of the image in co-ordinates, you can do this by:
2 / (Top Lat+Bottom Lat)
2 / (West Lon+East Lon)

The co-ordinate center of your image is 65.5442471465997, 22.12097167968755 - I would advise using this as reference point and keeping note of it. Then your secondary point you just input your co-ordinates for every corner, so you will need to do it 4 times.

Last edited by a moderator:
Messages
67
Country
sweden
You are using the co-ordinates of the top left corner so it will return 0,0,0.
You are also using the bottom right corner as the secondary point.

Go on google to the area you are building and use the runway center point, right click (in google maps) and click "What's here" - it will display Lat/Lon... use this as a reference point and not your actual corners. It is ideal though to have the reference point in the absolute center.

Once you have set the reference point, work only in the "Secondary Point" for all corners.

View attachment 44407

It may also be the fact that your text file is using , instead of . As you can see, I inputted the same info as you and got results but I used a decimal point and not a comma.

If you want to get the absolute center of the image in co-ordinates, you can do this by:
2 / (Top Lat+Bottom Lat)
2 / (West Lon+East Lon)

The co-ordinate center of your image is 65.5442471465997, 22.12097167968755 - I would advise using this as reference point and keeping note of it. Then your secondary point you just input your co-ordinates for every corner, so you will need to do it 4 times.

I mean I have as you know tried to insert the exact same coordinates as you but still nothing, even if it works for you
