Getting weird errors loading FSX model in MCX

Messages
90
Country
sweden
Loading mdl from a FSX aircraft in MCX create the following errors I can handle, the shown graphic model gets corrupt- can I get help with that here?


In MCX the following two error occurs:

1) wont load/read the modeldef.xml properly
2) " $j35_1024_13 is a dynamic VC textures and wont be shown here"

Any help appreciated

Åke


Attachments

  • Skärmklipp.JPG
    37.9 KB · Views: 21

arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,726
Country
netherlands
Hi,

Those two warnings are quite normal and don't have to be an issue. The first one means you need to update location of the modeldef.xml file in the options. If the path is valid there and you still get the error the xml file is most likely corrupt.

The second warning is also normal when virtual cockpit textures are loaded.

Are you loading an exterior or interior model here?

Messages
90
Country
sweden
OK, Interior mdl (enclosed). I am trying to figure out why the plane is corrupt in MCX.


Attachments

  • j35bmfsx.MDL
    3.9 MB · Views: 16
Messages
90
Country
sweden
"you need to update location of the modeldef.xml file in the options" - exactly what do you mean here?
Wanted to enclose the Interior but it appears to be to "large"

Last edited:
Messages
90
Country
sweden
Trying to prevent that the mdl_interior file cause CTD by changing the event to NO by mousclick rectangle
I am however not able to "save" the new mdl file properly-how do I do that?



arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,726
Country
netherlands
Hi,

You should be able to export it to a mdl file again using the xtomdl tool from the SDK. But you need to fix that modeldef.xml warning, else you won't have animations.

Which sdk do you have installed? MCX should pickup the modeldef.xml and other tool paths from it based on the registry settings.

Messages
90
Country
sweden
If you refer to the MSFS SDK it is 0.13.0.0 .
I have changed national settings frpm Swedish to US to eliminate the Error decimal sign , /. Thats OK now just to have the next error regarding the SDK?

I dont have FSX anymore, just MSFS - can I refer to that SDK instead- if yes, how....?

Last edited:

arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,726
Country
netherlands
To be able to export FSX mdl files the MSFS SDK won't help you. You can best install the Prepar3D 1.4 SDK.

Messages
90
Country
sweden
To be able to export FSX mdl files the MSFS SDK won't help you. You can best install the Prepar3D 1.4 SDK.
So I did-worked perfectly, thanks!

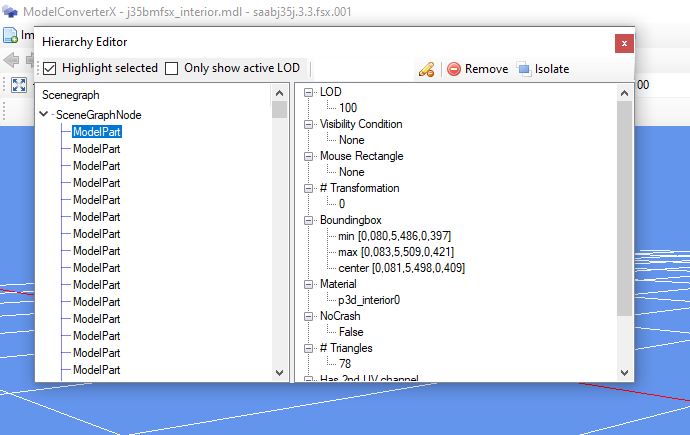

The next issues are the gauges/panel in xml to html etc. Loading the Interior mdl now into MCX create NO errors, just a few warnings. See below the result. In addition I killed all mouse rectangles clicks to avoid CTD so the plane is a dead parrot. I guess thats a dead end, but atleast the aircraft can be used as a scenery object in MSFS....
Or do you see a way to continue improve?


Attachments

  • Skärmklipp1.JPG
    165.7 KB · Views: 19
  • Skärmklipp2.JPG
    162 KB · Views: 16
  • Skärmklipp3.JPG
    216 KB · Views: 18
Last edited:
Messages
90
Country
sweden
Arno- do you see an opportunity to continue to improve gauges and have some clickable functions working- I have now atleast a stabile (no CTD) aircraft and the Gauge folder doesnt look to bad but need manual inputs I guess?


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,726
Country
netherlands
I am no expert on gauges, so I have no idea what should be done with them.
