MSFS Global AI Ship Traffic FSX, P3D and MSFS2020

Messages
844
Country
denmark

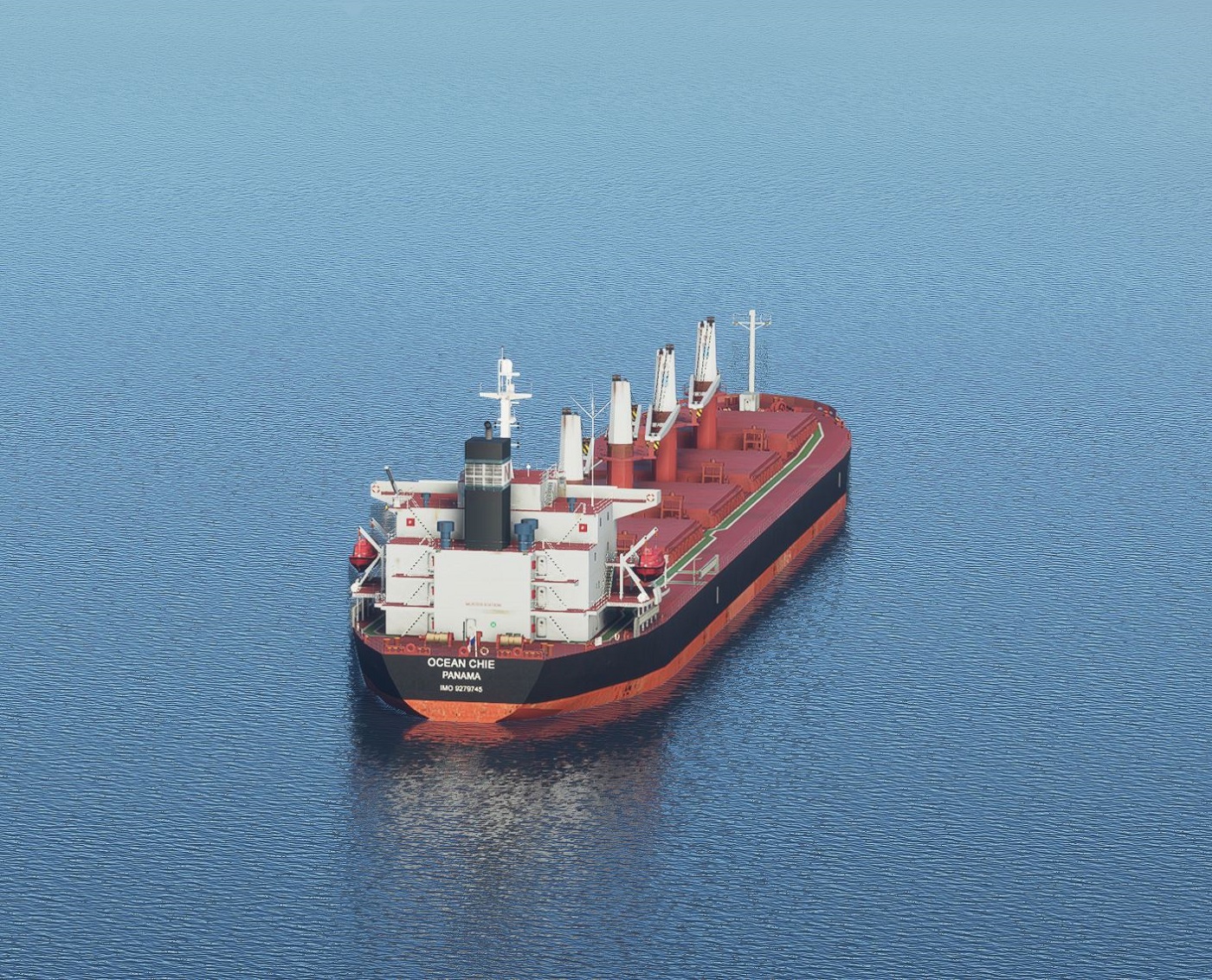

After some struggle learning Blender basics, PBR basics and not least how to export packages to MSFS2020 and after fantastic support from Lagaffe and Jan the first native MSFS AI ship took a trip near Rio this morning :D



Still the process needs to be optimized a lot with 1300 ships to convert, but the result is close to what I was looking for and the impact of performance experienced at first encounter with the simple conversion of the FSX ships is now completely gone. No impact to see at all :D

Messages
201
Country
finland
Excellent. Looks superb. I suppose the unnatural-looking compact reflections under the bow and stern are a msfs-problem that can not be fixed by anybody but Asobo?

Messages
844
Country
denmark
Excellent. Looks superb. I suppose the unnatural-looking compact reflections under the bow and stern are a msfs-problem that can not be fixed by anybody but Asobo?
Maybe something can be done.... The shadow is normally also appearing eg at the native bridges, but look at this picture of the Great Belt bridge by Soenico... No shadow... and the ship - this one a simple conversion doesn't have this shadow either, but it might just be angle compared to the light... I will look into it because yes, it is annoying.


Fehn LIght Great Belt.JPG

Messages
844
Country
denmark
Is there any chance you could make a model the for Royal navy’s Astute class submarine for fsx
I did have a look after your PM so now I have approximate drawings, but it is just one item on a looooooooooooooooong to do list. If days just had 72 hours it would be easier...

Messages
27
Country
unitedkingdom
I did have a look after your PM so now I have approximate drawings, but it is just one item on a looooooooooooooooong to do list. If days just had 72 hours it would be easier...
Appreciate you are busy thank you for the reply but if you wouldn’t mind sending me a pm if you ever do get the chance to complete it

Messages
1,360
Country
scotland
MSFS - Vertically displaced reflections

Hi Folks

Apologies if any of this is 'sucking-eggs'. ;)
All info below is IIRC.


Henrik -
It's all looking exceptionally nice.

I don't have MSFS,
but from FSX, and prior versions -

I'm guessing from your piccy
that model's origin
is substantially above the waterline,
and the sim.cfg has a large 'static_cg_height' offset.



BACKGROUND -
A model's shadow & reflection
are generated relative to the model's origin.


In the simulators -

SimObjects type - 'Airplanes' & 'Rotorcraft' -
i.e. aircraft.cfg
I think the sim applies an offset-correction,
(probably derived from contact-points).

SimObjects of type - 'Boat', etc.
i.e. sim.cfg
and for static scenery object models -
The shadow & reflection is displayed
at the horizontal plane of the model's origin.

The higher the model's origin
is located above the sea/ground,
the further shadow is displaced wrongly
toward the sunward side.

Please see attached FSX & MCX screenies.


SIM.CFG -
[contact_points]
static_cg_height=NUMBERFEET

'static_cg_height' controls the simobject's spawn & travel heights.

Additionally, if you'd included them,
the Vessel's travel height will be affected by -
[mass properties]
Empty Weight

[contact_points]
static_compression



DIRTY WORKAROUND -
In your preferred modeling tool.

In a new session.

'Import' the affected vessel's source file.

Vertically move the imported source
till the vessel's 'required waterline'
sits at the session model's origin.

Save & compile.


'required waterline' -
Depends on your vessel's intended appearance.
Oil tanker - Empty - model origin near keel
Oil tanker - Fully laden - model origin near weather deck



For the vessel's sim.cfg,
you might have to experiment a little,
and particularly so for P3D's rolling wave sea-surface.

To display a shadow,
the model's origin must sit at, OR above, the sea surface.


Try setting -
static_cg_height=0.5

i.e.
So the vessel's model's origin
sits 6 inches above the water

In P3D
if the wave tops appear above the shadow,
increase static_cg_height accordingly.



RELATED - Just for info -
IIRC -
Substituting an aircraft.cfg for a sim.cfg,
for a simobject in a 'Boat' subfolder, will not work.

'aircraft.cfg' only works for simobjects of types - 'Airplanes' & 'Rotorcraft'.
i.e. simobject containers within those specific folders.



HTH
ATB
Paul


Attachments

  • _20210425_152136_capture.jpg
    272.8 KB · Views: 115
  • _20210425_152202_capture.jpg
    274.8 KB · Views: 107
  • _20210425_152216_capture.jpg
    276.2 KB · Views: 109
  • FSX_ISSUE_ORIGIN_SHADOW_V_MODEL___01.jpg
    108.6 KB · Views: 114
  • FSX_ISSUE_ORIGIN_SHADOW_V_MODEL___02.jpg
    118.2 KB · Views: 121
  • FSX_ISSUE_ORIGIN_SHADOW_V_MODEL___04.jpg
    67 KB · Views: 113
  • FSX_ISSUE_ORIGIN_SHADOW_V_MODEL___05.jpg
    38.3 KB · Views: 112
Messages
844
Country
denmark
Hi P
MSFS - Vertically displaced reflections

Hi Folks

Apologies if any of this is 'sucking-eggs'. ;)
All info below is IIRC.


Henrik -
It's all looking exceptionally nice.

I don't have MSFS,
but from FSX, and prior versions -

I'm guessing from your piccy
that model's origin
is substantially above the waterline,
and the sim.cfg has a large 'static_cg_height' offset.



BACKGROUND -
A model's shadow & reflection
are generated relative to the model's origin.


In the simulators -

SimObjects type - 'Airplanes' & 'Rotorcraft' -
i.e. aircraft.cfg
I think the sim applies an offset-correction,
(probably derived from contact-points).

SimObjects of type - 'Boat', etc.
i.e. sim.cfg
and for static scenery object models -
The shadow & reflection is displayed
at the horizontal plane of the model's origin.

The higher the model's origin
is located above the sea/ground,
the further shadow is displaced wrongly
toward the sunward side.

Please see attached FSX & MCX screenies.


SIM.CFG -
[contact_points]
static_cg_height=NUMBERFEET

'static_cg_height' controls the simobject's spawn & travel heights.

Additionally, if you'd included them,
the Vessel's travel height will be affected by -
[mass properties]
Empty Weight

[contact_points]
static_compression



DIRTY WORKAROUND -
In your preferred modeling tool.

In a new session.

'Import' the affected vessel's source file.

Vertically move the imported source
till the vessel's 'required waterline'
sits at the session model's origin.

Save & compile.


'required waterline' -
Depends on your vessel's intended appearance.
Oil tanker - Empty - model origin near keel
Oil tanker - Fully laden - model origin near weather deck



For the vessel's sim.cfg,
you might have to experiment a little,
and particularly so for P3D's rolling wave sea-surface.

To display a shadow,
the model's origin must sit at, OR above, the sea surface.


Try setting -
static_cg_height=0.5

i.e.
So the vessel's model's origin
sits 6 inches above the water

In P3D
if the wave tops appear above the shadow,
increase static_cg_height accordingly.



RELATED - Just for info -
IIRC -
Substituting an aircraft.cfg for a sim.cfg,
for a simobject in a 'Boat' subfolder, will not work.

'aircraft.cfg' only works for simobjects of types - 'Airplanes' & 'Rotorcraft'.
i.e. simobject containers within those specific folders.



HTH
ATB
Paul
Hi Paul,

Thanks for the explanations, but I don't think that the origin is the case - it is for almost all models adjusted to be at the surface and the shadow issue also applies from e.g. masts far above the models origin and also from static objects in MSFS. If you remember when we prepared the drill ships for static use we actually changed the origin to fit with the helipads, but that is done in the modelling tool and not through the sim.cfg.

Cheers
Henrik

Messages
844
Country
denmark
Another bunch of ships have been through conversion and I start to get the flow., but I am facing some issues with some textures bleeding through on double sided polygons when converting in Blender... https://www.fsdeveloper.com/forum/threads/textures-bleeding-through.452525/
Hope that can be solved in a smart way as the repair that I manage to do with my limited Blender skills will take a long time.



1400Refleksion Unifeeder Grete Sibum.jpg


1400Atrotos 2.jpg


1400unifeeder Grete Sibum MSFS Normal.jpg



Messages
844
Country
denmark
And another one... this one mostly to check glass settings for MSFS in Blender for the bridge area and cranes where many of the models have transparent windows. Performance impact after conversion is basically zero :D







and the ship as it looks in real life accompanied by Muse



mskhan1991

Resource contributor
Messages
829
Country
pakistan
And another one... this one mostly to check glass settings for MSFS in Blender for the bridge area and cranes where many of the models have transparent windows. Performance impact after conversion is basically zero :D


View attachment 73242

and the ship as it looks in real life accompanied by Muse


That looks like a real life picture. Btw my question is what are your specs and how are you getting those 60 FPS? Any tweaks to stop the mainthread from being limited?

Messages
844
Country
denmark
That looks like a real life picture. Btw my question is what are your specs and how are you getting those 60 FPS? Any tweaks to stop the mainthread from being limited?
Hi - sorry for not being fast at replying but too much is going on... I don't use any tweaks, the specs are GeForce RTX 2080 SUPER, Ryzen 9 3900X, 4x8GB 3200MHz DDR4, 1TB SSD. I usually do screenshots from a small and slow plane and I have had all the ships installed for a while, so even the ships converted by the sim itself doesn't really create any impact today.

Below my graphic settings - water and waves are obviously high, while the rest vary a bit... I mostly fly over the sea, so no need to display trees... :D



Last edited:
Messages
20
Country
us-tennessee
Can someone please let me know if Icebreaker ships are included in this package? (MSFS) I've not been able to find this info. Thanks, Pete

Messages
844
Country
denmark
Can someone please let me know if Icebreaker ships are included in this package? (MSFS) I've not been able to find this info. Thanks, Pete
yes, it includes two Canadian Icebreakers created by Jean Pierre Fillion and one Spanish by Alberto Garcia.

Messages
19
Country
southafrica
Hey, anyone able to list the cruise ships available for this package? I'd love to contribute to adding more if I could, but I'm not very good at Blender 😅
