I'm working on aircraft... (2020)

Status
Not open for further replies.

Deano1973

Resource contributor
Messages
378
Country
unitedkingdom
With my Super Hornets now released with Just Flight, I'm deep into an F-15 Eagles package ( C, E and I "Ra'am" versions ), and have Concorde lined up right behind them. It's going to be a busy 2020... :)

No screenies here, will post a separate showroom thread on the Eagles.

Messages
15
Country
brazil
Oh baby that looks gorgeous!!! Overwing and T-Tails are my favourite kind of large aircraft!

Thanks. Now i'm struggling on the UVW unwrap part. I have a few experience on this area and i was expecting to make textures on substance painter, but my poor notebook will not support running this program, and i really don't know what to do.

3.25.2020 1-13-19.jpeg

Messages
389
Country
australia
Messages
45

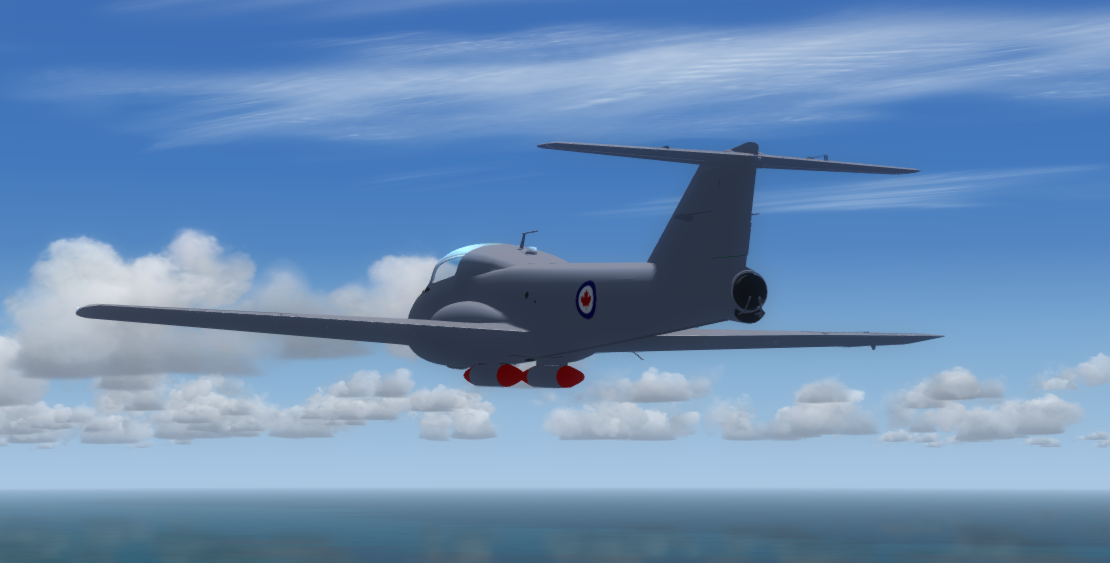

Well thanks to the lock-down and the new FSX/P3D script for Blender, I have started to work on the CT-114 Tutor again. I was originally planning on doing it for both FSX and P3D but I went a little (okay...a lot...) overboard with the detail and now it will not compile for FSX.

There is still a lot to do but I figure I have about 75-80% of it done. Most of the virtual is done with the switches and buttons, but I still need to do the main gauges with coding.

Texture mapping is coming along nicely too after I received some help on what I was doing wrong with the whole bump/spec stuff as I never did that with the first Tutor for FS9.

I may need to see if I can find some help with the actual textures as I really want some nice detail with full panel lines etc...including some nice detail in the landing gear bays/speed brake area/etc...


Attachments

  • CT-114_Tutor_Top.png
    909.4 KB · Views: 310
  • CT-114_Tutor_Back.png
    304.8 KB · Views: 264
  • CT-114_Tutor_Bottom.png
    258.5 KB · Views: 238
Messages
3
Country
venezuela

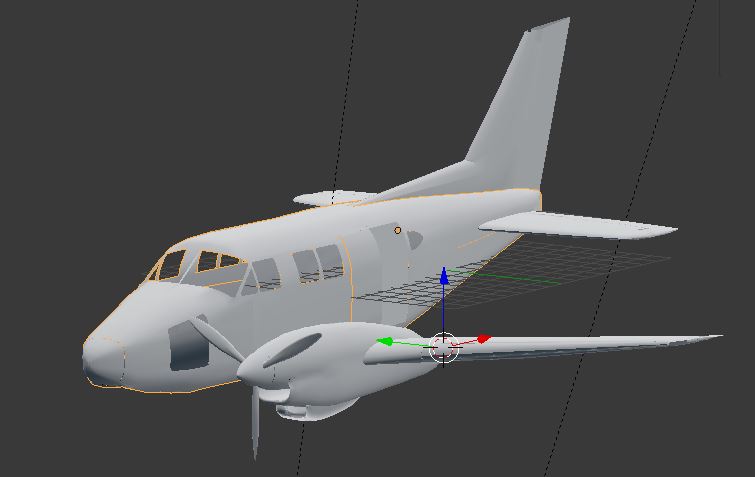

Hello all, i actually have a bit of a project myselfright now, found some U-21s manuals on the web and started to learn Blender a week ago. This is so far what i've got. I have the wings almost ready. Learned also how to do C gauges and will later learn how to do the VC.


Deano1973

Resource contributor
Messages
378
Country
unitedkingdom
DC Designs general plans for 2020 - subject to change but I normally follow through and finish what I started;

BAC Concorde ( P3D and FS2020 - FSX maybe but don't anybody hold your breath )
Grob 120 TP " Prefect" ( P3D and FS2020 )
Grumman F-14A / D Tomcats ( FS2020 )
Grumman Mallard ( FS2020 )

Other airplanes in the works but these are the current front runners.

Messages
35
Country
us-vermont
View attachment 57538
Hello all, i actually have a bit of a project myselfright now, found some U-21s manuals on the web and started to learn Blender a week ago. This is so far what i've got. I have the wings almost ready. Learned also how to do C gauges and will later learn how to do the VC.

Might you also later on consider making a Queen air to go with it? Just need to hang some piston engines in place of the PT-6's


Vitus

Resource contributor
Messages
1,480
Country
newzealand
Let me be the first to share my current MSFS2020 development, now that we're allowed to share the first screenshots of our projects. I am working on a total conversion of my Lockheed Vega. Besides understanding the new platform, I spent a lot of time re-texturing and often re-mapping EVERYTHING! The first exports look promising, but there's still a lot of work missing.






Messages
15
Country
brazil
That is an awesome work of art Michel. Happy to see the progress.

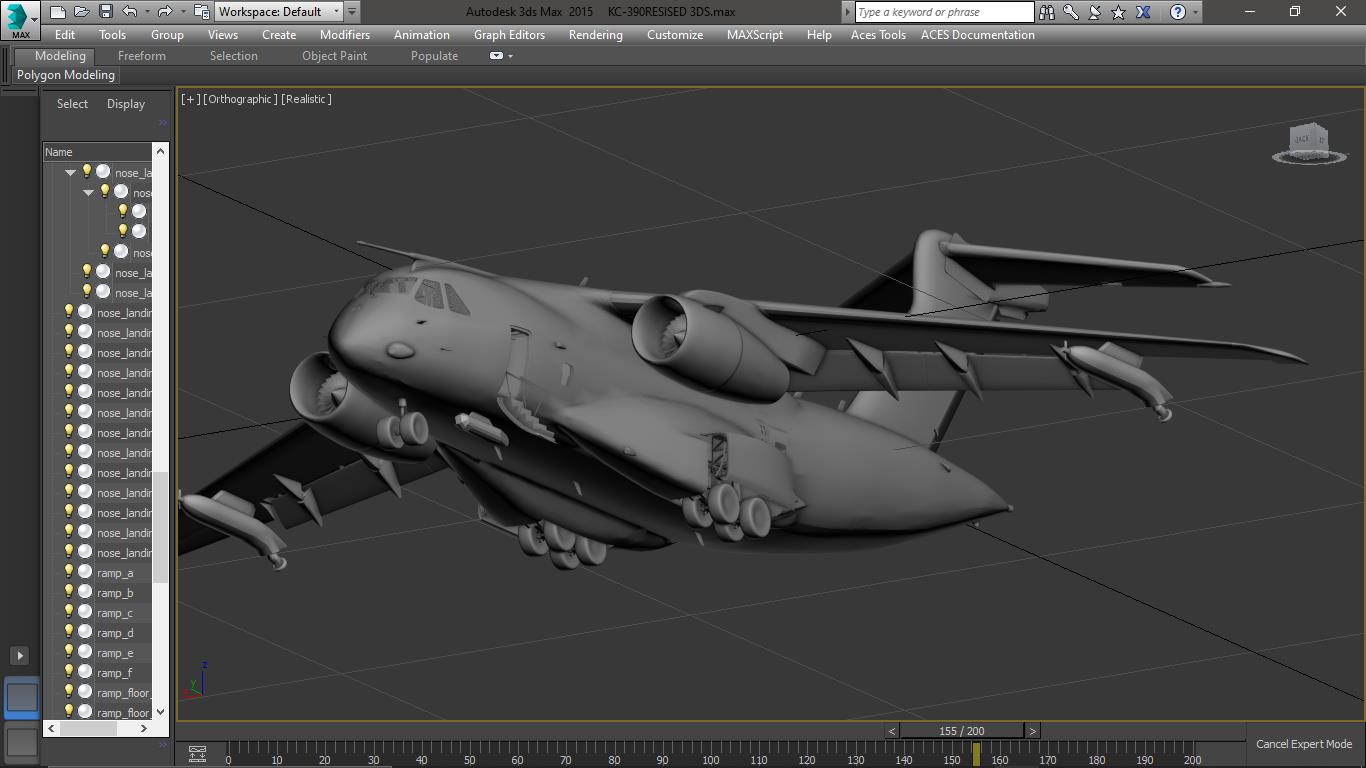

Thanks Mr. Milton. As you can see, the progress is going slow (i'm working alone), but i'm happy with the results. In the next month, i hope to make the UVW mapping of the interior and animate the virtual cockpit. Something that is worrying me are the avionics used in the KC-390, as it uses the Collins Pro line Fusion, and I don't see anything similar in relation to gauges in fsx and p3d
