ADE INTERNAL COMPILER ERROR: #C2593: DUPLICATE VOR/ILS

Messages
2
Country
belgium
Hi all,

I'm new to ADE. Currently, I'm making my first trials to edit sceneries.

As a first 'exercice', I tried to add a custom object in EBBR from JustSim. I can load the airport, edit data, but when I want to compile the result I always get the error:

INTERNAL COMPILER ERROR: #C2593:
**** DUPLICATE VOR/ILS ****

Listing the Navaids, I can see that there are 2 'stock' ILS for both rw 01/19 ( 2 occurrences of IBM and 2 of IBX). It seems that 2 of them are placed somewhere outside the airfield and set to 108.00 Mhz as a kind of deactivation (I guess it's to avoid conflicts).
But I couldn't find a way to *remove* these duplicates so ADE can compile. They are greyed out as stock items that cannot be edited.

I tried 'Tools/Remove Stock Data' with no success.

Does anyone know a solution for this, or should I forget the idea of working that way ?

Thanks ! :)

Install ProKey if you haven't already (on the downloads page, along with the name and reg code), go to Tools/Raw Data View, open the airport, open the airport again if needed, open the relevant runway (if needed), find those ILSs, and change the Lock Status from Stock to None.

Install ProKey if you haven't already (on the downloads page, along with the name and reg code), go to Tools/Raw Data View, open the airport, open the airport again if needed, open the relevant runway (if needed), find those ILSs, and change the Lock Status from Stock to None.
Greetings TGibson, I'm having the same problem that "Marsux" has trying to "Compile" EBBR in P3D V 4.5. It will NOT Compile because of the same issue,
INTERNAL COMPILER ERROR: #C2593: **** DUPLICATE VOR/ILS **** Can you please tell me what "ProKey" is? and where I can download it. I see it fixed the problem for the other gentlemen. Thank you in advance.

All The Best,
Claude Phillips, III
USAF Veteran.

Greetings ScruffyDuck, and thank you for the quick reply. I've read the manual with the "ProKey" zip file and am a little lost about this install. I'm running ADE 1.78, and I'm not understanding which version is newer. Is 1.47.11 the newest version of ADE? I installed ProKey just like the instruction manual said, and overwrote the file "Infralution.Licensing.dll" and now I have an "Error" message. Overwriting this .DLL file, and now my ADE 1.78 won't boot up. What did I do wrong? I'm sure it's an easy fix; so can you please help me out with this? Any help will be greatly appreciated. Thank you......

All The Best,
Claude Phillips, III
USAF Veteran.

It sounds like your OS may be blocking the new DLL file. You don’t have ADE installed into any program files folder do you?

The other active thread discusses unblocking these DLL’s.


Greetings Jon,

Here's the path to my ADE / C: Drive/MSFS/FS Design Tools/ADE 178/P34

My ADE 1.78 works perfectly; also, I removed the new, "Infralution.Licensing.dll" and "ProKey.dll" from my ADE 1.78 Plugins folder, and my ADE works perfectly again. Your instructions are quite simple; the problem is, am I running the current, up-to-date, ADE? Your "Read Me" Notes specifically say, "ProKey works with ADE version 1.47.11 or later. Please make sure that you update to this version before installing the ProKey." So, I do not have, nor am I running ADE version 1.47.11. I have and I'm running, ADE 1.78 and I'm assuming the "78" means later version; since 78 comes way after 47, in the world's numeric system Lol.....

Regarding unblocking the DLL's, the "Raw Data View" can't be accessed in ADE 1.78. And when I add, "Infralution.Licensing.dll" and "ProKey.dll" to the Plugins Folder of ADE 1.78, I get the error message, "Can't load Infralution.Licensing.dll or one of it's components." Which I just did, and got the error message again. I need more specifics here Jon; if my OS is blocking this, how can I unblock it? Also, you gave me this Key Code, "4160-2EE1-C226-E407-88DB-22CE-6782-6A1C." Where does this go? Thank you for any help you can give me. If I need to purchase this for the $9.99 I will certainly do so. I just need to be able to "Compile" my EBBR, which I re-created, from the BIG MESS, that JUST SIM sold me; and any future Airports that are screwed up by the Developer(s).

All The Best,
Claude.

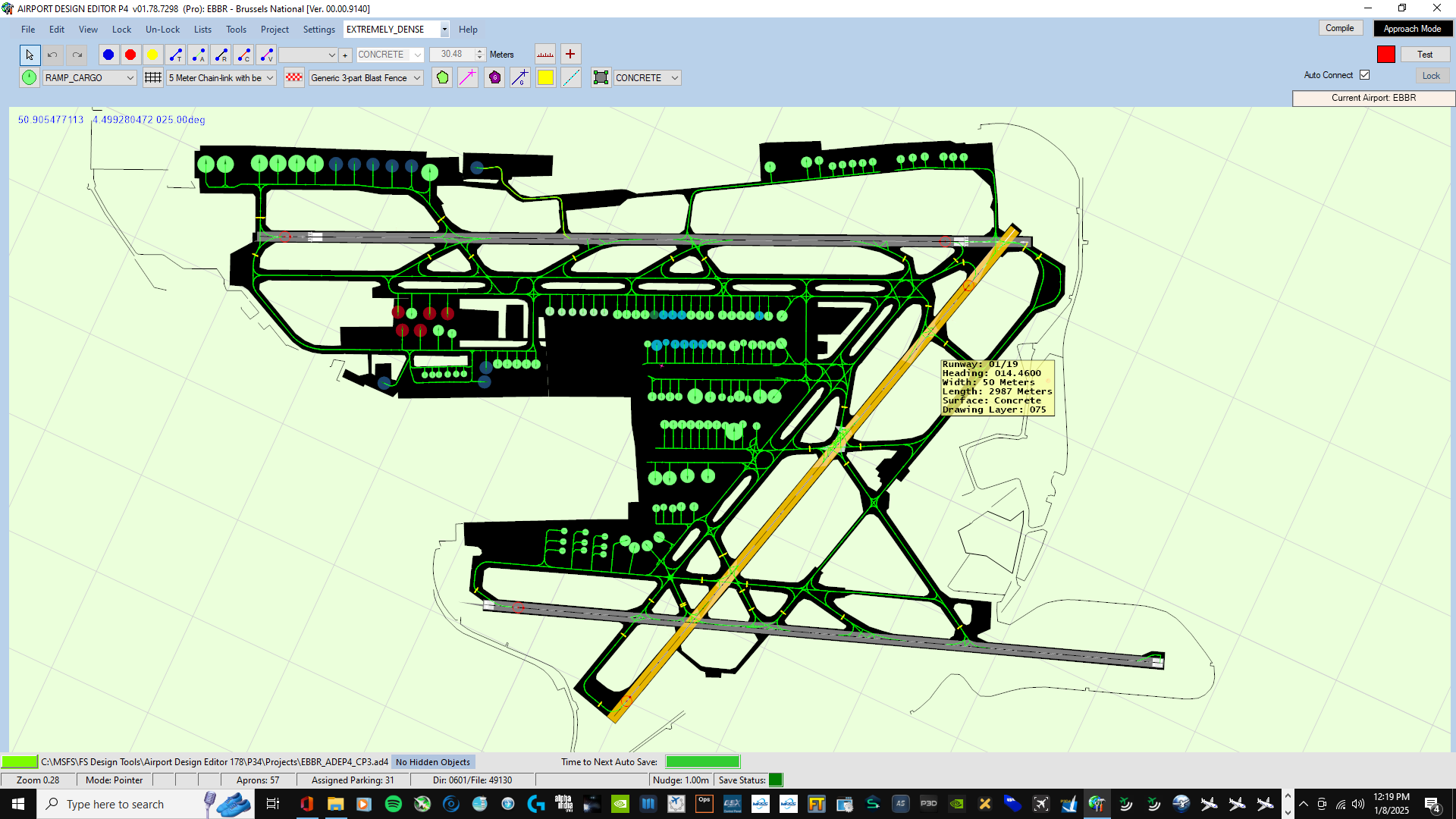

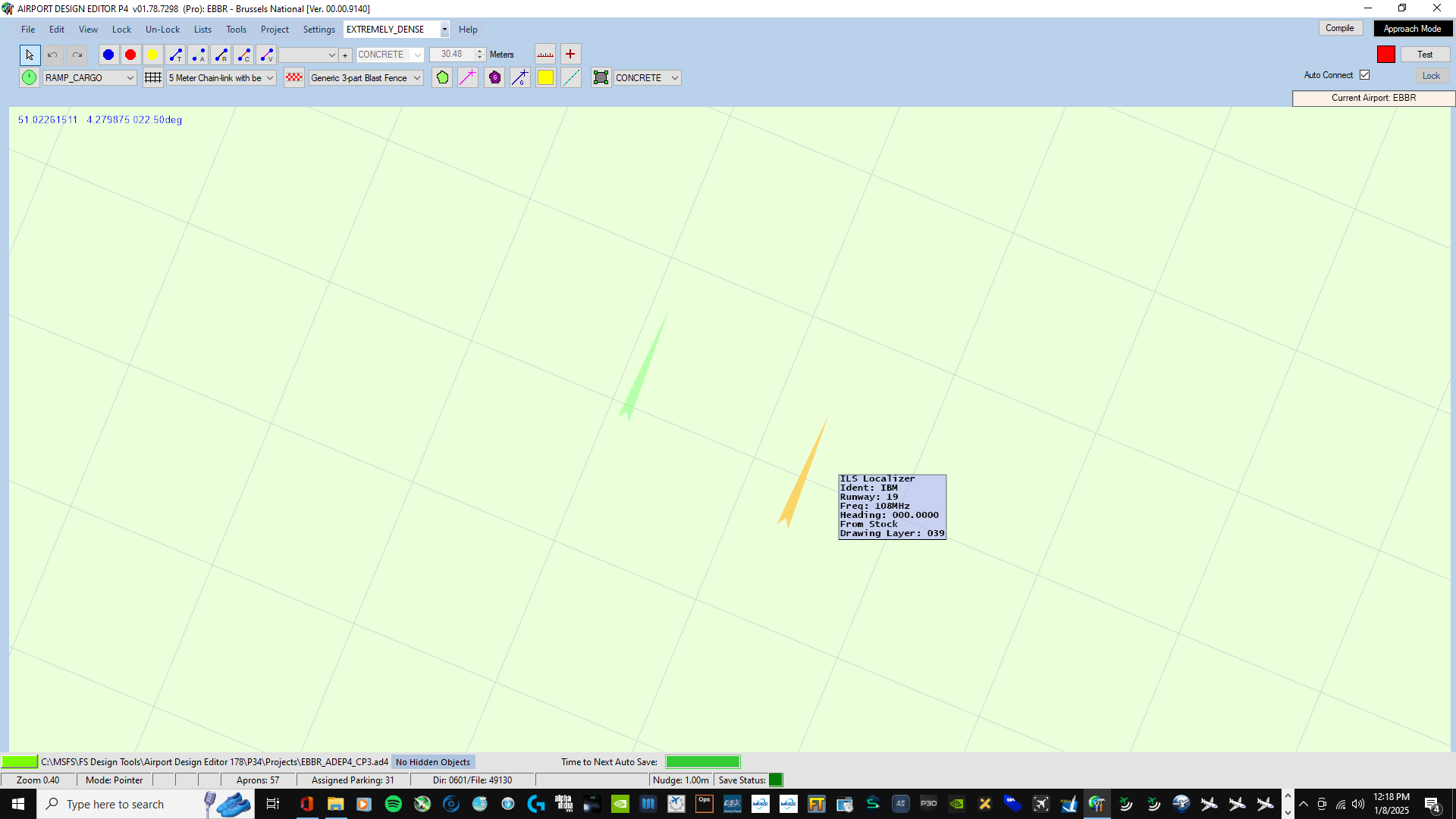

OK, Scratch that last message!! We're there, I got it figured out. TGibson!! You Rock!!! Ok, here are screenshots of the two ILSs / Runways, that are preventing me from compiling the EBBR Airport. I have followed your instructions, by opening each ILS, but I can't find what you have described by, "Lock Status from Stock to None." I'm almost there Brother; what am I missing? Thank you.

Claude......


Attachments

  • Screenshot (442).png
    Screenshot (442).png
    180.5 KB · Views: 17
  • Screenshot (444).png
    Screenshot (444).png
    180.6 KB · Views: 21
  • Screenshot (445).png
    Screenshot (445).png
    444.6 KB · Views: 15
Last edited:

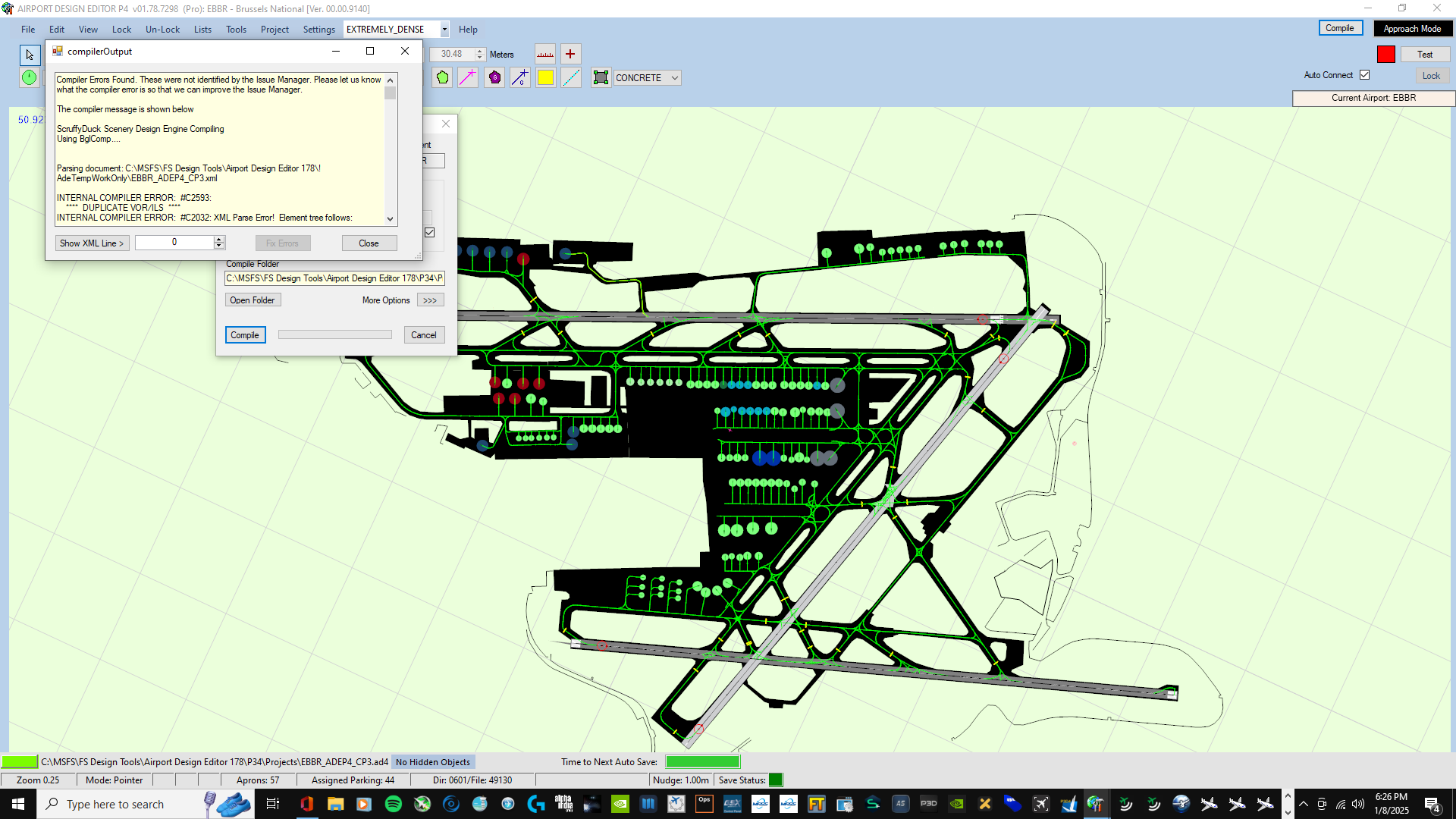

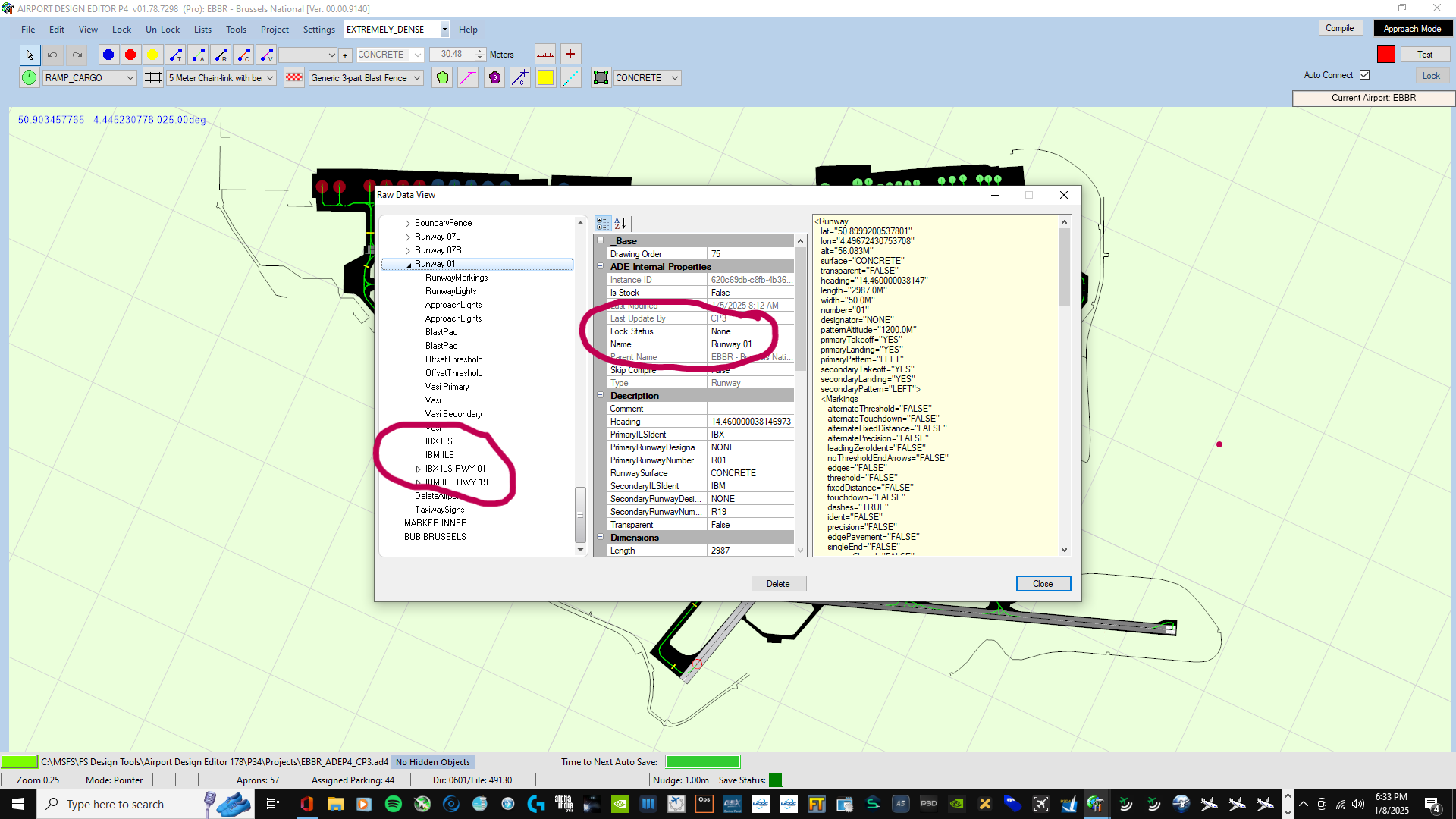

Ok, all "Lock Statuses" have been changed from "Lock" to "None." But as you can see, regarding these two ILSs, they still will not Compile. Please see screenshots. I'm sorry if I'm being a pain in the butt; but I've followed all the instructions. Do you see where the ILSs are located in shot #446? Nowhere near the Airport. This was done by the developers. Shot #447, is my 100% revamping of this EBBR Airport; and these misplaced ILSs are preventing this. I want to thank you for your continued help. Is there anything else I can do? I thought about just deleting them. Thanks, Claude.


Attachments

  • Screenshot (452).png
    Screenshot (452).png
    308 KB · Views: 14
  • Screenshot (451).png
    Screenshot (451).png
    310.9 KB · Views: 17
  • Screenshot (450).png
    Screenshot (450).png
    299.6 KB · Views: 16
  • Screenshot (449).png
    Screenshot (449).png
    299.3 KB · Views: 14
  • Screenshot (448).png
    Screenshot (448).png
    322.3 KB · Views: 19
  • Screenshot (447).png
    Screenshot (447).png
    426.6 KB · Views: 17
  • Screenshot (446).png
    Screenshot (446).png
    225.2 KB · Views: 19
Once you unlock them, you should be able to delete them. That should fix your problem.

TGibson, thank you so much for all your help. Finally, "It Compiled." Happy Days....... How do I pay for this? I'm certain, I'm going to need it again.

All The Best,
Claude Phillips, III
USAF Veteran.

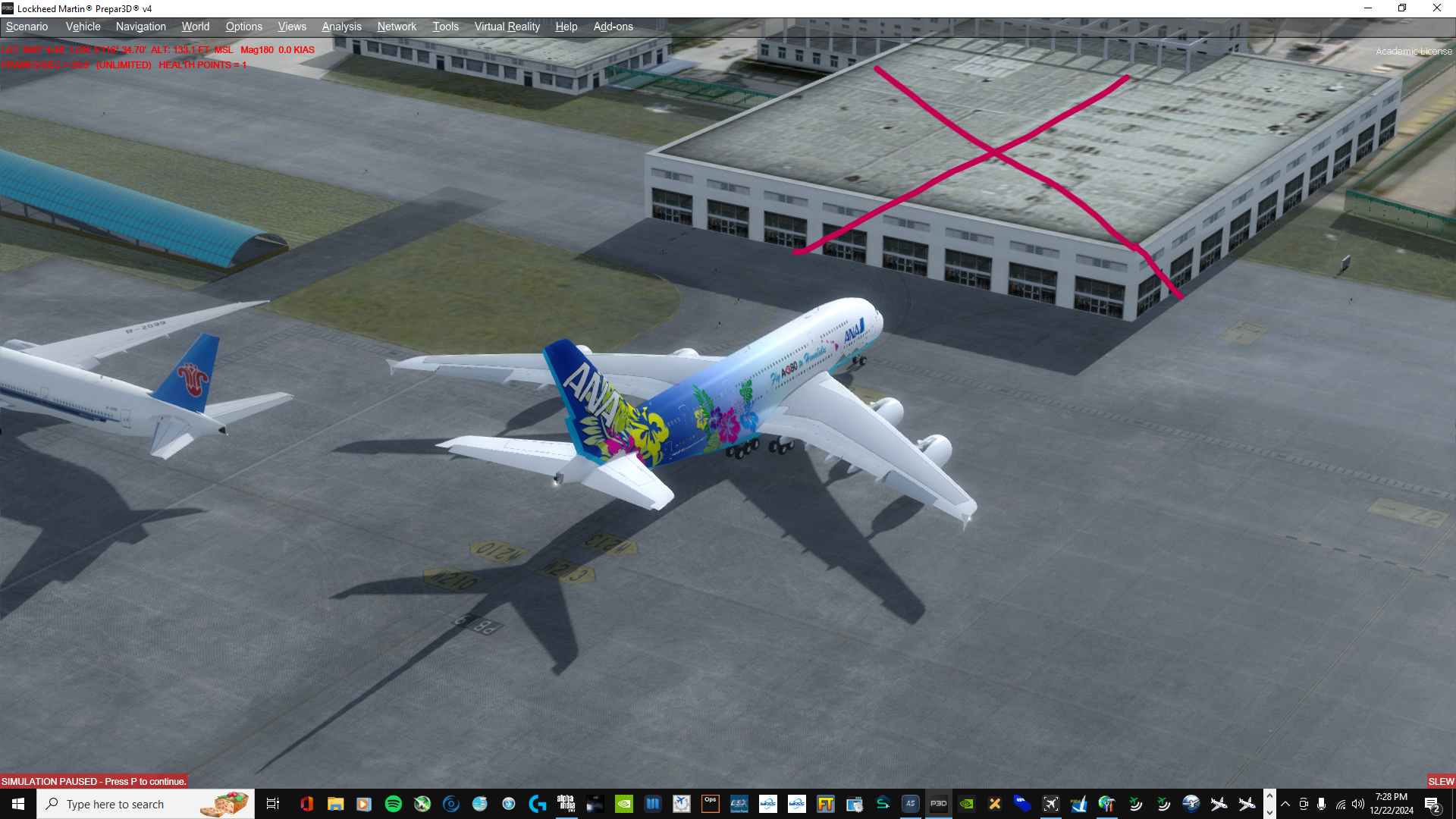

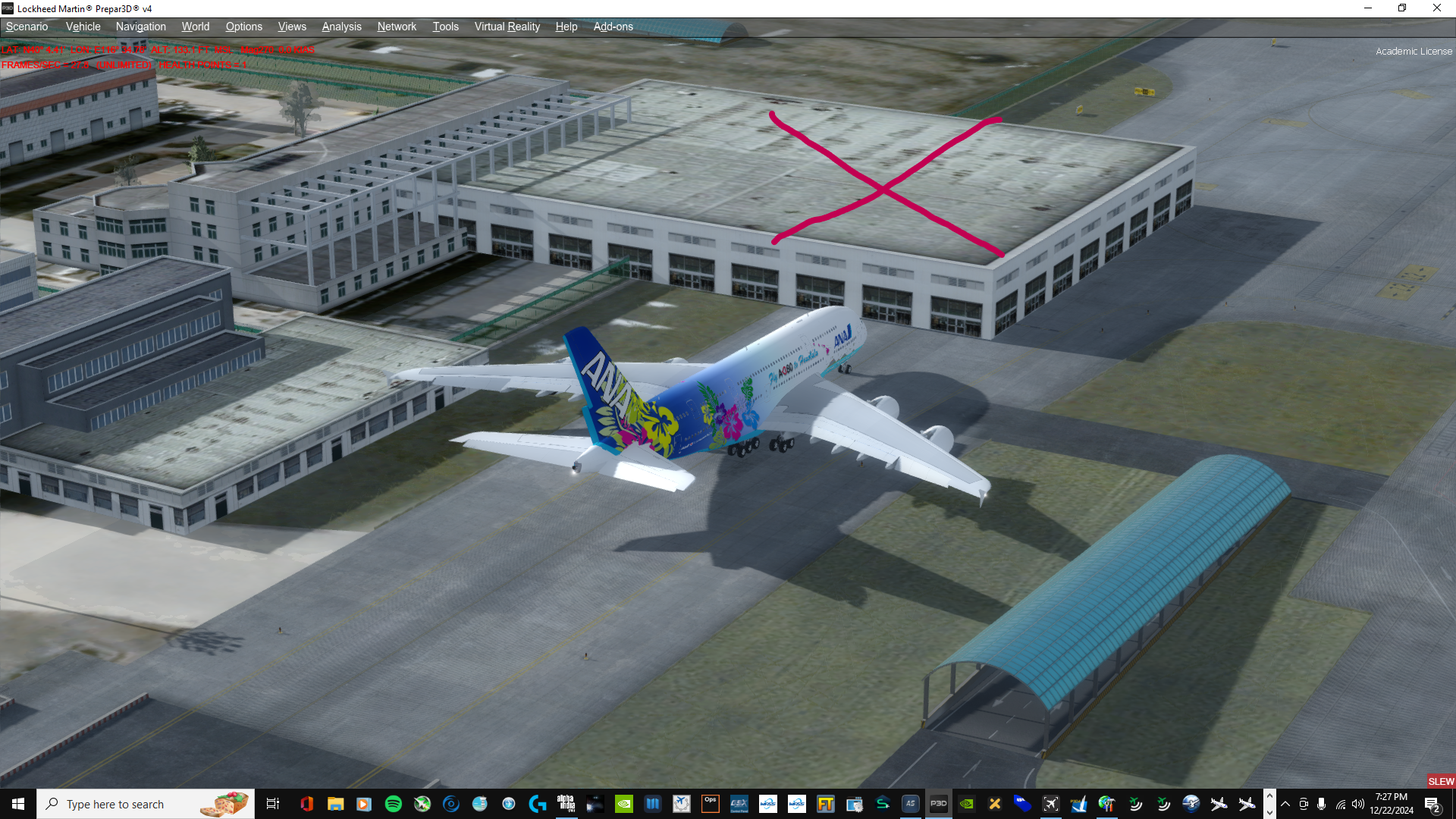

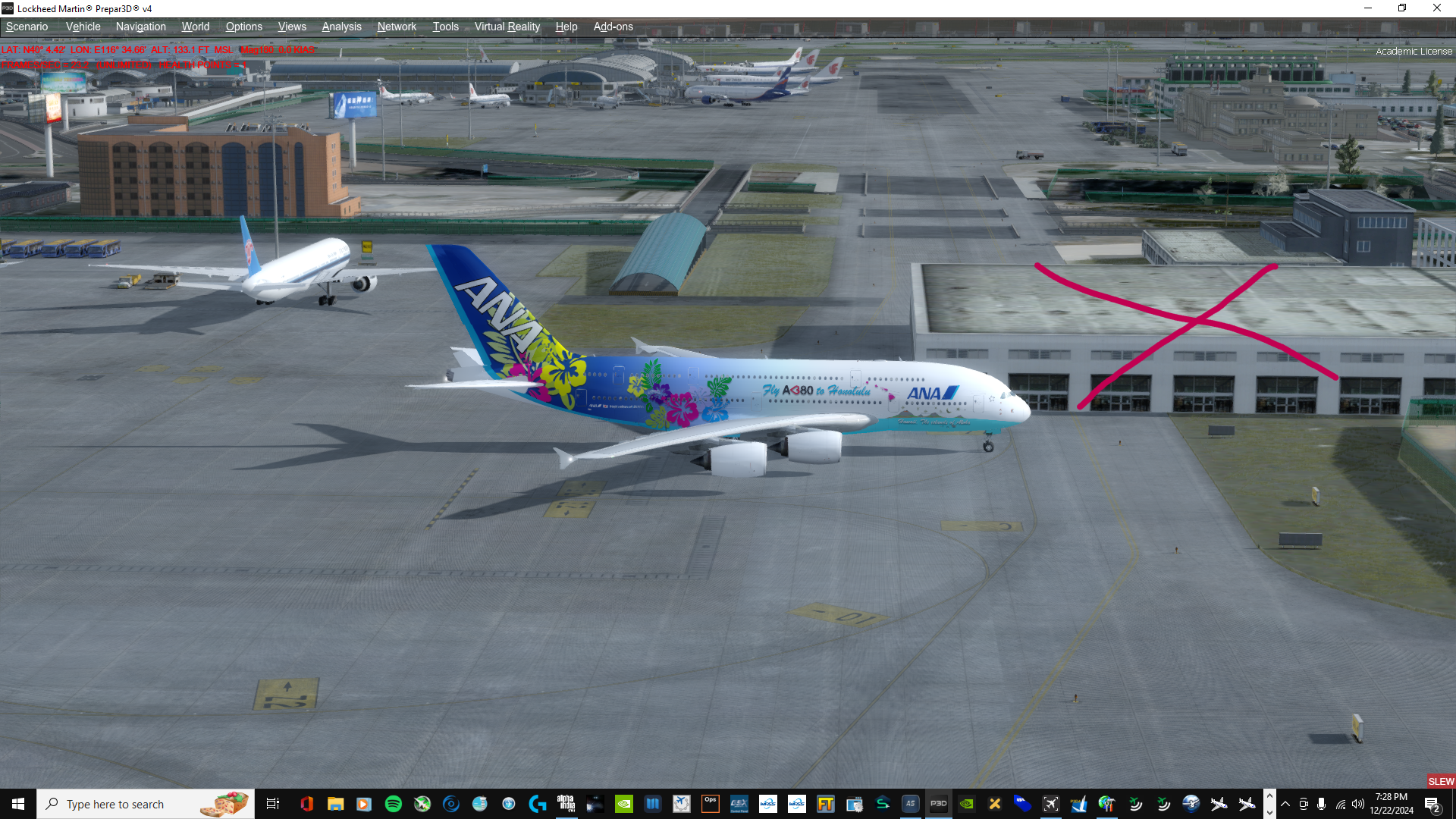

Greetings Tom, Thanks again for your help on the ILS issue. Two things, I was wondering if you could help me with one more item. In the screenshots, there is a "Stock" building at ZBAA, Beijing, within Prepar 3D V 4.5, right in the middle of the "Active Taxiway Z2." I installed the custom ZBAA, from WF Scenery Studios, and I've not heard one peep from P3D. Is there any way to delete this building with ProKey? It completely messes up the entire Airport. Also, how do I purchase ProKey when my trial period runs out? I'd like to buy it before. Thank you in advance for any help you can provide.

All The Best
Claude Phillips, III
USAF Veteran.


Attachments

  • Screenshot (429).png
    Screenshot (429).png
    3 MB · Views: 11
  • Screenshot (430).png
    Screenshot (430).png
    3 MB · Views: 11
  • Screenshot (431).png
    Screenshot (431).png
    3 MB · Views: 14
Also, how do I purchase ProKey when my trial period runs out?

It is free. You can get the free licence credentials from the ADE Downloads Page

ProKey
The ProKey is free to use but a license will be required to activate it after the trial period. That license is

Name: ade_prokey
Key: 4160-2EE1-C226-E407-88DB-22CE-6782-6A1C

https://www.fsdeveloper.com/downloads/ProKey.zip

I don’t use P3 D, but you could try adding an exclude rectangle around that building. I believe it is the ADE button with the yellow square, and you want to exclude all. Worth a try.
