P3D v4 Model Altitude problem with MCX Earth Curve Correction

Messages
442
Country
malaysia
Hi,

I am trying to export ramp light model. But when i do earth curve correction, the model start to sink.

Step 1:
Set altitude (10.668m) in Earth curve correction screen and altitude (10.668m) in convert wizard screen:

MCX 1.JPG MCX 2.JPG

Result:
Sink model

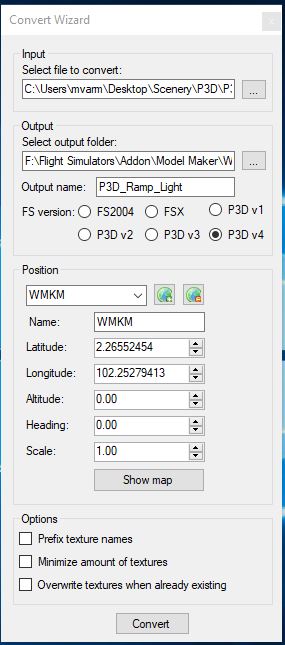

Step 2:
Set altitude (10.668m) in Earth curve correction screen and altitude (0m) in convert wizard screen:
MCX 1.JPG MCX 3.JPG

Result:
Floating ~5-8m above the apron.

Hope someone can help on this.

Thanks,
Manochvarma Raman


=rk=

Resource contributor
Messages
3,085
Country
us-washington
Earth curve correction is for large flat ground polygons. Over the length of a large runway, Earth curvature can cause elevational displacement. Why would you need to correct for the curvature of the Earth for a model that appears to cross less than a meter of it? I am also not sure why you'd want to use the convert and place wizard for what appears to be a single model. It is my understanding that specific parameters can be set and then everything that passes through the convert and place wizard is edited and then exported with matching parameters. For individual models and ever those that are part of a library, I import them into MCX, apply my desired material attributes, assign night textures, etc, then I export individually from MCX. Finally, Tall narrow models like antennas and light poles are often created intentionally tall so elevation can be set discriminately at the time of placement. It does not seem like a light pole would need an exacting specific elevation.

Messages
442
Country
malaysia
Earth curve correction is for large flat ground polygons. Over the length of a large runway, Earth curvature can cause elevational displacement. Why would you need to correct for the curvature of the Earth for a model that appears to cross less than a meter of it? I am also not sure why you'd want to use the convert and place wizard for what appears to be a single model. It is my understanding that specific parameters can be set and then everything that passes through the convert and place wizard is edited and then exported with matching parameters. For individual models and ever those that are part of a library, I import them into MCX, apply my desired material attributes, assign night textures, etc, then I export individually from MCX. Finally, Tall narrow models like antennas and light poles are often created intentionally tall so elevation can be set discriminately at the time of placement. It does not seem like a light pole would need an exacting specific elevation.
The model of the light is around 1km away form centre of my airport. So if I didn’t do the earth curvature, the position of the model is offset from the original position it should be. So I need earth curve correction to solve this problem. Before this, there is no problem when I’m doing it. But recently I’m having this problem and not sure why it’s happening.

Thanks
Manochvarma Raman


=rk=

Resource contributor
Messages
3,085
Country
us-washington
. So I need earth curve correction to solve this problem.
I see. I don't use MCX for object placement, I use object placement software, Instant Scenery 3. Depending on your situation, it might be more practical than solving your current problem.


Messages
442
Country
malaysia
I see. I don't use MCX for object placement, I use object placement software, Instant Scenery 3. Depending on your situation, it might be more practical than solving your current problem.

Hi rk,
Thanks for the suggestions. It seems the Instant Scenery 3 software is payware and it cost quite a lot for my currency. I prefer MCX since i have all the model and it just that i'm not sure why it is behaving so currently because i was doing this scenery part by part started around 7 month ago and it was working perfectly for me. I don't know is there any problem with MCX or any mistakes that I have done.

Thank you,
Manochvarma Raman

Messages
5,214
Then place the model with ADE.
And like RK said, it should not need earth curvature correction even if it is far from the airport reference point.

Messages
442
Country
malaysia
Then place the model with ADE.
And like RK said, it should not need earth curvature correction even if it is far from the airport reference point.
Hi RK.
If i did not use earth curve correction, the model is offset around 3m from the position it should be. Why does it happen so?

Thanks,
Manochvarma Raman


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,632
Country
netherlands
Then place the model with ADE.
And like RK said, it should not need earth curvature correction even if it is far from the airport reference point.

It would if in the MDL file the model is far from the model origin. But I agree with you two that it is better to make the model around the MDL origin and then place it at the right location with ADE or another placement tool.

Messages
442
Country
malaysia
Hi @arno , @robystar & @=rk=,

I manage to find out the problem. Everytime when doing the earth curve correction, i need to type manually the altitude. Before this i was just using the preset value in the option menu. That makes the problem. So after i type it manually the problem solved. Now everything is in the position.

Thank you,
Manochvarma Raman


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,632
Country
netherlands
If you use the latest build you can save positions, including their altitude. Then you can just select that location later on again.

Messages
442
Country
malaysia
If you use the latest build you can save positions, including their altitude. Then you can just select that location later on again.
I am using the latest build. If i use the saved position, it seems it doesn't work for me. The altitude need to set manually each time.

Thanks,
Manochvarma Raman

Messages
5,214
I think Arno has the latest Development Release in mind. Is that what you have (version 1.4.0.0.60242b3) ?


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,632
Country
netherlands
I am using the latest build. If i use the saved position, it seems it doesn't work for me. The altitude need to set manually each time.

I'll check if something is wrong there.

EDIT: I tested it here, but it works fine. The elevation value is saved with the other details and restored when you select the location from the list again.

Messages
442
Country
malaysia
I think Arno has the latest Development Release in mind. Is that what you have (version 1.4.0.0.60242b3) ?
Yes I just downloaded yesterday and tested with it.

I'll check if something is wrong there.

EDIT: I tested it here, but it works fine. The elevation value is saved with the other details and restored when you select the location from the list again.
Yes, the values restored but I’m not sure why it doesn’t work. If I set the altitude manually then all work fine.

Thanks,
Manochvarma Raman


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
30,632
Country
netherlands
And you just type in the same altitude in that case?


jtanabodee

Resource contributor
Messages
3,874
Country
thailand
Oh, I just saw your PM Manochvarma.
I often make a small cross (two plane cross like plus sign) and choose a bright color for that.
Then I put this small cross where I want to put the light poles in reference plane in Gmax/3dsmax. Put the cross all over the place as many as you want.
I export those crosses as mdl file and use GPW to make ground poly and put this bgl file to FSX.
Then I slew and find those crosses and get the coordinate from that.
Get back to the light pole, save it as only ONE light pole at x, y= 0,0 and export it. You will get mdl.
Then I use the coordinate and make XML file then compile with bglcomp.
I got all the light poles in my airport that way. You can put your light poles as detail as you want and use LOD of that.
