Modelling help in Blender 2.9

Messages
13
Country
bahrain

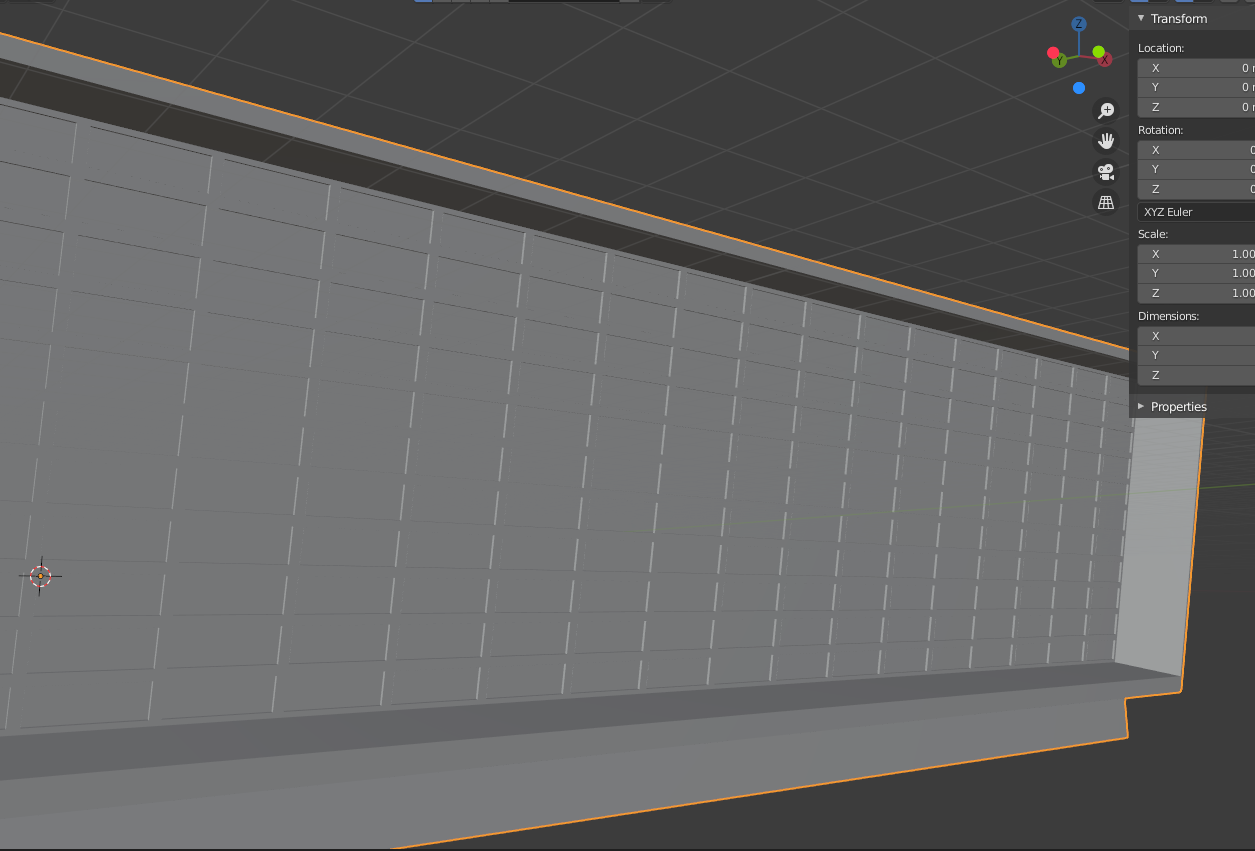

I am pretty new to blender, trying to do my best with the tutorial videos I have watched. I am attaching 2 images with this, as I am not able to create the glass frames around them.
Can someone give me a quick tip.

I need white lines around the window/glass frames as shown in the last picutre. If I try to inset faces, and exclude them.. all of them go back so no frames.


Attachments

  • Screenshot 2021-06-21 022351.png
    Screenshot 2021-06-21 022351.png
    765.6 KB · Views: 58
  • image_2021-06-21_023042.png
    500.6 KB · Views: 57
  • image_2021-06-21_023103.png
    29.9 KB · Views: 58
Messages
174
Country
austria
You may want to look at the "solidifier modifier" in Blender - then extruding the actual windows inwards should give you a decent result - if i haven't misunderstood your question.
There's also the "wireframe modifier" - i suggest you watch one or two videos on these and then decide if these 2 modifiers might be of help to you.
But, as Guido said - it's much easier for anyone to help you if you just attach your .blend file.

Cheers

Messages
13
Country
bahrain
I have attached my blend file with this.. if someone can help me on it.

All I need is the window edges to be extruded out so I can match it with the terminal building color.

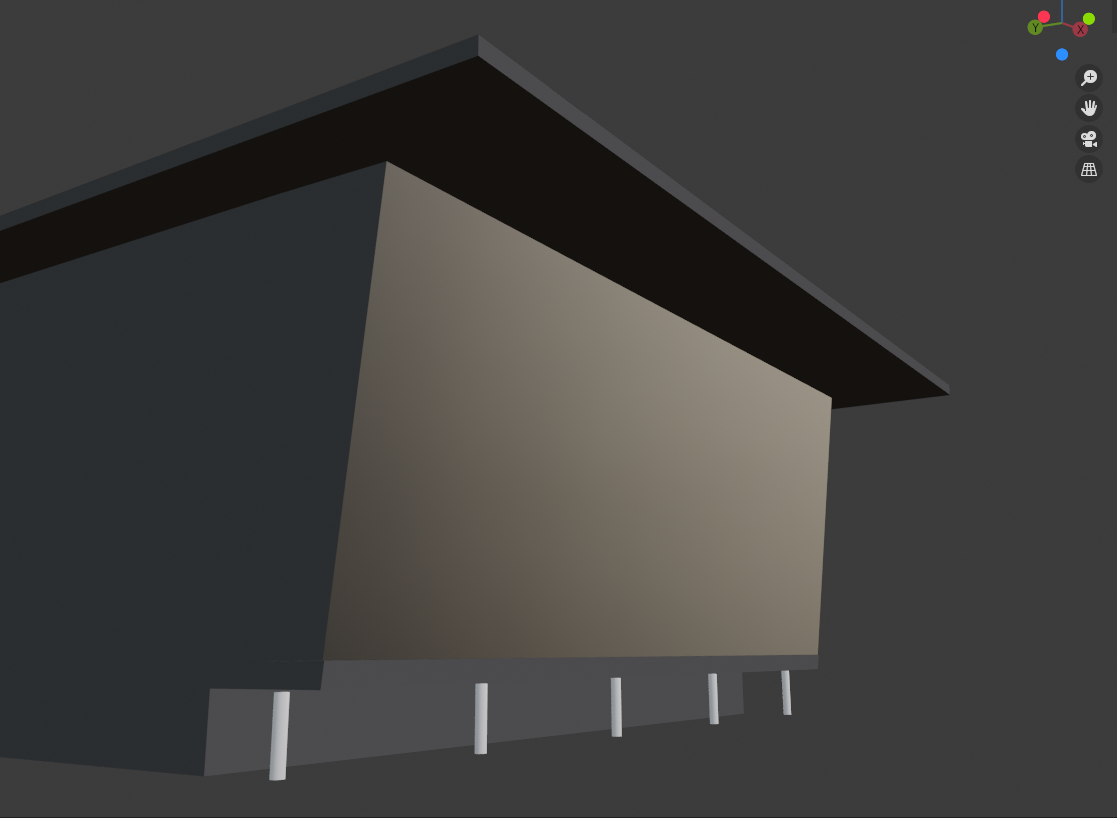

I have attached the pic of the current state.. its just one plain black mirror. :(


Attachments

  • TerminalBldg.rar
    121.5 KB · Views: 19
  • image_2021-06-22_012614.png
    300.1 KB · Views: 31
Last edited:
Messages
196
Country
germany
Ok I see and agree with Rashidar84 to use a modifier for that. I prefer the BuidlingTool that can be activated in Edit, Preferences.

Messages
73
Country
france
Hi,

So here the results:

1. I append your mesh into ano)ther blender file since you settings seems to be very weird (He edges were not showing)
2. I scale to 1,1,1 your model -> this is the first thing you need to make


3. Then, in edit mode I selected your faces

4.Inset (i) two times

5. extrude back a little and.. voila


I hope I correctly understood your problem
Let me know !

Have a nice day


Attachments

  • TerminalLeft_v2.zip
    240.4 KB · Views: 15
Messages
13
Country
bahrain
I am away from my pc... and seeing that image is the perfect thing I wanted. I would try following the same steps u mentioned and check out the results. Thanks alot guys for the help.. God bless you all

Messages
104
Country
russia
The final structure is a pain to assign materials, so before insetting I would recommend to assign the entire wall a window frame material and after insetting you will be left with the windows selected where then it is easy to assign the glass material.
