Moving smoke

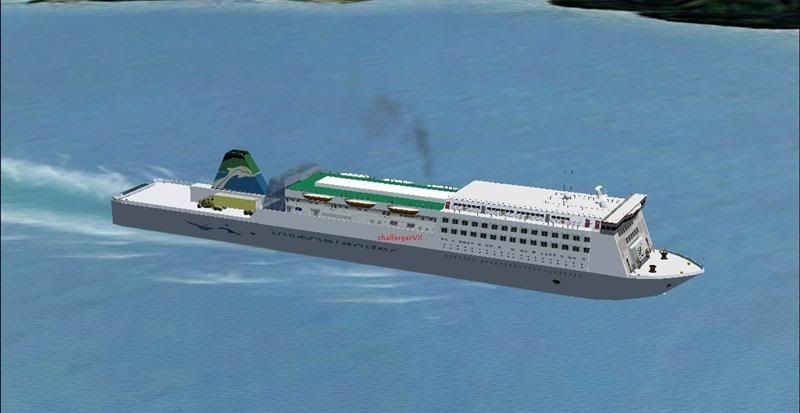

I have a problem trying to move the smoke on the Kaitaki. The ship has been resized to fit in with my AI shipping program I end up with this effect
Hope someone can help me sort this out?




here is the cfg file details
[fltsim.0]
title=Challenger_interislander new size
sim=FSDS object
model=
panel=
sound=
texture=
kb_checklists=

atc_id=
ui_manufacturer=barry
ui_type=Challenger_interislander new size
ui_variation=Challenger_interislander new size
atc_heavy=0
atc_airline=
atc_flight_number=
description= ADD NEW DESCRIPTION HERE

[fltsim.1]
title=challergerVX Kaitaki
sim=FSDS object
model=
panel=
sound=
texture=interislander
kb_checklists=

atc_id=
ui_manufacturer=FS_SHIP
ui_type=challergerVX
ui_variation=interislander_Kaitaki_VX
atc_heavy=0
atc_airline=
atc_flight_number=
description= ADD NEW DESCRIPTION HERE


[General]
performance=Length:338 feet\nModel Design: Frank J. Petriccione\nWeight:\nPower:\nRange:\nDate: (C) Frank J. Petriccione

2001\nDetails:\nDesigner: Frank J. Petriccione
atc_type=vessel
atc_model=vessel
Category=airplane


[contact_points]
//0 Class
//1 Longitudinal Position (feet)
//2 Lateral Position (feet)
//3 Vertical Position (feet)
//4 Impact Damage Threshold (Feet Per Minute)
//5 Brake Map (0=None, 1=Left, 2=Right)
//6 Wheel Radius (feet)
//7 Steer Angle (degrees)
//8 Static Compression (feet) (0 if rigid)
//9 Max/Static Compression Ratio
//10 Damping Ratio (0=Undamped, 1=Critically Damped)
//11 Extension Time (seconds)
//12 Retraction Time (seconds)
//13 Sound Type
//14 Airspeed limit for retraction (KIAS)
//15 Airspeed that gear gets damage at (KIAS)
point.0=4,10.0, 0.0, -0.0, 9999, 0.0, 1.0, 0.0, 1.8, 2.5, 1.0, 0.0, 0.0, 0.0, 0.0, 0.0
point.1=1,-10.0, 10.0, -0.0, 9999, 0.0, 1.0, 20.0, 1.8, 2.5, 1.0, 0.0, 0.0, 0.0, 0.0, 0.0
point.2=1,-10.0,-10.0, -0.0, 9999, 0.0, 1.0, 20.0, 1.8, 2.5, 1.0, 0.0, 0.0, 0.0, 0.0, 0.0

//point.0=1.000, 10.270, -10.250, -3.800, 2574.8, 0.000, 1.400, 30.000, 0.400, 2.500, 0.800, 0.000, 0.000, 0.000, 0.000, 0.000
//point.1=1.000, 10.270, 10.250, -3.800, 2574.8, 0.000, 1.400, 30.000, 0.400, 2.500, 0.800, 0.000, 0.000, 1.000, 0.000, 0.000
//point.2=1.000, -10.260, -10.250, -4.000, 2574.8, 1.000, 1.500, 0.000, 0.400, 2.500, 0.800, 0.000, 0.000, 2.000, 0.000, 0.000
//point.3=1.000, -10.260, 10.250, -4.000, 2574.8, 2.000, 1.500, 0.000, 0.400, 2.500, 0.800, 0.000, 0.000, 3.000, 0.000, 0.000
//point.4=4.000, -10.000, -10.250, -3.000, 2574.8, 0.000, 0.512, 20.000, 0.800, 2.500, 0.700, 0.000, 0.000, 0.000, 0.000, 0.000
//point.5=4.000, -10.000, 10.250, -3.000, 2574.8, 0.000, 0.512, 20.000, 0.800, 2.500, 0.700, 0.000, 0.000, 1.000, 0.000, 0.000
//point.6=4.000, 10.350, -10.250, -3.300, 2574.8, 1.000, 0.512, 0.000, 0.800, 2.500, 0.700, 0.000, 0.000, 2.000, 0.000, 0.000
//point.7=4.000, 10.350, 10.250, -3.300, 2574.8, 2.000, 0.512, 0.000, 0.800, 2.500, 0.700, 0.000, 0.000, 3.000, 0.000, 0.000
static_pitch=0.0
static_cg_height=3.5

[LIGHTS]
//Types: 1=beacon, 2=strobe, 3=navigation, 4=cockpit

light.0=1,190.00, 0.00, -5.00,fx_AI_seikan_wake,
//light.0=1, 60.00, -1.50, -00.00, fx_AI_ship_wake_l
//light.1=1, -180.00, -5.00, -00.00, fx_AI_ship_trail-of-spray
//light.2=1, -180.00, 5.00, -00.00, fx_AI_ship_trail-of-spray
//light.3=1, -180.00, 10.00, -00.00, fx_AI_ship_trail-of-spray
//light.4=1, -180.00, -10.00, -253.00, fx_AI_ship_trail-of-spray
//light.5=1, -180.00, 15.00, -253.00, fx_AI_ship_trail-of-spray
//light.6=1, -180.00, 15.00, -253.00, fx_AI_ship_trail-of-spray
//light.7=1, -180.00, 20.00, -253.00, fx_AI_ship_trail-of-spray
//light.8=1, -180.00, 0.00, -253.00, fx_AI_ship_trail-of-spray
//light.9=1, -135.00, -10.00, -253.00, fx_Smoke_seikan
//light.11=1, -30.00, -400.00, -205.00, fx_AI_ship_bow-wave
//light.12=1, 170.00, -2.00, -205.00, fx_AI_ship_bow-wave
//light.13=1, 165.00, 5.00, -210.00, fx_AI_ship_bow-wave
//light.14=1, 165.00, -3.00, -210.00, fx_AI_ship_bow-wave
//light.15=1, 160.00, 8.00, -215.00, fx_AI_ship_bow-wave
//light.16=1, 160.00, -6.00, -215.00, fx_AI_ship_bow-wave
//light.17=1, 175.00, -1.00, -5.00, fx_AI_ship_bow-wave


[EFFECTS]
//wake=fx_AI_seikan_wake
//water=fx_spray,
//dirt=fx_tchdrt
concrete=fx_Smoke_seikan
//touchdown=fx_tchdwn_s, 1



[flight_tuning]
cruise_lift_scalar=0.506
parasite_drag_scalar=1.021
induced_drag_scalar=1.011
elevator_effectiveness=1.000
aileron_effectiveness=0.986
rudder_effectiveness=1.046
pitch_stability=1.725
roll_stability=1.000
yaw_stability=1.525
elevator_trim_effectiveness=1.056
aileron_trim_effectiveness=1.000
rudder_trim_effectiveness=1.000

[WEIGHT_AND_BALANCE]
reference_datum_position=0.000, 0.000, 0.000
empty_weight_CG_position=0.000, 0.000, 0.000
max_number_of_stations=50
station_load.0=0.000000,0.000000,0.000000,0.000000
empty_weight=7000.000
empty_weight_roll_MOI=17252.000
//empty_weight_roll_MOI=7252.000
empty_weight_pitch_MOI=216941.000
//empty_weight_pitch_MOI=16941.000
empty_weight_yaw_MOI=228764.000
//empty_weight_yaw_MOI=2764.000
empty_weight_coupled_MOI=0.000
max_gross_weight=8355.000
CG_forward_limit=0.000
CG_aft_limit=1.000

[fuel]
//Center1=0.000, 0.000, 0.000, 500.000, 0.000
LeftMain=0.000, 0.000, 0.000, 500.000, 0.000
RightMain=0.000, 0.000, 0.000, 500.000, 0.000
fuel_type=1.000000
number_of_tank_selectors=1
electric_pump=0

[electrical]
;BusType, MaxAmpLoad, MinVoltage BusTypes:0=MainBus,1=AvionicsBus,2=BatteryBus,3=HotBatteryBus,4-7=Generator/AlternatorBus(1-4)
flap_motor=0, 5 , 17.0
gear_motor=0, 5 , 17.0
autopilot=0, 5 , 17.0
avionics_bus=0, 0.1, 17.0
avionics=0, 0.1 , 17.0
pitot_heat=0, 2 , 17.0
additional_system=0, 0.1, 17.0
marker_beacon=1, .3 , 17.0
gear_warning=0, 2 , 17.0
fuel_pump=0, 0.1 , 17.0
starter1=0, 20, 17.0
starter2=0, 20, 17.0
light_nav=0, .3 , 17.0
light_beacon=0, .3 , 17.0
light_landing=0, 1.0 , 17.0
light_panel=0, .3 , 17.0
electric_always_available=0


[airplane_geometry]
wing_area=297.000
wing_span=41.500
wing_root_chord=7.917
wing_dihedral=0.999
wing_incidence=2.500
wing_twist=0.000
oswald_efficiency_factor=0.904
wing_winglets_flag=0
wing_sweep=0.000
wing_pos_apex_lon=0.000
wing_pos_apex_vert=0.000
htail_area=32.000
htail_span=12.250
htail_pos_lon=-16.417
htail_pos_vert=0.000
htail_incidence=-0.698
htail_sweep=0.000
vtail_area=29.000
vtail_span=6.140
vtail_sweep=0.000
vtail_pos_lon=-17.917
vtail_pos_vert=1.500
elevator_area=12.820
aileron_area=18.070
rudder_area=8.230
elevator_up_limit=28.000
elevator_down_limit=20.999
aileron_up_limit=17.000
aileron_down_limit=17.000
rudder_limit=19.996
elevator_trim_limit=19.996
spoiler_limit=0.000
spoilerons_available=0
aileron_to_spoileron_gain=0.000
min_ailerons_for_spoilerons=0.000
min_flaps_for_spoilerons=0.000
auto_spoiler_available=0
positive_g_limit_flaps_up=4.000000
positive_g_limit_flaps_down=2.000000
negative_g_limit_flaps_up=-1.500000
negative_g_limit_flaps_down=-1.500000

[GeneralEngineData]
engine_type=5 //0=Piston, 1=Jet, 2=None, 3=Helo-Turbine, 4=Rocket, 5=Turboprop
Engine.0=-1.3, 0.0, 0.0 //(feet) longitudinal, lateral, vertical distance from reference datum
fuel_flow_scalar=1.12 //Scalar for fuel flow efficiency
min_throttle_limit=-0.25 //Minimum percent throttle. Generally negative for turbine reverser

[propeller]
thrust_scalar=1.0 //Propeller thrust scalar
propeller_type=0 //0=Constant Speed, 1=Fixed Pitch
propeller_diameter=8.8 //Propeller Diameter, (feet)
propeller_blades=3 //Number of propeller blades
propeller_moi=19 //Propeller moment of inertia
beta_max=45 //Maximum blade pitch angle for constant speed prop, (degrees)
beta_min=15.6 //Minimum blade pitch angle for constant speed prop, (degrees)
min_gov_rpm=25520 //Miminum governed RPM
prop_tc=0.004 //Prop time-constant
gear_reduction_ratio=17.4 //Propeller gear reduction ratio
fixed_pitch_beta=0 //Fixed pitch angle of fixed pitch prop, (degrees)
low_speed_theory_limit=80 //Speed at which low speed theory becomes blended in (feet/second)
prop_sync_available=0 //Prop synchronization available? 0=FALSE, 1=TRUE
prop_deice_available=1 //Prop de-icing available? 0=FALSE, 1=TRUE
prop_feathering_available=1 //Prop feathering available? 0=FALSE, 1=TRUE
prop_auto_feathering_available=1 //Prop auto-feathering available? 0=FALSE, 1=TRUE
min_rpm_for_feather=700 //Minimum RPM for prop feathering
beta_feather=88.0 //Feathering pitch angle (degrees)
power_absorbed_cf=0.9 //Coefficient of friction for power absorbed by propeller
defeathering_accumulators_available=0 //Defeathering accumulators available? 0=FALSE, 1=TRUE
prop_reverse_available=1 //Prop reverse available? 0=FALSE, 1=TRUE
minimum_on_ground_beta=1.0 //Miminum pitch angle on ground, (degrees)
minimum_reverse_beta=-14.0 //Minimum pitch angle in reverse, (degrees)

[TurbineEngineData]
fuel_flow_gain=0.011 //Gain on fuel flow
inlet_area=1.0 //Square Feet, engine nacelle inlet area
rated_N2_rpm=33000 //RPM, second stage compressor rated value
static_thrust=158 //Lbs, max rated static thrust at Sea Level

[turboprop_engine]
power_scalar=1.0 //Scalar on Turboprop power
maximum_torque=1865 //Maximum torque available (ft-lbs)


[SMOKESYSTEM]
smoke.0=1, 60.00, -1.50, -250.00, fx_AI_ship_wake_l
smoke.1=1, -180.00, -5.00, -253.00, fx_AI_ship_trail-of-spray
smoke.2=1, -180.00, 5.00, -253.00, fx_AI_ship_trail-of-spray
smoke.3=1, -180.00, 10.00, -253.00, fx_AI_ship_trail-of-spray
smoke.4=1, -180.00, -10.00, -253.00, fx_AI_ship_trail-of-spray
smoke.5=1, -180.00, 15.00, -253.00, fx_AI_ship_trail-of-spray
smoke.6=1, -180.00, 15.00, -253.00, fx_AI_ship_trail-of-spray
smoke.7=1, -180.00, 20.00, -253.00, fx_AI_ship_trail-of-spray
smoke.8=1, -180.00, 0.00, -253.00, fx_AI_ship_trail-of-spray
smoke.9=1, -75.00, -16.00, 53.00, fx_SmokeStack2
smoke.10=1, -75.00, 16.00, 53.00, fx_SmokeStack2
smoke.11=1, 170.00, 4.00, -205.00, fx_AI_ship_bow-wave
smoke.12=1, 170.00, -2.00, -205.00, fx_AI_ship_bow-wave
smoke.13=1, 165.00, 5.00, -210.00, fx_AI_ship_bow-wave
smoke.14=1, 165.00, -3.00, -210.00, fx_AI_ship_bow-wave
smoke.15=1, 160.00, 8.00, -215.00, fx_AI_ship_bow-wave
smoke.16=1, 160.00, -6.00, -215.00, fx_AI_ship_bow-wave
smoke.17=1, 175.00, -1.00, -5.00, fx_AI_ship_bow-wave


[Radios]
// Radio Type=availiable, standby frequency, has glide slope
Audio.1=1
Com.1=1, 1
Com.2=1, 1
Nav.1=1, 1, 1
Nav.2=1, 1, 1
Adf.1=1
Transponder.1=1
Marker.1=1

[Reference Speeds]
flaps_up_stall_speed=25.000
full_flaps_stall_speed=15.000
cruise_speed=35.302
max_indicated_speed=760.500000
max_mach=1.000000

[brakes]
toe_brakes_scale=0.000000
parking_brake=0
[hydraulic_system]
electric_pumps=0
engine_map=1,1,0,0
normal_pressure=6.930556
[stall_warning]
type=1
stick_shaker=0
[attitude_indicators]
attitude_indicator.0=1
[turn_indicators]
turn_indicator.0=1,0
[keyboard_response]
elevator=300.000000,500.000000
aileron=150.000000,300.000000
rudder=200.000000,1000.000000
[Views]
eyepoint=-0.833026,-1.255947,3.255208
[Flaps.0]
type=1
span-outboard=0.500
extending-time=5.000
system_type=0
damaging-speed=0.000
blowout-speed=0.000
lift_scalar=1.000
drag_scalar=1.000
pitch_scalar=1.000
flaps-position.0=0.000, 0.000
flaps-position.1=25.000, 0.000
flaps-position.2=50.000, 0.000
flaps-position.3=75.000, 0.000

[autopilot]
autopilot_available=1
flight_director_available=1
default_vertical_speed=700.000000
autothrottle_available=0
pitch_takeoff_ga=8.000000
max_pitch=10.000000
max_pitch_acceleration=1.000000
max_pitch_velocity_lo_alt=2.000000
max_pitch_velocity_hi_alt=1.500000
max_pitch_velocity_lo_alt_breakpoint=20000.000000
max_pitch_velocity_hi_alt_breakpoint=28000.000000
max_bank=25.000000
max_bank_acceleration=1.800000
max_bank_velocity=3.000000
max_throttle_rate=0.100000
nav_proportional_control=9.000000
nav_integrator_control=0.250000
nav_derivative_control=0.000000
nav_integrator_boundary=2.500000
nav_derivative_boundary=0.000000
gs_proportional_control=9.520000
gs_integrator_control=0.260000
gs_derivative_control=0.000000
gs_integrator_boundary=0.700000
gs_derivative_boundary=0.000000
yaw_damper_gain=0.000000

[direction_indicators]
direction_indicator.0=1,0


[pitot_static]
pitot_heat=1.000000
[vacuum_system]
max_pressure=5.150000
vacuum_type=2
electric_backup_pressure=0.000000
engine_map=0,0,0,0
[pneumatic_system]
max_pressure=18.000000
bleed_air_scalar=0.150000
[deice_system]
structural_deice_type=0

Hi Kiwiusa. This response is a little late and may be of no use to you now but here goes anyway. :)

I suggest you copy the 'fx_Smoke_seikan.fx' file and rename it. Then open the new .fx file and adjust the emitter offset position. (I think there is only one emitter in this effect). In FSX you would adjust it by placing a negative value on the 'z' offset parameter. I'm not sure if that is the same in FS9, but trial and error here will be necessary to establish the correct parameter and the correct value. The particle offset values do not need to be adjusted as they will simply follow the emitter offset position. Make sure your entry in the effects section of your config file (concrete=fx_Smoke_seikan) is adjusted to account for the name of the new *.fx file you created.


Hope this helps :)

Hi Kiwiusa

I have a problem trying to move the smoke on the Kaitaki.

[SMOKESYSTEM]
smoke.9=1, -75.00, -16.00, 53.00, fx_SmokeStack2
smoke.10=1, -75.00, 16.00, 53.00, fx_SmokeStack2
You may find changing one of these parameters will help. They appear to be the location of the smoke effect and I suspect the one you need to change is the -75. It's worth a try.

Colin

Top
