Hey people!
So I have managed to solve it in the past by using a different version of MCX but recently I have been left with no choice but to just use the latest dev release.
The FSX and P3D versions all work well but the FS2004 GP wizard gives me very see through GPs has anyone fixed this or had the same results?

Hi,

Do your textures have an alpha channel?

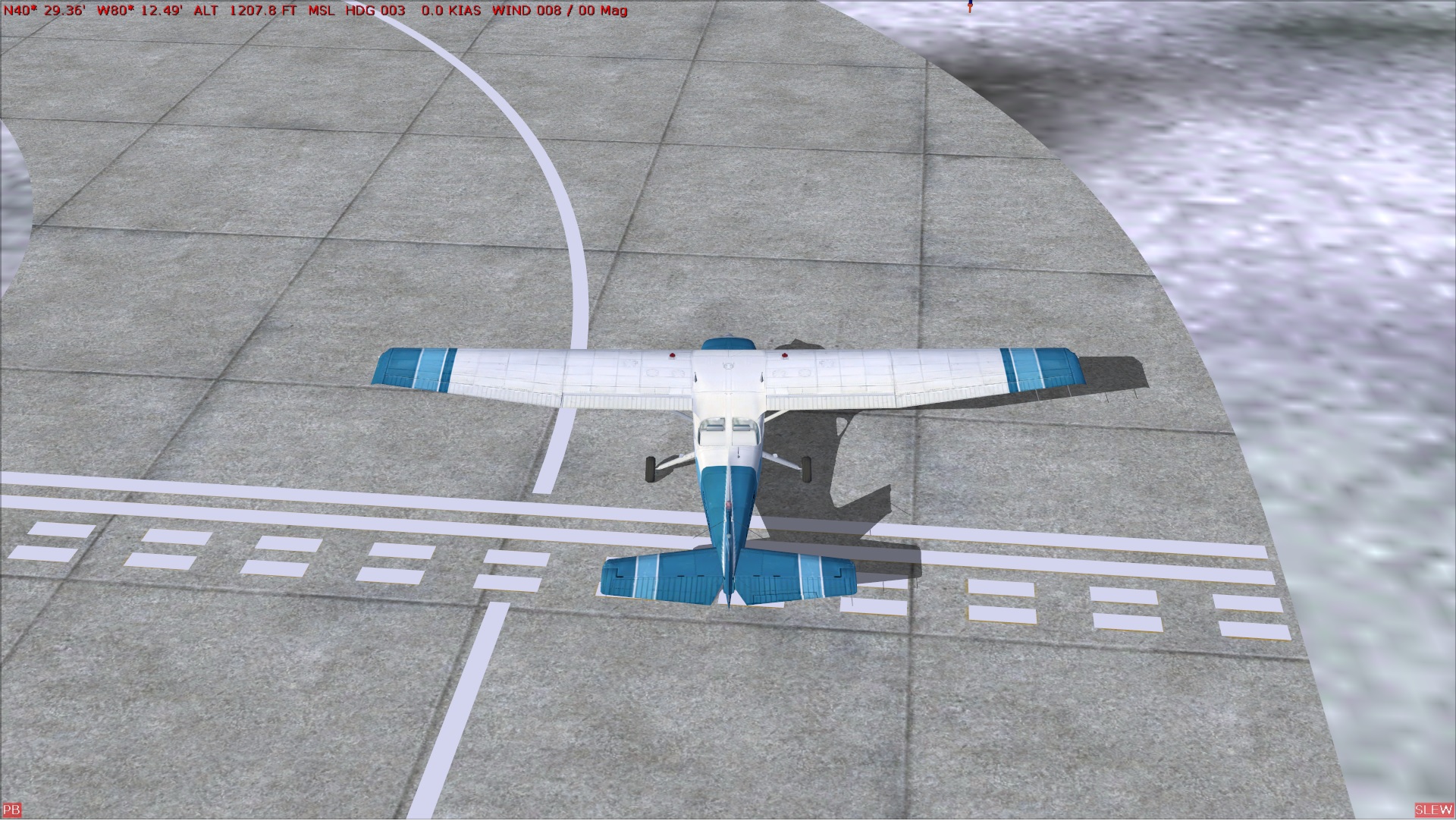

First shot from VC second from 2D, obviously the 2nd is how it's meant to be but I'm getting see through textures in FS9 only


Attachments

  • Screenshot_4.png
    2.7 MB · Views: 126
  • Screenshot_5.png
    2 MB · Views: 134
Yes, I'm seeing the same thing for some time now. I found that I had an old version from 2014 on my external drive. This works fine and does not give any transparency in FS9. No alpha on my texture either. Only difference is which version of MCX/GPW I use.

Ed

Yes, I'm seeing the same thing for some time now. I found that I had an old version from 2014 on my external drive. This works fine and does not give any transparency in FS9. No alpha on my texture either. Only difference is which version of MCX/GPW I use.

Ed
You wouldn't by chance be able to Dropbox me that version would you?

It would help if any of you can provide a sample file with the problem, then I can try to figure out what the difference is, instead of reverting to a 7 year old version that has many bugs that have been solved over the years.

It would help if any of you can provide a sample file with the problem, then I can try to figure out what the difference is, instead of reverting to a 7 year old version that has many bugs that have been solved over the years.
PM sent

It would help if any of you can provide a sample file with the problem, then I can try to figure out what the difference is, instead of reverting to a 7 year old version that has many bugs that have been solved over the years.
Arno, attached is one of the model files I'm having trouble with and one of it's textures. Thanks for your help. Soarfly I'm thinking that it's better to wait for Arno to fix the problem than for me to pass an old version around.

Ed


Attachments

  • PANG_Parking_Markers.zip
    1.2 MB · Views: 84
Hi,

I have been comparing the SCASM code generated by the GPW in the current build and in version 1.3, and I think I have found a bug that might cause your issue in FS2004. As I don't have FS2004 myself installed anymore, I can't test it. But the next development release contains a fix. Can you let me know if that helped? Else I will have to dive even deeper :)

Yes, I published a new development release yesterday evening.

Happy to hear that fixed it.

Arno I'm sorry to report no joy for me. I'm attaching some pictures to show you what I am seeing. Thanks for your help.
GP done with old MCX
Old version of MCX
GP done with latest development release

Hi Ed,

One difference I spotted in the code is that in the old version the material list had all white colors, while in the current version I write the colors as they are specified in the material. Could it be that this material has a non white ambient or diffuse color maybe?

Hi Arno,

The ambient material color is 26,26,26. I used the material editor to change it to 255,255,255. But that made no difference in FS9. I'm not using a material in sketchup. I'm just covering the polygons with the texture. The zip file that I attached in my earlier post contains the model in collada format along with the texture file. Attached below is the material editor box in sketchup and what the ground polygon looks like if I compile with the 1.4 stable release of MCX.
SketchupColor.jpg MCX_1_4_StableVer.jpg

Hi,

Could you enable the option to keep the intermediate SCA files? And then send me the SCA file from the version that works and from the latest version. Then I can do a comparison on the two.

Here you go. The first file was made with the current development version. The second file was made with the old development version from 2014 which works correctly.

Ed


Attachments

  • PANG_Parking_Markers.zip
    561.4 KB · Views: 94
  • Old_Dev_Ver.zip
    491.2 KB · Views: 96
Thanks, I'll check tonight.
