Official Airport to SDK project: here is a small app to help you (draft)

Messages
154
Country
ca-quebec
<TaxiwaySign lat="-45.0182923302054" lon="168.741922080517" heading="71.499" label="r23-05l[C]" justification="RIGHT" size="5" />

This should read>

<TaxiwaySign lat="-45.0182923302054" lon="168.741922080517" heading="71.499" label="r23-05l[C]" justification="RIGHT" size="SIZE5" />
I did a quick test and the size attribute is correct (SIZE5). What stock airport are you using ?

Messages
240
Country
switzerland
Hi Patrick,

have a look at the MSFS 2020 format Wiki page, I've added a couple of things I found which should be useful to both this utility and to your very nice Bglviewer too ( and ADE, I guess ), it's TaxywayPath with a variable number of custom materials, the byte previously unknown at 2C offset in the TaxiwayPath record is the number of materials used and then, after the normal record ends, for each material there's a new sub record 0x00D5, which is the material definition.

If you need an example of a scenery that use this feature, it's the default ESSA ( Stockholm ) from World Update 5, found here:

microsoft-airport-essa-arlanda\scenery\microsoft\Arlanda-Airport\objects.bgl

Currently, none of the available utilities are able to parse it without crashing, Bglviewer was at least able to open it but it couldn't find any airport inside but with this info, you should be able to fix that.

Last edited:
Messages
11
Country
unitedstates
This looks like it could be perfect for adding finishing touches and correcting errors with stock airports. Unfortunately, the one I am trying to work on causes a CTD whenever I try to add a painted line. Anyone wanna see if they can figure out why?

I open the project XML in the Scenery Editor, select Painted Lines, then click on Edge_Line_Dashed and One-Click Placing. Then the sim crashes to desktop. Am I missing something here? Thanks!


Attachments

  • Project_KBLF.zip
    29.1 KB · Views: 138
Messages
144
Country
italy
Glad it helped!
The Comm option is not available...yet. Now if you give me the name (and path) of one airport that could be used as a test airport, I'll be glad to implement the Comms


So, if I'm not mistaken, in this latest version (1.0.0.17) the communication frequencies are not detected. With BGLViewer 2.0.0.13, on the other hand, the communication frequencies are detected correctly.
I ask @Patrick Germain if it was possible to integrate this possibility into Airport2Project?

The communication frequencies are found in the NAXxxxxx.bgl file as in this location of my version of MSFS_STORE:
H: \ MSFS_2020 \ Official \ OneStore \ fs-base-nav \ scenery \ 0702 \ NAXxxxxx.bgl

(The fs-base-nav file, can also be found from C: \ Users \ User \ AppData \ Local \ Packages \ Microsoft.FlightSimulator_8wekyb3d8bbwe \ LocalCache \ Content.xml)


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
5,877
Country
us-wisconsin
So, if I'm not mistaken, in this latest version (1.0.0.17) the communication frequencies are not detected. With BGLViewer 2.0.0.13, on the other hand, the communication frequencies are detected correctly.
I ask @Patrick Germain if it was possible to integrate this possibility into Airport2Project?

The communication frequencies are found in the NAXxxxxx.bgl file as in this location of my version of MSFS_STORE:
H: \ MSFS_2020 \ Official \ OneStore \ fs-base-nav \ scenery \ 0702 \ NAXxxxxx.bgl

(The fs-base-nav file, can also be found from C: \ Users \ User \ AppData \ Local \ Packages \ Microsoft.FlightSimulator_8wekyb3d8bbwe \ LocalCache \ Content.xml)
I believe they are decompiled for the airport. From A2P:
XML:
<?xml version="1.0"?>
<FSData version="9.0">
    <Airport region="" country="" name="KORD" ident="KORD" lat="41.9766277447343" lon="-87.907252907753" alt="201.282" magvar="0.000" trafficScalar="1.000000" airportTestRadius="10000.00000000000000" applyFlatten="FALSE" isOnTIN="FALSE">
        <Com frequency="119.000" type="APPROACH" name="CHICAGO" />
        <Com frequency="124.350" type="APPROACH" name="CHICAGO" />
        <Com frequency="125.700" type="APPROACH" name="CHICAGO" />
        <Com frequency="133.625" type="APPROACH" name="CHICAGO" />
        <Com frequency="135.400" type="ATIS" name="KORD" />
        <Com frequency="119.250" type="CLEARANCE" name="O HARE" />
        <Com frequency="121.600" type="CLEARANCE" name="O HARE" />
        <Com frequency="119.250" type="CLEARANCE_PRE_TAXI" name="O HARE" />
        <Com frequency="121.600" type="CLEARANCE_PRE_TAXI" name="CHICAGO O'HARE INTL" />
        <Com frequency="125.000" type="DEPARTURE" name="CHICAGO" />
        <Com frequency="126.625" type="DEPARTURE" name="CHICAGO" />
        <Com frequency="118.050" type="GROUND" name="O HARE SOUTH" />
        <Com frequency="121.750" type="GROUND" name="O HARE" />
        <Com frequency="121.900" type="GROUND" name="O HARE" />
        <Com frequency="124.125" type="GROUND" name="O HARE NORTH" />
        <Com frequency="134.150" type="GROUND" name="O HARE" />
        <Com frequency="121.675" type="GROUND" name="O HARE METERING" />
        <Com frequency="120.750" type="TOWER" name="O HARE" />
        <Com frequency="121.150" type="TOWER" name="O HARE" />
        <Com frequency="126.900" type="TOWER" name="O HARE" />
        <Com frequency="127.925" type="TOWER" name="O HARE" />
        <Com frequency="128.150" type="TOWER" name="O HARE NORTH" />
        <Com frequency="132.700" type="TOWER" name="O HARE" />
        <Com frequency="133.000" type="TOWER" name="O HARE SOUTH" />
        <Com frequency="122.950" type="UNICOM" name="CHICAGO O'HARE INTL" />


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,845
Country
unitedkingdom
Yep as I recall comms are decompiled.

this is from ADE which uses the same decompiler


Messages
154
Country
ca-quebec
I ran Airport2Project against the OJAM airport.
This is the beginning of the XML file it generated :
<?xml version="1.0"?>
<FSData version="9.0">
<Airport region="" country="" name="OJAM" ident="OJAM" lat="31.9727029278874" lon="35.9915721416473" alt="763.981" magvar="-3.400" trafficScalar="1.000000" airportTestRadius="10000.00000000000000" applyFlatten="FALSE" isOnTIN="FALSE">
<Com frequency="121.700" type="GROUND" name="AMMAN" />
<Com frequency="118.100" type="TOWER" name="AMMAN" />
<Com frequency="121.600" type="TOWER" name="AMMAN" />
<Ils lon="35.9726223349571" lat="31.9648360088468" alt="744.321" frequency="109.500" magvar="-4.000" range="50017.000" backCourse="TRUE" heading="240.049" width="3.4" ident="IAMN" name="ILS RW24">
<GlideSlope lon="36.0048834979534" lat="31.977036036551" alt="744.321" range="50017.000" pitch="3.000" />
<Dme lon="36.0048834979534" lat="31.977036036551" alt="764.133" range="50017.000" />
</Ils>

So COMs are here

Messages
144
Country
italy
Thanks everyone for your help.

If with A2P I open the APXxxxxx.bgl file directly in the folder H: \ MSFS_2020 \ Official \ OneStore \ fs-base \ scenery \ 0702 ... then \ COM is decompiled.
While if I take a copy of APX xxxxx.bgl and put it in another location outside of H: \ MSFS_2020 \ Official \ OneStore \ fs-base \ scenery \ 0702 then there is no \ COM ... and \ILS
Is all this possible?

Last edited:

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,845
Country
unitedkingdom
Navaids and comms are not in the APX stock bgl file. If you decompile it directly then you will not see them in the source. The app works by looking for the ICAO in both the APX and relevant NVX file(s)

Messages
608
Country
germany
There are lots of Spanish airports that are mislabeled in MSFS. MSFS uses the ICAO as the airport identifier, but it only allows 5 alpha-numeric characters for the ID ("-" is not allowed"), so on 2 counts, they do not use ES-0218. At least this was the case a few updates ago.
What they have done, is simply made up an unused ICAO for the airport. You cannot use ES-0218 as that is not allowed in the sim's compiler. You could use E0218 or S0218.

The aerial imagery of ES-0218 clearly shows 2 runways, so Asobo's computer-generated AI placed 2 runways.

Attached is an example of closing LEBM, and opening E2018.
@rhumbaflappy : Hi Dick, could this example show as well a way to "kill" closed airports in MSFS, like EDDT that is full alive in the sim?

Up to now I didn't find any hint how to explain, why Tempelhof (EDDI) obviously has a secret existence (not shown on the map and not selectable), nonetheless detectable by all tools like ADE, MakeRunways, and @Patrick Germain's BglViewer. In this case this could at least help to hide other airports as well - hopefully.


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
5,877
Country
us-wisconsin
What is the current state of EDDI and EDDT in the real world? From what I understand EDDI closed in 2008. And EDDT closed in 2020 (excepting a heliport on the northern side until 2029). So EDDT could exist in the sim, but runways should be closed and a heliport used.
I find 2 helipads:


I'll look at the code Asobo has used and see what can be done.


rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
5,877
Country
us-wisconsin
Using msfsbglxml.exe on APX51139, I see this (and Patrick should look into this):

XML:
  <Airport country="TT:AIRPORTEK.EDDI.country" city="TT:AIRPORTEK.EDDI.city" name="TT:AIRPORTEK.EDDI.name" lat="52.47301954776049" lon="13.403668105602264" alt="167.0F" magvar="358" ident="EDDI" trafficScalar="0.69803923" isOnTIN="TRUE" onlyAddIfReplace="FALSE" applyFlatten="FALSE" starAirport="FALSE" closed="TRUE">

closed="TRUE"
So this is how Asobo closed that airport. They didn't close EDDT, but seemed to have simplified it a lot. It needs everything closed or deleted and the heliport pads added, I think. But the airport itself would stay open for the helicopters.

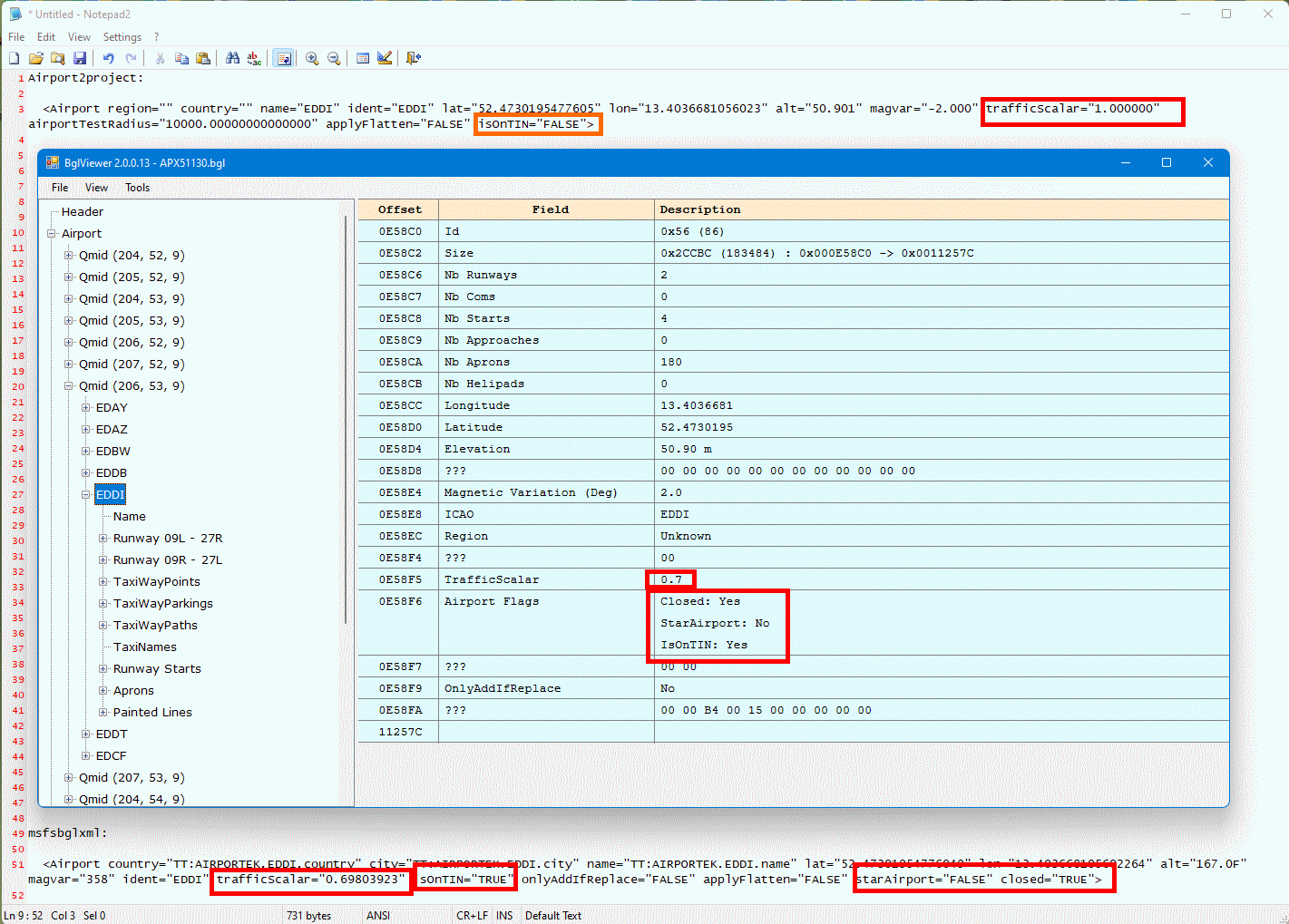

It's good to have 2 people working on decompilation, as one might find something the other doesn't find or add:


Last edited:
Messages
608
Country
germany
Using msfsbglxml.exe on APX51139, I see this (and Patrick should look into this):

XML:
  <Airport country="TT:AIRPORTEK.EDDI.country" city="TT:AIRPORTEK.EDDI.city" name="TT:AIRPORTEK.EDDI.name" lat="52.47301954776049" lon="13.403668105602264" alt="167.0F" magvar="358" ident="EDDI" trafficScalar="0.69803923" isOnTIN="TRUE" onlyAddIfReplace="FALSE" applyFlatten="FALSE" starAirport="FALSE" closed="TRUE">

closed="TRUE"
So this is how Asobo closed that airport. They didn't close EDDT, but seemed to have simplified it a lot. It needs everything closed or deleted and the heliport pads added, I think. But the airport itself would stay open for the helicopters.

It's good to have 2 people working on decompilation, as one might find something the other doesn't find or add:

View attachment 80667
Thanks a lot Dick, after a snack I detected this flag as well. I've just tried it for Tegel and it worked. First I likely misunderstood the flags used in ADE that did not seem to work and got the right track after looking closer into Patrick's Wiki, comparing the described data with ADE's Raw Data View.

EDDT is decommissioned and no longer an airfield. Probably the Federal or local Police might use the heliport still for some reasons, but I doubt it. Those guys would use any free spot within the city area if necessary. The area itself will contain (hopefully soon) a couple of hundred apartments and a research and industry park (the old airport buildings mostly).
