MSFS20 Painted lines - taxi, edge lines, etc - can we create a custom texture sheet for custom lines?

Does anyone have a solution for the texture downsampling? It looks terrible


Attachments

  • END_APRON.png
    22 KB · Views: 306
  • OMINO-STRISCE.png
    43.7 KB · Views: 285
  • RED_APRON_DASH.png
    29.5 KB · Views: 256
  • RED_APRON_LONG.png
    23 KB · Views: 249
  • SERVICE-MARGIN.png
    22 KB · Views: 258
  • TAXI-CENTER-DASHED.png
    23 KB · Views: 275
  • TAXI_WAIT.png
    31.6 KB · Views: 337
  • TAXI-CENTER-LONG.png
    22.5 KB · Views: 391
  • WHIITE_APRON_DASH.png
    23 KB · Views: 346
  • WHITE_DOUBLE.png
    22.4 KB · Views: 262
Hi
You can't increase the resolution - maybe in the future with the ultra-ultra settings this can be increased.
What I did find is that the colour bleeding that sometimes occurs with multicoloured lines can be somewhat reduced if you dial down the input intensity (making you lines like70% opacity for instance). I don't think it makes a lot of a difference at the edges though.
Making the different components of your composite line a bit wider helps as well (like 20cm+)

To Illustrate:

Reduction of intensity


fully opaque yellow, but wider black edges (semi transparent)

other paints for EDGE SERVICES DASHED.
Hello


Attachments

  • WHITE_LONG.png
    22.4 KB · Views: 257
  • X_2.png
    21.4 KB · Views: 271
  • WHITE_STREET_DASH.png
    22.5 KB · Views: 261
You can blend as you like, with 80% I found that certain yes certain no, it depends on the color

the RGB alpha channels are 3 then the PNG has transparency as a channel, I don't have channel masks.
But if they don't go well, trash them, I got this result


Attachments

  • 1.jpg
    596.5 KB · Views: 379
  • 2.jpg
    318.3 KB · Views: 358
  • 3.jpg
    259.1 KB · Views: 336
  • 4.jpg
    431.7 KB · Views: 336
  • 5.jpg
    451.7 KB · Views: 347
  • 6.jpg
    381.5 KB · Views: 333
  • 7.jpg
    338.3 KB · Views: 321
  • 8.jpg
    425.8 KB · Views: 345
New less pixelated painted lines at 200 terrain detail with new pantones. The canary yellows are ASOBO. the "mio" are my paintedlines


Attachments

  • AS1.jpg
    1 MB · Views: 227
  • AS2.jpg
    1.3 MB · Views: 246
  • AS3.jpg
    1.3 MB · Views: 253
  • AS4.jpg
    1.2 MB · Views: 249
  • AS5.jpg
    1 MB · Views: 233
They look great! - can you drop a copy of the file that you are using please so we can get the same results as you

I don't think anyone's interested anymore. They are all geared towards much nicer Projected Meshes. Thank you for appreciation. 👍

I would absolutely LOVE to have these line files either. I don't care what sort of projected mesh you use, we NEED better lines that can be used for our projects.

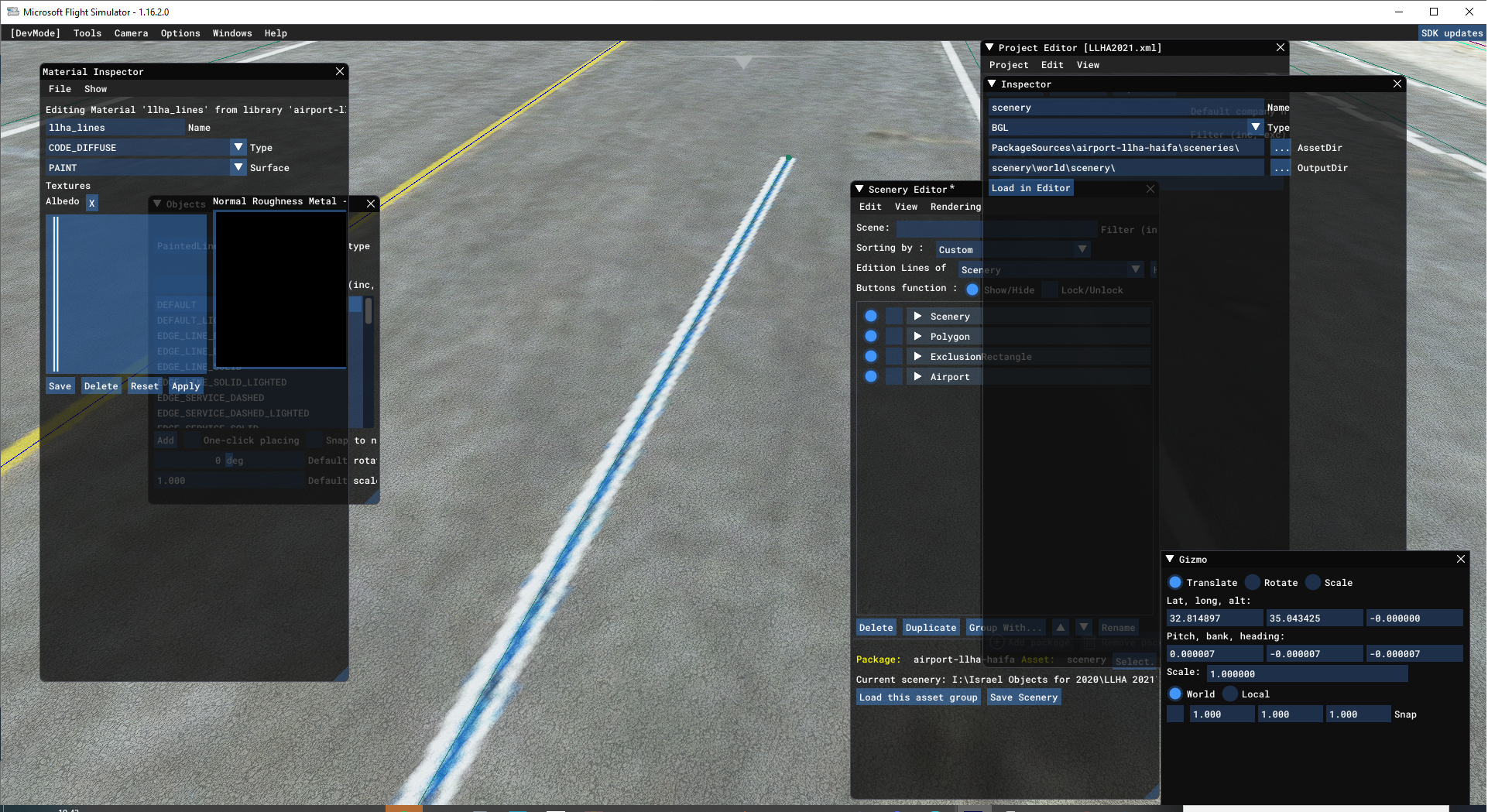

hi , seems in SU10 BETA, now we have EDGE_SOLID_ORTHO!!!~
BUT where could we find the DDS file so we can modify it?

...Optional material
thanks for your reply!

i find it here

and i realize that i can not creat a ORTHO with a shorter wide yellow:whiteflag

Very simple method is:

1) Download and Install the free version of Paint.Net

2) Open the Asobo default DDS file in Paint.Net, on my PC it is
D:\WpSystem\S-1-5-21-2307000864-3433140670-2775171081-1001\AppData\Local\Packages\Microsoft.FlightSimulator_8wekyb3d8bbwe\LocalCache\Packages\Official\OneStore\fs-base\texture\taxiway_marks.dds

3) Now you can simply adjust Hue-Saturation and Brightness and Contrast, and re-save the file as a DDS, it will even work just saving it as Paint.Net's DEFAULT DDS setting
The color you see in the editor will likely not exactly match the exact end-result, but it doesn't take much to adjust and test.

4) In MSFS, create a new material or edit an existing one, and assigned the modified texture.
Now you probably have most of the textures you need and they all match color-wise in one shot.

Note that if editing an existing material and because the MSFS editor is such a PITA, you will likely have to click back and forth to see the new texture...
