P3D v5 Resample tool problem.

jtanabodee

Resource contributor
Messages
3,919
Country
thailand
Hi,

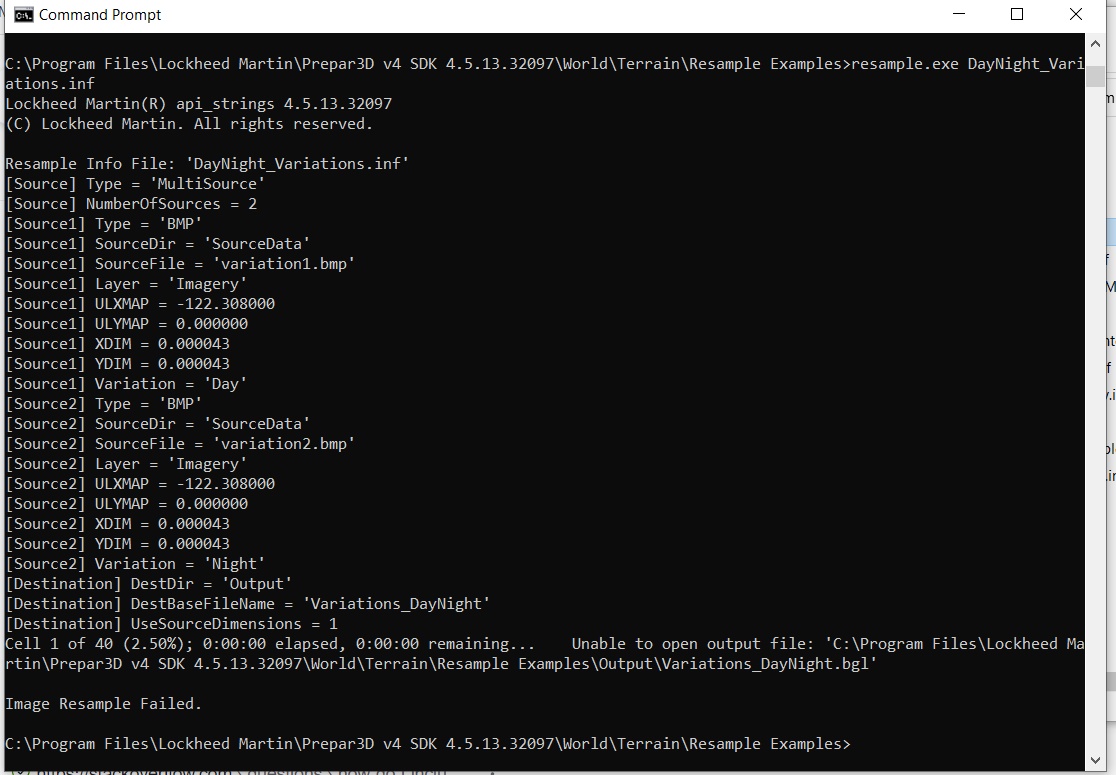

I have a problem with old FSX Photoscenery seems to cause CTD in P3Dv5. I have read P3D SDK and tried to use resample.exe. However, I cannot make it works even the sample file they provided in the folder. I wonder why that happens. Do you have any information why it doesn't run and how to solve this? I drag .inf file to resample.exe but nothing happens. I use Windows10 and all the updates were done. This is the screenshot I found after running comand prompt.
Thanks for any comments. I have seen that the reponses on the questions are diminished though out the years. Please help me out. I will try P3d v4 SDK instead and see if that helps.
resample problem.jpg

Last edited:

jtanabodee

Resource contributor
Messages
3,919
Country
thailand
I thought it was the folder problem, I copy resample.exe to the same directory of .INF file. Then I edited destination folder to the same folder as .INF file. The same error occured, "Image Resaple Failed." No bgl output, no file at all. This is the example file from LM directly, not mine. It should work instantly. There is some problems with resample.exe??????
resample problem2.jpg


jtanabodee

Resource contributor
Messages
3,919
Country
thailand
I edited p3d inf file to fit my information. Just changed the name and the info of the photo which works on the old resample. But there is no output file.
resample problem3.jpg


Walter Almaraz

Resource contributor
Messages
48
Country
bolivia
Hi,

Have you tried to use GeoTiff Imagery? Usually is easy to compile with ."tif", sometimes I found issues with bmp images.


jtanabodee

Resource contributor
Messages
3,919
Country
thailand
The source files they provided in the example folder are BMP as well. The old FSX resample.exe works on this file. So, I don't think BMP is the problem.

Last edited:

arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
31,554
Country
netherlands
Hi,

Resample complains about opening the output file. Are you sure no other tool has it locked (e.g. sim still running).

Also I would suggest compiling outside of the program files folder, as you might need admin rights to be able to write there.


jtanabodee

Resource contributor
Messages
3,919
Country
thailand
I copied them out to the root directory of D:\ then it works like it should on example files. Then I used them as a template and edit my INF file. No bgl output! Even the comand prompt says it is successfully done.
Are there any differences in the photos between the old FSX resample and P3dV5 resample.exe ? I read their SDK and found that the water mask is different.
This is my INF file:

; Resample INFormation file
; Variations test

[Source]
Type = MultiSource
NumberOfSources = 2

[Source1]
Type = BMP
Layer = Imagery
SourceDir = "."
SourceFile = "detail03.BMP"
ULXMAP = 13.7020302222222
ULYMAP = 100.750122083333
XDIM = 2.68220641120944E-06
YDIM = 2.6059461805554E-06
Variation = Day

[Source2]
Type = BMP
Layer = Imagery
SourceDir = "."
SourceFile = "detail03_N.bmp"
ULXMAP = 13.7020302222222
ULYMap = 100.750122083333
XDIM = 2.68220641120944E-06
YDIM = 2.6059461805554E-06
Variation = Night

[Destination]
DestDir = "Output"
DestBaseFileName = "Variations_DayNight"
UseSourceDimensions = 1

Last edited:

arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
31,554
Country
netherlands
And what kind of output does resample give you when you compile from the command prompt?


arno

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
31,554
Country
netherlands
Does the folder with the name Output exist on your D drive?


jtanabodee

Resource contributor
Messages
3,919
Country
thailand
Yes, it exists. I copy the folder to d:/ I did the same way from their example and the output folder has bgl file.
