Texture Issue??

Messages
30
Country
argentina
So..this is the error i'm getting.. not sure what else to do. It was a PNG...converted to JPG, BMP, everything. still the same error:

PackageBuilder | Building assets for the package loberia2-loberia2...
Compiling texture file TEXTURE\1200PX-FLAG_OF_ARGENTINA_SVG.JPG...
Failed to convert texture: F:\FS2020-Proyectos\Loberia2\PackageSources\modelLib\TEXTURE\1200PX-FLAG_OF_ARGENTINA_SVG.JPG
PackageBuilder | Output path does not exist: F:\FS2020-Proyectos\Loberia2\Packages\loberia2-loberia2\scenery\global\scenery\TEXTURE\1200PX-FLAG_OF_ARGENTINA_SVG.JPG.DDS
PackageBuilder | Output path does not exist: F:\FS2020-Proyectos\Loberia2\Packages\loberia2-loberia2\scenery\global\scenery\TEXTURE\1200PX-FLAG_OF_ARGENTINA_SVG.JPG.DDS.json
Compiling texture file TEXTURE\CHAPA.PNG...
Compiling GLTF data file Hangar.gltf...
Copying files from source folder F:\FS2020-Proyectos\Loberia2\PackageSources\modelLib\...
Compiling BGL file from in-memory data to output file modelLib.BGL...
PackageBuilder | Skip mirroring due to command failures.
PackageBuilder | Skip generation of package information due to command failures.
PackageBuilder | Reloading assets for the package loberia2-loberia2...
Compiling texture file TEXTURE\CHAPA.PNG...
Compiling GLTF data file Hangar.gltf...
Copying files from source folder F:\FS2020-Proyectos\Loberia2\PackageSources\modelLib\...
Compiling BGL file from in-memory data to output file modelLib.BGL...
PackageBuilder | Finished, 6 skipped, 4 done and 1 failed, took 0s201ms.
? false returned by Command=BuildPackages Comment=Rebuild the packages whose name correspond to the given filter, and for the given project (default fs-project.xml) NbParam=2 Line=BuildPackages loberia2-loberia2 * "F:\FS2020-Proyectos\Loberia2\Loberia2.xml" "F:\FS2020-Proyectos\Loberia2" 1
PackageBuilder | Done, 5 asset groups registered.
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\CHAPA.PNG.DDS
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\MODELLIB.BGL
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\CHAPA.PNG.DDS.JSON
PackageBuilder | Partial build : nothing to do
[BITMAP CONVERTED] 2D BM_R8G8B8A8_UNORM 1200x750 3141631682273971958

If i use any other kind of texture if will work perfectly..

Last edited:

AndyPaul

Resource contributor
Messages
36
Country
netherlands
Is the texture size square and similar to like 512 x 512, 1024 x 1024 or 2048 x 2048? Could be that the compiler really wants square textures.

Messages
30
Country
argentina
Is the texture size square and similar to like 512 x 512, 1024 x 1024 or 2048 x 2048? Could be that the compiler really wants square textures.

This was clearly the problem...at least im not getting any error...but texture still no showing up on the sim.
Should i go with png? jpg? any other special setting?

Messages
254
Country
unitedkingdom
I've been getting that too! I had exported them from Gimp as PNG's, and I was sure they were square going into Gimp as jpg. Anyway, I've checked again and while some that aren't square are fine (eg. 256 x 128) the two in question are odd sizes in the exported PNG. Going to resize and retry.

Messages
35
Country
italy
I’ve the same problem, I can see only the texture used in SimpleScenery! Any other type of .PNG don’t work and give me your same error!


Inviato dal mio iPhone utilizzando Tapatalk

Messages
30
Country
argentina
This is another error that happens:

VFS Bitmap Loader | Can not find 'vfs://loberia2-loberia2/scenery/global/scenery/TEXTURE/ARGENTINA.PNG.DDS' for reloading.
Compiling texture file TEXTURE\CHAPA.PNG...
Compiling GLTF data file Hangar.gltf...
Copying files from source folder F:\FS2020-Proyectos\Loberia2\PackageSources\modelLib\...
Compiling BGL file from in-memory data to output file modelLib.BGL...
PackageBuilder | Finished, 6 skipped, 5 done and 0 failed, took 0s243ms.
PackageBuilder | Done, 5 asset groups registered.
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\LAYOUT.JSON
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\BUSINESS.JSON
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\MANIFEST.JSON
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\ARGENTINA.PNG.DDS
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\CHAPA.PNG.DDS
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\MODELLIB.BGL
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\CHAPA.PNG.DDS.JSON
Failed to find asset group where the given path is located
PackageBuilder | Couldn't find asset configuration during partial build for file F:\FS2020-Proyectos\Loberia2\PACKAGES\LOBERIA2-LOBERIA2\SCENERY\GLOBAL\SCENERY\TEXTURE\ARGENTINA.PNG.DDS.JSON
PackageBuilder | Partial build : nothing to do

Messages
30
Country
argentina
I've been getting that too! I had exported them from Gimp as PNG's, and I was sure they were square going into Gimp as jpg. Anyway, I've checked again and while some that aren't square are fine (eg. 256 x 128) the two in question are odd sizes in the exported PNG. Going to resize and retry.
What are you doing to fix it?

Messages
254
Country
unitedkingdom
If you look at the example below.

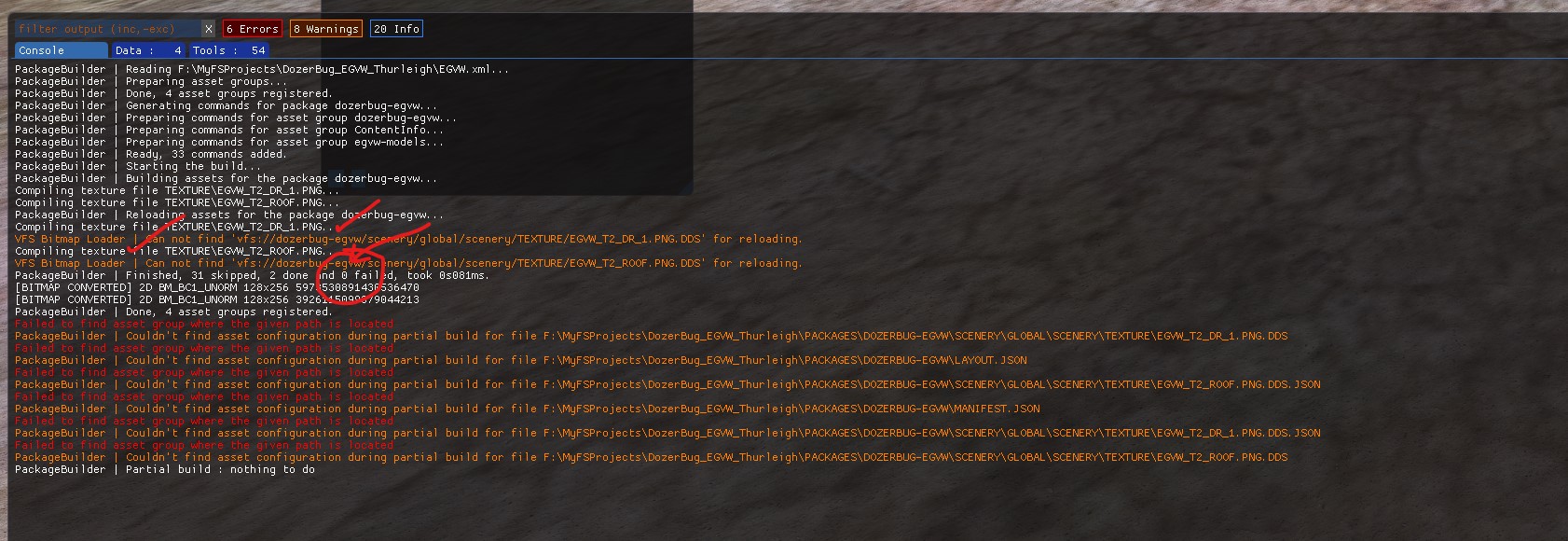

Two of the textures were 125 x 255. These failed when I clicked on build.

Annotation 2020-08-28 161148.jpg

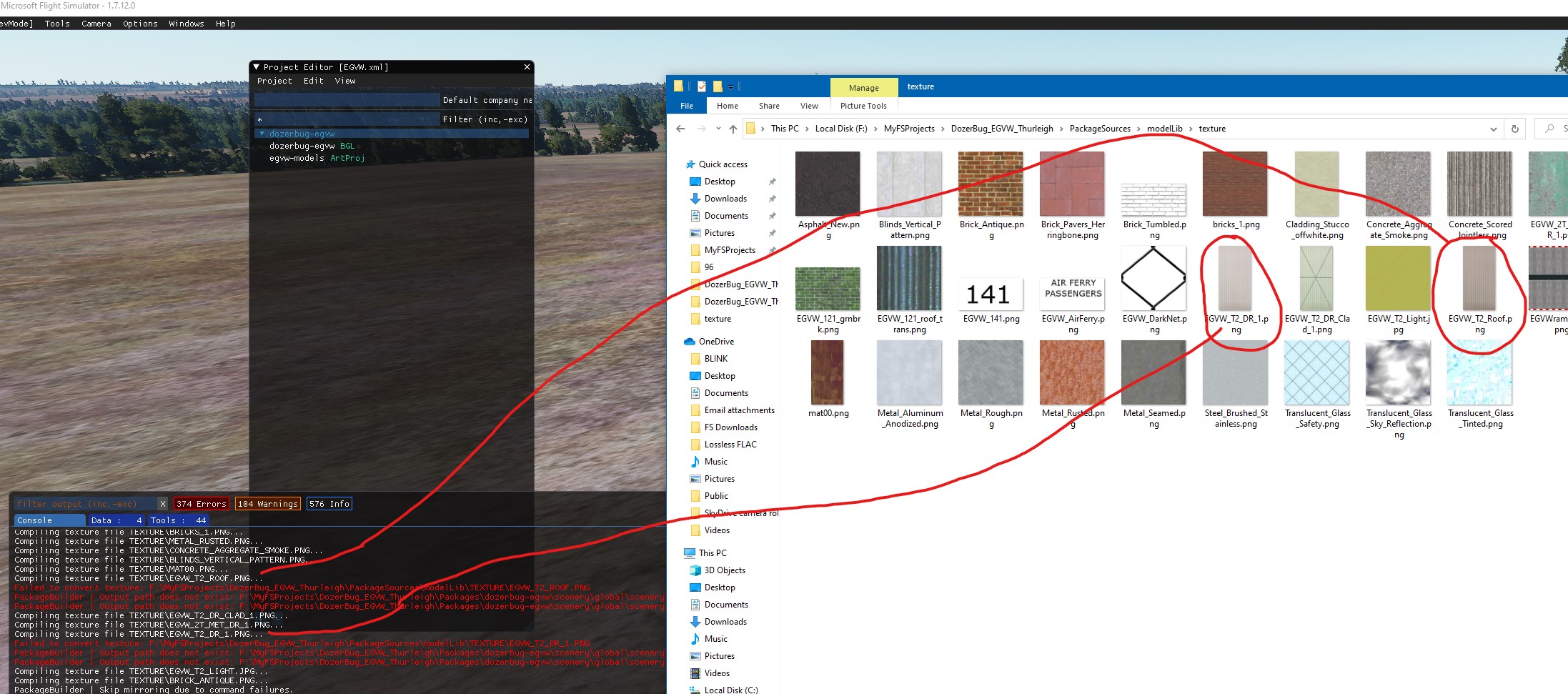

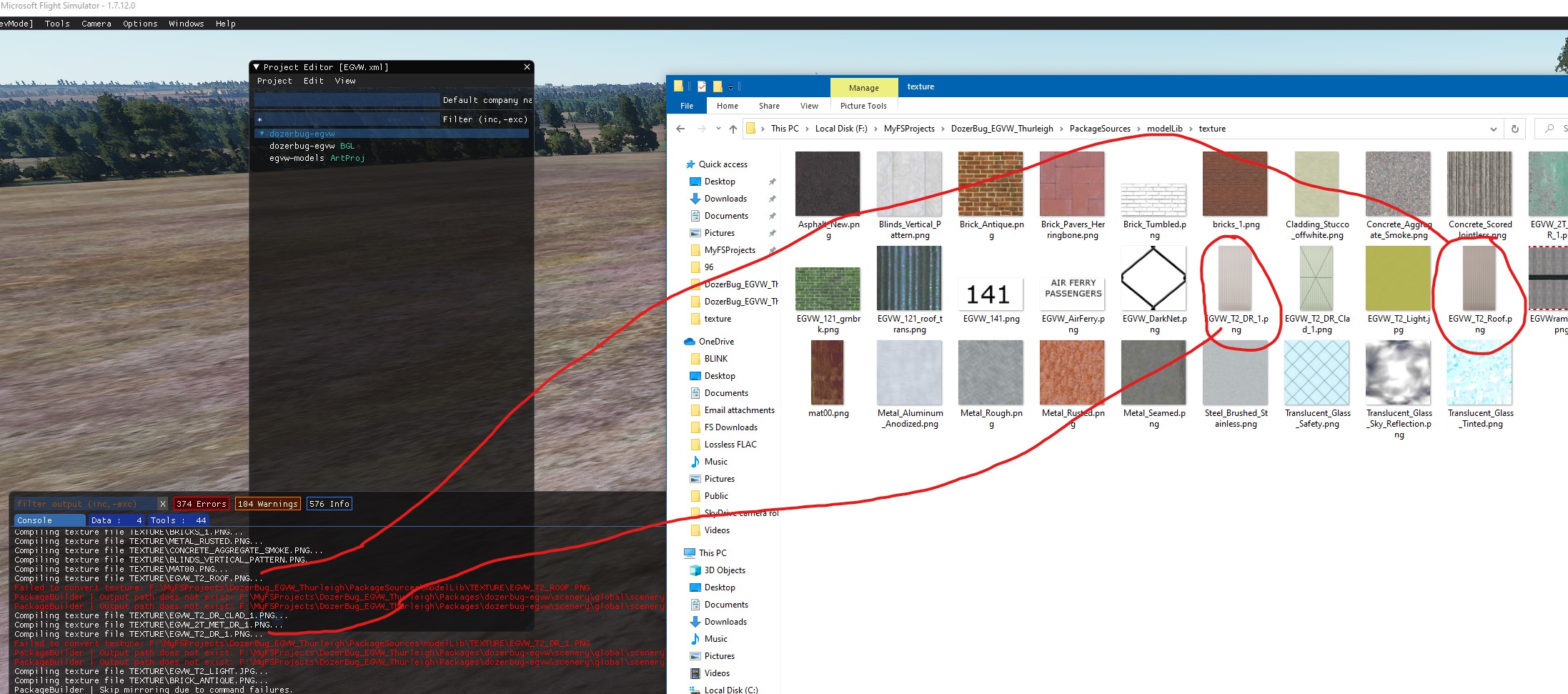

Changing them to 128 x 256 in Gimp and re-building, and they convert successfully. I'm not sure how the original sizing happened, probably an accident when I had been working on them in Gimp earlier, but it does seem that as long as the texture can be divided by 2, the build will work. If not, it seems to cause all sorts of errors, and not just fail to generate those 2 textures.
Annotation 2020-08-28 161148-2.jpg

Messages
12
Country
unitedstates
If you look at the example below.

Two of the textures were 125 x 255. These failed when I clicked on build.

View attachment 61256

Changing them to 128 x 256 in Gimp and re-building, and they convert successfully. I'm not sure how the original sizing happened, probably an accident when I had been working on them in Gimp earlier, but it does seem that as long as the texture can be divided by 2, the build will work. If not, it seems to cause all sorts of errors, and not just fail to generate those 2 textures.
View attachment 61257

I just wanted to give you a big thank you! I completely forgot that was said in the SDK documentation and I spent all day trying to figure out the solution.
