Textures cause faces to go invisible when normals appear to be ok.

S

SchallerF1

Messages
3
Country
us-ohio
Hi. I need some advice. I created a KCMH airport terminal model in Sketchup and put textures on it.
was able to export to a .dae file to import to ModelConverterX. Model looks great in ModelConverterX. I convert my textures to .dds and export the model as a .MDL. Then I go to LibraryCreatorXML, create a library, add my model to it and compile a bgl as input to Airport Design Editor 170. I import the model into ADE170, place the model where I want it and compile the bgl into Addon Scenery/scenery folder. I move the dds textures to Addon Scenery/texture folder.
When I load up FSX, most of the model is invisible. Some faces show, which makes me think I have normals (flipped faces) issue, but when I check the normals on the model back in Sketchup, everything looks ok.
Im stumped at this point. I have tried so many combinations of importing/exporting between sketchup/MCX/LCXML/ADE/, played with the textures per advice in this forum and nothing is working
I have attached the project. if someone could take to take a look at it and point me in the right direction that would be great.

Thanks
Chris


Attachments

you have to check the .mdl in modelconvertex, with his textures,etc. in this way what you see is what you will see in fsx.
Should be a normals problem or some texture missing by law.

Last edited:

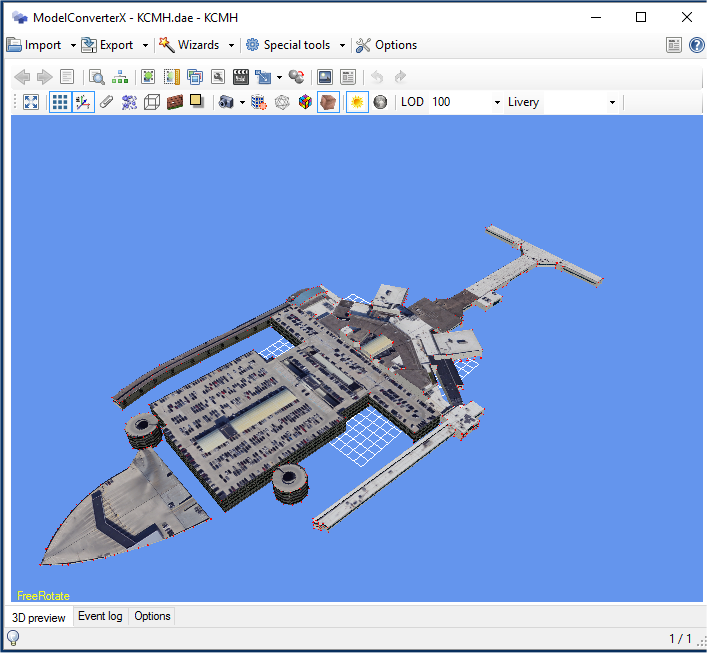

Hi Thank you for the reply. The model appears just fine in ModelConverterX. See image.


Attachments

  • example.png
    187.3 KB · Views: 441
Hi,

In the file you sent all the PNG textures are missing so it appears completely untextured in MCX. The DDS textures are missing ramp.dds, roof2.dds, roof-mid.dds, and terminal_back_0.dds, so some of the terminal is untextured in FSX and thus becomes invisible (missing textures often cause those parts to become invisible).

Hope this helps,

I failed to include those dds textures to my zip file. They are present in the project on my machine. I am sorry. However. Your help led me to evaluate my textures and I found that 2 of the textures, (ramp and terminal_back_0) were converted to non power 2 images on the export to .mdl out of ModelConverterX for some reason. I wound up deleting those 2 textures, creating 2 new textures at 512x512, remapped the areas with the new textures in Sketchup. Export process again and this time I got the proper conversion sizes on export out of ModelConverterX. Continued the conversion process downstream and POOF! There it is in all its glory in FSX.
Thank you for your help.

Nice you solve the problem, and that you have posted the solution. good to know that no power of 2 textures could make invisible polygons. anyway MCX would indicate that in the log.
