XDim and YDim

R

Reco

Messages
9
Hi
I’ve just bought a GeoTiff file from my local supplier. I just can’t come around the XDim and YDim issue.
I have tried to figure out how to calculate it from the SDK Qmid and Lod values with no success. The example in the
SDK “9e-6 is 9 x 10 to the power of minus 6 degrees” tells me nothing either.

It is too big for SbuilderX
Size:
With: 20655
Height: 28120

I’m going to use the resample tool in the SDK. I manage to create a INI file, resample it and import it to SFX. It came
inn in the right position, but it was to large due to wrong calculation of XDim and YDim.

Info that came with the GeoTiff image(Norway):
[GEOGRAPHIC]
Name=Photo_Eksport-176500-AA
North=58.913268
South=58.8647194
West=5.5851139
East=5.6615807

Can someone help me out?

Reco

( ( 58.913268 - 58.8647194 ) / ( 28120 - 1 ) ) = 1.7265407731427148902877058216864e-6 XDim

( ( 5.6615807 - 5.5851139 ) / ( 20655 - 1 ) ) = 3.7022755882637745715115716084052e-6 YDim


For example, the YDim is the span of longitude divided by the number of pixel spans horizontally... the XDim is the span of latitude divided by the number of pixel spans vertically.

The number of pixel spans is 1 less than the number of pixels... it's the distance between the pixels that you are computing.

Dick

Thank you very much.
I tried it and it worked. The size is right and it looks good in FSX.

Reco

Dick,

Must resample.exe have DMS coordinates in the INF?

For my Gardermoen photoscenery, I used decimal degrees, and it was spot on, except I had to rotate the bmp 1.85 degrees before resampling. I could not find this info in the SDK.

Cheers,
:stirthepo

I always use decimal degrees... I don't think it accepts DMS.

Dick

rhumbaflappy said:
( ( 58.913268 - 58.8647194 ) / ( 28120 - 1 ) ) = 1.7265407731427148902877058216864e-6 XDim

( ( 5.6615807 - 5.5851139 ) / ( 20655 - 1 ) ) = 3.7022755882637745715115716084052e-6 YDim


For example, the YDim is the span of longitude divided by the number of pixel spans horizontally... the XDim is the span of latitude divided by the number of pixel spans vertically.

The number of pixel spans is 1 less than the number of pixels... it's the distance between the pixels that you are computing.

Dick
Click to expand...

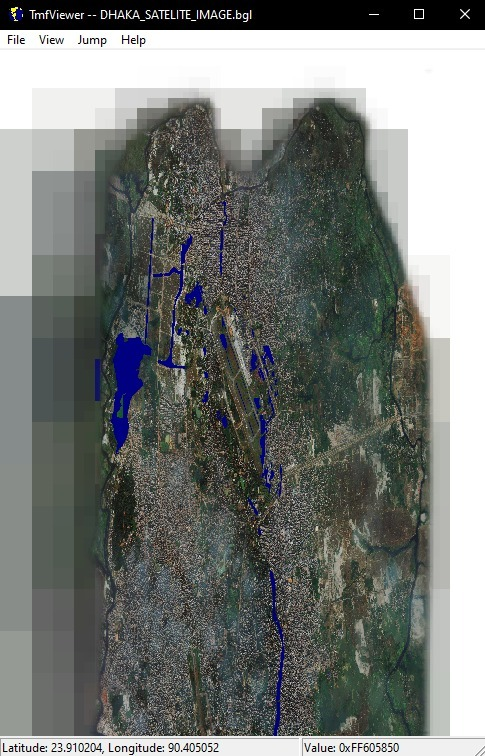

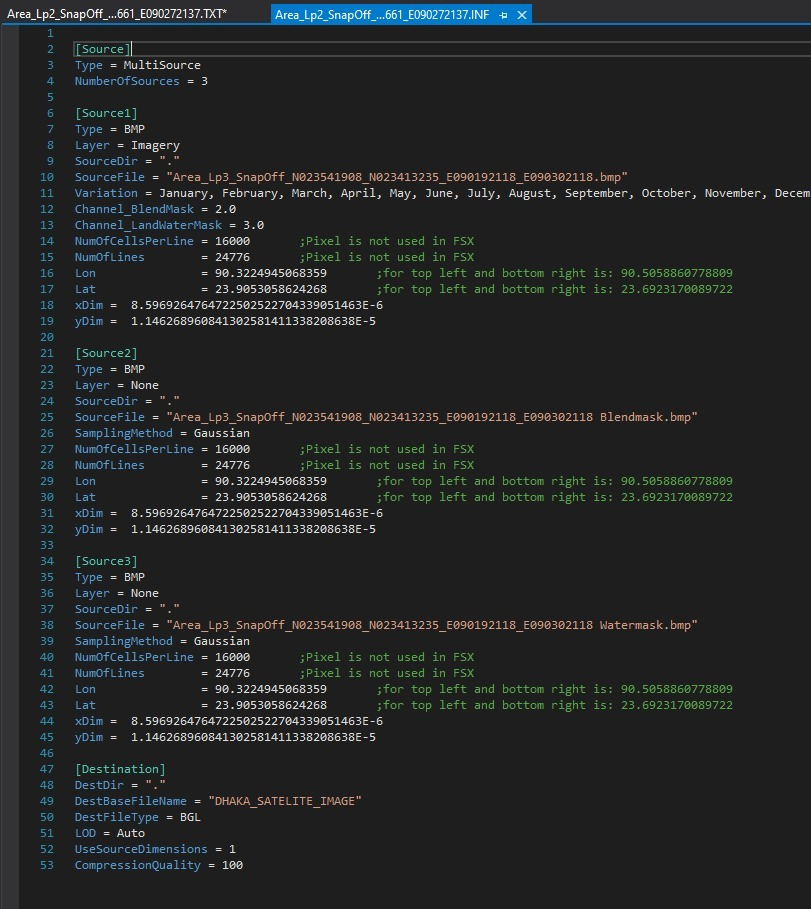

When I try to calculate the above XDim value this is what it shows- 1.726540773x10^-6
What method did you followed to get this value 1.7265407731427148902877058216864e-6?
Can you please help me out?

Ancient post!
