Dual Tower Views?

falcon409

falcon409

Messages
687
Country
us-texas
I am updating a stock airport (3B5) with a photoreal ground texture and custom buildings. The Airport also has a very active Float Plane Base some distance from the main airport. I'd like to add a tower view at the Float Plane area as well, but since there is already one Tower ADE seems a bit stingy in allowing a second, lol. Is there a way to do this?

Thanks




Last edited:
Hi falcon409,
Why don' t you add a CameraDefinition to your 'Cameras' file? (path: C: ...\AppData\Roaming\Microsoft\FSX)

[CameraDefinition.012]
Title = 3B5 view
Guid = {you need an individual Guid here}
Description = 3B5 view
Origin = Fixed
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = No
AllowZoom = Yes
InitialZoom = 4.0
SmoothZoomTime = 1.0
ShowWeather = Yes
XyzAdjust = FALSE
Transition = No
ShowLensFlare=FALSE
Category = Tower
ClipMode = Tower
NoSortTitle = True
FixedLatitude=N44.182224
FixedLongitude=W70.218959
FixedAltitude=100
InitialPbh=0, 0, 0

You will have to fine tune the position and altitude according to your taste.

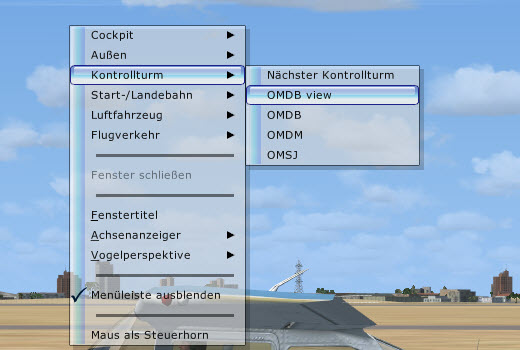

It will show up in the sim like this:


Yours will read '3B5 view' instead of 'OMDB view'

The number after 'CameraDefinition' in the first line has to be the next consecutive number after the previous entry. Please create a backup copy of your 'Cameras'-file!

If your joystick features a hat switch you will be able to rotate your view!

btw.: Nice work :) !
