a problem with ModelconverterX

robystar,

yes, it's AI aircraft. I think contact points are correct (as I see it at the gate).

I try this without animation - all is OK. But any animation cause problems -
when I track AI-aircraft it looks like the camera falls through the ground.

Hi Romgun,

If you mean by that, that the AI Cessna without animation works fine (that is, starts, taxies and takes off and lands), then I think indeed that it is related to the conversion.
Hopefully Arno knows the answer.
Udachi I wish you (or something like that):).

Hi,

Did you check that the animations are ok if you reimport the mdl again? Sounds like you found a bug where some animations are exported wrong or so.

Hi Arno,
as I can see MDX show normal animation after reimport.
Maybe you have a look at my files in the post #19....

Ok, will check the file later tonight when I am behind my pc.

Hi,

I had a look at the files you posted. When I load that MDL or X file indeed I see the animations as you would expect them. So I don't know why the object disappears, I am afraid I know too little about AI for that.

Hi,
Thank, Arno...but I think this is not AI problem.... I've tried to replace the default model by my model+texture for test (air, cfg are default). There are no aircraft in the main selection menu, no aircraft in the spot mode. But I see it in the tower camera and top-down camera in some distance from it (therefore, with the approach of the camera aircraft disappears)!
Is it look like the problem with LOD? But I have no such trouble without animation.. I don't know.... :(

Last edited:
Hi,

Sounds like some issue with the lod or the bounding box or so. I'll try to have another look, maybe I can see something weird.

I find solution )))

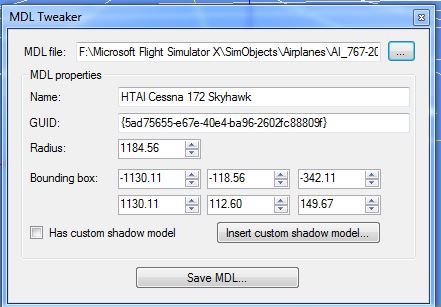

The problem was caused by incorrect parameters of radius and bounding box.
But what reason has caused this error?


Attachments

  • 2.JPG
    37.1 KB · Views: 378
Last edited:
Hi,

What did you change the values to? You made them a lot smaller I guess?

Xtomdl calculates those values normally. Let me check if I can reproduce the problem here. I haven't seen much issues with fsx mdl files and wrong values.

Hi,Arno
Yes, I set radius and bounding box at about 7 m. It's working for me.
Maybe you have a look at my files with wrong value (see above).

And 2 another questions :o ...
1) Can MDX import props as attach object with blurred texture?
2) Is any way to kill shadows of the object?

Hi,

I'll have a look at your files.

Attachpoints of objects are supported, so I guess that should also work for a prop.

I guess the easiest way to have no shadow is to alter all materials and set them to no shadow.
