Blender /Exporter

G

guennizw

Messages
11
Country
germany
Hello, I have been creating airports for FS 2020 for quite some time now, and I would like to do the same for 2024.
I have Blender 4.5 and am having difficulty using it. I would appreciate some assistance with exporting the data.

Asobo Exporter or MSFSToolkit 0.40.0

I would be grateful for any help.

4.5 does not work - there are too many Blender Khronos breaking changes that ASOBO has yet to fix.

Use 3.6 LTS or 4.2 LTS

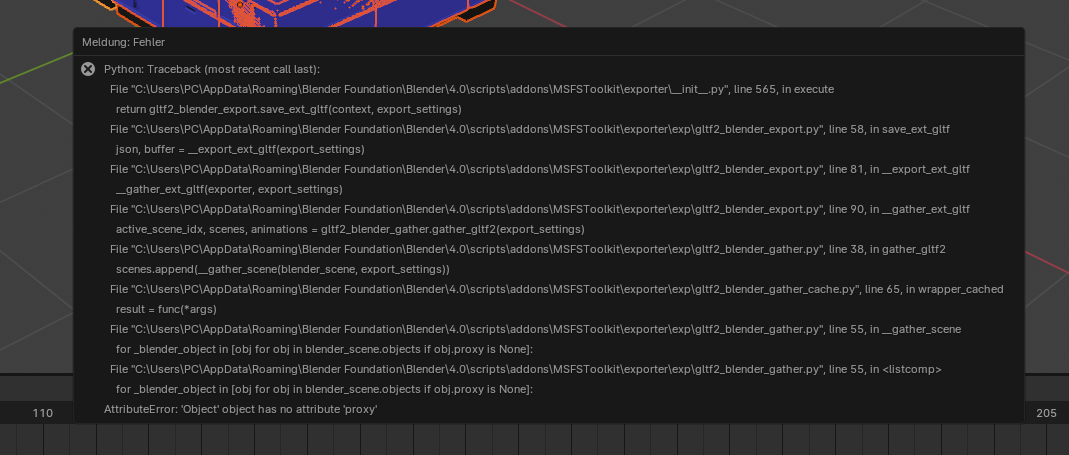

When using mstoolkit 4.0, I receive error messages during export. Or install the asobo exporter?


Uninstalling everything and reinstalling does not work.

Last edited:
Hi, thank you, everything worked after 2-3 attempts. Thank you, but I have one more question if that's okay: when I export, I have the 3 files. I'll send you a picture, is that okay?



Shouldn't all files have the same name?

Sorry for the “stupid questions.”
I know it's different from FS2020.

the two files - hangar5 are ok - I assume Collection is the textures.

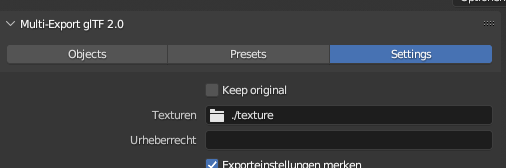

make sure that the settings in the muti exporter are set to ../texture


Sorry for all the questions. Will it work in 2020

Hi, I've created it like this, but the textures are not displayed in FS2024. See images. It's about the file, e.g., rotsolar..png 600 x 600.




in Fs 2024 so




Everything worked fine in FS 202! What am I doing wrong here?

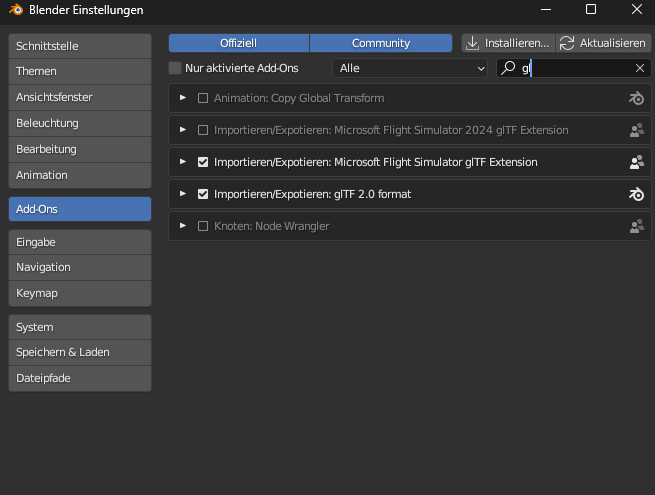

Have you disabled 2020 exporter and only set 2024 plus Khronos core.




Show shader node view "Shading" tab and MSFS Material Parameters




I don't recognize "K Builder" what is that?

Last edited:
what about the shading window too. how you set up your material

Picture is of 2020 export enabled.

For me, it only looks like this when I select a color.



in Version 2020 it didn't matter what your attitude was,

Last edited:

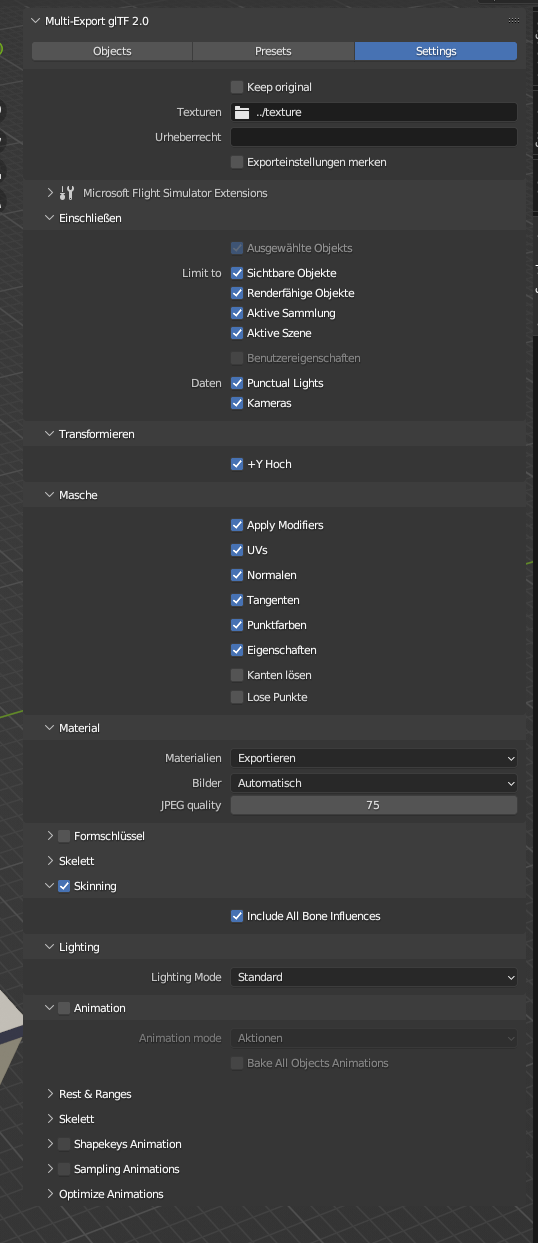

This is all 2020 export data - is that what you want for 2024?

did you place you texture in the slots on that panel?


I have them in the same directory as the files, see image.



as I specified in the exporter

I don't understand why it's not working.

your not showing me the texture slots in the

MSFS Material parameters panel



texture slots

Last edited:
I have now adopted this, but it has not been adopted in FS.




It's starting to get annoying for FS2024. Some walls are not displayed. In FS 2020, it worked without any problems.

Last edited:
see the .012 in the texture name. use the icon to select the one without the .012 - that might be your issue.

No, unfortunately that didn't help.
I'll rebuild the building according to the stupid F2024 standard. in fs2020 works without any problems.

Thanks in advance for your help.
