MSFS20 Blue Channel Normal value Test

rhumbaflappy

rhumbaflappy

Administrator
Staff member
Resource contributor
Messages
6,215
Country
us-wisconsin
Normal textures used in the MSFS materials will alter the view in Blender. Compiled to MSFS, the blue channel makes no difference, as the channel is not used in standard MSFS materials.

In the Sim:


In Blender, the value of the Blue Channel makes a difference:


So for the best Blender view, Use a normal texture with blue-channel set to white.

I'm missing the point here. I thought the Stone_white version is the one we should be using. A directX normal.
The ASOBO exporter shader system has a node to "show" directX like OpenGL

The normal textures are all valid for for an MSFS PBR normal. But in Blender, The texture we assign as a Normal, should have a white value in the blue-channel to display as it will look in the sim. It doesn't have anything to do with DirectX or OpenGL. The Sim compiles them as all the same. The Stone_White_Normal.png is what we would best use.
Blue_Channel_Normal.blend

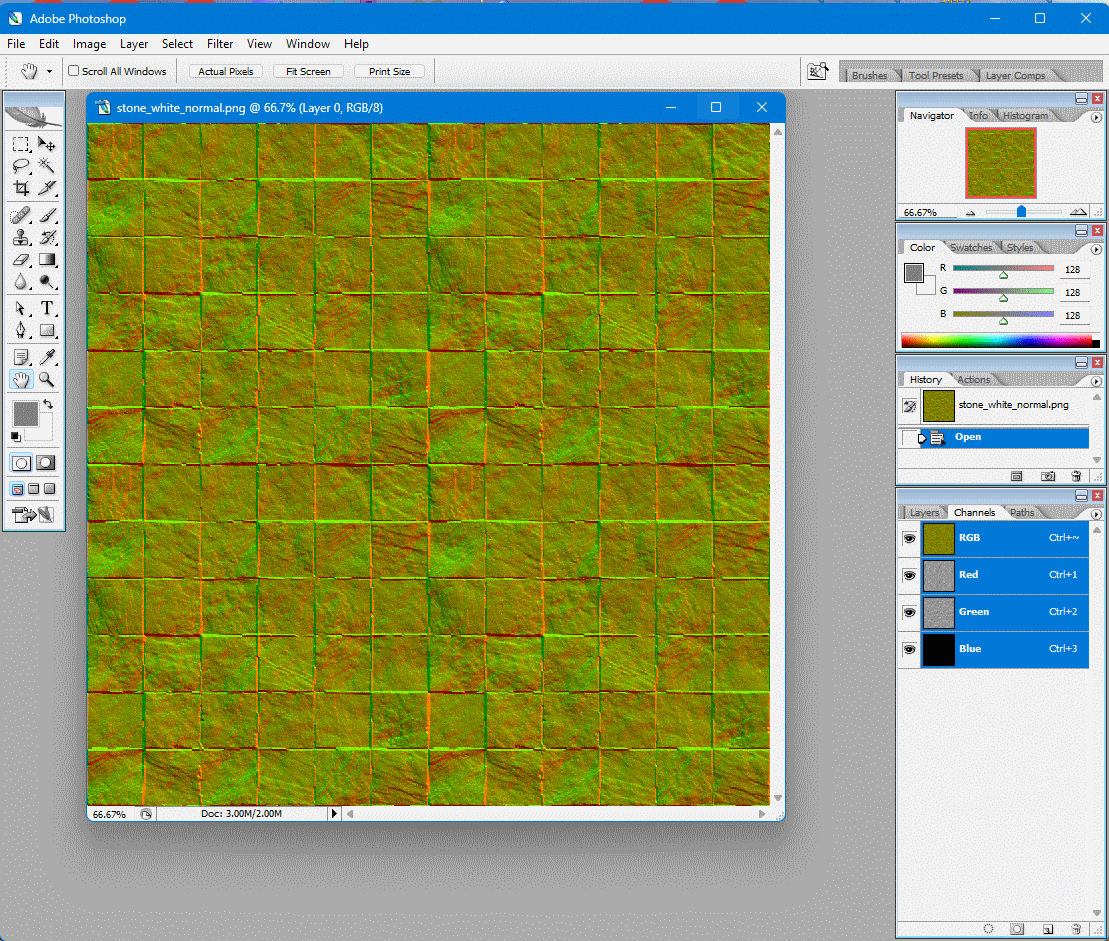

For an example, here's how ModelConverterX converts The DDS texture to a PNG:


The blue-channel is black, and will darken the Blender view if used as the PBR normal texture. It will compile fine, but looks 'off' in Blender.

Last edited:
My concern is that the ASOBO exporter has a "fix" fudge for the DirectX - OpenGL normal difference. It will invert the Green channel. So you are saying make the Blue channel all 1's no matter what their value? Maybe the exporter can be changed to "show" as all 1's (you say white)

Blue channel - no inverting


Green Channel is inverted



move the left side dot up in the Blue channel of the RGB Curves node



EDIT: updated wrong screen shot



Last edited:
It's almost easier to just use Gimp or Photoshop to fill the blue channel with white and save the texture. But I get what you mean by having the solution within Blender. It's just a 'viewer' thing in Blender. MSFS compiles the normal to DDS as a BC5_S format, which doesn't even record the blue channel. Some SDK examples of PNGs for normal textures even have some occlusion baked into the blue channel. But when compiled, it disappears.

I'm not sure what 3dMax shows, but I suspect it may be the same for normal textures. Lots of Blender users are using MCX to convert sketchup models or FSX models to MSFS, and they get tweaked in Blender many times. The weird dark look caused by the normal textures is due to Arno's export of DDS to PNG. He uses black for his converted normal blue-channel.

All of the MSFS SDK samples use white in the normal texture blue channels

Last edited:
  • Like
Reactions: tml
Simple change to msfs_material_function.py near line 650

Change

curveMapping = RGBCurvesNode.mapping.curves[1]
curveMapping.points[0].location = (0.0, 1.0)
curveMapping.points[1].location = (1.0, 0.0)
Click to expand...

to

# Green invert
curveMapping = RGBCurvesNode.mapping.curves[1]
curveMapping.points[0].location = (0.0, 1.0)
curveMapping.points[1].location = (1.0, 0.0)
# Blue 1.0 to 1.0
curveMapping = RGBCurvesNode.mapping.curves[2]
curveMapping.points[0].location = (0.0, 1.0)
curveMapping.points[1].location = (1.0, 1.0)
Click to expand...

Seems to me. It's MCX that needs ro change the blue channel to white, not the Asobo's exporter. Normal maps that are done correctly don't have any problems.

Pyscen said:
Normal maps that are done correctly don't have any problems.
Click to expand...
Yep. but the complaint rises occasionally, and the current cure is to fix the texture. But the Asobo addon could permanently fix the problem as the blue channel is never used in the sim. Just force the channel as white. Simple.

rhumbaflappy said:
Yep. but the complaint rises occasionally, and the current cure is to fix the texture. But the Asobo addon could permanently fix the problem as the blue channel is never used in the sim. Just force the channel as white. Simple.
Click to expand...

One can say the same about MCX... it should also be simple.

It's getting a bit off topic. The point was to make sure your normal textures have a white value for the blue-channel or the current version of the Asobo MSFS exporter will display erroneously.

You stated yourself.....

rhumbaflappy said:
I'm not sure what 3dMax shows, but I suspect it may be the same for normal textures. Lots of Blender users are using MCX to convert sketchup models or FSX models to MSFS, and they get tweaked in Blender many times. The weird dark look caused by the normal textures is due to Arno's export of DDS to PNG. He uses black for his converted normal blue-channel.
Click to expand...

Not off topic?
