FSX Effect Showing Up In Day

M

mnmsim

Messages
13
Country
unitedstates
Hey Guys
Am new to FSDeveloper:). I just had a quick question....I have set up an apron light with fs_navwhi effect
attachment.php

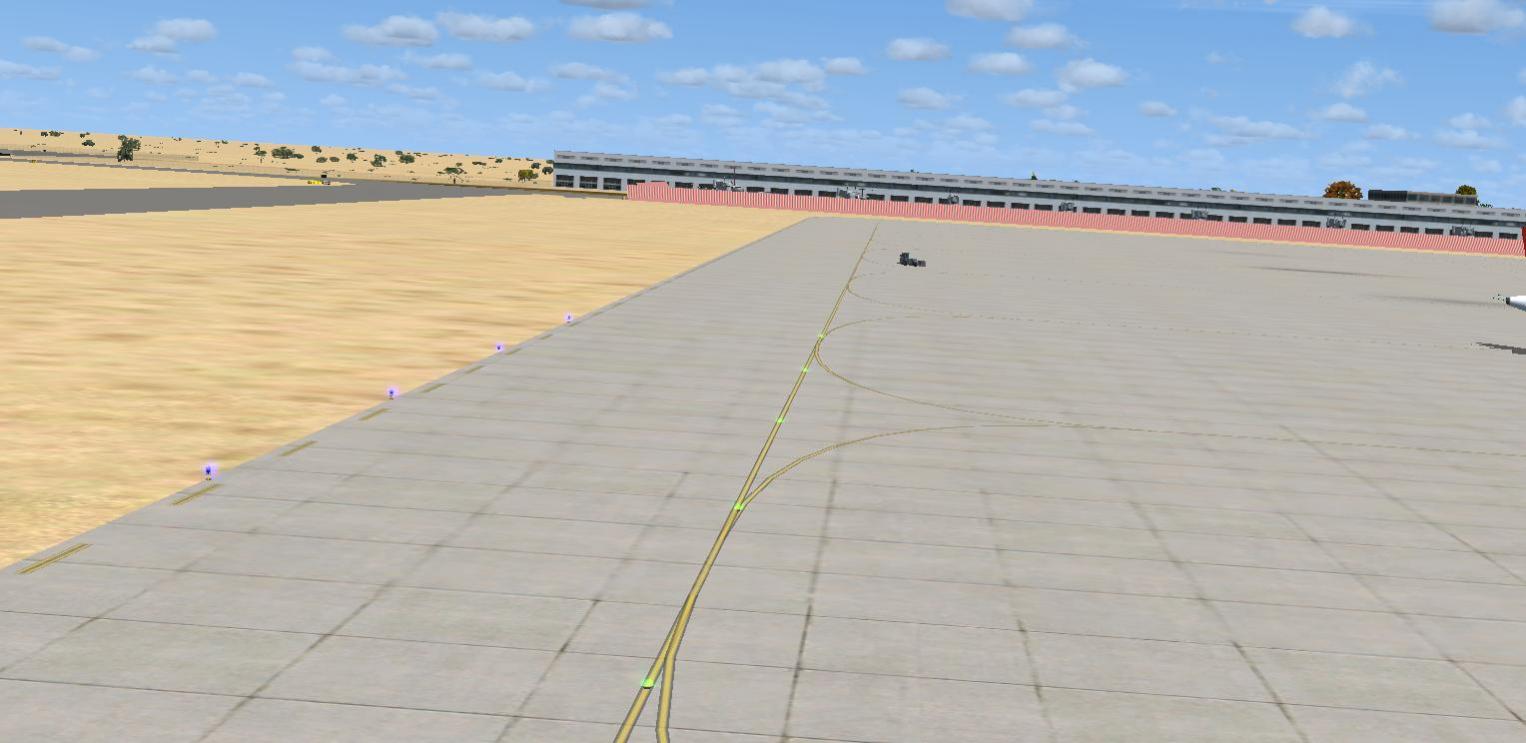

And this is how I have it setup in Gmax. 3 objects 1 is blue, second is effect attached with DAY=0; NIGHT=1, Third is the same except for Dusk and Dawn setting. But during the day as I get farther away from light, the effect shows up
attachment.php

and As I get closer The effect disapears.
attachment.php


Could someone help???
Thanks


Attachments

  • 1.jpg
    92.2 KB · Views: 794
  • 2.JPG
    81.3 KB · Views: 778
  • 3.JPG
    85.8 KB · Views: 826
The SDKs are a strange creature to deal with, as there are many "quirks".

When I set up my effects I listed each parameter by itself, rather then combining them. So I had three entries to make, DUSK, DAWN and NIGHT. I had no DAY entry to mess with. Don't know if that may help, but it sure wouldn't hurt to try it and see if it clears things up for you.

Hi Folks

mnmsim -
IIRC correctly -

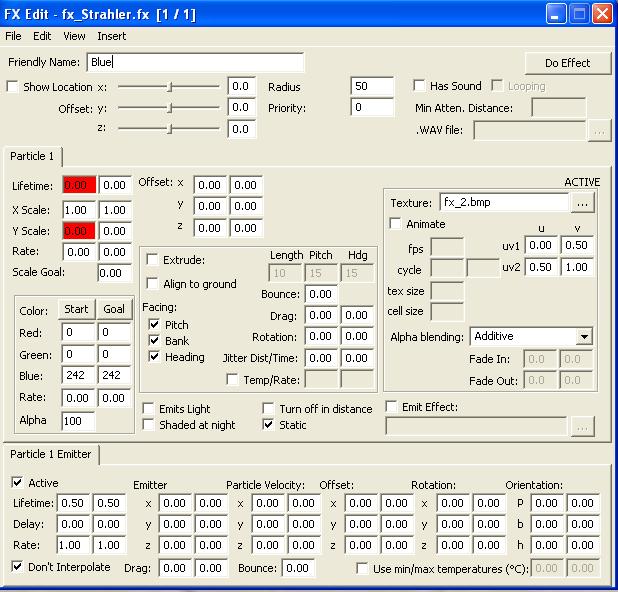

The fields highlighted in red identify potential errors.

Do they similarly all disappear
when the blue effects row is viewed perpendicularly.

If so -
Try setting Y Scale to 1.00,
as that may be inhibiting visibility from that perspective.

HTH
ATB
Paul

I tried both methods and none seem to work basically the light does not appear in the day but as soon as my aircraft starts going further and further away, the effect appears....nothing wrong with the model but something is up with the effect file....

Maybe you could attach the effect file to a posting? I have the one I did, but it's been a few months back and I have short memories when dealing with parts of the SDKs. :o

Its basically the same as fx_navwhi but changed the color to blue for the edge and green for the center I'm attaching the green


Attachments
