MSFS20 Error message when creating project from XML - what does this mean?

C

Chris Zuger

Messages
10
Country
france
I have successfully changed gate and airline assignments for a number of add-on airports using A2P and ADE for MSFS.

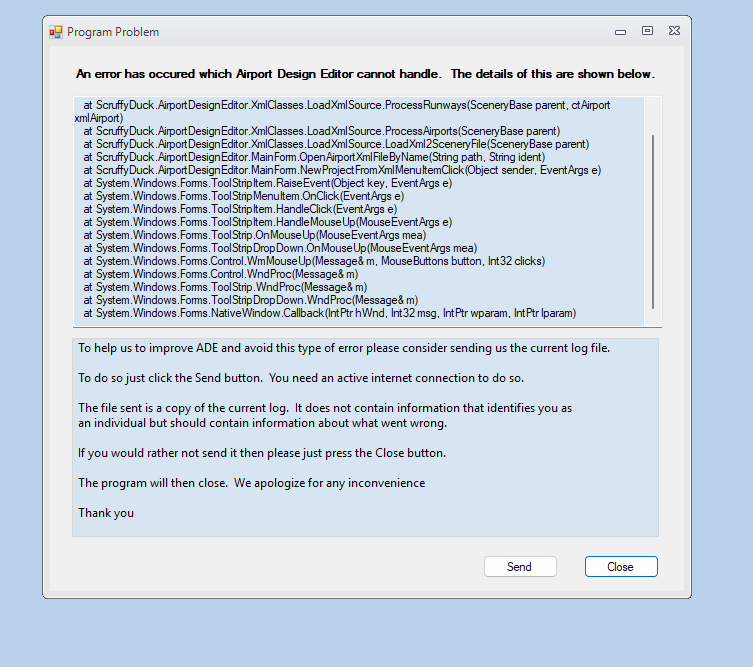

Just tried to do Frankfurt EDDF, airline gate assignments need to change after the opening of Terminal 3. I follow the usual procedure, but now when clicking "Create project from XML" I get an error message (see attached screenshot).

What does it mean? What can I do to open the file in ADE in order to change airline gate assignments?

Thanks, Chris


Attachments

  • ADE error.png
    ADE error.png
    59.5 KB · Views: 24
With A2P. And then opened it in ADE for MSFS. WIth that same method I managed to open AFCAD files and edit gates for numerous other airports in MSFS, just not this one.

Thanks for your help.

Chris

Chris...
I think I can help, since on my personal projects I already have deal with similar issues.
First of all, remember that these tools, must be strictly used on personal projects.

I have found that the "xml" file that A2P produces, can fail to load in ADE, for at least one of the following causes, so far:

1) The entries in "xml" file, ends with " /> instead of "/>
Sometimes, replacing all the ending entries from " /> to "/> can make it loadable in ADE.
2) Invalid ILS entries on "xml" file.
Sometimes, removing all the invalid ILS entries from the beginning <Ils to the ending "/> , except the correct ones for the airport being processed, can make it loadable in ADE.
3) Runway surface material in "xml" file, not recognized by ADE.
Sometimes, in all the runway entries, removing the original runway surface code to "" , can make it loadable in ADE.

There will be more causes, that make the "xml" file not loadable in ADE, but these are the most common ones.

I hope these can help.

FSullivan
