Hi Yamo:

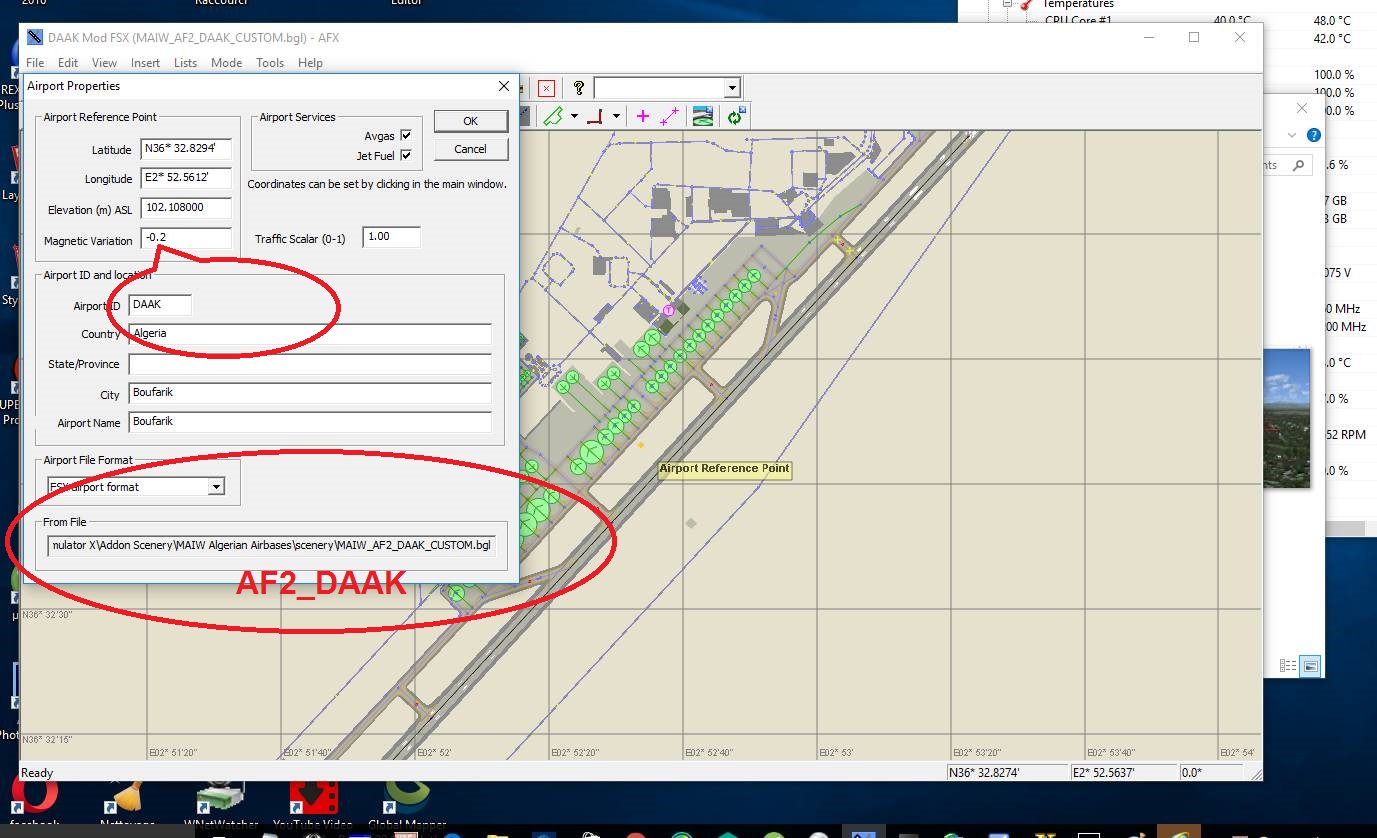

IIUC, this is DAAK:

https://en.wikipedia.org/wiki/Boufarik_Airport

https://tools.wmflabs.org/geohack/geohack.php?pagename=Boufarik_Airport&params=36_32_45_N_2_52_34_E_region:DZ_type:airport&title=Boufarik+Airport+(Boufarik)

It is preferable to use the "Polygon" Tool in SBuilderX version 3.15 ...rather than version 3.14. ;)


First create a CVX vector Exclude Polygon for the default FSX Airport Background (aka "Boundary") Polygon:

Type 10 = Exclude_All_Airport_Boundaries


Then, create the 'replacement' FSX Airport Background (aka "Boundary") Polygon:

Type 148 = AB_Flatten_MaskClassMap_Exclude_AutoGen


Note that all DAAK navigable airport surfaces must be flat and level for AI / ground vehicle traffic to work.

FYI: SRTM v3+ 30 Meter / 1-Arc Second terrain source data viewed in a GIS application shows the RWY axis altitude AMSL ranges between 215 Feet (NE) to 355 Feet (SW).

Assign Altitudes to AB polygon vertices to make a 'sloped' flatten to blend into surrounding terrain mesh.


PS: Are you using / recommending FreeMeshX (freeware) 30 Meter / 1-Arc Second terrain mesh BGLs ? :scratchch


GaryGB
