FSX smoothing problem [solved]

gastonj · Friday at 14:01

Hi,
I have some trouble exporting to fsx my model under devlopment like you can see on the 2 pictures below.

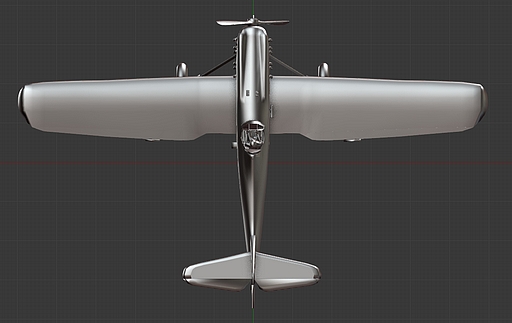

First, with Blender (Matcap enabled)

and with FSX after export

Am i wrong or is this a toolkit problem? Do you know a cure or
do you know a way to divert the problem ?

Thank's,
JMC

Pyscen · Friday at 14:11

Hello...

Looks nice,... though I really don't know specifically, what your are referring to? Is it a specific area? Is it the nose of the aircraft?

gastonj · Friday at 14:52

The problem is at the jonction wing ailerons! Typical nose of the Dewoitine D501 is OK!
JMC

Pyscen · Friday at 15:38

Hello...

How was the wing(s) done within Blender? Was it mirrored over from one wing to the other and if so, was the mirror "applied" or not before saving and exporting? Did you receive any errors upon exporting?

dave hoeffgen · Friday at 15:39

gastonj said:

You could try an edge split modifier.

gastonj · Friday at 16:32

Pyscen said:

Yes it was mirrored but the mirror was applied before saving and exporting and no errors upon exporting!
JMC

gastonj · Friday at 16:34

dave hoeffgen said:

I will try but edge split modifier on wing or aileron ? From Gmax, i will try the result to see if i got the same result (only wing+ailerons).
JMC

gastonj · Friday at 16:46

Hi,

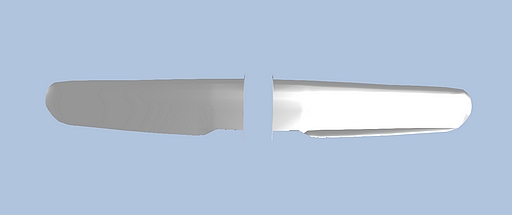

This is what I got from Gmax ...the problem is visible only on the left aileron!

It seems a mirroring problem ...

JMC

gastonj · Friday at 17:07

Hello Dave,

You are right! This cure the problem as you can see :

Big thank's at all !

JMC
