Help with XtoMDL

H

hippolyto

Messages
26
Country
brazil
Hi guys... I need some help.

I tried to compile a .X file (sorry, no Scully included) to a .MDL, but got some erros.

=====================

D:\Lockheed Martin\Prepar3D v2 SDK 2.1.9936.0\Modeling SDK\3DSM2014_x64\Plugins>xtomdl caixa.x

OutputFile: caixa.MDL
Output file after modification: caixa.MDL
Creating output MDL file: caixa.MDL
CRASHTREE no granularity specified
CRASHTREE completed in 00:00:00.0420024
(0): error : XToMdl.exe Unhandled Application Exception
(0): error : System.FormatException: 0x hexadecimal esperado em '{0}'.
(0): error : em System.Guid.GuidResult.SetFailure(ParseFailureKind failure, String failureMessageID, Object failureMessageFormatArgument, String failureArgumentName, Exception innerException)
(0): error : em System.Guid.TryParseGuidWithHexPrefix(String guidString, GuidResult& result)
(0): error : em System.Guid.TryParseGuid(String g, GuidStyles flags, GuidResult& result)
(0): error : em System.Guid..ctor(String g)
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.MDLProcessor.ProcessXmlStartElement()
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.MDLProcessor.LoadFile(Stream InputStream, XPartDict PartDictionary)
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.XmlToMdlLib.Process(Guid& ModelGuid, Stream AnimationData)
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.ProcessInputs()
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.RealMain(String[] args)
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.Main(String[] args)
(0): error :
(0): error : 0x hexadecimal esperado em '{0}'.
(0): error :
(0): error : Stack Trace:
(0): error : em System.Guid.GuidResult.SetFailure(ParseFailureKind failure, String failureMessageID, Object failureMessageFormatArgument, String failureArgumentName, Exception innerException)
(0): error : em System.Guid.TryParseGuidWithHexPrefix(String guidString, GuidResult& result)
(0): error : em System.Guid.TryParseGuid(String g, GuidStyles flags, GuidResult& result)
(0): error : em System.Guid..ctor(String g)
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.MDLProcessor.ProcessXmlStartElement()
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.MDLProcessor.LoadFile(Stream InputStream, XPartDict PartDictionary)
(0): error : em Microsoft.FlightSimulator.XmlToMdlLib.XmlToMdlLib.Process(Guid& ModelGuid, Stream AnimationData)
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.ProcessInputs()
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.RealMain(String[] args)
(0): error : em Microsoft.FlightSimulator.XToMDL.XToMDL.Main(String[] args)

D:\Lockheed Martin\Prepar3D v2 SDK 2.1.9936.0\Modeling SDK\3DSM2014_x64\Plugins>

=====================

Do you have any ideas what I am doing wrong?

The files (.max and .x) are attached, to help.

Thank you!
:-)


Attachments

Did you set a guid and friendly name for the model?

In your X file the GUID and friendly name are empty. I think it's the empty GUID that results in the error. So I would try to set it again.

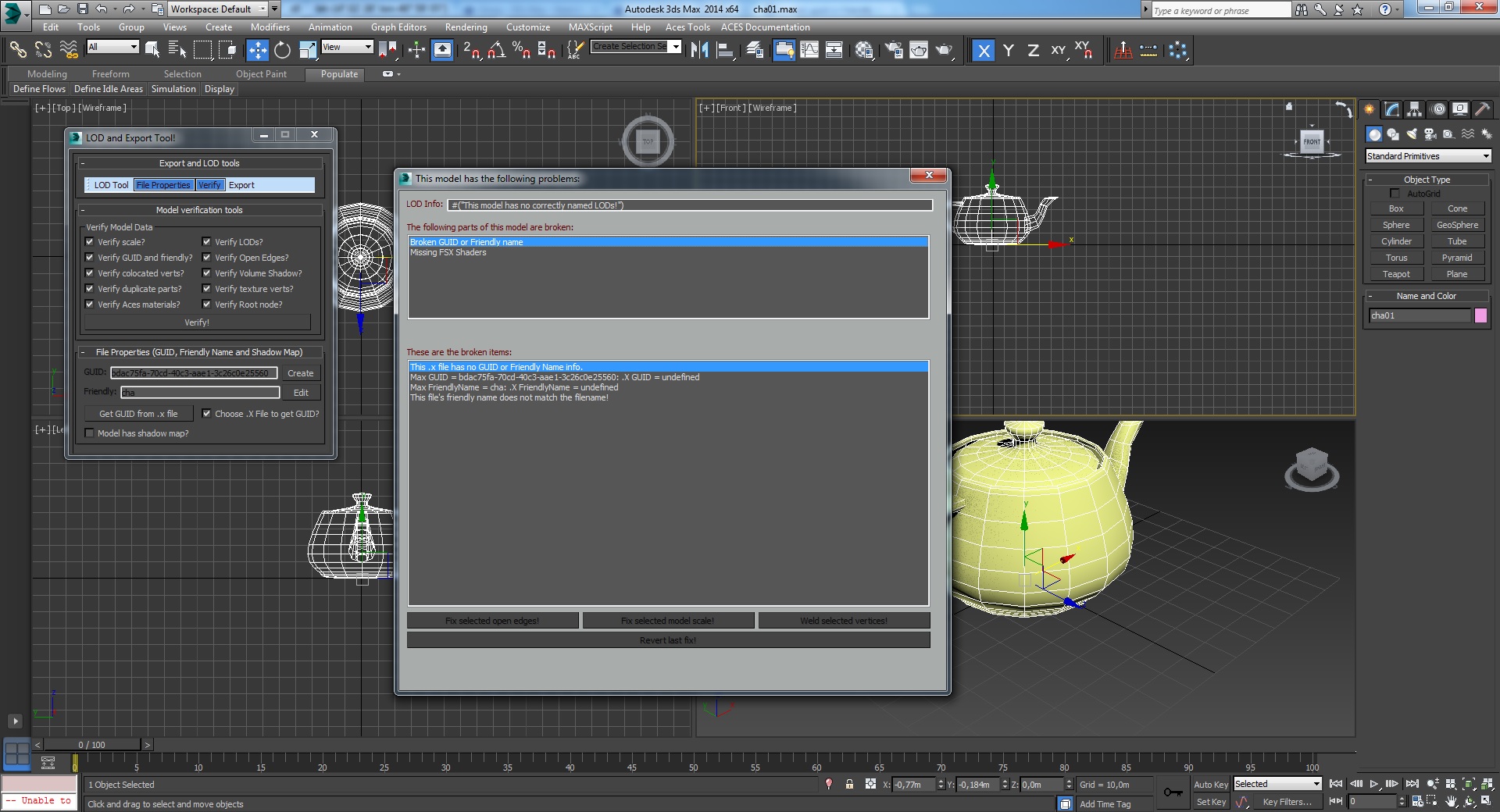

Error message... I think i'm noobier that I thought.
:(


Attachments

  • 3ds_problem.jpg
    484.5 KB · Views: 541
- How exactly do you export to .x file? Via File > Export? (better not use the Export Tool).

- Do I see a nonstandard character in your model's name (don't).

- Just invoking xtomdl filename.x usually isn't enough (check Wiki here).
