MSFS20 How do Layers Work in MSFS Scenery Airport Creation SDK?

lionheart

lionheart

Messages
10,158
Country
us-arizona
Hey all,

Quick question. How do the layers work in MSFS 2020 SDK in the BGL Layout, on the screen in MSFS? Would the top layers on the screen be the top objects in the sim, and the bottom layers would be the Polygon bits, runways, etc? For instance, grass polygon that would be under the runway, would be on the very bottom of the stack, like in graphics in Photoshop?

Many thanks...

I am only just learning making airports in MSFS 2020.

Bill
LHC

Aprons (grass, pavement, dirt, etc) can have priorities assigned in the SDK. Same with polygons, rectangles and projected meshes

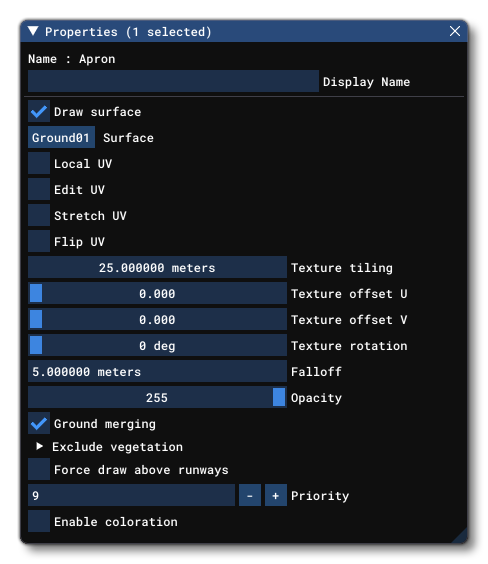

You can specify the priority in the properties panel.

Apron Objects

docs.flightsimulator.com docs.flightsimulator.com

Cool. So the stack in the MSFS Scenery Editor listing has no effect at all on how things show up. That's what I needed to know.
They have all these things, like short cuts for moving parts in a stack and making Groups for parts, etc. I figured the stack arrangement was key.

Bill
