I can't remove water with a water exclude polygon

jgarnold

jgarnold

Messages
1,823
Country
australia
At my water airport the (MSFS stock) terrain elevation was not correct and neither was the shoreline.

I have added a terraform polygon with a falloff of 10 meters and raised to elevation about 3 metres.
When I checked the image of water (reflection) could be seen so I added a water exclude (ocean) polygon which only partly fixed the problem.
I have tried moving the vertexes of the water exclude polygon without success.
Could the terraform falloff be affecting it?

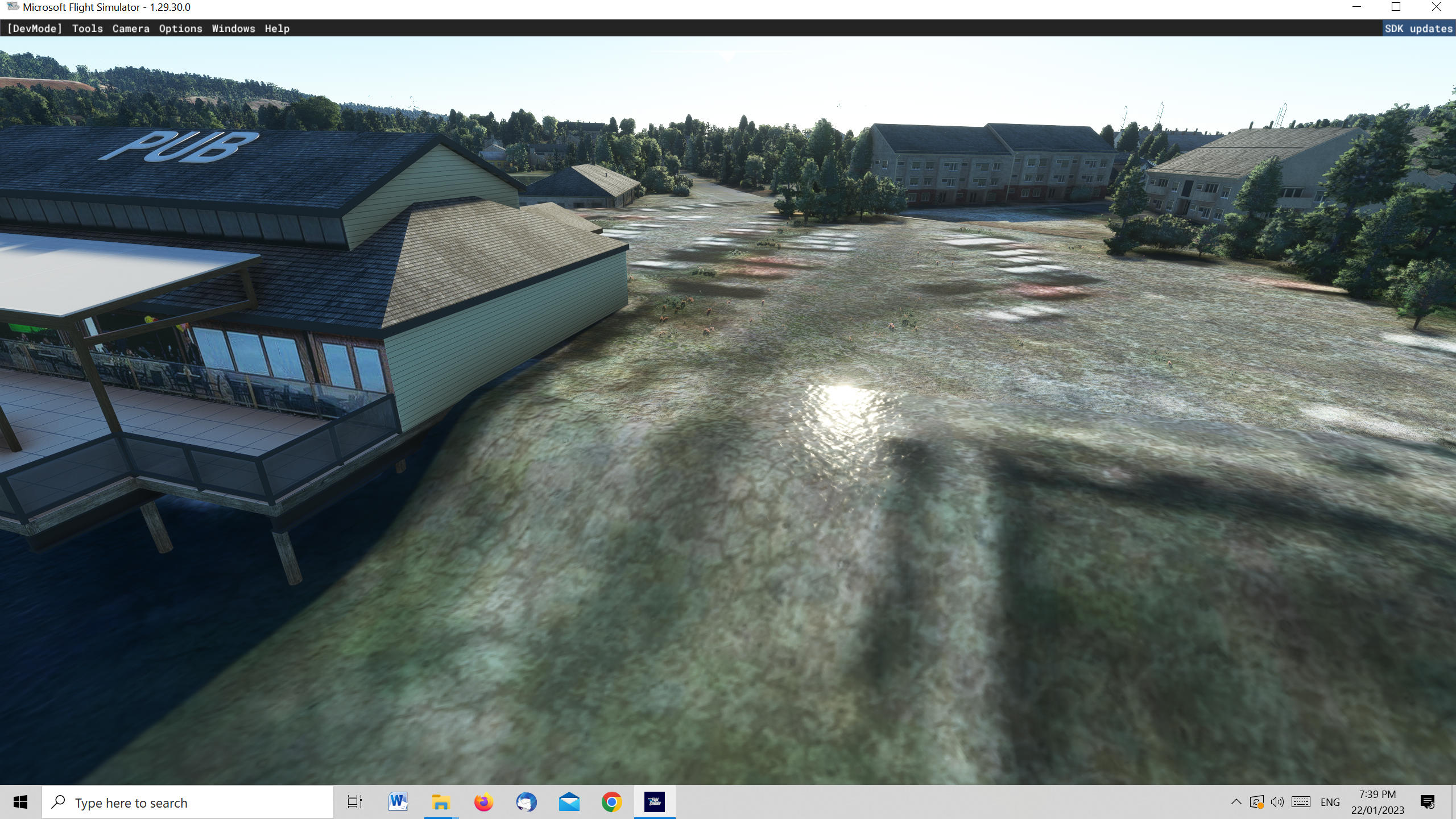

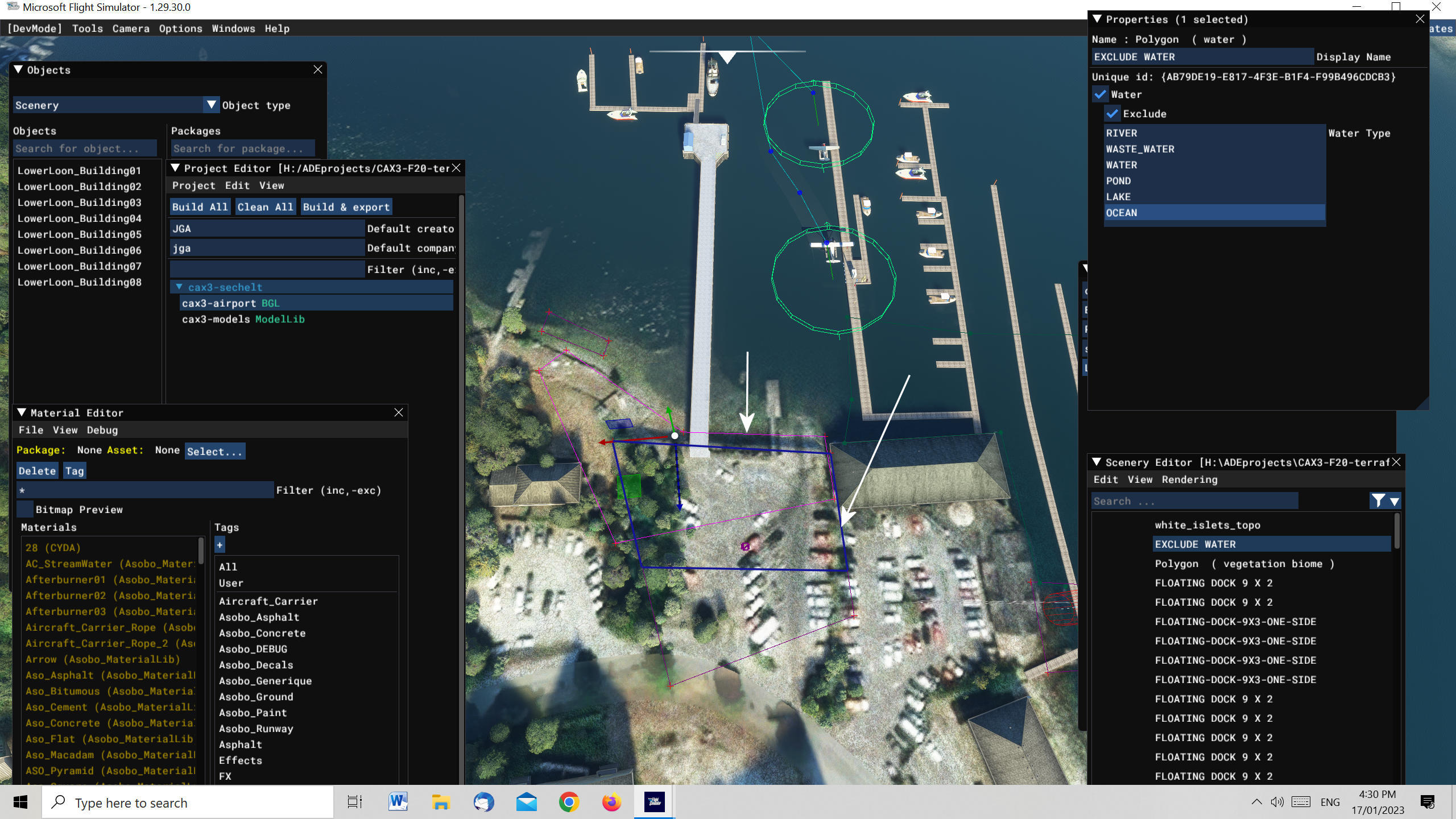

Here is an image showing reflection on water on land and also an image showing where my terraform and water exclude polygons are positioned (white arrows pointing to them).
Any ideas?




It migtht help to duplicate the water exclude polygon and set it to another water type so you exclude multiple water types in one spot. I have had times where I had to exclude both rivers and lakes to get rid of water in one spot.

That seems to work. I added an other water exclude polygon and made it LAKE and the water reflections are now gone.

Strange that there are two water classes? for the same area. Admittedly the water in that area appears to be a lake until you zoom out to see it is a very long inlet. See image below where the area I am concerned with is marked (water north of Sechelt) with a red arrow and looking north to the top of the image it can be seen to join with the ocean
