FSX Parking Sizes

quasair

quasair

Messages
16
Country
unitedstates
Hello,
First off, I use World of AI for my AI aircraft. My problem is very similar to others in that heavy 747s/777s will usually go out of their way to park at Medium sized gates and medium 767s will often park at Heavy gates despite the proper sized spots being available. I say "usually" because it varies. Recently while using ADE at KPHL I had several 767s parking at Small gates despite reducing the Small gate radii to 17 meters. I have similar problems with GA aircraft in that large Gulfstreams will park at GA Small spots while small Pipers will park at GA Large. I've seen the suggestion in other posts to check the aircraft.cfg files to see if the aircraft in question have the proper wing span values. It seems like this would be a very large number of aircraft with improper wingspan values but if this is the case can anyone tell me how to find these aircraft.cfg files for World of AI aircraft? I've been unsuccessful so far. Or if someone thinks that there is another problem, please let me know what that could be. Thanx.

You could have a couple of problems. The airport afcad parking spots may not be correct size. Or the A/C wingspan wrong in the .cfg file. I would suggest
correcting the wingspan value in the aircraft.cfg file in each of your aircraft. If it continues look at the afcad file parking spots and make sure the size is correct.

This link should help get both sorted out. http://www.flightsim2004-fanatics.com/FlightSim/FSXWingSpanValues.htm

I have my aircraft in folders with all models and liveries. So you only have one aircraft.cfg for each type. Example, FAIB_B737-800 or FSP_B787-9 etc.

World of AI aircraft folders should be like, WoA_...

Hope that helps.

Hi,

You could use Don Grovestein's AIFP program. In the aircraft editor you can check the information available for that aircraft.



Aircraft with smaller wingspans will always try to park in parking spots that are bigger. To avoid that, code your parking spots in ADE (or AFX?) and also add that code to your aircraft.cfg.

5TX6D said:
You could have a couple of problems. The airport afcad parking spots may not be correct size. Or the A/C wingspan wrong in the .cfg file. I would suggest
correcting the wingspan value in the aircraft.cfg file in each of your aircraft. If it continues look at the afcad file parking spots and make sure the size is correct.

This link should help get both sorted out. http://www.flightsim2004-fanatics.com/FlightSim/FSXWingSpanValues.htm

I have my aircraft in folders with all models and liveries. So you only have one aircraft.cfg for each type. Example, FAIB_B737-800 or FSP_B787-9 etc.

World of AI aircraft folders should be like, WoA_...

Hope that helps.
Click to expand...
Thanx for responding STX6D. Yeah, the problem is that the parking spots are the correct size or very close to what they should be and it wasn't working. For example, looking at the list you sent the link for, a 767-300 should park at a spot of 23.79 meters radius. For me they were parking at much bigger radii or, as I said, at small 17 and 18 meter radii. I probably have to check the aircraft.cfg file as you stated but I couldn't find that. However, it seems that the next respondent to my question may provide a means of doing so. Thanx again.

robystar said:
Hi,

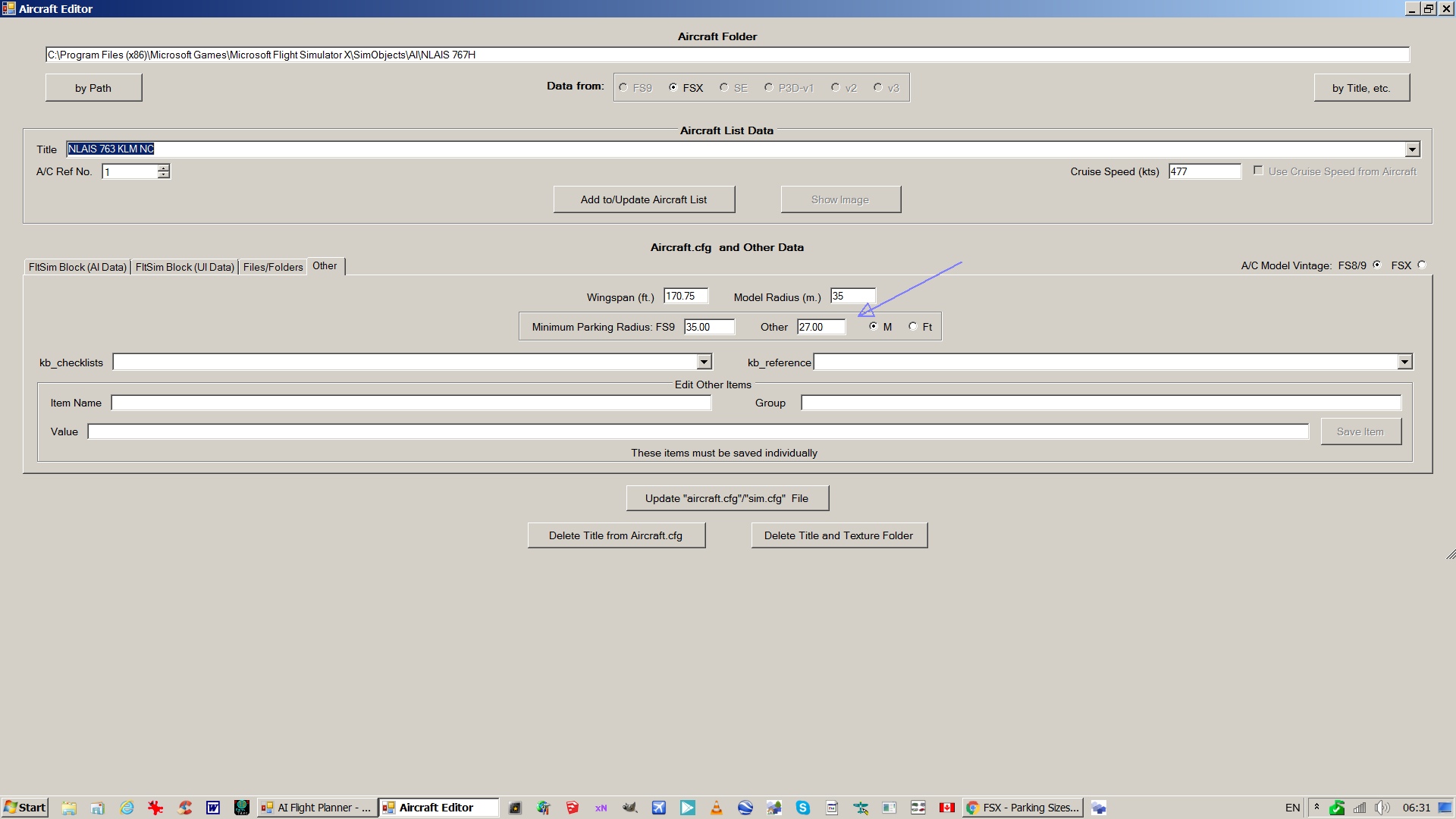

You could use Don Grovestein's AIFP program. In the aircraft editor you can check the information available for that aircraft.

View attachment 29261

Aircraft with smaller wingspans will always try to park in parking spots that are bigger. To avoid that, code your parking spots in ADE (or AFX?) and also add that code to your aircraft.cfg.
Click to expand...

Thanx Roby. I didn't know about Don Grovestein's AIFP program but I promptly downloaded it. As of right now I haven't had a chance to try it out yet but it looks promising and may be the answer I was looking for. Cheers.

Here's a pic where to find your aircraft cfg file for each aircraft. File at bottom, "aircraft"




Open the aircraft cfg file and look for this.



The wing span entered in the aircraft cfg file should be in feet. The column highlighted in yellow, see link posted. I have not used AIFP for this, I found it after the fact.
If you want post the aircraft cfg in question and the airport afcad file so we can have a look.

I have 6.52 gigs of AI aircraft, and they all park where I tell them. :P I keep it back up, years of work.

As does AIFP, Ed, and you can at the same time start working on your flightplans and convert your MAIW FS9 flight plans to FSX ones.
But I agree that Martin does a great job in giving a lot of extra information on the MAIW aircraft, flightplans, airports, etc .
I always check his website before I go to the MAIW one (Hey, sorry, but I cannot find any 'thumbs up' smiley for Martin).

5TX6D said:
Here's a pic where to find your aircraft cfg file for each aircraft. File at bottom, "aircraft"

View attachment 29265


Open the aircraft cfg file and look for this.

View attachment 29267

The wing span entered in the aircraft cfg file should be in feet. The column highlighted in yellow, see link posted. I have not used AIFP for this, I found it after the fact.
If you want post the aircraft cfg in question and the airport afcad file so we can have a look.

I have 6.52 gigs of AI aircraft, and they all park where I tell them. :p I keep it back up, years of work.
Click to expand...

You are tha dude Robystar! I followed your directions to get to the aircraft.cfg file. Found the 767-200 file and, for whatever reason, the wingspan was set to 94.75 which is the wingspan for 737-300s, 400s and 500s. I changed it to the 156.08 that it should be and low-and-behold, the 767s are parking at their proper spots now. I still have to check many other aircraft but have no doubt the results will be similar. Now I have to go to several airports that I've used ADE/AFCAD on and change the parking spots to the way they should be but now I don't mind that much. Many thanx.

quasair (Eric)
