MSFS20 Problem - Exporting textures scaled with Mapping node !

K

KOKOKT999

Messages
30
Country
turkey
Hello,
I am not pro with Blender and trying to use 2.9 for exporting textured airport buildings. I searched too much but could not find the reason. It is maybe very easy to solve but I could not find it. Thanks for your support , in advance.
When using pbr textures for the faces, I want to use mapping node scale for adjusting the size of the textures and it seems to be successfull in Blender. But, when I export the models for MSFS , using the MSFS gltf exporter, I always see that the texture sizes are not as seen in Blender.
What am I missing ? Thanks.

Did you apply all transforms to the objects before exporting?

In object mode go to Object-apply-all transforms.

Sent from my SM-G935F using Tapatalk

If I understand correctly, you are trying to remap a texture within the node editor?

Pyscen said:
If I understand correctly, you are trying to remap a texture within the node editor?
Click to expand...
Yes.
In Blender...

In MCX or MSFS

Please show the node editor with the change and show it prior to the change.

Pyscen said:
Please show the node editor with the change and show it prior to the change.
Click to expand...

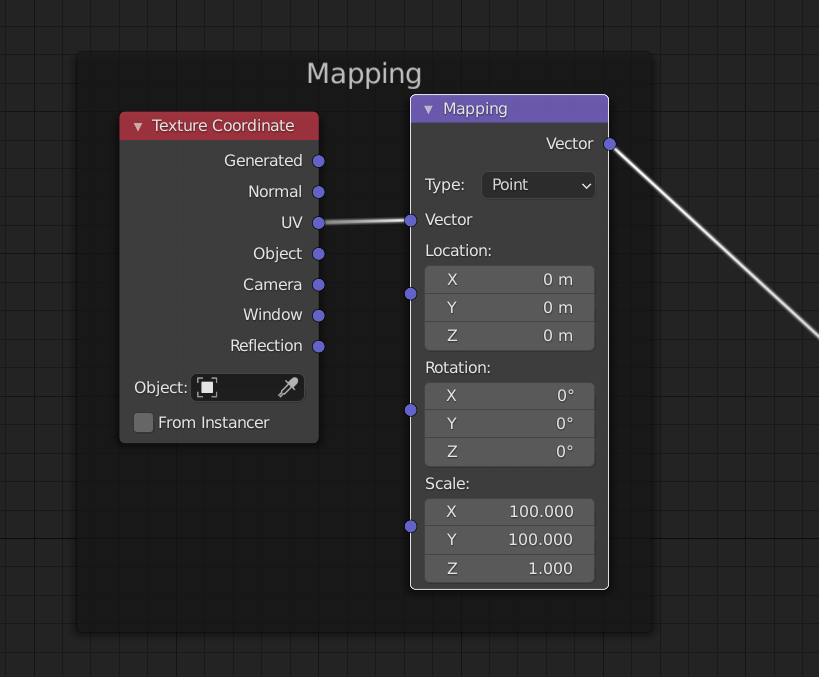

Scales were 1-1-1 before the change and I want it to look like it is in Blender, where after the change the scales are 100-100-1
It is the terminal roof texture where I wanted small stones, not big rocks :)
When scaling the faces in UV Editor, it works when exported (I do not want this). But when it is scaled by mapping node, it is not working when exported.

Last edited:
KOKOKT999 said:
View attachment 70567
Scales were 1-1-1 before the change and I want it to look like it is in Blender, where after the change the scales are 100-100-1
It is the terminal roof texture where I wanted small stones, not big rocks :)
When scaling the faces in UV Editor, it works when exported (I do not want this). But when it is scaled by mapping node, it is not working when exported.
Click to expand...
Any help would be wonderful.I am stuck with this :(

It is not possible to use the mapping node. You can go to the uv editor and scale the uvs there. I think that should work.

Mikea.at said:
It is not possible to use the mapping node. You can go to the uv editor and scale the uvs there. I think that should work.
Click to expand...
Yes, scaling via UV Editor worked but I wanted to use mapping node. Why it is not posible ? Thank you for your reply.

Last edited:
