Problem terrain elevation SDK (shape)

B

Blomotom

Messages
14
Country
france
Hello,

I have a problem on my airport.

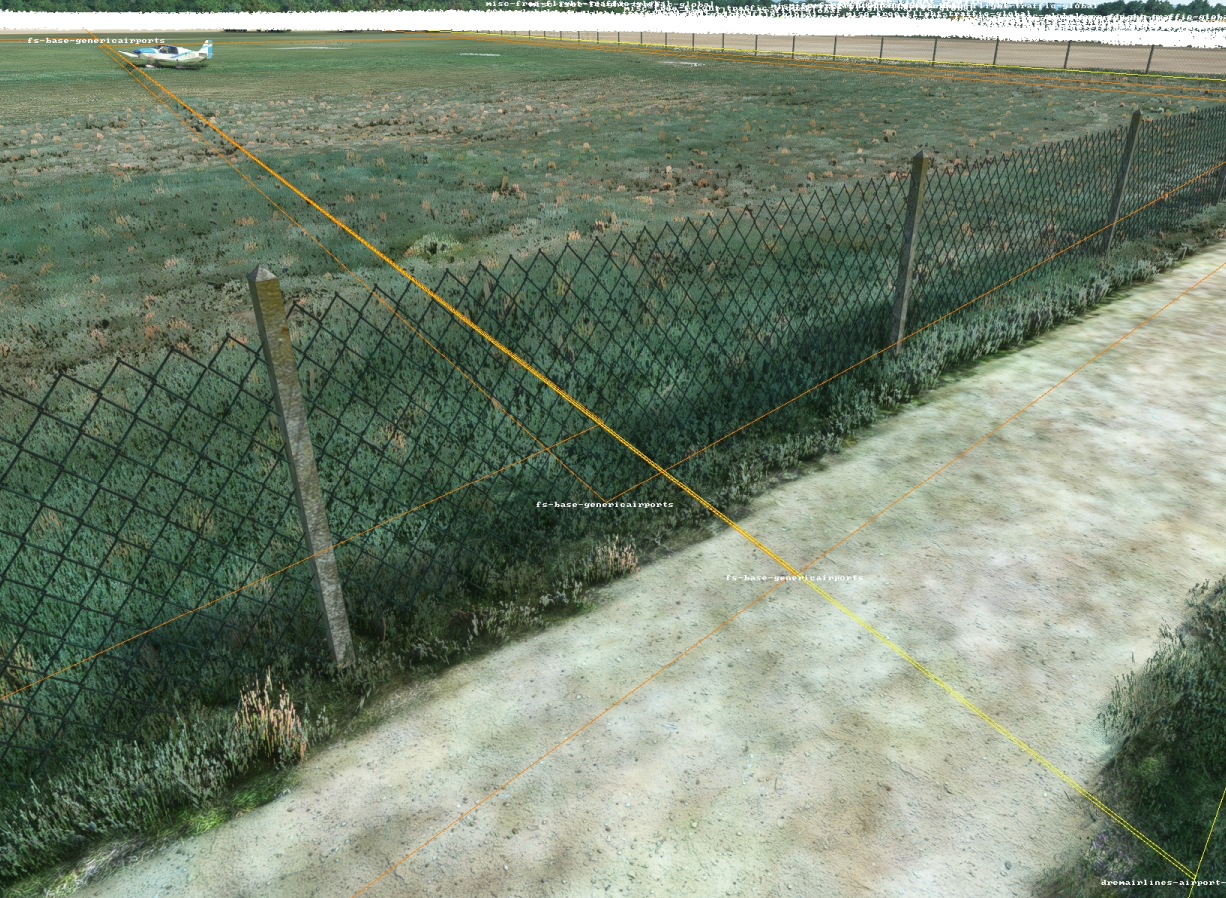

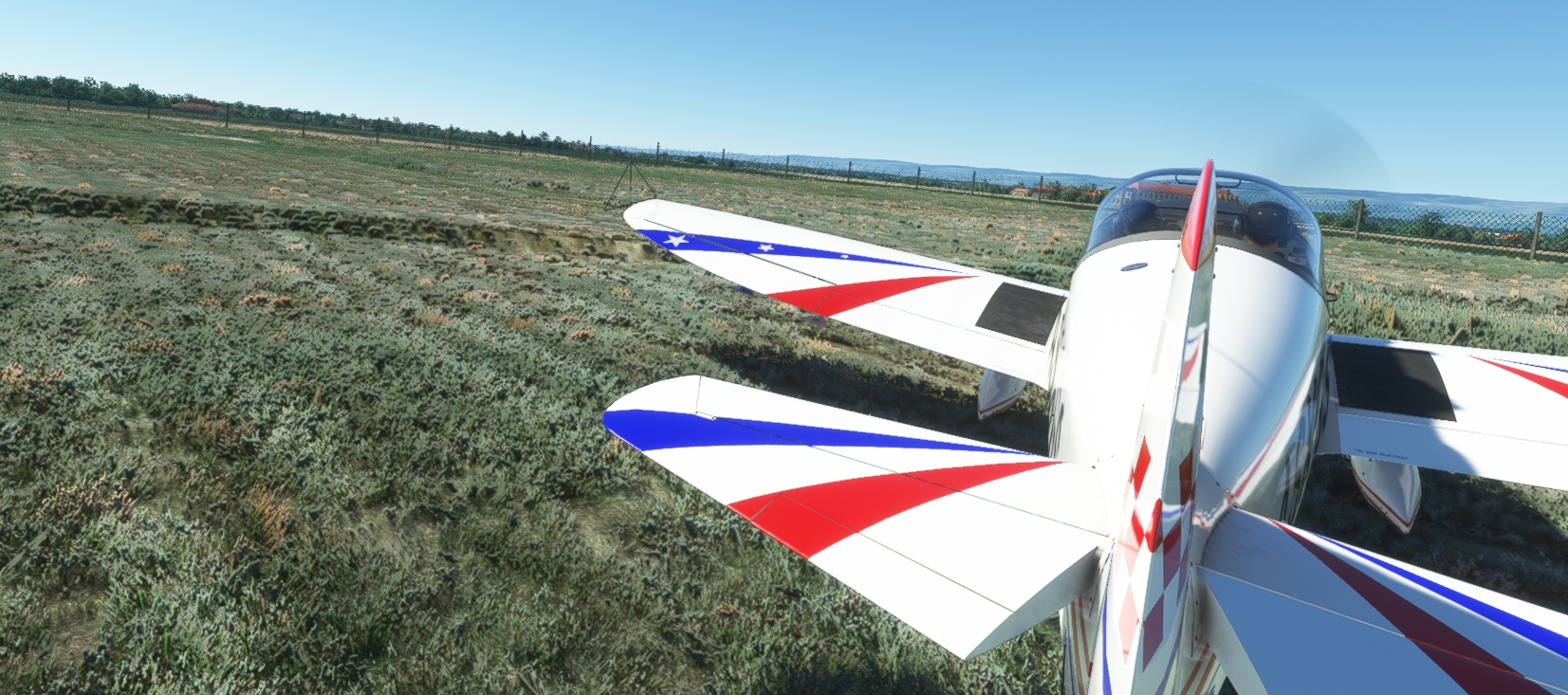

I have a break elevation who cross my runway




Airport properties

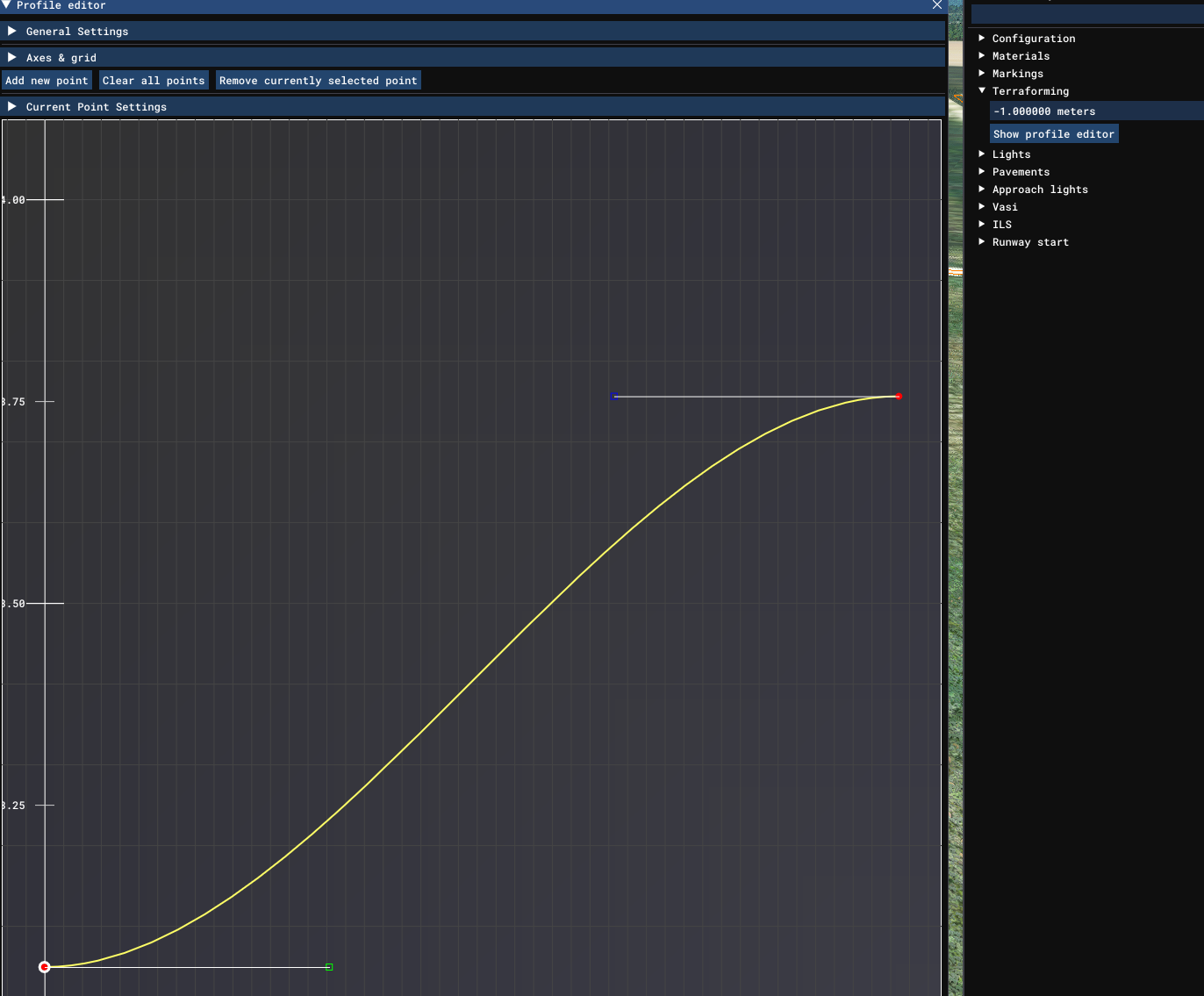

Runway elevation

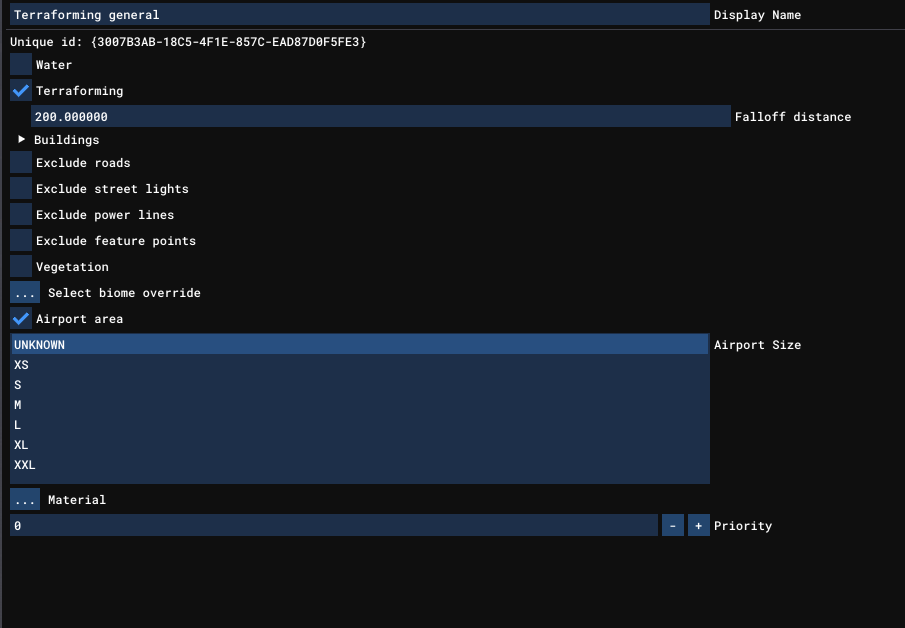

Terraforming terrain who include runway



Could you help please

I have for test :
Set terraforming priority to 1 (no change)
Apply flatten YES/NO (no change)
Use AIRPORT aera option (non change)

I have last SDK

Thank you in advance.


Attachments

  • 1692539481476.png
    151.8 KB · Views: 176
You could zip a small project that has this problem, and attach it to a post. Otherwise we don't know where this is or what the exact solution might be.

Ok i have find my problem. The problem is the terraforming apron who cover the runway. I have delete it and its work.

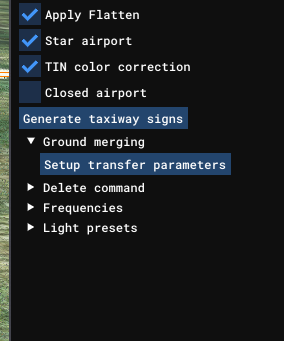

Could you explain me what is apply flatten on airport prorprety ?
1692539648750-png.89356

From the SDK:

  • Apply Flatten​

    Checking this option will auto-generate terraforming rectangles within the bounds of the airport test radius to flatten the terrain. These rectangles are internally defined and not rendered in the world as objects, although their effects will be visible on the terrain.
