Reference for effects in Gmax/fs

Voyager30

Voyager30

Messages
28
Country
sweden
Hi

Have been testing out how to attach effexts to a GMax object this evening, belive it or not it worked at first try :D

But i run into a another problem, smallish but still a problem, does anybody know of some kind of reference how FS stock effects look like ?
It will be a long time to test out the different effect and compiing the objects before each test.

I have tested with the fx_beacon effect and this give me a blinking light on a antenna, but I really want a steady red glow instead. Is there a known stock effect for this anyway or do I have to code it by my self ?

Regards

Gerth.

you can use fx_navreddm.....but the isnt all that bright....but its a steady red light. you can alter the effect file to your needs....just cut and paste and rename or every effect that is used by that one will be altered. I have a obstruction effect thats a steady burn if you like..just let me now and i'll paste it on here

Dave

Hi Ablitos

Thanks for pointing this effect out for me, I will try it tonight.
If you can upload your effext so would I be very pleased, the effect you describe is exactly what I am looking for.
I have a club house with an obstruction light in the roof in my scenery, but I miss the "light" part.

Regards

Gerth

Hey voyager

here is my effect file for my obs light which is a steady burn red. The light is a little bigger then the navred i told you about before. Just cut and paste and let me know if u like....if not i can make one for you


[Library Effect]
Lifetime=5
Version=2.00
Radius=-1

[Properties]
Spot=1
Tower=1
Map=1

[Emitter.0]
Lifetime=0.00, 0.00
Delay=0.00, 0.00
Bounce=0.00
No Interpolate=1
Rate=1.00, 1.00
X Emitter Velocity=0.00, 0.00
Y Emitter Velocity=0.00, 0.00
Z Emitter Velocity=0.00, 0.00
Drag=0.00, 0.00
X Particle Velocity=0.00, 0.00
Y Particle Velocity=0.00, 0.00
Z Particle Velocity=0.00, 0.00
X Rotation=0.00, 0.00
Y Rotation=0.00, 0.00
Z Rotation=0.00, 0.00
X Offset=-0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=-0.00, 0.00

[Particle.0]
Lifetime=0.00, 0.00
Type=19
X Scale=2.00, 2.00
Y Scale=2.00, 2.00
Z Scale=0.00, 0.00
X Scale Rate=0.00, 0.00
Y Scale Rate=0.00, 0.00
Z Scale Rate=0.00, 0.00
Drag=0.00, 0.00
Color Rate=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=1.00, 1.00
Z Offset=0.00, 0.00
Fade In=0.00, 0.00
Fade Out=0.00, 0.00
Rotation=0.00, 0.00
Static=1
Face=1, 1, 1

[ParticleAttributes.0]
Blend Mode=2
Bounce=0.00
Color Start=40, 0, 0, 1
Color End=60, 10, 0, 0
Jitter Distance=0.00
Jitter Time=0.00
uv1=0.00, 0.00
uv2=0.01, 0.01
X Scale Goal=0.00
Y Scale Goal=0.00
Z Scale Goal=0.00
Extrude Length=0.00
Extrude Pitch Max=0.00
Extrude Heading Max=0.00

[Emitter.1]
Lifetime=0.50, 0.50
Delay=0.00, 0.00
Bounce=0.00
No Interpolate=1
Rate=1.00, 1.00
X Emitter Velocity=0.00, 0.00
Y Emitter Velocity=0.00, 0.00
Z Emitter Velocity=0.00, 0.00
Drag=0.00, 0.00
X Particle Velocity=0.00, 0.00
Y Particle Velocity=0.00, 0.00
Z Particle Velocity=0.00, 0.00
X Rotation=0.00, 0.00
Y Rotation=0.00, 0.00
Z Rotation=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00

[Particle.1]
Lifetime=0.00, 0.00
Type=19
X Scale=2.00, 2.00
Y Scale=2.00, 2.00
Z Scale=0.00, 0.00
X Scale Rate=0.00, 0.00
Y Scale Rate=0.00, 0.00
Z Scale Rate=0.00, 0.00
Drag=0.00, 0.00
Color Rate=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00
Fade In=0.00, 0.00
Fade Out=0.00, 0.00
Rotation=0.00, 0.00
Static=1
Face=1, 1, 1

[ParticleAttributes.1]
Blend Mode=2
Bounce=0.00
Color Start=40, 5, 0, 255
Color End=40, 5, 0, 0
Jitter Distance=0.00
Jitter Time=0.00
uv1=0.00, 0.00
uv2=0.50, 0.50
X Scale Goal=0.00
Y Scale Goal=0.00
Z Scale Goal=0.00
Extrude Length=0.00
Extrude Pitch Max=0.00
Extrude Heading Max=0.00

[Emitter.2]
Lifetime=0.50, 0.50
Delay=0.00, 0.00
Bounce=0.00
No Interpolate=1
Rate=1.00, 1.00
X Emitter Velocity=0.00, 0.00
Y Emitter Velocity=0.00, 0.00
Z Emitter Velocity=0.00, 0.00
Drag=0.00, 0.00
X Particle Velocity=0.00, 0.00
Y Particle Velocity=0.00, 0.00
Z Particle Velocity=0.00, 0.00
X Rotation=0.00, 0.00
Y Rotation=0.00, 0.00
Z Rotation=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00

[Particle.2]
Lifetime=0.00, 0.00
Type=19
X Scale=1.35, 1.35
Y Scale=1.35, 1.35
Z Scale=0.00, 0.00
X Scale Rate=0.00, 0.00
Y Scale Rate=0.00, 0.00
Z Scale Rate=0.00, 0.00
Drag=0.00, 0.00
Color Rate=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00
Fade In=0.00, 0.00
Fade Out=0.00, 0.00
Rotation=0.00, 0.00
Static=1
Face=1, 1, 1

[ParticleAttributes.2]
Blend Mode=2
Bounce=0.00
Color Start=40, 5, 0, 255
Color End=40, 5, 0, 0
Jitter Distance=0.00
Jitter Time=0.00
uv1=0.00, 0.00
uv2=0.50, 0.50
X Scale Goal=0.00
Y Scale Goal=0.00
Z Scale Goal=0.00
Extrude Length=0.00
Extrude Pitch Max=0.00
Extrude Heading Max=0.00

[Emitter.3]
Lifetime=0.50, 0.50
Delay=0.00, 0.00
Bounce=0.00
No Interpolate=1
Rate=1.00, 1.00
X Emitter Velocity=0.00, 0.00
Y Emitter Velocity=0.00, 0.00
Z Emitter Velocity=0.00, 0.00
Drag=0.00, 0.00
X Particle Velocity=0.00, 0.00
Y Particle Velocity=0.00, 0.00
Z Particle Velocity=0.00, 0.00
X Rotation=0.00, 0.00
Y Rotation=0.00, 0.00
Z Rotation=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00

[Particle.3]
Lifetime=0.00, 0.00
Type=19
X Scale=1.30, 1.30
Y Scale=1.30, 1.30
Z Scale=0.00, 0.00
X Scale Rate=0.00, 0.00
Y Scale Rate=0.00, 0.00
Z Scale Rate=0.00, 0.00
Drag=0.00, 0.00
Color Rate=0.00, 0.00
X Offset=0.00, 0.00
Y Offset=0.00, 0.00
Z Offset=0.00, 0.00
Fade In=0.00, 0.00
Fade Out=0.00, 0.00
Rotation=0.00, 0.00
Static=1
Face=1, 1, 1

[ParticleAttributes.3]
Blend Mode=2
Bounce=0.00
Color Start=160, 20, 0, 255
Color End=160, 20, 0, 0
Jitter Distance=0.00
Jitter Time=0.00
uv1=0.00, 0.00
uv2=0.50, 0.50
X Scale Goal=0.00
Y Scale Goal=0.00
Z Scale Goal=0.00
Extrude Length=0.00
Extrude Pitch Max=0.00
Extrude Heading Max=0.00

let me know how it works out

Dave

Thanks for the help Dave

I like it, And i will go with this for a while until I start to look at the very fine details on my scenery. With the rough scenery I have for the moment this is top notch :laughing: .

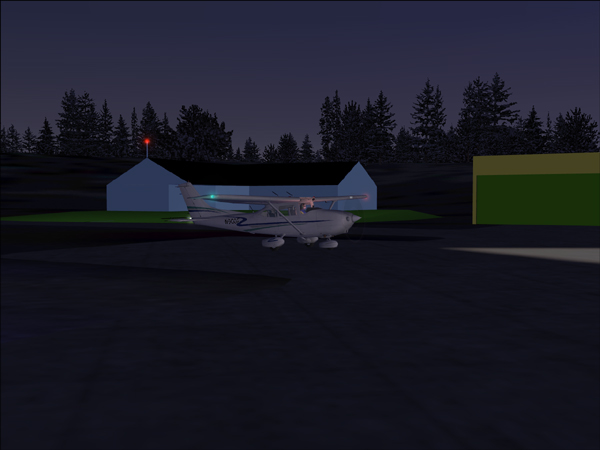

As a reward, Pls se the attached pic:s with your effect attached in the scenery.

Thanks again and, Regards

Gerth


Attachments

  • ESGE_04.jpg
    93.4 KB · Views: 515
  • ESGE_05.jpg
    70.3 KB · Views: 471
  • ESGE_06.jpg
    99.6 KB · Views: 471
Hey voyager

No prob...glad u like.....scenery is coming out good so far..keep up the good work. Working on a blinking obs light which fades in and out if your interested for your scenery let me know

Dave
