MSFS20 Remove displaced threshold markings/arrows

sleepy_t

sleepy_t

Messages
85
Country
germany
Hi everyone,

how can I remove the arrows being displayed on the threshold? I tried aprons, exclusion rectangles, nothing works. Still I get these huge arrows every several meters, but my scenery has only smaller arrows. These are displayed correctly, but I cannot get rid of the default arrows.
I tried creating my own "displayed threshold" via disabling the default threshold and instead use an apron, but then also the lighting is changed. There are no edge lights, etc.

Any tipps?

Greetings
Tobi

Hi. If I understand your question correctly:

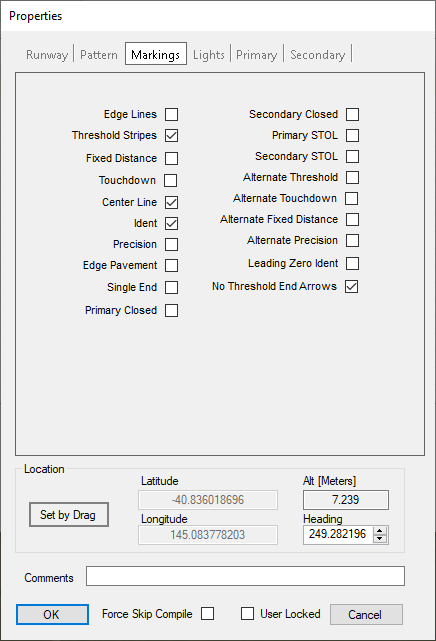

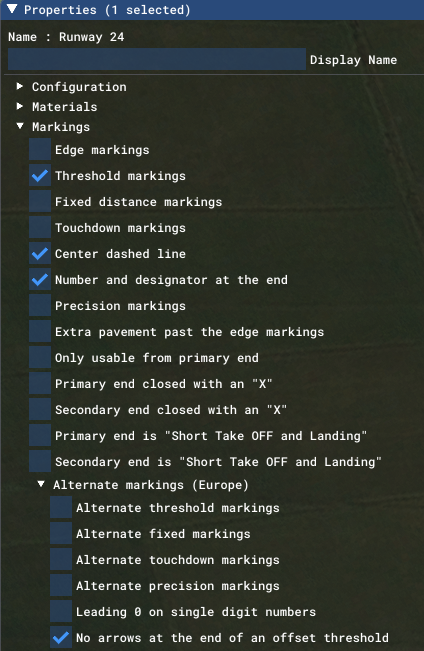

In ADE/In Sim they are both an attribute of the Runway - "No Arrows" - This controls the small arrows appearing as such, just before the solid white line:

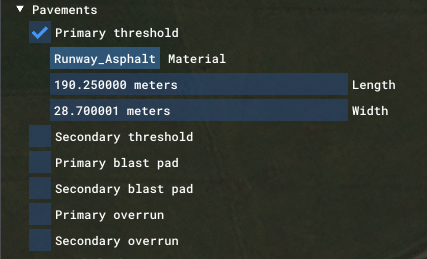

If you are referring to the 3 long arrows, they are controlled under Pavements and equal the Primary threshold. However turning it off will move the start of the runway and so you will need to either adjust the length of the runway or add an overrun etc to compensate



Hope this helps.

Last edited:
No, this removes the arrows at the end, just before the runway start. These are removed, no problem. It's the arrows all the way on the threshold itself not being removed...

Yes, I tried removing the threshold and instead use an apron and my custom arrows painted on top. Works, but it also changes the edge lighting (threshold edges are red, than turning to green for the runway, removing the threshold makes the edges totally dark with no lights logically), will try again with an overrun and see what this does to the lighting.

Checked, the "overrun" does not create any lighting on the edges or the end of the overrun.

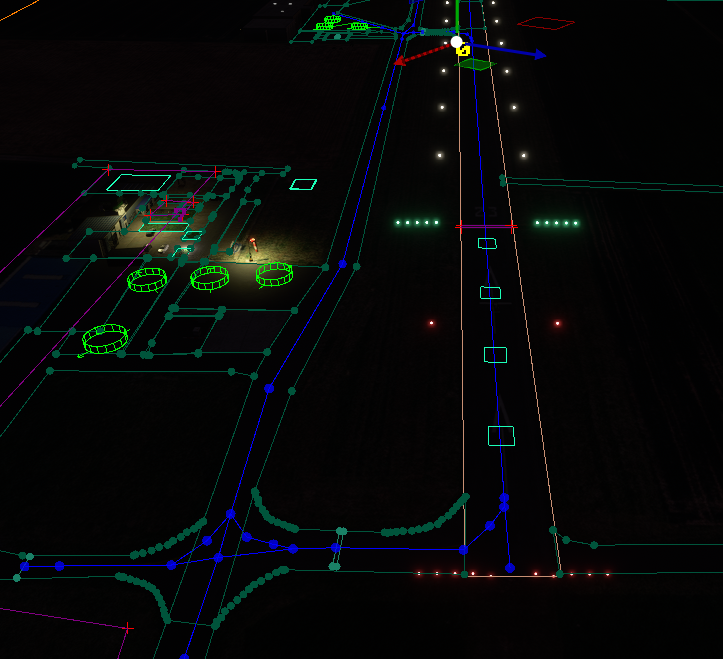

Threshold:

Overrun:


Well, I could create my own lights, but removing the threshold also puts the green runway start lights on the runway.

So, if I want to keep the correct lighting, I have to use a threshold, but cannot get rid of the arrows on the threshold, as these always have priority.
If I use some other form of runway extension, the edge lighting is gone (could fix that), but the runway start lighting is wrong.

It's really annoying... ☹️
