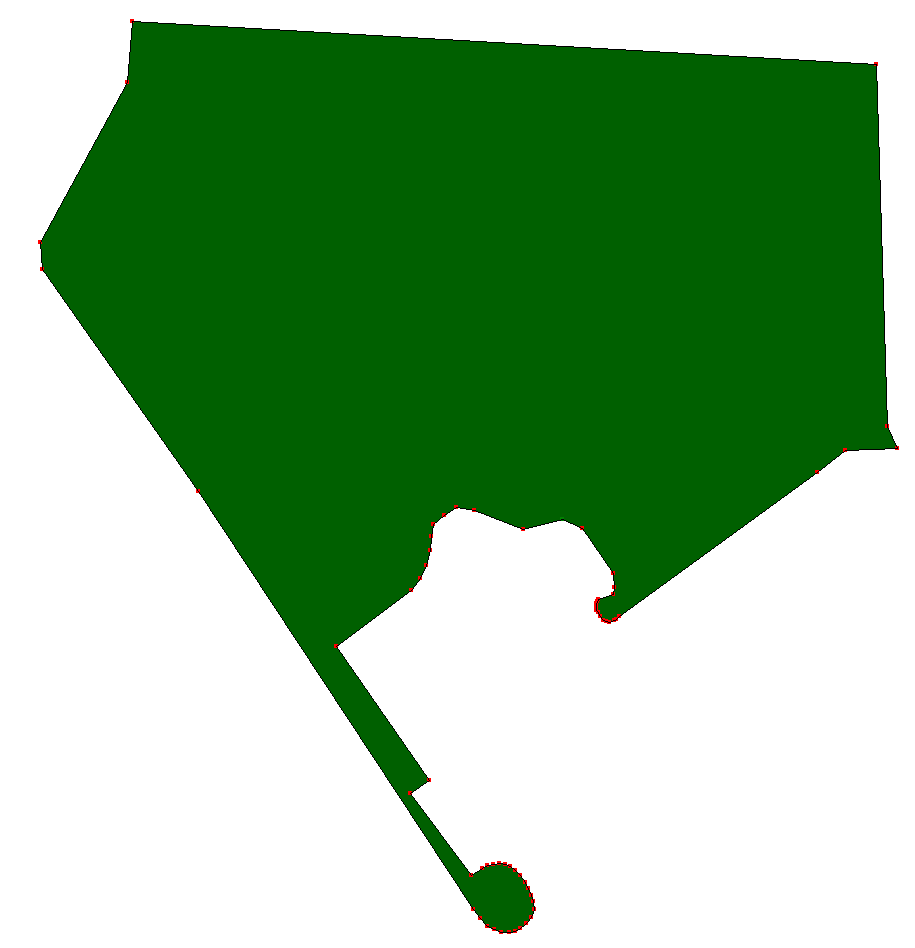

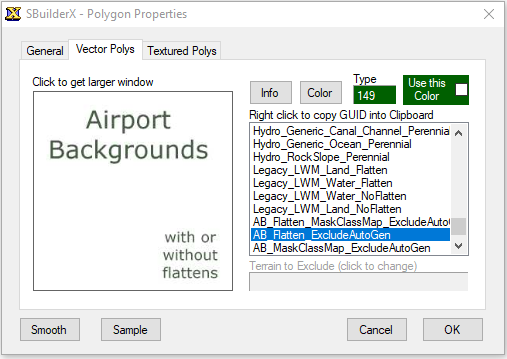

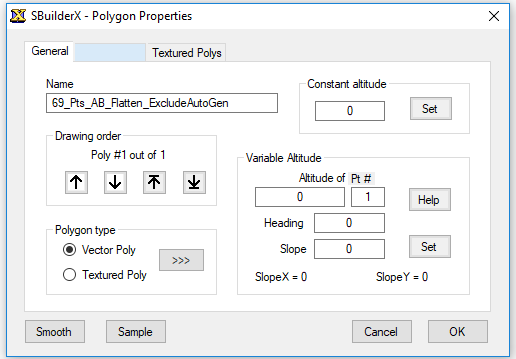

Sbuilder 0 altitude not 0 ?

#2
Hi Mario:

If the surrounding Hydro polygons are not also set to 0 Meters AMSL, that could also cause this anomaly. :scratchch

One often needs to re-work such Hydro tiles using an "Exclude and Replace" protocol for involved QMID-11 tiles.


You may wish to verify what got compiled by SBuilderX into the CVX vector BGL by decompiling it into a *.BLN output file format using Patrick Germain's CvxExtractor utility, then inspect the *.BLN X,Y,Z (Lon,Lat,Alt) polygon vertex point values with a text editor.

https://www.fsdeveloper.com/forum/threads/cvxextractor-exporting-vector-data.432918/



PS: You may wish to review the excellent tutorials by Luis Feliz-Tirado cited here:

https://www.fsdeveloper.com/forum/threads/editing-the-fs-earth-tiles-image-result.443944/post-808904


GaryGB
