SimObject visbility based on year / month

A

attben

Messages
98
Country
spain
Hello everyone,
i'm having some issues with visibility in MSFS SimObjects. Essentially what i want to do, is show/hide an object by year. whats funny is that this worked perfectly well, but it broke before christmas (after an update, unless i did something terribly wrong and dont recall).
anyone see anything wrong with this code:
------------------
<?xml version="1.0" encoding="utf-8" ?>
<ModelInfo version="1.1" guid="{a7e57515-27c1-4a27-80b3-fd22a273cd5d}">
<LODS>
<LOD MinSize="10" ModelFile="ATR-72.gltf"/>
</LODS>

<ModelBehaviors>
<Component ID="ATR-72" Node="atr-72">
<Visibility>
<Parameter>
<Code>(A:LOCAL YEAR, Number) 2007 &gt;= (A:LOCAL YEAR, Number) 2025 &lt;= and if{ 1 } els{ 0 }</Code>
</Parameter>
</Visibility>
</Component>
</ModelBehaviors>


</ModelInfo>
---------------------------------------------

For general info, it was just "<Behaviors>", changing it doesnt seem to matter... :S
thanks for the help
ben

attben said:
Hello everyone,
i'm having some issues with visibility in MSFS SimObjects. Essentially what i want to do, is show/hide an object by year. whats funny is that this worked perfectly well, but it broke before christmas (after an update, unless i did something terribly wrong and dont recall).
anyone see anything wrong with this code:
------------------
<?xml version="1.0" encoding="utf-8" ?>
<ModelInfo version="1.1" guid="{a7e57515-27c1-4a27-80b3-fd22a273cd5d}">
<LODS>
<LOD MinSize="10" ModelFile="ATR-72.gltf"/>
</LODS>

<ModelBehaviors>
<Component ID="ATR-72" Node="atr-72">
<Visibility>
<Parameter>
<Code>(A:LOCAL YEAR, Number) 2007 &gt;= (A:LOCAL YEAR, Number) 2025 &lt;= and if{ 1 } els{ 0 }</Code>
</Parameter>
</Visibility>
</Component>
</ModelBehaviors>


</ModelInfo>
---------------------------------------------

For general info, it was just "<Behaviors>", changing it doesnt seem to matter... :S
thanks for the help
ben
Click to expand...


Hi maybe try this:


Code:
<?xml version="1.0" encoding="utf-8" ?>
<ModelInfo version="1.1" guid="{a7e57515-27c1-4a27-80b3-fd22a273cd5d}">
    <LODS>
        <LOD MinSize="10" ModelFile="ATR-72.gltf"/>
    </LODS>
</ModelInfo>



<ModelBehaviors>
        <Component ID="ATR-72" Node="atr-72">
            <Visibility>
                <Parameter>
                    <Code>(E:LOCAL YEAR, Number) 2007 &gt;= (E:LOCAL YEAR, Number) 2025 &lt;= and if{ 1 } els{ 0 }</Code>
                </Parameter>
            </Visibility>
        </Component>
</ModelBehaviors>

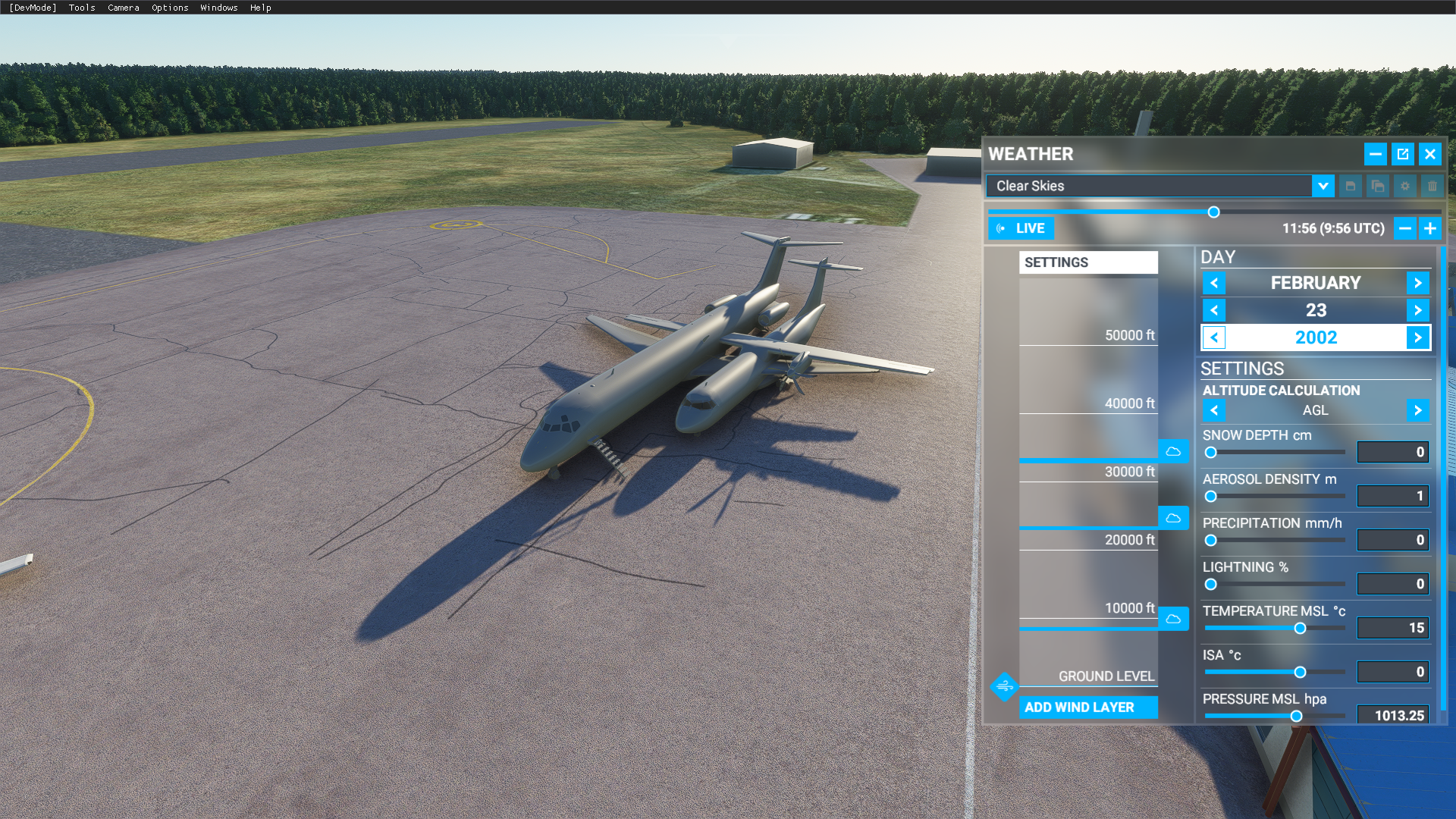

hey, thanks for this. it still doesnt work. like i said, it was working perfectly before, but now, with your code and mine, it doesnt. i got 2 planes here that are supposed to appear, one up to 2006, the other after, and they just both appear, and nothing disappears when i change the year..
any more ideas?! :(

you are showing us two planes but only one <ModelBehaviors>
each aircraft must have its own ModelBehaviors
each one with its own visibility parameter
maybe you are not showing us the entire xml file?
What you wrote in the code means that the object ATR-72.gltf will only be visible from the years 2007 to 2025
and it appears to be written correctly (with E: )

Steffsim said:
Just tried the code. It works.
You known this must be in the SimObject folder?
Click to expand...

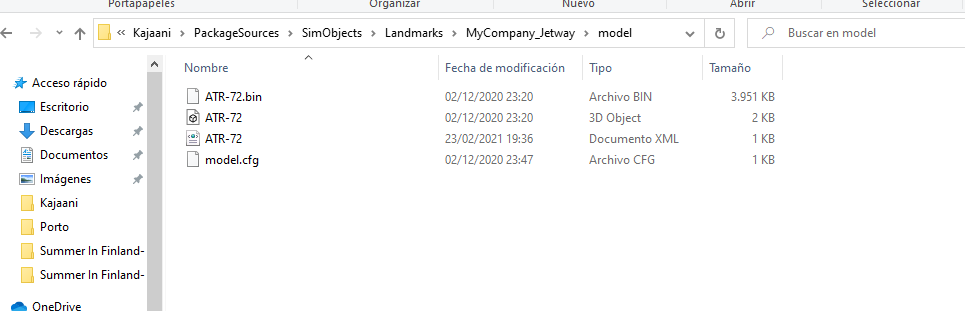

many thanks for your reply. yes they are, here is my setup:

(ignore the fact theyre called "landmarks" or "jetway", i will change that)
is there an issue?

614NLV said:
you are showing us two planes but only one <ModelBehaviors>
each aircraft must have its own ModelBehaviors
each one with its own visibility parameter
maybe you are not showing us the entire xml file?
What you wrote in the code means that the object ATR-72.gltf will only be visible from the years 2007 to 2025
and it appears to be written correctly (with E: )
Click to expand...
thanks for your reply. these 2 are seperate simobjects each with its own cfg file.. so there is another :)

so it would all seem correct
now it is evident that the condition is not triggered
and your items are always visible
but the code looks correct :rolleyes:

is the node name Node="atr-72" right?

finally a stupid question: you load it into the scenario from the SimObjects list right....? 😊

haha yes i am. like i said, it worked before christmas, then stopped :oops:
i have no idea why... :s
also in case youre wondering what im doing, i want my airport to trigger an older generation of plane to appear as static scenery, and a newer from the year finnair started using them (dc-9s replaced by atrs o_O)
haha

great idea!
and I think it can be done easily....😇
but it is evident that your object behaves like a ScemeryObj and not as a SimObj...🧐
😉

614NLV said:
great idea!
and I think it can be done easily....😇
but it is evident that your object behaves like a scenarioObj and not as a SimObj...🧐
😉
Click to expand...
hm well i'm pretty new to this. i was just tinkering with it and it worked, then stopped. really have no idea what i'm doing wrong :s let me again try and also show you my setup..

check the node name. It must match the name of the mesh in blender (or software you use)

614NLV said:
great idea!
and I think it can be done easily....😇
but it is evident that your object behaves like a ScemeryObj and not as a SimObj...🧐
😉
Click to expand...

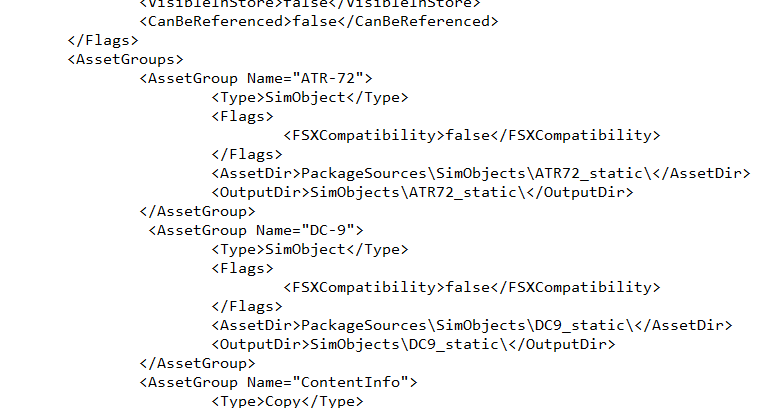

my asset groups in the assetdefinition file

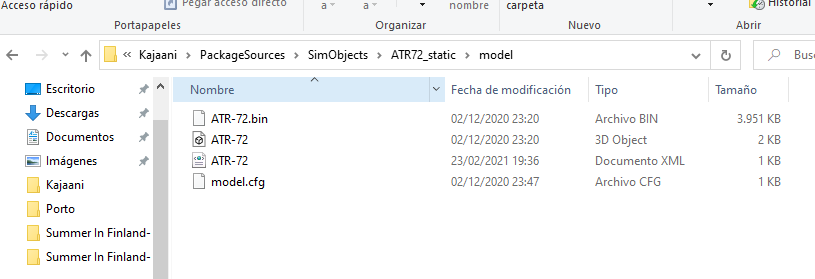

my simobj folder structure and files

and the code is what you sent me :s

if the node name is incorrect, the condition does not trigger
probably your problem is that
yes, the node name must be the mesh name and not the gltf file name ;)

still nothing. used your code and mine, moved the modelbehaviours in and out of the modelinfo, changed the node name, nothing.. :(
