Sode Triggerablevisibility aint showing in Textmenu

E

Ezzzzz

Messages
88
Country
indonesia

hi, im attempting to make a sode based runway light with both triggerable and conditional visibility as shown in my attachment. The runwaylight did show directly in the sim but i couldnt find any triggerable option in Textmenu. Can anyone please tell me what im doing wrong here?

And by the way, will triggerablevis and conditionalvis work together as i am trying to make? In case it wouldnt, ive already tried using the trigerablevisibility node only and it doesnt work either.

thanks

B

Bushpilot

Messages
269
Country
germany
Your runway lighting will only work under the set conditions.
-visibility 0-20 meter
-only during rain or snowfall
-and all this only in the time from 17:30 - 06:30 local time

Leave out the whole ConditionalVisibility for testing.

Here (https://sode.12bpilot.ch/?page_id=9) you can download a demo.
In this demo (xml) there is a section <!-- Pilot controlled lighting -->...

First experiment with it...

If this works, then continue with the next step.
And first use a ConditionalVisibility entry.

B

Bushpilot

Messages
269
Country
germany
You can't combine triggerablevis and conditionalvis.

You must decide...
-should the visibility of the runway lighting be automatically controlled by weather and time
or
-the user should control the runway lighting

Depending on the decision there are different codes.

E

Ezzzzz

Messages
88
Country
indonesia
Bushpilot said:
You can't combine triggerablevis and conditionalvis.

You must decide...
-should the visibility of the runway lighting be automatically controlled by weather and time
or
-the user should control the runway lighting

Depending on the decision there are different codes.
Click to expand...

I see.... thanks for your reply. Btw my bad i havent tried the sode demo files and after experimenting i found out that textmenu options will appear only for right? Cause ive tried to put triggerablevis in and it wouldnt show....

B

Bushpilot

Messages
269
Country
germany
Since I don't know your airport (coordinates lead to nirvana) and I don't know your runway lights objects, I created a scenario at a test airport with test objects.

I use the current SODE version 1.7.1...
My test airport: TE68 - Nuggs Flying M
My test object: 12bPilot_SODE_Runway_Lights_HIRL from the SODE_Demo (SODE/SimObjects)

My xml code for "Triggerable Visibility user induced" works without problems.

Trigger OFF

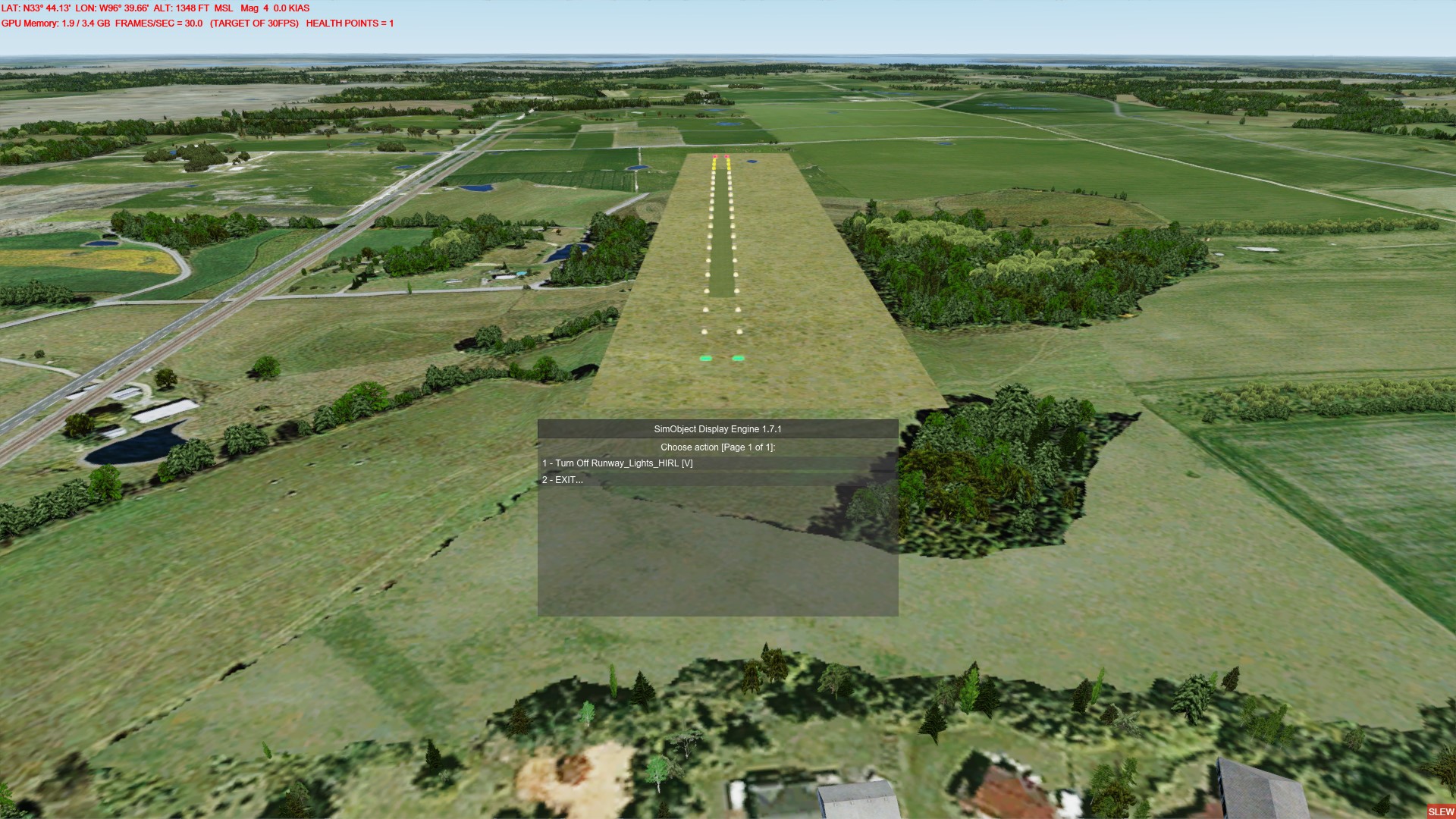

Trigger ON



My SODE xml code for the user trigger function...

XML:
<SODE>

    <!-- Triggerable Visibility user induced -->
    <SimObject Name="Runway_Lights_HIRL">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="0#AGL" Hdg="186.0"/>
        <Model SimTitle="12bPilot_SODE_Runway_Lights_HIRL">
        <TriggerableVisibility Input="TextMenu" Action="Turn On,Turn Off" VisibleOnLoad="No" IgnoreRadiusFilter="Yes"/>
        </Model>
    </SimObject>

</SODE>


I will come to the weather dependent SODE control later.
Until then you can test the user trigger.

E

Ezzzzz

Messages
88
Country
indonesia
Bushpilot said:
Since I don't know your airport (coordinates lead to nirvana) and I don't know your runway lights objects, I created a scenario at a test airport with test objects.

I use the current SODE version 1.7.1...
My test airport: TE68 - Nuggs Flying M
My test object: 12bPilot_SODE_Runway_Lights_HIRL from the SODE_Demo (SODE/SimObjects)

My xml code for "Triggerable Visibility user induced" works without problems.

Trigger OFF
View attachment 64147


Trigger ON
View attachment 64148


My SODE xml code for the user trigger function...

XML:


I will come to the weather dependent SODE control later.
Until then you can test the user trigger.
Click to expand...

Thanks for the example. From your code i found that ive accidently added “/“ after the simtitle node therefore it wasnt showing. And now its working:)

And ive figured out the conditionalvis also. I decided to trick it a bit by making 2 separate group. 1 with conditional and 1 with triggerable with off on-load. It worked as i wanted to:)

Once again thankyou!



B

Bushpilot

Messages
269
Country
germany
If that's how it works for you, then that's good.

I have to correct my statement (that neither is possible).
By using different SimObject Name= even both, user and weather trigger.

My SODE-Test xml code for the Visibility weather and time trigger based or user controled...

XML:
<SODE>

    <!-- Data Probe serving its clients -->
    <SimObject Name="TE68 - Nuggs Flying M">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="725" Hdg="0.0"/>
        <Model SimTitle="12bPilot_SODE_Environmental_Data_Probe">
        <EnvironmentalDataProbe ClientList="Runway_Lights_HIRL"/>
        </Model>
    </SimObject>

    <!-- Triggerable Visibility user induced -->
    <SimObject Name="Runway_Lights">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="0#AGL" Hdg="186.0"/>
        <Model SimTitle="12bPilot_SODE_Runway_Lights_HIRL">
        <TriggerableVisibility Input="TextMenu" Action="Turn On,Turn Off" VisibleOnLoad="No" IgnoreRadiusFilter="Yes"/>
        </Model>
    </SimObject>

    <!-- Visibility weather and time trigger based-->
    <SimObject Name="Runway_Lights_HIRL">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="0#AGL" Hdg="186.0"/>
        <Model SimTitle="12bPilot_SODE_Runway_Lights_HIRL">
            <ConditionalVisibility LogicExpression="A|B|C">
                <Condition ID="A" Variable="MetVisibility" Value="0-5000"/>
                <Condition ID="B" Variable="MetPrecipitation" Value="RAIN;SNOW"/>
                <Condition ID="C" Variable="TimeOfDay" Value="DUSK;NIGHT;DAWN"/>
            </ConditionalVisibility>
        </Model>
    </SimObject>

</SODE>


But I would choose the following settings for visibility:

<ConditionalVisibility LogicExpression="A|B|C">
<Condition ID="A" Variable="MetVisibility" Value="0-5000"/>
<Condition ID="B" Variable="MetPrecipitation" Value="RAIN;SNOW"/>
<Condition ID="C" Variable="TimeOfDay" Value="DUSK;NIGHT;DAWN"/>
</ConditionalVisibility>

Your Variable="MetVisibility" Value="0-20" <---- Your setting means that below 0-20 meters visibility the runway lighting will be switched on. At 20 meters visibility range hardly any pilot will land.
5000 meters visibility would be the limit for visual flight.

Your Variable="Time" Value="1730-0630LT" <---- Your setting means that the runway lighting is always on from 17:30 to 06:30. With the setting DUSK;NIGHT;DAWN you are more flexible.
Here the lighting is switched on shortly before sunset and switched off shortly after sunrise. No matter if it is summer or winter.

To make the variable MetVisibility and MetPrecipitation work, you need the section <EnvironmentalDataProbe> in the SODE xml code.
Look here: http://sode.12bpilot.ch/?document=the-xml-definition-file/environmentaldataprobe ...

E

Ezzzzz

Messages
88
Country
indonesia
Bushpilot said:
If that's how it works for you, then that's good.

I have to correct my statement (that neither is possible).
By using different SimObject Name= even both, user and weather trigger.

My SODE-Test xml code for the Visibility weather and time trigger based or user controled...

XML:
<SODE>

    <!-- Data Probe serving its clients -->
    <SimObject Name="TE68 - Nuggs Flying M">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="725" Hdg="0.0"/>
        <Model SimTitle="12bPilot_SODE_Environmental_Data_Probe">
        <EnvironmentalDataProbe ClientList="Runway_Lights_HIRL"/>
        </Model>
    </SimObject>

    <!-- Triggerable Visibility user induced -->
    <SimObject Name="Runway_Lights">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="0#AGL" Hdg="186.0"/>
        <Model SimTitle="12bPilot_SODE_Runway_Lights_HIRL">
        <TriggerableVisibility Input="TextMenu" Action="Turn On,Turn Off" VisibleOnLoad="No" IgnoreRadiusFilter="Yes"/>
        </Model>
    </SimObject>

    <!-- Visibility weather and time trigger based-->
    <SimObject Name="Runway_Lights_HIRL">
        <Placement Lat="33.74411691" Lon="-96.65988341" Alt="0#AGL" Hdg="186.0"/>
        <Model SimTitle="12bPilot_SODE_Runway_Lights_HIRL">
            <ConditionalVisibility LogicExpression="A|B|C">
                <Condition ID="A" Variable="MetVisibility" Value="0-5000"/>
                <Condition ID="B" Variable="MetPrecipitation" Value="RAIN;SNOW"/>
                <Condition ID="C" Variable="TimeOfDay" Value="DUSK;NIGHT;DAWN"/>
            </ConditionalVisibility>
        </Model>
    </SimObject>

</SODE>


But I would choose the following settings for visibility:

<ConditionalVisibility LogicExpression="A|B|C">
<Condition ID="A" Variable="MetVisibility" Value="0-5000"/>
<Condition ID="B" Variable="MetPrecipitation" Value="RAIN;SNOW"/>
<Condition ID="C" Variable="TimeOfDay" Value="DUSK;NIGHT;DAWN"/>
</ConditionalVisibility>

Your Variable="MetVisibility" Value="0-20" <---- Your setting means that below 0-20 meters visibility the runway lighting will be switched on. At 20 meters visibility range hardly any pilot will land.
5000 meters visibility would be the limit for visual flight.

Your Variable="Time" Value="1730-0630LT" <---- Your setting means that the runway lighting is always on from 17:30 to 06:30. With the setting DUSK;NIGHT;DAWN you are more flexible.
Here the lighting is switched on shortly before sunset and switched off shortly after sunrise. No matter if it is summer or winter.

To make the variable MetVisibility and MetPrecipitation work, you need the section <EnvironmentalDataProbe> in the SODE xml code.
Look here: http://sode.12bpilot.ch/?document=the-xml-definition-file/environmentaldataprobe ...
Click to expand...
Oh, i tought 'metvisibility' is in NM. Thanks for your info.
Now everything works perfectly! Thanks a lot for your tutor and time!:D
