FSXA [SOLVED] Static Script Failed
- Thread starter Bambi_007
- Start date
- Messages
- 611
- Country
Please watch your tone and give me or the other users some time to reply! I just had a 60 minute Teamviewer session to help another user and can't be everywhere. Also there is a real life/job going on, so please be patient.
Also, in your latest posts, you were almost always able to solve the issue yourself because you missed some little step or didn't pay enough attention to some detail, which I am guessing is also the case here.
I never had that problem during all my static jetway creations so I can't help you directly. You could send me your gmax model per PM so I can run it here on my machine to see what the problem is.
Also, in your latest posts, you were almost always able to solve the issue yourself because you missed some little step or didn't pay enough attention to some detail, which I am guessing is also the case here.
I never had that problem during all my static jetway creations so I can't help you directly. You could send me your gmax model per PM so I can run it here on my machine to see what the problem is.
- Messages
- 611
- Country
Thanks for the files.
My findings: This has nothing to do with the script, it is working flawlessly.

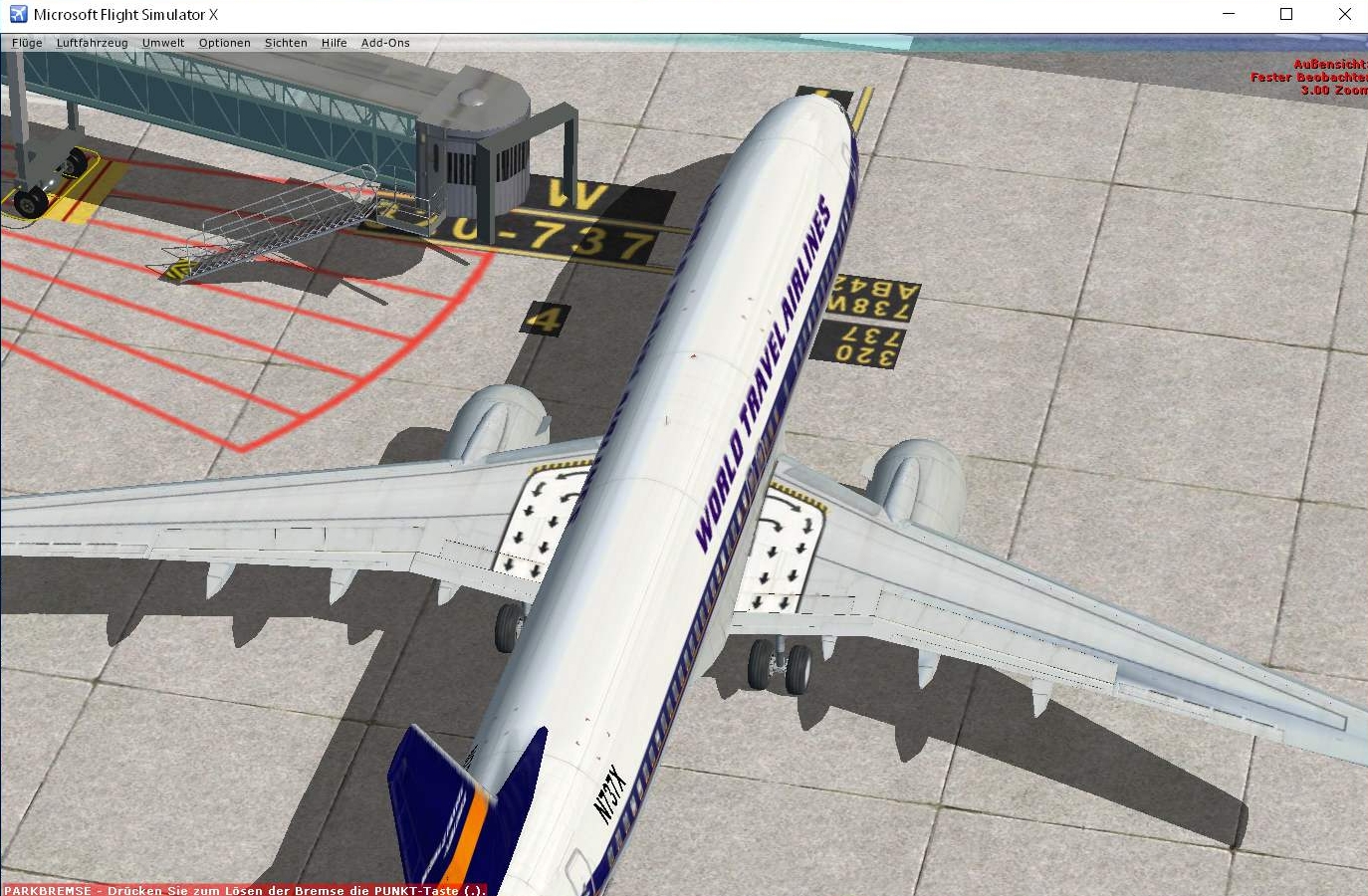

I inspected the HEAD_400 object and tried to export it separately, then the mdl exporter throws an error about it not being able to create crashboxes. Then I searched the forum about that error and found it has something to do with too small parts or attach points. Then I right-clicked the HEAD_400 object to see if there are attach point data in the "User-defined" section and voilà, there they were. Problem is that there was no attach point object belonging to that data anymore and so the gmax exporter failed/ignored the head.
Deleted the attach point data from the user-defined section and the export works and the head shows up in ModelConverterX.
My findings: This has nothing to do with the script, it is working flawlessly.
I inspected the HEAD_400 object and tried to export it separately, then the mdl exporter throws an error about it not being able to create crashboxes. Then I searched the forum about that error and found it has something to do with too small parts or attach points. Then I right-clicked the HEAD_400 object to see if there are attach point data in the "User-defined" section and voilà, there they were. Problem is that there was no attach point object belonging to that data anymore and so the gmax exporter failed/ignored the head.
Deleted the attach point data from the user-defined section and the export works and the head shows up in ModelConverterX.
