P3D v3 Strange model looks in mdcx

Azurafiles

Azurafiles

Messages
177
Country
faroeislands
Hello awesome community.
I have a huge problem and I do not know why.

All looks perfectly fine in sketchup and I have no missing texture problems.
The model only has 69.000 texture vertices and it looks strange in mdcx.

It also looks strange in Prepar3Dv3.
What is the problem here?

I have version 1.4 of mdcx.
Hope some of you have tried this before and found a solution.

No textures missing and no shown error messages.
That is if I export as dae.
If I export as OBJ it looks perfectly fine in MDCX.

SketchUp 2016-12-10 15-19-29-23.png
SketchUp 2016-12-10 15-19-23-64.png
ModelConverterX 2016-12-10 15-18-46-38.png
ModelConverterX 2016-12-10 15-18-38-22.png


Attachments

  • SketchUp 2016-12-10 15-19-35-05.png
    SketchUp 2016-12-10 15-19-35-05.png
    115 KB · Views: 382
Last edited:
Hello,...

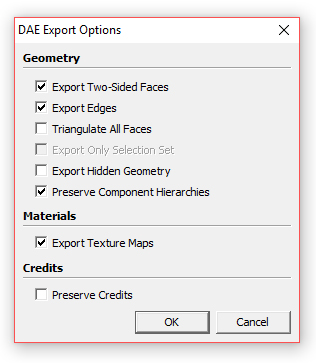

What are the export settings in SketchUp that your using?
Is that 69,000 verts? or 69?

Ok,.. uncheck the first 2 from the top,... (Export Two-Sided Faces and Export Edges). "Check" Triangulate All Faces. The rest, leave as is. Then try to re-export it.

Pyscen said:
Ok,.. uncheck the first 2 from the top,... (Export Two-Sided Faces and Export Edges). "Check" Triangulate All Faces. The rest, leave as is. Then try to re-export it.
Click to expand...

That did the trick, thanks :)
I must have done something in the settings before the problems started.
Never knew what those things did, I only build, but now I know, thanks for your help :)
