MSFS20 Texture format

GHD

GHD

Messages
12,244
Country
england
This is what I see in MCX

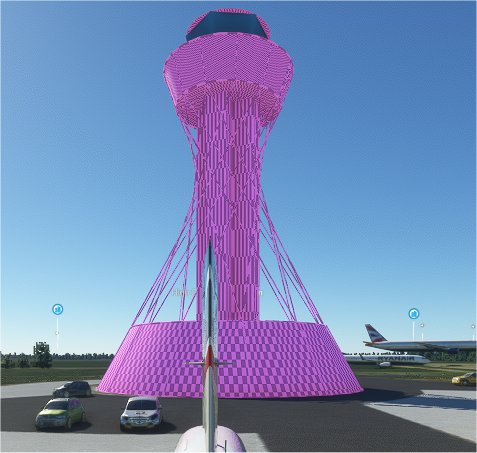

Thisis what I see in MSFS



I have tried exporting the textures as png and .jpg but it seems to make no difference.

Which format should I use?

JPG or PNG both work. The sim shows pink because it cannot find the textures. Your package structure is probably wrong. I made an example derived from the SDK SimpleScenery and attached it.


Attachments

Check the dimensions of your texture files too. They need to be in multiples of 8 pixels. E.g..256x256, 512x512 etc. All the way up to 4096x4096. Obviously the smaller you can get away with without compromising quality the better for performance.

Worth checking even if you know the above, i have been caught out a couple of times by this.

Good luck
Stinger



Sent from my SM-G935F using Tapatalk
