MSFS Turboprop Power 'Hump' ?

Messages
10,052
Country
us-arizona
Hello all,

Quick question. I have a turboprop engine model that is doing what I want, except.... that it has a 'hump' in the power range where it is calm and building, and then jumps up a very large amount. This is near the 50% range on the throttle. Adjusting your speed at that range is very difficult. Is there a way to spread out that 'hump' so that the spike is not so moderate?

This is in MSFS using an older version KingAir turboprop engine model.

If I add more 'coordinates' to the n1_to_shaft_torque_table= my engine quits, malfunctions, falls over.

n1_to_shaft_torque_table=0.000000:0.000000, 66.000000:0.097874, 100.000000:1.000000, 110.000000:1.100000

Any idea's?

Many thanks.

Bill
LHC

Messages
10,052
Country
us-arizona
Its quite a mystery... In the throttle range, at about 145 knots, if I just 'think' about edging the throttle forward a bit, it jumps up to 155 to 160 knots. Its a odd 'jump' point. I cannot figure a way to smooth it. Its like the power arc goes from 10 deg to 50 degrees upwards.

It works so nicely when on the ground, taking off, etc. But adjusting throttle in flight in the slower speed ranges, you keep hitting this crazy hump in the RPM/power.

Messages
10,052
Country
us-arizona

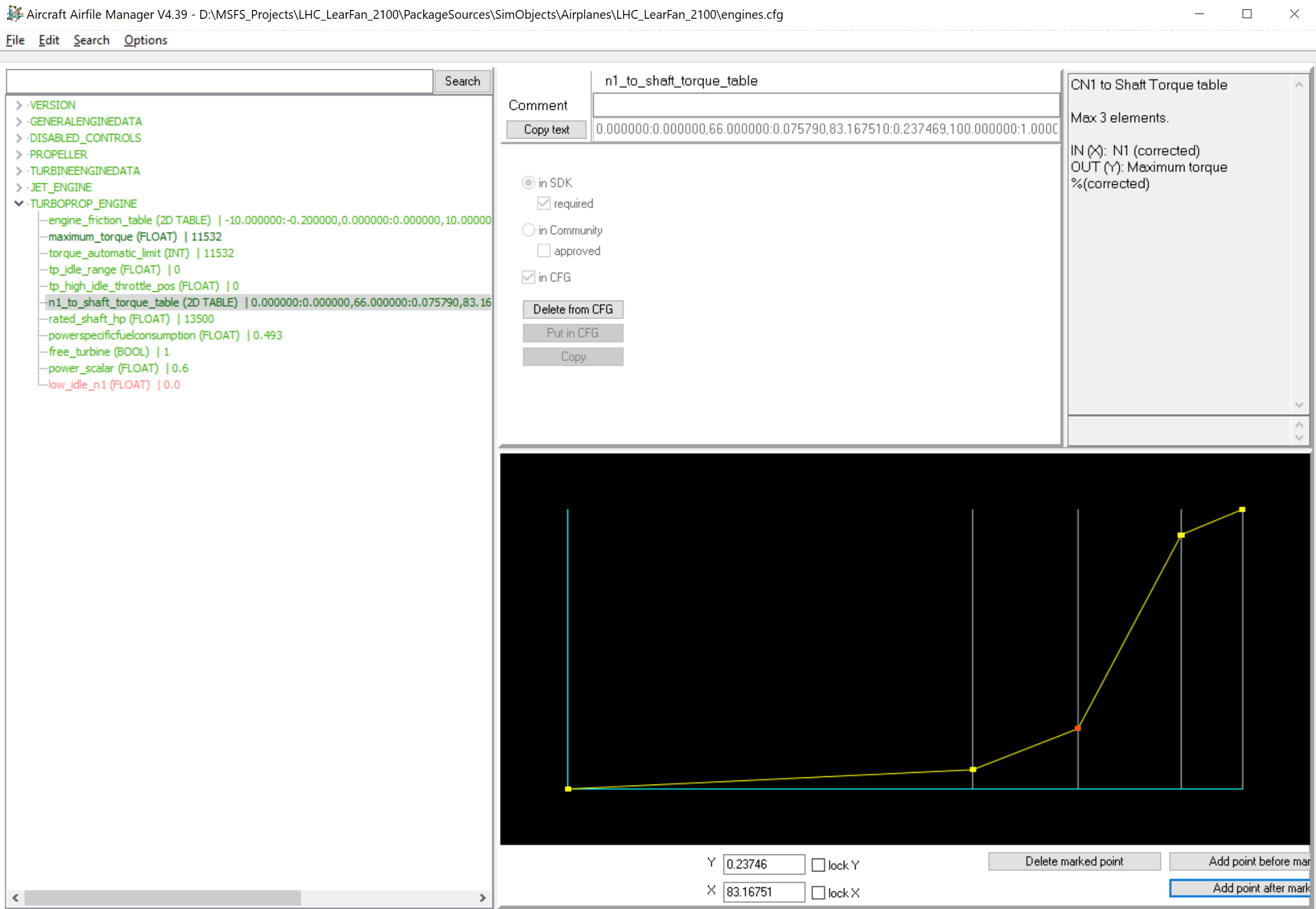

I found the issue. n1_to_shaft_torque_tableOn mine, to keep it tame on the ground, I had its angle extremely low, then high past halfway point. I found I could add 'one' more point into the table, and that helped quite a bit.

Glad I found this.




Lagaffe

Resource contributor
Messages
726
Country
france
Hi,

I cannot answer to yours questions but you made me discover this new version of AAM that I did not know.
For that, thanks William for this pearl !
