Why can't I export the bgl file?

Z

zhangzz

Messages
151
Country
china
Why can't I export gbl files? It doesn't work even with the simplest filter, it's always 0. Did I set it wrong somewhere?

Hi,

The Create3DBuilding step made no buildings, so that's why no BGL file is exported as well.

Are you sure that you shapefile does have an attribute called building? Did you check the SHP data in a tool like QGIS?

arno said:
你好，

Create3DBuilding 步骤没有建造任何建筑物，所以也没有导出 BGL 文件。

你确定你的shapefile有一个名为building的属性吗？你用QGIS之类的工具检查过SHP数据吗？hai
Click to expand...
HI arno，Why can I export ANG files？Does converting to agn format do not require shp data?
Is this a building property?Is there something wrong with my code?

Last edited:
Your SHP data has an attribute fclass, which has a value of building. So then your filter should be fclass="building".

Those are not errors, they are warnings. But normally you should not get them on every building, it can happen for very complex shapes where the algorithm fails.

Can you show how your footprints look?

arno said:
Those are not errors, they are warnings. But normally you should not get them on every building, it can happen for very complex shapes where the algorithm fails.

Can you show how your footprints look?
Click to expand...


this is only a small part😅😅

arno said:
Those are not errors, they are warnings. But normally you should not get them on every building, it can happen for very complex shapes where the algorithm fails.

Can you show how your footprints look?
Click to expand...


Even so, bgl cannot be exported

It's really weird that you get these errors with simple rectangular footprints. Can you send me that SHP file with the two buildings so that I can try to reproduce it here?

arno said:
It's really weird that you get these errors with simple rectangular footprints. Can you send me that SHP file with the two buildings so that I can try to reproduce it here?
Click to expand...
hi arno，Give it a try. This is a simple graphic I captured in that shp.


Attachments

Hi,

Now I see you are running scenProc 3.0 with this script. This error is due to a bug in version 3.0 that you can't make untextured buildings. If I run it in the latest development release it works fine for me. I used this script:

Code:
ImportOGR|test.shp|*|*|NOREPROJ
#
Create3DBuilding|FROMFILE="test.shp" And fclass="building" And FNUMVERT=4|3;6|elev|GABLED|30;40|0|0|0|NONE

arno said:
Hi,

Now I see you are running scenProc 3.0 with this script. This error is due to a bug in version 3.0 that you can't make untextured buildings. If I run it in the latest development release it works fine for me. I used this script:

Code:
ImportOGR|test.shp|*|*|NOREPROJ
#
Create3DBuilding|FROMFILE="test.shp" And fclass="building" And FNUMVERT=4|3;6|elev|GABLED|30;40|0|0|0|NONE
Click to expand...
hi arno，I copied your code directly, and it actually prompted an error in my case. . . What went wrong?:(

arno said:
Hi,

Now I see you are running scenProc 3.0 with this script. This error is due to a bug in version 3.0 that you can't make untextured buildings. If I run it in the latest development release it works fine for me. I used this script:

Code:
ImportOGR|test.shp|*|*|NOREPROJ
#
Create3DBuilding|FROMFILE="test.shp" And fclass="building" And FNUMVERT=4|3;6|elev|GABLED|30;40|0|0|0|NONE
Click to expand...

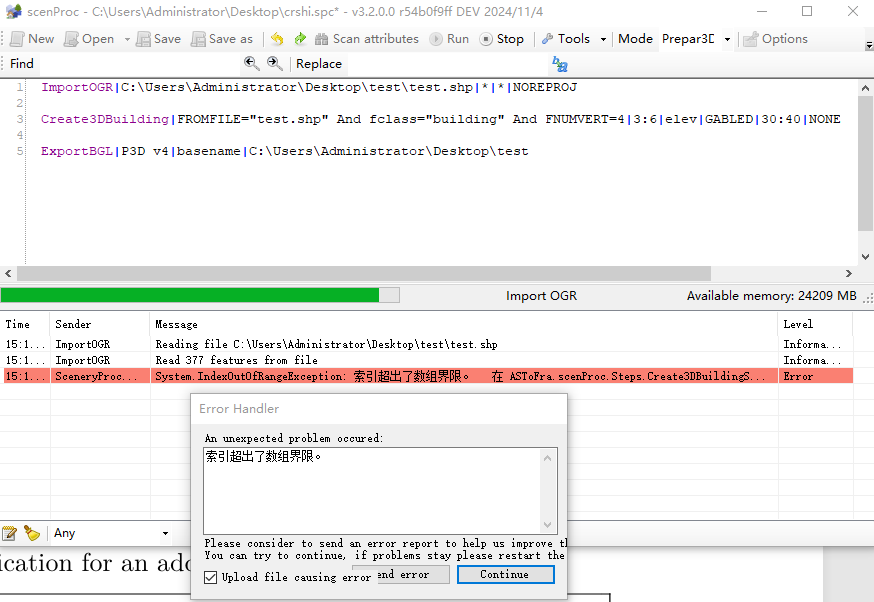

I get this error after using the new version.

Are you sure you downloaded a recent development release? Some of the bugs you reported were only fixed in the release a few days ago.

arno said:
Are you sure you downloaded a recent development release? Some of the bugs you reported were only fixed in the release a few days ago.
Click to expand...

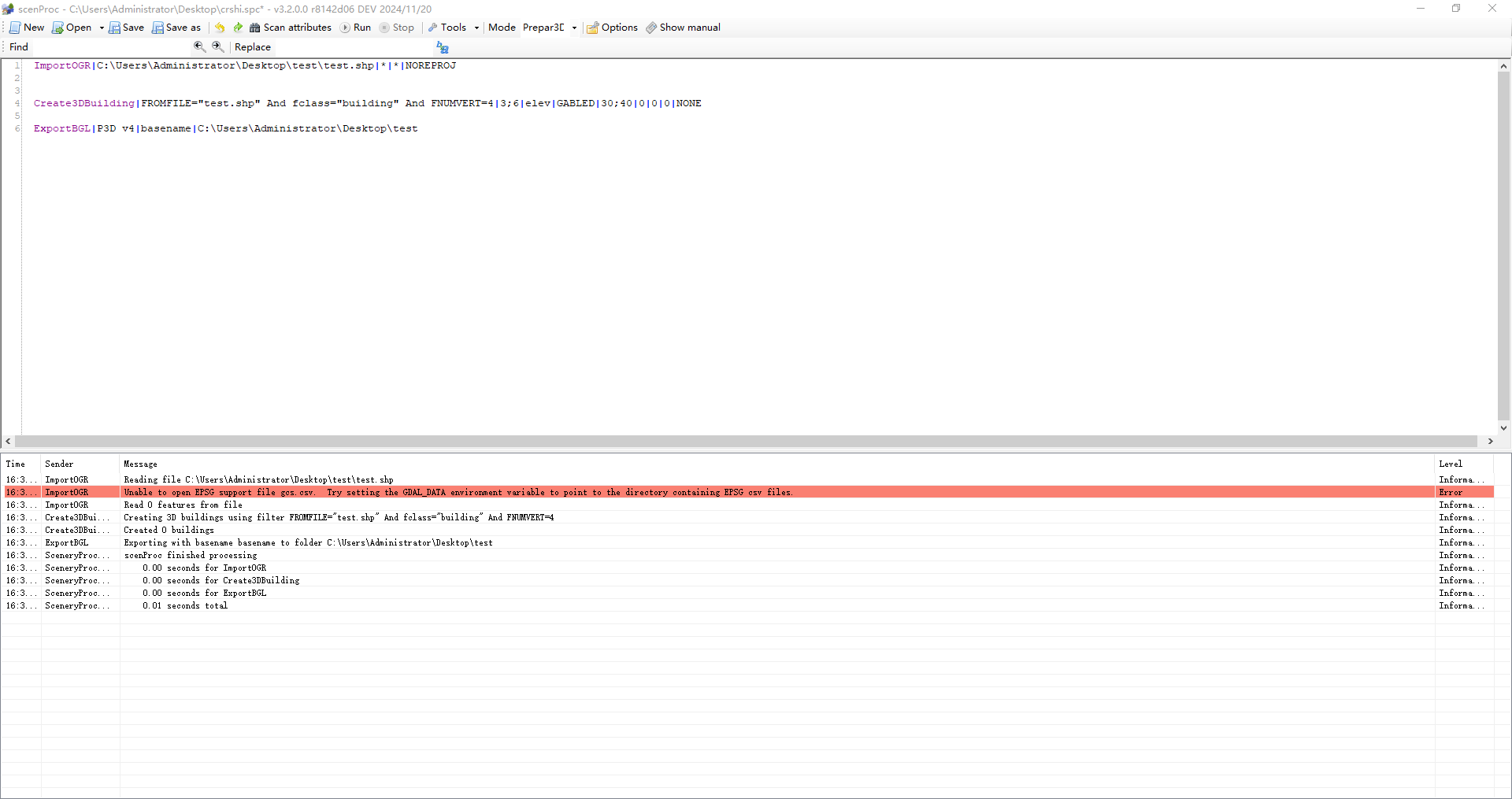

I just downloaded a new version, but when I ran it I got this error，How to correct this?

arno said:
Are you sure you downloaded a recent development release? Some of the bugs you reported were only fixed in the release a few days ago.
Click to expand...
hi，arno，Can you share a new version of yours? Because I just exported the AGN format file and also got the above error.

You can always get the latest version from this page:


The error message you get seems to indicate your scenProc installation might not be complete, the gdal_data folder seems to miss some files. Just download the release again should fix that.
