MSFS20 Working on Sid, Please help!

G

Gelomare

Messages
214
Country
unitedstates

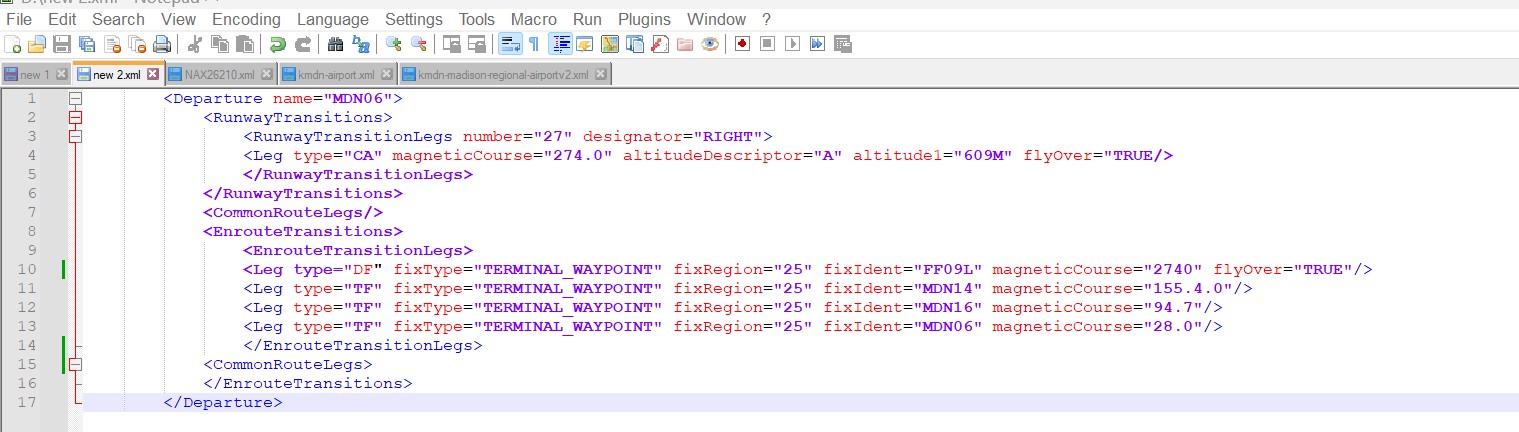

Jon or anyone that can help! I am working on adding custom SID to an airport project. When i add this section to the Airport XML file i get the error in shown in Snip new2. (Attached). I am also including the XML file i am trying to import I saved it as xml file using NiotePad++ Any help would be greatly appreciated. The ADE Log file helps me a birt, but i am stomped otherwise. Note: When the language is taken out of the Airport.xml file the project compiles successfully, without error.

Q1. Is it possible to add SIDs using ADE?
Q@ Does anyone have a recommendation Tutorial?

Thanks,
Gelomare
Screenshot 2023-04-15 103505.jpg


Attachments

Last edited:
Good Day Everyone, I was able to get the error corrected and write the custom SIDs using Oxygen XML Editor. Pretty neat tool. It allows the project XML file to be validated by using the SDK schema. I was able to get the compilation done by saving the Project XML file to the Project\Package Source\Data folder. I then opened ADE and the project. The first thing i did after opening the project was to run the build command. After Build, just copy project package to your community folder. Not sure how to do the SIDs through the ADE program itself yet. Am going to try the import XML option under the Approach Menu option on the Approach Page of ADE. At any rate, my SIDs and Approaches are both working and are mounted in the sim for usage when using the default navdata. Can see and use them also with LittleNAvMap as well. Attached is a snip of the coding used to create my custom SIDs.


Attachments

  • SIDs Coding Example.jpg
    SIDs Coding Example.jpg
    157.5 KB · Views: 157
Last edited:
