ADE ADE Version 1.79.7410 Dev is released. Supports P3D v5

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
This version is now avaiable from here: https://www.mediafire.com/file/i6xk38ghqjomykp/ade_current_dev.zip/file This is the same link as the earlier 1.79 dev.

This version has the following changes
  • Support for P3D v5
  • Removes support for P3D v2 and v3
  • Some minor bug fixed
INSTALLATION

Please do follow this information.
  • If you have an earlier version of 1.79 then please update it. Only create a new installation if this is the first time install for 1.79
  • If you are updating then it is highly recommended that you backup the existing installation. This zip contains a simple backup utility that will do this for you.
  • If you are creating a new installation please don't use the Settings Import function. Start clean
To update change the destination directory to the current 1.79 installation



If the installation does go wrong for any reason restore the previous 1.79.7401 installation and report the issue here


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
I will provide some notes on changes in this version as soon as I can.

Sloped Airports

There are properties in Airport, Apron, Taxipoint. Taxisign, Parking and Taxipath.

Airport



the sloped flag needs to be checked for sloped airports. My understanding is that rendering sloped airports is slower than non. They may have improved this

Apron

Three properties - altitude, flatten and SurfaceQuery


Taxi path

Flatten and SurfaceQuery



Taxi Point
Just Altitude



Parking

Altitude



Sign

Sign has the most new properties and they are accessed via a button on the property dialog




Last edited:
Messages
26
Country
italy
Hi Jon,
thanks for the update!
I have, however, one big error:

First one:
I've just open stock LIMC airport, set it sloped and removed the background airport polygon, when I compile I get the following error:

XML:
Compiler Errors Found. These were not identified by the Issue Manager. Please let us know
what the compiler error is so that we can improve the Issue Manager.

The compiler message is shown below

ScruffyDuck Scenery Design Engine Compiling
Using BglComp....


Parsing document: C:\MSFS\FS Design Tools\Airport Design Editor 179 Dev\!AdeTempWorkOnly\LIMC_ADEP5_RL.xml

INTERNAL COMPILER ERROR:  #C2033: XML Parse Error (line, column, error)

ERROR: 9556, 32, "12" violates enumeration constraint "NDB COURSE_TO_DIST COURSE_TO_ALT HEADING_TO_ALT MANUAL_TERMINATION TERMINAL_NDB TERMINAL_WAYPOINT VOR WAYPOINT RUNWAY LOCALIZER".

Impossible to analyze "fixType" with value "12".

INTERNAL COMPILER ERROR:  #C2950: Invalid fixType tag (12).
INTERNAL COMPILER ERROR:  #C2031: Failed element parse <Transition>
INTERNAL COMPILER ERROR:  #C2032: XML Parse Error!  Element tree follows:

ERROR: <FSData
ERROR:     version = 9.0
ERROR: >
ERROR:     <Airport
ERROR:         country = Italy
ERROR:         city = Milan
ERROR:         name = Malpensa
ERROR:         lat = 45.629999935627
ERROR:         lon = 8.72305557131767
ERROR:         alt = 234.086M
ERROR:         magvar = -1
ERROR:         trafficScalar = 0.7
ERROR:         airportTestRadius = 5000.0M
ERROR:         sloped = TRUE
ERROR:         ident = LIMC
ERROR:     >
ERROR:         <Approach
ERROR:             type = GPS
ERROR:             runway = 00
ERROR:             designator = NONE
ERROR:             suffix = D
ERROR:             gpsOverlay = TRUE
ERROR:             fixType = RUNWAY
ERROR:             fixRegion = LI
ERROR:             fixIdent = BLA5L
ERROR:             altitude = 1828.8M
ERROR:             heading = 0
ERROR:             missedAltitude = 0.0M
ERROR:         >
ERROR:             <Transition
ERROR:                 transitionType = FULL
ERROR:                 fixType = 12
ERROR:                 fixRegion = LI
ERROR:                 fixIdent = RW35L
ERROR:                 altitude = 353.568M
ERROR:             >
ERROR:

ERROR: 22080, 0, Validation failed.

INTERNAL COMPILER ERROR:  #C2430: Unrecoverable error parsing XML!
INTERNAL COMPILER ERROR:  #C2006: Parse failed  (0x80004005)
INTERNAL COMPILER ERROR:  #C2003: Failed to process file: C:\MSFS\FS Design Tools\Airport Design Editor 179 Dev\!AdeTempWorkOnly\LIMC_ADEP5_RL.xml

I reported only one of the many of this same error, I guess something went wrong with processing SID/STARS ?
I have no clue on that since I never used approach function.

There is also a minor error, ADE seems not to support the 8.33 Khz spacing that was introduced in P3D V5, this generate a minor report that can be fixed with the "fix errors" button, that however does not resolve the XML SID/STAR problem.

ADDENDUM #1: I tried to open some approaches in the approach mode, ADE tells me he cannot draw them, moreover, all "GPS" approaches are linked to "runway 00", which, obviously, is not a LIMC runway.

ADDENDUM #2: Deleting every SID/STAR from the approach mode made ADE compile the airport, might be that SID/STAR function is not yet implemented in ADE ?

Looking forward for help!
Thanks!

Last edited:

scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
Please post your project file here and also confirm what SDK version you are using


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
You are correct that ADE does not yet support the 8.33 Khz spacing


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
OK - I am getting the error you report. I will need to investigate this as it seems some elements may not be properly implemented

Messages
26
Country
italy
Please post your project file here and also confirm what SDK version you are using

SDK version is 5.0.21.34709

I've read you are getting the same report, I will avoid posting my AD4 file as it will not give the same error since approaches have been deleted.

Looking forward for a solution, I'am available if you need some testing.
Thanks again for your hard work, we much appreciate it!


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
I am looking at it now. It's not obvious, I may need to ask LM


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
OK it seems the SDK docs may not be up to date against the compiler schema

Schema

<xs:simpleType name="stFixType">
<xs:restriction base="xs:string">
<xs:enumeration value="NDB" />
<xs:enumeration value="COURSE_TO_DIST" />
<xs:enumeration value="COURSE_TO_ALT" />
<xs:enumeration value="HEADING_TO_ALT" />
<xs:enumeration value="MANUAL_TERMINATION" />
<xs:enumeration value="TERMINAL_NDB" />
<xs:enumeration value="TERMINAL_WAYPOINT" />
<xs:enumeration value="VOR" />
<xs:enumeration value="WAYPOINT" />
<xs:enumeration value="RUNWAY" />
<xs:enumeration value="LOCALIZER" />
</xs:restriction>
</xs:simpleType>

SDK Docs


NDB
TERMINAL_NDB
TERMINAL_WAYPOINT
VOR
WAYPOINT

I am checking with LM

Messages
3
Country
nigeria
Hello,
Am getting the following error when I try to load a stock airport. Am using the ADE version you posted above and SDK 5.0.21.34709. clean installation with no settings imported.

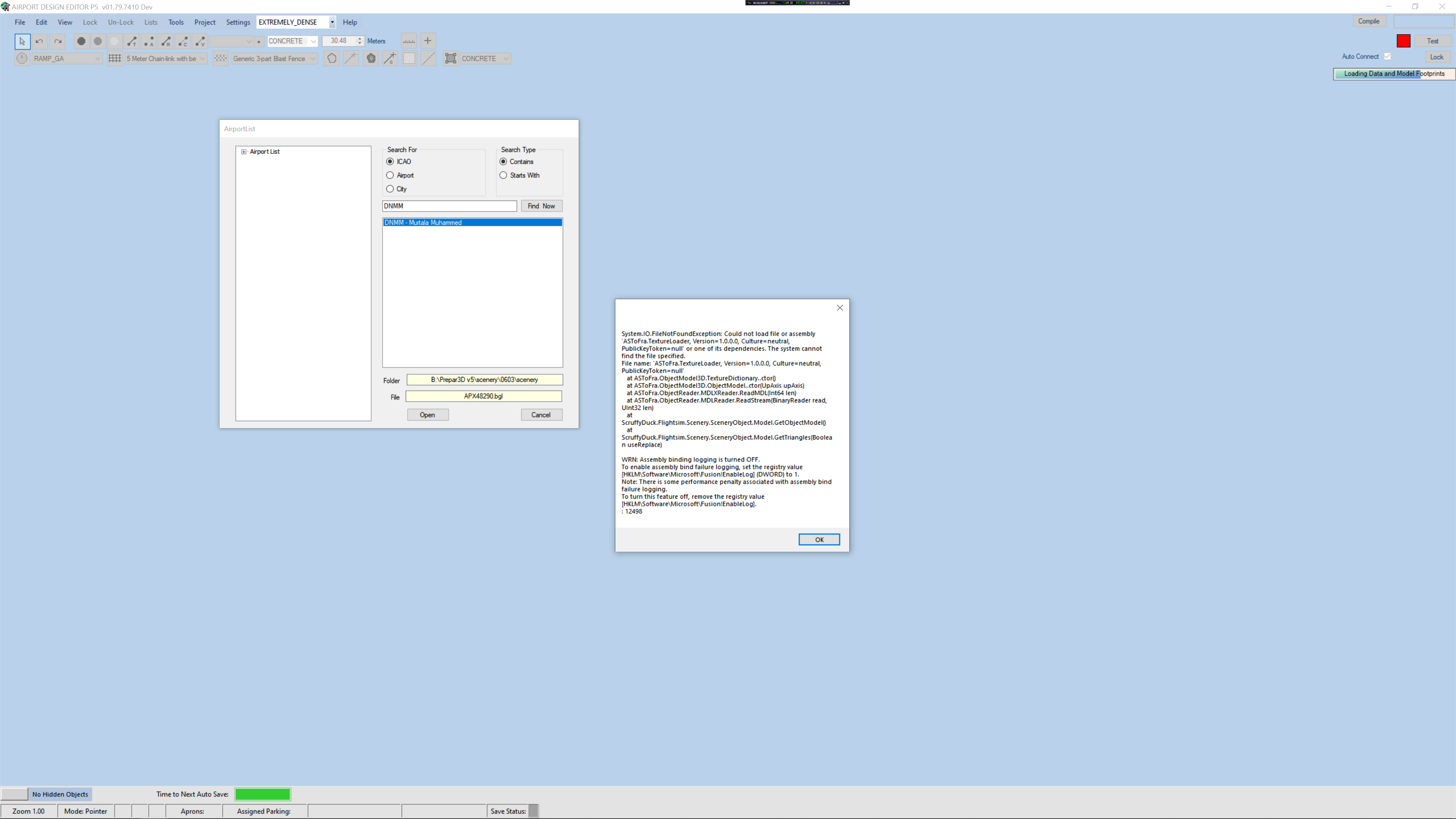

Desktop Screenshot 2020.04.16 - 12.20.34.15.png


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
thanks looks like a file is missing from the installer. I will try and fix it today


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
Hello,
Am getting the following error when I try to load a stock airport. Am using the ADE version you posted above and SDK 5.0.21.34709. clean installation with no settings imported.
View attachment 56648

This link contains files which should fix this error: https://www.mediafire.com/file/4fa58f95gpn3mml/179_7410_missing_files.zip/file

One or more of these may be missing from the 179_7410 installer. Make a backup of the 179_7410 installation then copy the files in the zip into the installation. This should fix the missing file issue - hopefully


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
You are welcome. I will update the main installer as soon @as I can

Messages
115
I have copied the said missing files which has stopped the error when loading stock airports, however ADE is getting freeze during loading when opening some stock airports, VTBS for one.

Messages
17
Country
brazil
I have copied the said missing files which has stopped the error when loading stock airports, however ADE is getting freeze during loading when opening some stock airports, VTBS for one.

Same here.

EDIT: Correction, it took a long while, but it opened the airport in the end.


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
34,081
Country
unitedkingdom
The slow load may be due to creating detailed footprints for new objects found in v5. We updated the database but probably did not find all of them. I will try and get an updated database in the next release. Meantime it is normal behavior and as objects are processed load times will improve to normal

Messages
115
I tried modifying one stock airport and update another afcad bgl of previous p3d version, both caused holes in the ground. I tried looking through xml and they had some taxiway points and parking at 0.0 altitude. Since this didn't cause any anomaly in p3d v4, I presume in v4 alt of 0.0 was taken as AGL while v5 is taking it msl and sinking it below ground. Manually changing these altitudes to airport elevation fixed the hole in airport. Interestingly directly using v4 afcad in v5 didnt cause any problems, but seem to be causing the to sim crash on approach.
