• Which the release of FS2020 we see an explosition of activity on the forun and of course we are very happy to see this. But having all questions about FS2020 in one forum becomes a bit messy. So therefore we would like to ask you all to use the following guidelines when posting your questions:

    • Tag FS2020 specific questions with the MSFS2020 tag.
    • Questions about making 3D assets can be posted in the 3D asset design forum. Either post them in the subforum of the modelling tool you use or in the general forum if they are general.
    • Questions about aircraft design can be posted in the Aircraft design forum
    • Questions about airport design can be posted in the FS2020 airport design forum. Once airport development tools have been updated for FS2020 you can post tool speciifc questions in the subforums of those tools as well of course.
    • Questions about terrain design can be posted in the FS2020 terrain design forum.
    • Questions about SimConnect can be posted in the SimConnect forum.

    Any other question that is not specific to an aspect of development or tool can be posted in the General chat forum.

    By following these guidelines we make sure that the forums remain easy to read for everybody and also that the right people can find your post to answer it.

MSFS Airport Resources

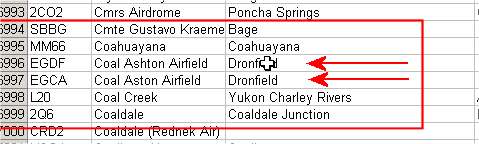

No wonder I had problems at Coal Aston :banghead:

They have it in twice (one with incorrect spelling:



Both are fictitious ICAOs.

Here's a set of spreadsheets (CSV, ODF, XLSX) comparing "source,ident,name,city,laty,lonx,altitude". I sorted it by laty, but can easily be resorted by a spreadsheet program. source is either World or MSFS.
AirportCompare.zip

You can quickly query airports and see if they exist in both the sim and the world. Asobo has done a decent job of locating runways, the World data not so much. You may need to use something like Google Earth to actually find the World airport, because the latitude and longitude may be a bit off from the actual location.

Hey Dick, $%^&* fantastic sheet of airport information. I have been digging and digging but unable to find the list of MSF airports...until I found this post...I had been trying to locate all airports/airfields in New Guinea, to do some bush flying...now we have sloped runways..but very tedious expanding all the airport/field dots on the MFS map. It took me a few seconds using your fantastic zip file to locate all the 'AY**' ICAO coded locations. I now need to find those with 3 letter IATA or local names like AG2588.
After the obvious AY**, looks like sorting by laty brings into the search the approx location.

Geoff

Yep. Sorting helps locate the actual runways. Glad it's helping you.

Thanks for the lists! Very useful indeed.

It looks like the import routine got a bit confused on those codes that look like scientific notation (e.g. 1E2), so here are those with the corrected code:
Code:
0E8    Crownpoint
0E0    Moriarty
0E9    Corydon
3E0    Miami-Roberts Co
1E2    Terlingua Ranch
2E2    Sharpe's Strip
2E3    Cluck Ranch
7E3    Mills
1E4    Palo Duro
2E5    Dell City Mun
6E5    Wilder
2E6    Groton Mun
1E7    Buffalo
2E7    McLean-Gray Co
3E7    Pronger Bros Ranch
4E7    Ellendale Muni
1E8    Moores
2E8    Cackleberry
4E8    Richardton
1E9    Maples
5E9    Packer

Hi Dick, many thanks for your efforts. However, I can see EDDI (Berlin Tempelhof) in your list that is decommissioned for years now and in MSFS neither selectable nor visible as airport or POI in its Map. Okay, when flying over Tempelhof you can see the runways being marked as closed. When comparing the data with active airports I'm not able pinpointing the flag making it invisible. After trying to get the same effect with ADE for EDDT (Tegel) that is closed as well, I had to delete rwy-starts, taxiways, parking spots, frequencies, and whatever else. It is shown then in LNM like its former neighbor, but still appears in the MSFS map and causes a CTD when zooming in.

Up to now I didn't find a way hiding Tegel the same way. The more general switches in the "Delete" sections doesn't seem to have any effect.

This has been a while...
Updated airport comparison between World data and MSFS:
WorldAirportsSU11.zip

I added a column of type from the world data... you can look for closed or heliports or balloonports! Do a search for 'glider' and many names contain glider and many of those are marked as closed.
I like to select the lat and long, copy, and then paste that in Google Earth's search box.

Last edited:
Added iata codes and Local codes. Updated airport comparison between World data and MSFS:
WorldAirportsSU12.zip

The csv file is read only (in case you mess up one of the spreadsheets) ;)

Here's a list of modelLib BGLs in the sim (Steam, basic sim plus free updates found in Official).


Attachments

  • WU13 objects.zip
    11.2 KB · Views: 110
