Attatching objects In MCX using model hierarchy editor bug/issues

B

bozza72

Messages
67
Country
vietnam
So im trying to replace some winglets on a model,

Ive attathced my new winglets in the correct spot but as the model has wing flex I need to attatch them using the model hierarchy.

So i find the part of the wing closest to my new winglets and drag the new part down the model hierarchy untill it attatches to where i want it.
The problem is that when i do this the new winglets then change psoition and randomly ends up far away from where i need them placed.

I have a friend who has the same problem as me so i have no idea what to do to fix this.
Any help would be great cheers

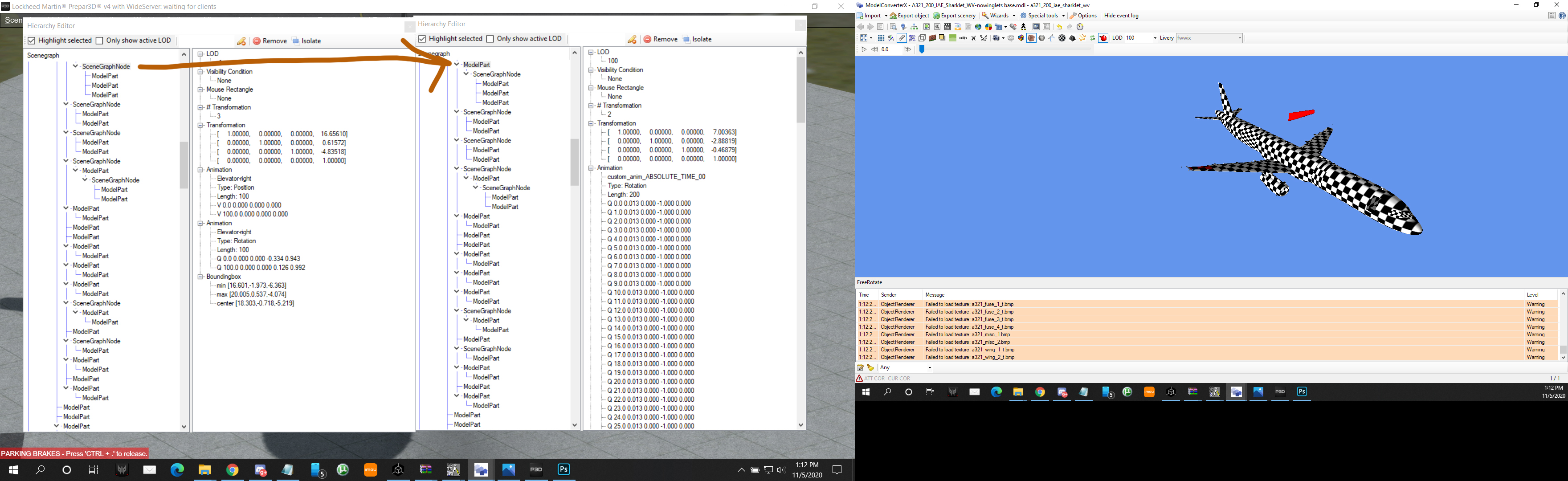

So you can see in pic 1 i have selected the new part and its where i want it

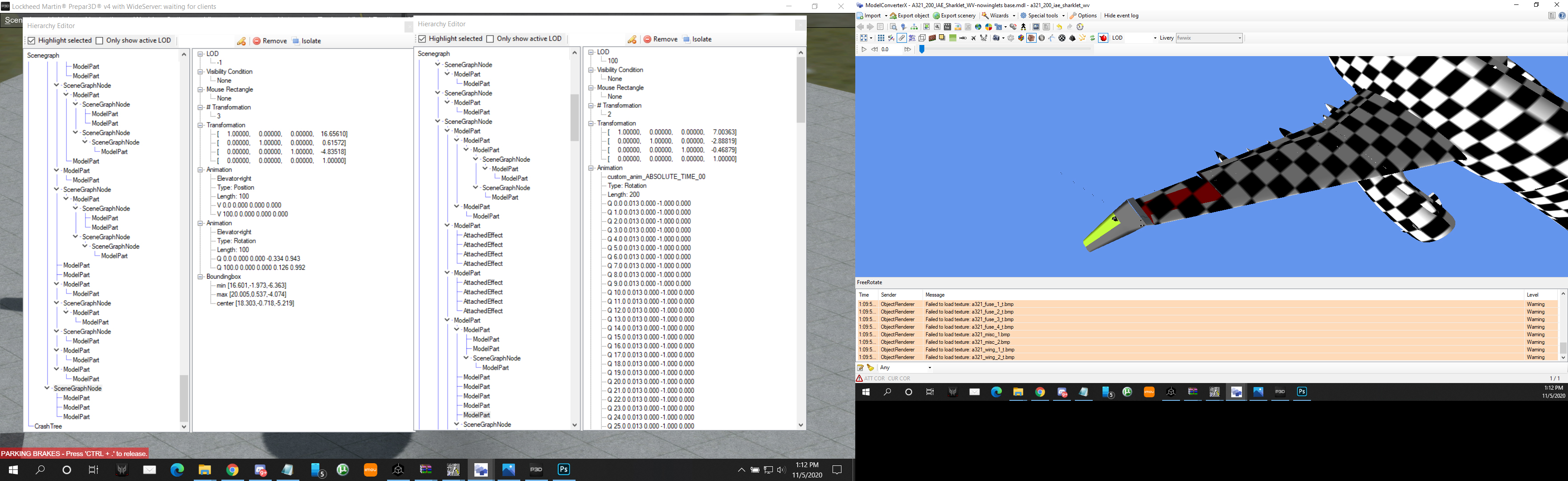

In pic 2 is the part i want to attatch it to
in 3 is where the new part ends up after attatching via the model hierarchy


Attachments

  • 1.jpg
    1.2 MB · Views: 171
  • 2.jpg
    1.7 MB · Views: 189
  • 3.jpg
    1.6 MB · Views: 161
Hi,

You best put the winglet part in the origin and then move it to the right parent node in the hierarchy. It will then take the offsets of the parent. And afterwards you can fine tune the placement with local transforms.

If they are not too far away you could edit the Transformation section in the Hierarchy Editor (right click the word Transformation/Edit Transformation).

If they are far away,I think you need to move the new winglet parts to the origin (0,0,0). You can Import them and use the technique above to do that. Then Export them again (or you can do this in your 3D CAD program if you are creating these objects). Then Merge them (they will be at the 0,0,0 point of the plane) and drag them to the correct node in the Hierarchy Editor. They may jump to the wingtips. If they don't, you 'll need to rework their origin point again until they end up on the wingtips. Once they are close, you can edit the Transformation of the winglets in the Hierarchy Editor to move them into place.
