MSFS Cannot create project from stock

Messages
2
Country
malta
When I try to create a project from stock, I'm getting the error below. I have FS2020 installed from Steam. Not sure if I'm misunderstanding something.

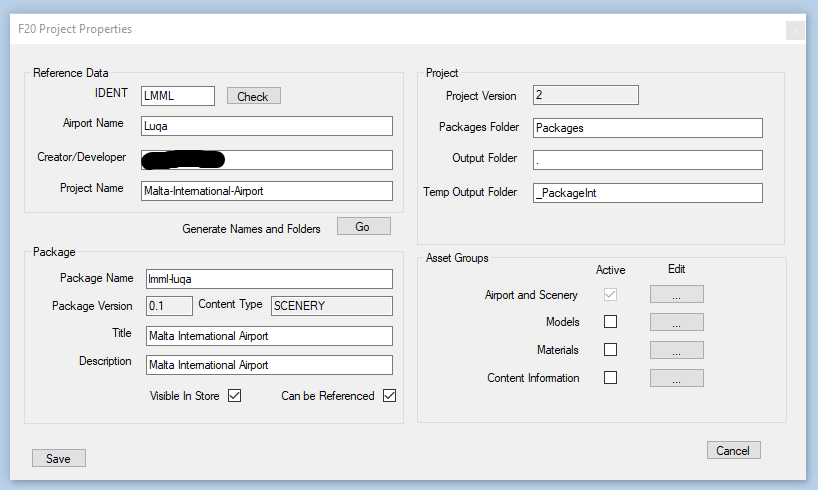

These are the project properties I'm inputting:

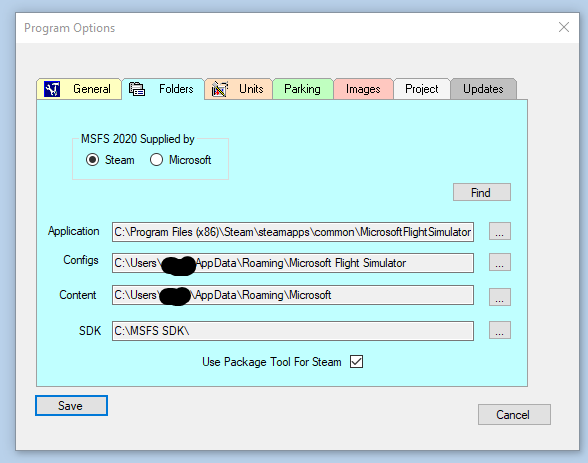

Paths:


Below are the exception details:

System.IO.FileNotFoundException: Could not find file 'D:\MSFS Designs\alpha_11\F20\xml\work.xml'.
File name: 'D:\MSFS Designs\alpha_11\F20\xml\work.xml'
at System.IO.__Error.WinIOError(Int32 errorCode, String maybeFullPath)
at System.IO.FileStream.Init(String path, FileMode mode, FileAccess access, Int32 rights, Boolean useRights, FileShare share, Int32 bufferSize, FileOptions options, SECURITY_ATTRIBUTES secAttrs, String msgPath, Boolean bFromProxy, Boolean useLongPath, Boolean checkHost)
at System.IO.FileStream..ctor(String path, FileMode mode, FileAccess access, FileShare share, Int32 bufferSize, FileOptions options, String msgPath, Boolean bFromProxy, Boolean useLongPath, Boolean checkHost)
at System.IO.StreamReader..ctor(String path, Encoding encoding, Boolean detectEncodingFromByteOrderMarks, Int32 bufferSize, Boolean checkHost)
at System.IO.File.InternalReadAllText(String path, Encoding encoding, Boolean checkHost)
at System.IO.File.ReadAllText(String path)
at ScruffyDuck.AirportDesignEditor.MainForm.DeserializeXml(String path)
at ScruffyDuck.AirportDesignEditor.MainForm.OpenXmlFileByName(String path, String ident)
at ScruffyDuck.AirportDesignEditor.MainForm.NewProjectFromStockMenuItemClick(Object sender, EventArgs e)
at System.Windows.Forms.ToolStripItem.RaiseEvent(Object key, EventArgs e)
at System.Windows.Forms.ToolStripMenuItem.OnClick(EventArgs e)
at System.Windows.Forms.ToolStripItem.HandleClick(EventArgs e)
at System.Windows.Forms.ToolStripItem.HandleMouseUp(MouseEventArgs e)
at System.Windows.Forms.ToolStripItem.FireEventInteractive(EventArgs e, ToolStripItemEventType met)
at System.Windows.Forms.ToolStripItem.FireEvent(EventArgs e, ToolStripItemEventType met)
at System.Windows.Forms.ToolStrip.OnMouseUp(MouseEventArgs mea)
at System.Windows.Forms.ToolStripDropDown.OnMouseUp(MouseEventArgs mea)
at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
at System.Windows.Forms.Control.WndProc(Message& m)
at System.Windows.Forms.ScrollableControl.WndProc(Message& m)
at System.Windows.Forms.ToolStrip.WndProc(Message& m)
at System.Windows.Forms.ToolStripDropDown.WndProc(Message& m)
at System.Windows.Forms.Control.ControlNativeWindow.OnMessage(Message& m)
at System.Windows.Forms.Control.ControlNativeWindow.WndProc(Message& m)
at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

Thank you and well done on the software!


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
It is likely that you are not pointing to the Contents folder properly It is the folder that contains the official and community folders. If you know where that is then you can enter it in the content box. There is an issue for me with Steam users at the moment since I do not have it and cannot test. However there are other Steam users who can probably help. But, as I say search for the Official and Community Folders and their parent is the one you want.

Messages
2
Country
malta
It is likely that you are not pointing to the Contents folder properly It is the folder that contains the official and community folders. If you know where that is then you can enter it in the content box. There is an issue for me with Steam users at the moment since I do not have it and cannot test. However there are other Steam users who can probably help. But, as I say search for the Official and Community Folders and their parent is the one you want.

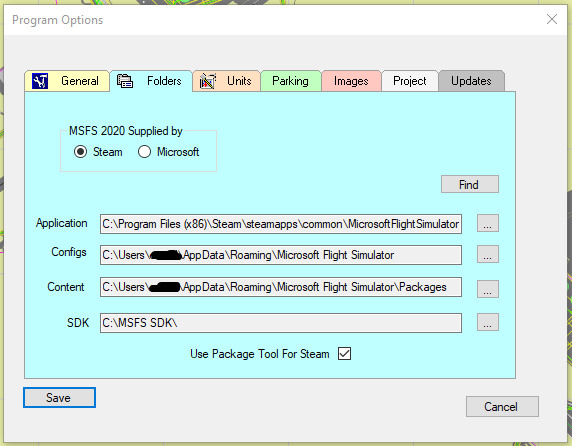

Thank you for your prompt reply! Issue seems to be fixed :) These are my updated paths now:



Seems like by default, Content path is set to /AppData/Roaming/Microsoft and not /AppData/Roaming/Microsoft Flight Simulator/Packages, which is the parent folder for Official and Community folders. You might want to fix this for steam users or write it down in the documentation. I believe the same thing for the Configs path.

Thank you!


scruffyduck

Administrator
Staff member
FSDevConf team
Resource contributor
Messages
33,822
Country
unitedkingdom
Sadly there seems to be more than path, I am hoping to get the Steam edition soon which means I can test for myself.
